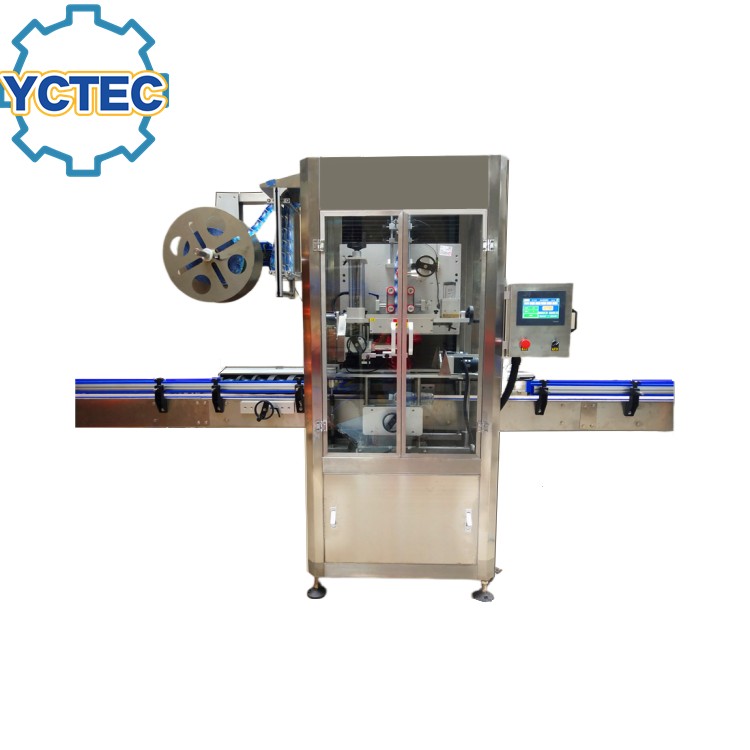

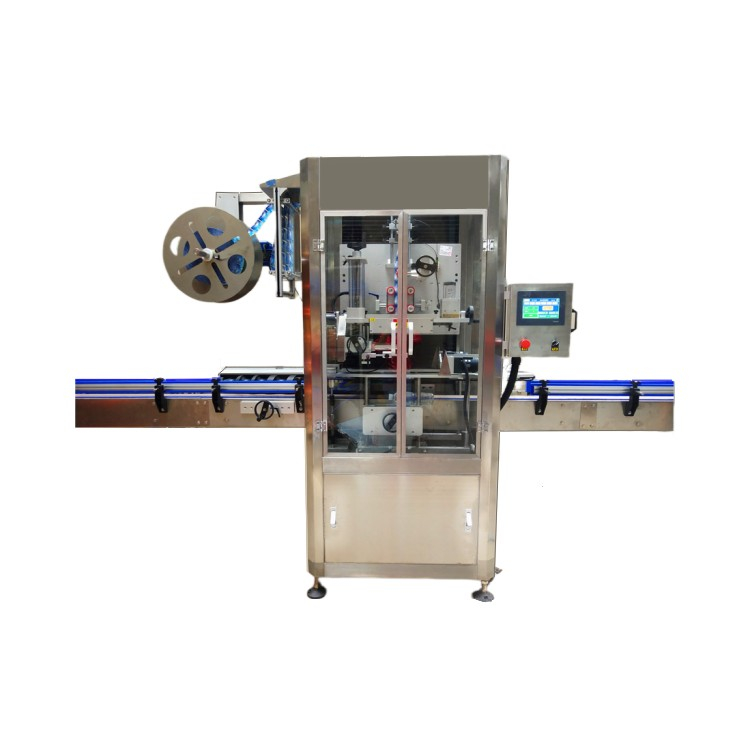

The YCT-100 automatic shrink sleeve labeling machine is designed for manufacturers who need consistent, full-body or partial sleeve labeling on round and slightly tapered bottles. Whether you are bottling fruit juice, tea, dairy, purified water, condiments, beer, sports drinks, or cosmetic liquids, the YCT-100 delivers stable sleeve placement at 100 bottles per minute, with photoelectric sensing and servo-driven cutting that eliminates missed labels and skewed sleeves.
Manufactured by Dongguan Yucheng Machinery Technology Co., Ltd. (YCT Machinery) — a CE-certified packaging equipment maker with 15+ years of export experience to 50+ countries — the YCT-100 is supplied with bilingual HMI (English / Chinese, customizable), voltage adaptation for global markets, and modular integration with our filling, capping, and conveying lines.
The YCT-100 uses photoelectric signal sensing combined with a Mitsubishi PLC processor to coordinate every stage of the sleeving cycle:
Bottle detection — A Panasonic photoelectric sensor detects each incoming bottle on the conveyor; the PLC issues a sleeving command within 1 second.
Sleeve feeding — The label film unwinds from the reel and is guided down the central guide pillar.

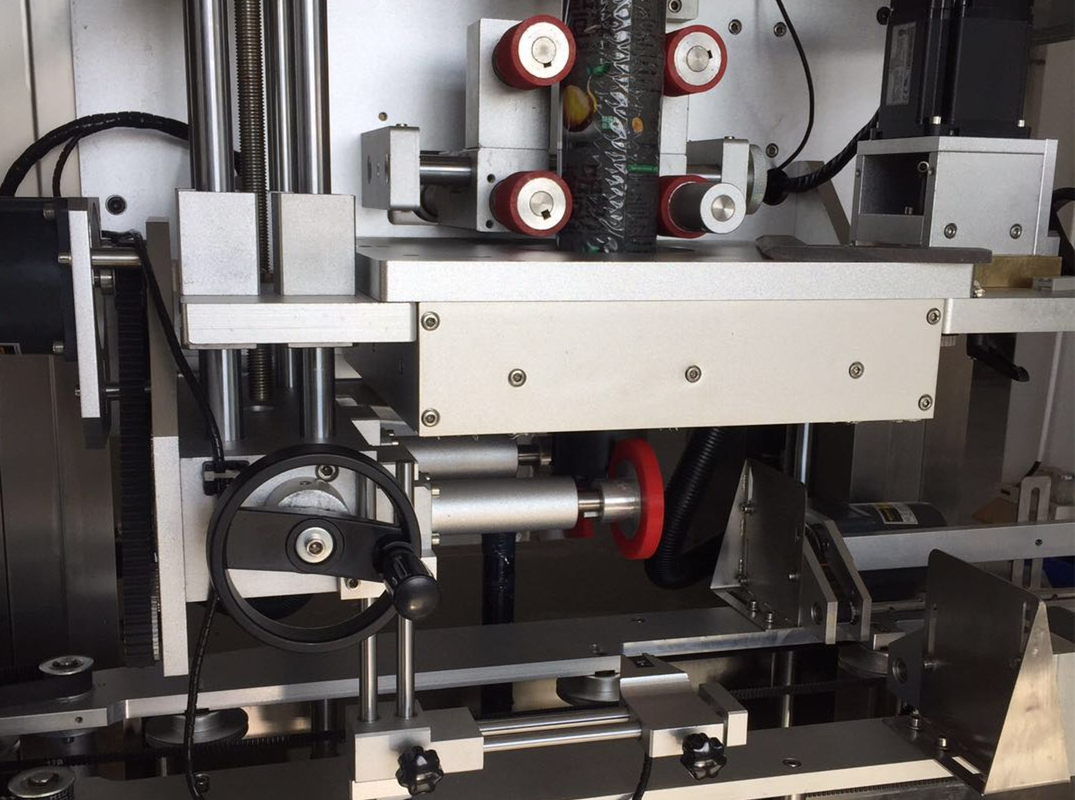

Precision cutting — The servo-driven cutter head trims each sleeve to the programmed length (fixed-length, transparent-gap, or color-mark registration).

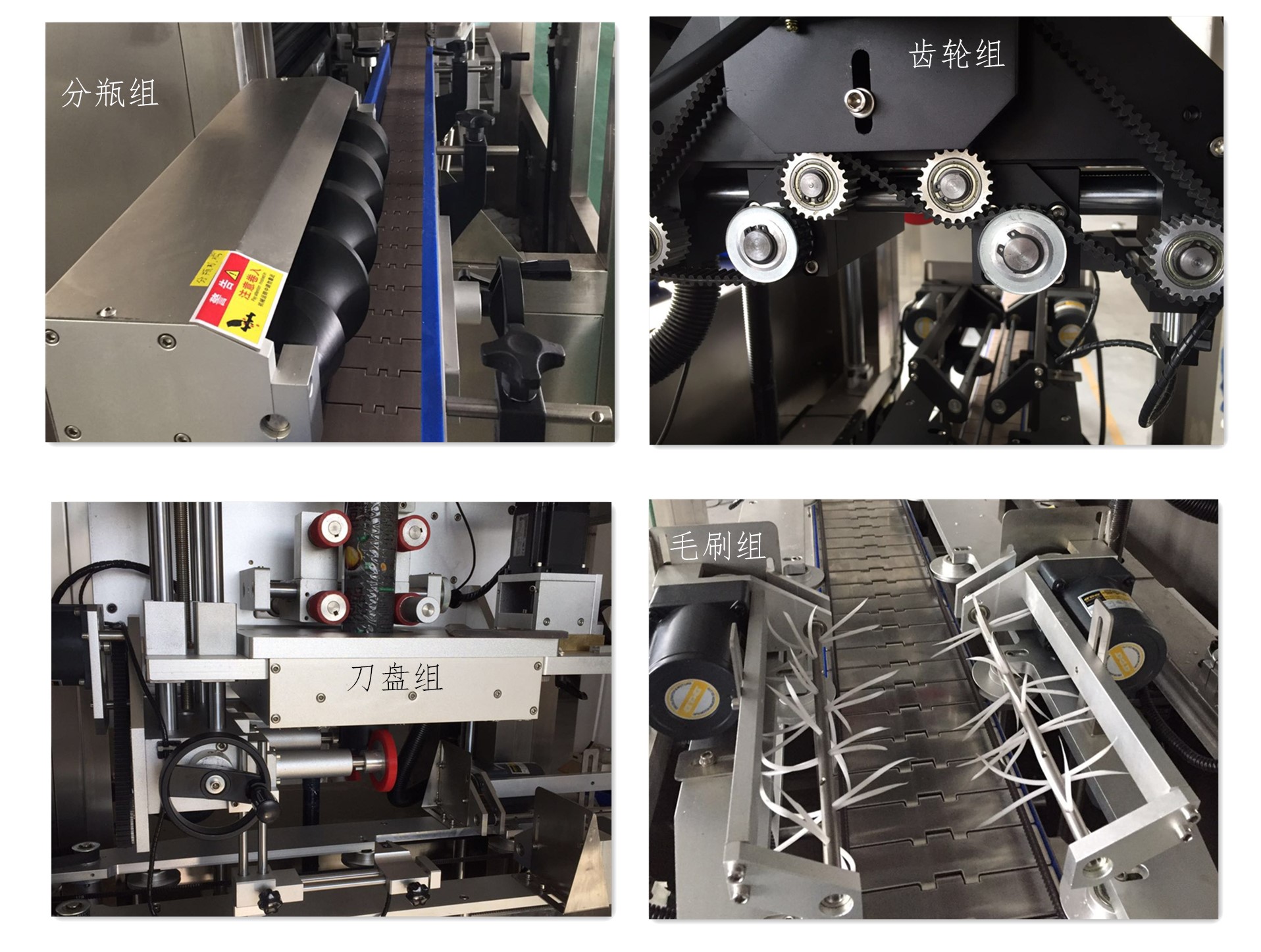

Sleeve placement — Brush-down and bottle-carrying groups apply the sleeve onto the bottle body, neck, or cap as configured.
Heat shrinking — Downstream steam or electric shrink tunnel locks the sleeve onto the container with a smooth, wrinkle-free finish.
This architecture allows the YCT-100 to perform full-body wrap, top-to-bottom body sleeving, neck sleeving, and tamper-evident cap banding — all on the same base machine, with quick changeover parts.
Parameter | YCT-100 Specification |
Model | YCT-100 |
Labeling Speed | Up to 100 bottles/min |
Applicable Bottle Diameter | Φ38 mm – Φ120 mm |
Sleeve Label Length | 30 mm – 220 mm |
Sleeve Label Thickness | 0.03 mm – 0.13 mm (PVC / PET / OPS / PETG) |
Inner Paper Tube Diameter | 5" – 10" (freely adjustable) |
Power Supply | 220V, 2.0 kW (110V / 380V / 415V on request) |
Machine Dimensions | 2,100 mm (L) × 900 mm (W) × 2,000 mm (H) |
Net Weight | 280 kg |
Frame Material | 304 stainless steel (food-grade, corrosion-resistant) |
Control System | Mitsubishi PLC + Kunlun Tongtai touchscreen HMI |
Servo System | Schneider (France) servo motor + servo driver |
Photoelectric Sensors | Panasonic (Japan) |
Bearings & Belts | NSK bearings (Japan), GATES drive belts (USA) |
Heat Shrink Option | Steam tunnel or electric heating tunnel |
Certification | CE Certified, ISO 9001:2015 |
Every YCT-100 is built with industrial-grade, internationally recognized components — not generic substitutes. This is what gives our customers in the EU, US, Southeast Asia, and the Middle East an average MTBF (Mean Time Between Failures) above 4,000 hours in real-world 16-hour-shift production.
304# stainless steel frame — corrosion-resistant, food-safe, complies with FDA contact-surface requirements for beverage and dairy lines.
Mitsubishi PLC (Japan) — accurate signal processing, fewer missed labels, easier diagnostics.
Schneider servo (France) — precise cutting and consistent sleeve length, even at sustained 100 BPM.
Panasonic photoelectric sensors (Japan) — reliable bottle and color-mark detection.
NSK bearings + GATES belts — long service life, low maintenance, globally available spares.
Bilingual HMI (English / Chinese) — additional language interfaces available on request for Russian, Spanish, Arabic, Vietnamese, and Thai markets.
The YCT-100 has been deployed in production lines across the following industries:
Industry | Typical Applications |
Beverage | Fruit juice, tea drinks, sports drinks, purified water, beer, RTD cocktails |
Dairy | Milk, yogurt drinks, flavored milk bottles |
Condiments & Sauces | Soy sauce, vinegar, cooking oil, salad dressing |
Cosmetics & Personal Care | Shampoo, body wash, lotion bottles, serum |
Daily Chemicals | Dishwashing liquid, detergent, household cleaners |
Pharmaceutical | Tamper-evident cap banding for syrups and oral liquids |
The machine handles PET, HDPE, glass, and aluminum bottles with diameters from Ø38 mm to Ø120 mm. For non-standard bottle shapes, we provide custom center guide pillars and cutter heads to ensure a clean fit.
A common question from buyers is which shrink method to pair with the YCT-100. Here's our engineering team's recommendation:
Shrink Method | Best For | Pros | Considerations |

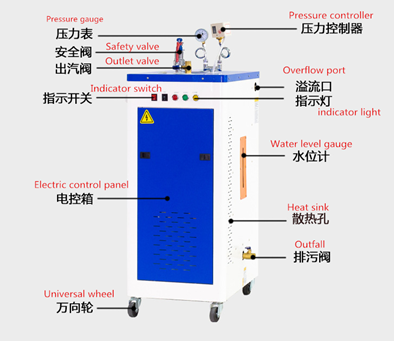

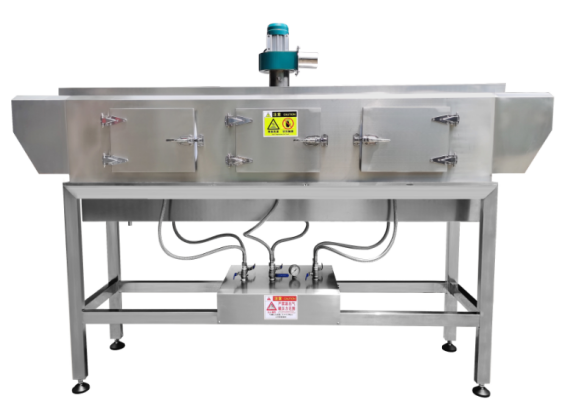

Steam Tunnel | Beverages, water, dairy, juice (PET bottles) | Smoother, glossier label appearance; lower demands on label material and shrink rate | Requires steam supply or built-in boiler; not suitable for moisture-sensitive products |
Electric Heat Tunnel | Glass bottles, metal containers, powders, biscuits, dry goods | Keeps product environment dry; simpler installation, lower utility setup | Requires labels with higher shrink rate and better material; slightly higher energy draw |
Tell us your product and bottle material — our engineers will recommend the right shrink tunnel and label film specification with your quote.
15+ years of manufacturing experience — integrating R&D, production, sales, and after-sales service under one roof in Dongguan, China.
Exported to Southeast Asia, Russia, Japan, South Korea, Vietnam, Cambodia, Thailand, Myanmar, Nepal, Ethiopia, and the EU/US markets.
CE Certified · ISO 9001:2015 — SGS / TÜV third-party inspection reports available on request.
Free sample test — send us your bottles and sleeves; we'll record a test video before shipment.
Same-day technical response — WhatsApp and video-call support from our engineering team.
Spare parts shipped within 48 hours — and on-site commissioning available in 30+ countries through our partner integrator network.
NDA available on request — for confidential product launches and OEM projects.
The YCT-100 is delivered pre-assembled, pre-tested, and packaged in export-grade wooden crates. Upon arrival, our team supports installation through:
Step-by-step video commissioning (English / Chinese / customer language on request)
Remote video call setup with our engineers
On-site commissioning in 30+ countries via local partners
Operator training covering bottle changeover, guide pillar replacement, label film loading, photoelectric calibration, and routine maintenance
For voltage-unstable regions, we strongly recommend installing a voltage stabilizer to protect the PLC and servo electronics — this is included in our pre-installation checklist sent to every buyer.
One YCT-100 base machine can be configured for:
Different bottle diameters (Ø38–Ø120 mm) via interchangeable center guide pillars
Different sleeve materials — PVC, PET, OPS, PETG
Different sleeve cutting modes — transparent-gap photoelectric, color-mark registration, or fixed-length cutting for unprinted film
Voltage adaptation — 110V / 220V / 380V / 415V
HMI language — English, Chinese, Russian, Spanish, Arabic, and more
Integration — connect upstream filling/capping or downstream conveyor/case packer modules
Pricing depends on your configuration — base machine, shrink tunnel type (steam vs. electric), voltage, language, and any custom guide pillars or cutters. Contact us with your bottle sample and target speed for a full quote within 24 hours. Most buyers receive a complete sleeving line quote (sleever + shrink tunnel + conveyor) within one business day.
Standard lead time is 25–35 working days after deposit, depending on customization. We ship FOB Shenzhen / Guangzhou by default, with CIF, DDP, and air freight options available. Export packaging is wooden crate, fumigation-treated, suitable for sea freight to any port worldwide.
Yes — for bottle diameters between Ø38 mm and Ø120 mm, we customize the center guide pillar and cutter head to match your bottle profile. Send us a sample bottle (or a 3D drawing) and our engineering team will confirm compatibility before quoting. Free sample testing is available — we record and send you a test video before shipment.
Yes. The YCT-100 handles sleeve film thicknesses from 0.03 mm to 0.13 mm, covering common PVC, PET, OPS, and PETG sleeves. We will also recommend the right shrink rate, color, and material based on your bottle and shrink tunnel type.
Choose a steam tunnel if you're sleeving PET beverage bottles, juice, water, dairy, or any product where a glossy, smooth sleeve appearance is critical.
Choose an electric tunnel if you're sleeving glass, metal, powder, or dry goods where moisture is a concern.
Our engineers will recommend the right tunnel based on your product, bottle material, sleeve film, and factory layout.
The YCT-100 is CE certified and manufactured under ISO 9001:2015. SGS and TÜV third-party inspection reports are available on request. Food-contact components use 304 stainless steel (316 available on request) and comply with FDA contact-surface standards.
Yes. We provide:
Free remote commissioning via video call (same-day response on WhatsApp)
On-site commissioning through partner integrators in 30+ countries
24-month warranty on the main machine (excluding wear parts)
Spare parts shipped within 48 hours from our Dongguan warehouse
Lifetime technical support from our engineering team

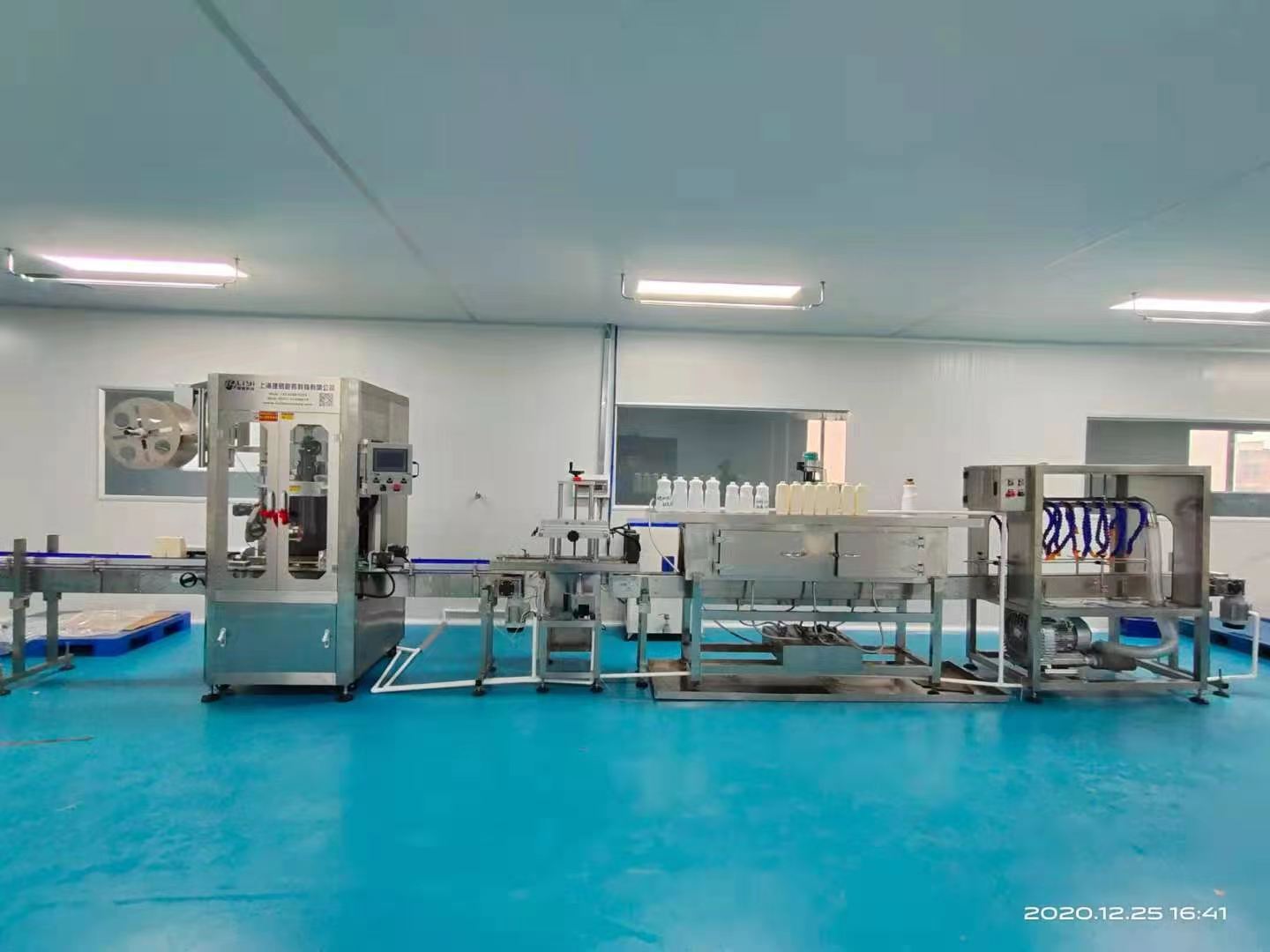

Yes — the YCT-100 is modular by design. We supply it with conveyor sections that connect directly to upstream fillers/cappers and downstream packers. If you'd like a complete turnkey line, we can quote the labeling + filling + capping + conveying + packing system as one project.
The YCT-100 carries a 24-month main-machine warranty (wear parts excluded). Long-term customers in EU and US markets report an average MTBF above 4,000 hours in 16-hour-shift production. Routine maintenance — bearing lubrication, photoelectric cleaning, cutter sharpening — is detailed in the operator manual we ship with every machine.
Absolutely. We routinely customize:
Machine color and logo (OEM branding available)
HMI language — English, Chinese, Russian, Spanish, Arabic, Vietnamese, Thai, and more
Voltage — 110V / 220V / 380V / 415V
Sleeve cutting mode — gap mark, color mark, or fixed-length
Tell us your bottle dimensions, sleeve material, and target speed — we'll send you a tailored quote, a free sample-test video, and a recommended line configuration within 24 hours.
