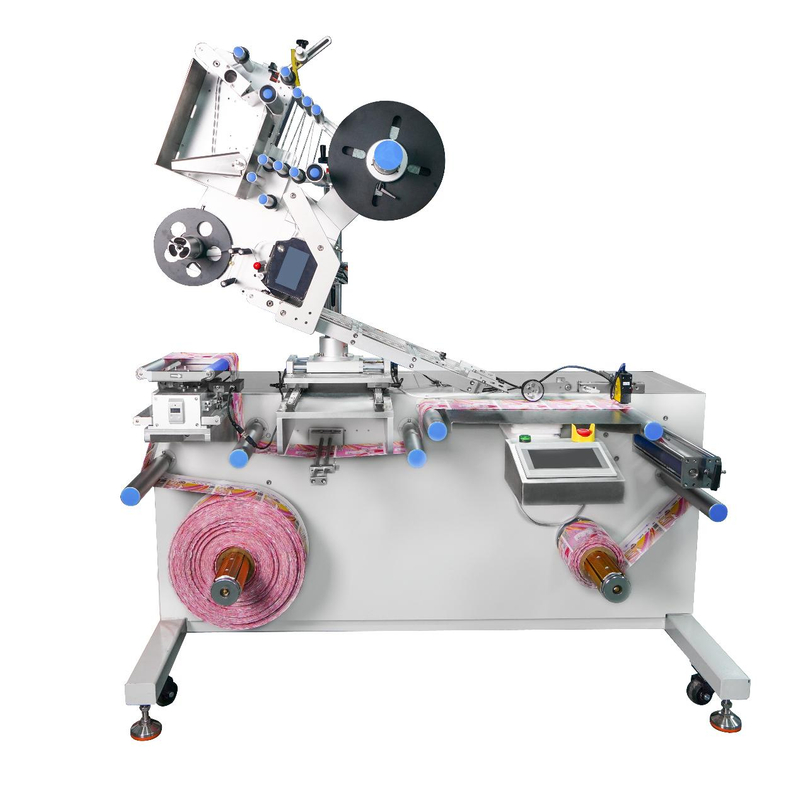

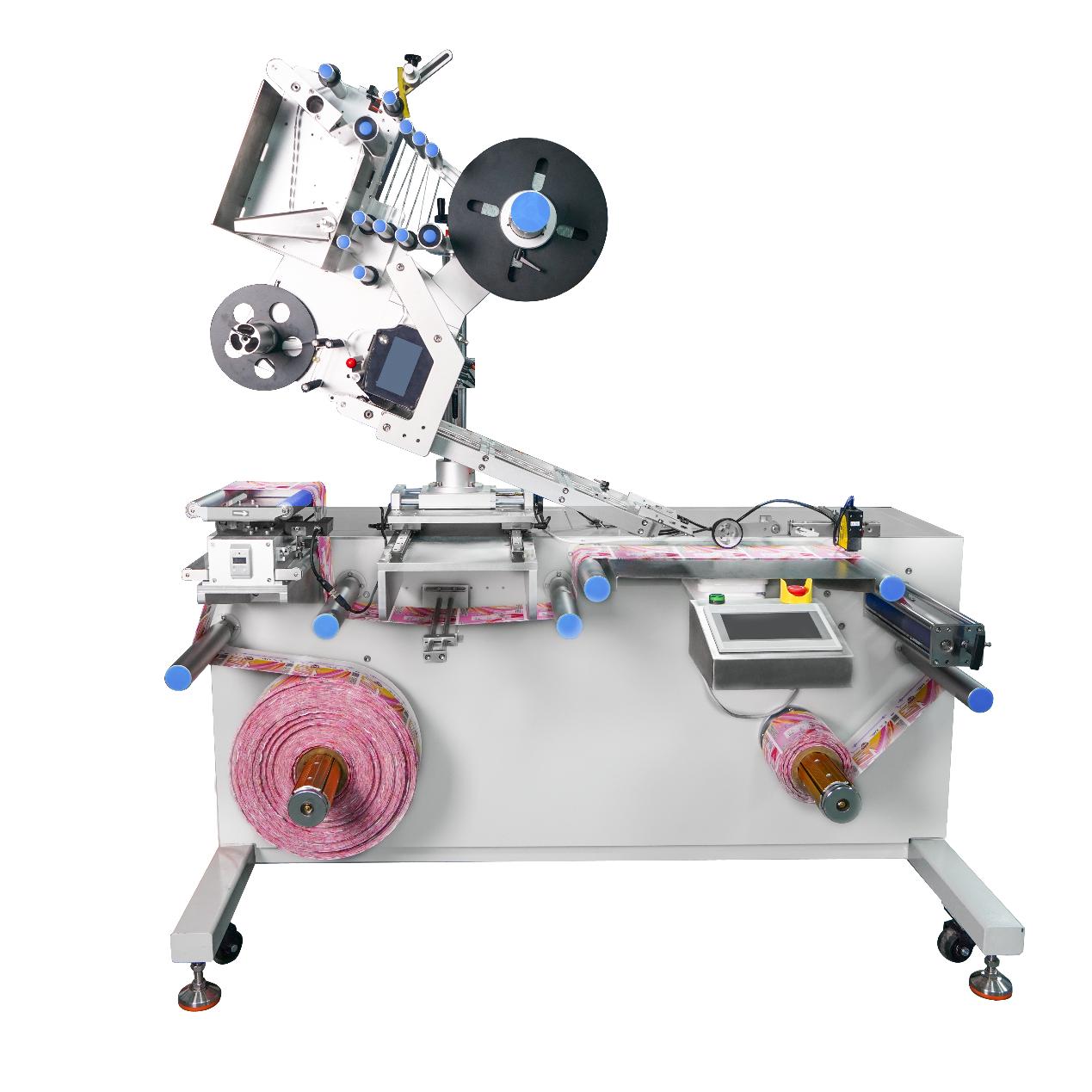

The YCT-70 High-Speed Rewinding Labeling Machine is a fully automated roll-to-roll label processing system that combines large-roll unwinding, precision label application, and small-roll rewinding into a single, continuous workflow. It is purpose-built for manufacturers and label converters who need to apply labels — including RFID inlays, anti-counterfeit stickers, and decorative films — onto web materials at industrial speeds without interrupting production flow.
Unlike conventional bottle labelers, the YCT-70 operates on reel-to-reel (web) material, making it the preferred solution for:
Label converters producing finished label rolls for downstream packaging lines
Pharmaceutical companies applying serialization or RFID tags to label webs
Apparel and retail brands embedding RFID inlays into clothing tags at scale
Printing houses adding variable-data or anti-counterfeit overlays to pre-printed rolls
Parameter | Specification |
Labeling Accuracy | ±0.5mm – 2mm |
Labeling Speed | 200 – 1,200 pcs/min |
Max Product Outer Diameter | 500mm |
Max Product Width | 350mm |
Label Width | 10 – 160mm |
Label Length | 10 – 250mm |
Inner Label Core Diameter | 76mm |
Outer Label Roll Diameter | 300mm / 400mm |
Roll Width Options | 80mm / 160mm / 250mm |
Machine Dimensions (L×W×H) | 1,650 × 1,100 × 1,800mm |
Power | 4,850W / 220V / 50Hz |
Machine Weight | Approx. 300kg |
The YCT-70 uses servo motors paired with photoelectric sensors for real-time correction and positioning throughout the entire web path. This dual-control architecture maintains label placement accuracy even at speeds exceeding 100 meters per minute, ensuring consistent tension, aligned winding, and zero label drift — critical for RFID inlay embedding and anti-counterfeit label application where positional tolerance is non-negotiable.
The machine is specifically engineered for RFID inlay and tag labeling on high-speed webs — a capability demanded by apparel, logistics, and pharmaceutical serialization projects. The servo-controlled dispensing head synchronizes with web speed to embed RFID tags at precise intervals without signal damage or placement error.
The modular sticker head design with integrated circuit control allows the YCT-70 to be deployed across different production environments with minimal installation expertise. The one-click startup interface eliminates complex commissioning, making it suitable for operators across skill levels.
The entire process — from large-roll unwinding through tensioning, label application, and small-roll rewinding — is fully automated. This eliminates manual handling between stages, reduces labor costs, minimizes human error, and enables continuous 24/7 operation on high-volume lines.
The human-machine interface (HMI) allows operators to set labeling position, spacing, and quantity with precision. Critically, the system stores multiple product parameter formulas — when switching between product types or label formats, a single recall eliminates re-calibration time, dramatically reducing changeover downtime on multi-SKU production lines.

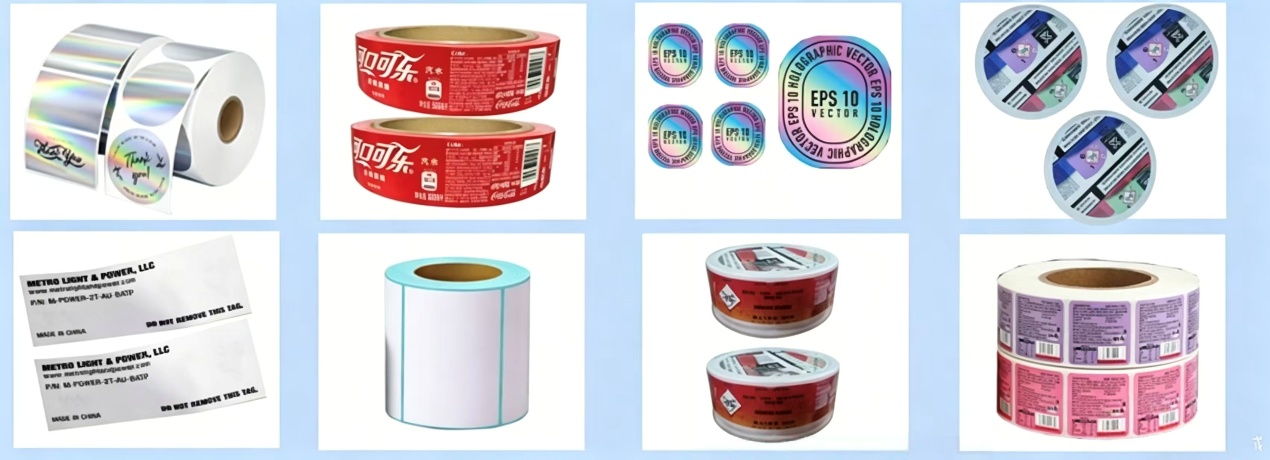

The YCT-70 handles a broad range of label and web materials:
Copperplate paper (gloss and matte)
PET and PVC films
Anti-counterfeit labels (holographic, void, security)
RFID inlay webs
Transparent and frosted films
Rolls with outer diameters up to 400mm and widths up to 250mm
The main body and all material-contact components are fabricated from steel plate and hard-anodized aluminum — providing structural rigidity, corrosion resistance, and long service life under continuous industrial operation.
The YCT-70 is deployed across a wide range of industries where roll-to-roll label processing is required:
Industry | Typical Application |
Pharmaceutical | Serialization label rolls, RFID patient tracking tags, anti-counterfeit overlays |
Food & Beverage | Pre-applied label rolls for high-speed filling lines, date code label webs |
Apparel & Retail | RFID clothing tags, hang tag label rolls, size/barcode label webs |
Printing & Converting | Finished label roll production, multi-layer label lamination |
Cosmetics | Decorative film label rolls, holographic sticker webs |
Daily Chemicals | Pre-labeled roll stock for automated bottle labeling lines |
Logistics | Barcode and QR code label roll preparation for warehouse automation |
YCTAUTO (Dongguan Yucheng Machinery Technology Co., Ltd.) is an ISO 9001:2015 certified manufacturer with 15+ years of experience in labeling and filling automation. Every YCT-70 unit undergoes 100% function testing before shipment and is supported by full component traceability documentation.
✅ CE Certified — ready for EU, UK, and global regulated markets
✅ Schneider / Mitsubishi / Panasonic electrical components for MTBF > 4,000 hours
✅ OEM & Custom Configurations — voltage adaptation (110V/220V/380V/415V), custom roll widths, multi-language HMI
✅ 50+ Countries Served — Europe, North America, Southeast Asia, Middle East, South America
✅ Free Remote Commissioning — video call support by YCTAUTO engineers at startup
✅ Spare Parts Shipped Within 48 Hours — minimizing downtime risk for overseas buyers
Over 60% of YCTAUTO orders include custom configurations. For the YCT-70, common OEM requests include:
Custom roll width and diameter ranges beyond standard specs
RFID antenna integration and read/write verification modules
Vision inspection systems for label placement QC
Multi-head configurations for simultaneous dual-web processing
Voltage and frequency adaptation for local power standards
White-label / private-brand machine options for distributors and integrators
Custom documentation packages (CE declaration, material certificates, FAT reports)
Contact our engineering team with your roll specifications, label type, and production speed target — we will respond with a tailored configuration proposal within 24 hours.
Q1: What is the difference between the YCT-70 and a standard bottle labeling machine?The YCT-70 is a reel-to-reel (web) labeling machine, not a container labeler. It processes continuous roll material — unwinding a large roll, applying labels at precise intervals, and rewinding into finished small rolls. Standard bottle labelers apply labels to individual containers on a conveyor. The YCT-70 is used by label converters, RFID integrators, and manufacturers who need to pre-label roll stock before downstream packaging.
Q2: Can the YCT-70 handle RFID inlay labels at full speed?Yes. The YCT-70 is specifically designed for RFID tag application on high-speed webs. The servo-driven dispensing system synchronizes with web speed to place RFID inlays at precise intervals up to 1,200 pcs/min without signal damage or positional error. Optional RFID read/write verification modules are available as a custom add-on.
Q3: What label materials are compatible with the YCT-70?The machine handles copperplate paper, PET, PVC, polypropylene films, holographic anti-counterfeit labels, transparent films, and RFID inlay webs. The correction mechanism automatically adjusts for different material thicknesses and stiffness levels. Contact us with your specific material spec sheet for compatibility confirmation.
Q4: How quickly can operators switch between different label formats or product types?The HMI stores multiple product parameter formulas. Switching between formats requires a single recall from the formula library — no manual re-calibration. This makes the YCT-70 suitable for multi-SKU production environments where frequent changeovers are required.
Q5: What is the minimum order quantity, and do you offer OEM/private label options?There is no minimum order quantity for standard YCT-70 units. OEM and private-label configurations (custom branding, documentation, and specifications) are available — typically starting from 3–5 units depending on customization scope. Contact us to discuss your OEM requirements.
Q6: What is the lead time and how is the machine shipped?Standard YCT-70 units ship in 25–35 business days. Custom configurations: 35–60 days. Machines are shipped FOB Shenzhen/Guangzhou by default (CIF/DDP available on request), wooden-crate packed with desiccant protection for sea freight. Full export documentation is provided.
Q7: What after-sales support is available for overseas buyers?YCTAUTO provides three support tiers: (1) Free remote video commissioning by our engineers via WhatsApp/video call; (2) Detailed installation manuals and tutorial videos in EN/ES/FR; (3) On-site engineer dispatch for orders above USD 30,000 (visa + travel costs apply). Spare parts are shipped within 48 hours of request.
Q8: Is the YCT-70 CE certified? What other certifications apply?Yes — the YCT-70 is CE certified for EU and regulated markets. Our quality system is ISO 9001:2015 certified. SGS/TÜV third-party inspection reports are available on request. Material-contact components use food-grade 304/316 stainless steel where applicable.
Q9: Can the machine be customized for non-standard roll widths or special integration requirements?Yes. YCTAUTO engineers can configure the YCT-70 for non-standard roll widths, special tension control requirements, inline vision inspection, or integration with upstream slitting or downstream packaging equipment. Provide your technical requirements and we will assess feasibility within 24 hours.
Q10: What is the price of the YCT-70?Pricing depends on configuration — standard units, RFID-enabled versions, and custom-integrated systems are priced differently. Send us your roll specifications, label type, required speed, and any OEM requirements for an exact quotation. Our engineering team responds within 24 hours.
