A leaking bottle on a retailer's shelf is one of the most damaging product failures a manufacturer can experience. It destroys brand trust, triggers recalls, and in regulated industries like pharmaceuticals or food, can result in serious legal consequences.
The root cause is almost always the same: the wrong capping machine, incorrectly specified, or running outside its designed parameters.
Capping is the final seal between your product and the outside world. Yet it's one of the most overlooked decisions in packaging line design — often treated as an afterthought after the filling and labeling equipment has already been selected.
This guide changes that. Based on YCT Machinery's experience supplying integrated packaging lines to manufacturers in 50+ countries, here is everything you need to know to choose the right capping machine for your production line.
Before evaluating any machine, you need to know exactly what type of closure you are applying. Cap type determines machine type — there is no universal capper that handles everything well.
The most common closure in food, beverage, cosmetics, and chemicals. Screw caps require controlled rotational torque applied while the bottle is held stationary. Key variables:
Number of threads (single-start vs. multi-start)
Cap diameter (typically 18mm–120mm)
Required torque range (measured in N·cm or in-lb)
Child-resistant (CRC) vs. standard — CRC caps require a push-down-and-turn mechanism that demands a different capping head design
Used for products like eye drops, nasal sprays, and some cosmetic jars. These caps are pressed vertically onto the container neck without rotation. The machine applies a precise downward force — too little and the cap doesn't seal; too much and the container deforms.
Common in personal care, cleaning products, and industrial chemicals. These require orientation before application — the pump or trigger nozzle must face a specific direction. This adds a cap-orientation step that standard cappers cannot perform without a dedicated feeding system.
Used in wine, spirits, and some pharmaceutical vials. These require compression insertion rather than rotation or pressing. Typically handled by specialized corking or stoppering machines.
Not a capping machine in the traditional sense, but often integrated into the capping station. An induction sealer bonds a foil liner to the bottle neck after the cap is applied, creating a tamper-evident hermetic seal. Required for many food, pharmaceutical, and chemical products.
Once you've confirmed your cap type, evaluate every machine against these five core specifications:
For screw-cap applications, torque is everything. Under-torquing causes leaks. Over-torquing strips threads, cracks caps, or deforms containers — especially with lightweight PET bottles.
Industry benchmarks:
Cosmetics / personal care: ±5% torque consistency
Food & beverage: ±5–8%
Pharmaceuticals: ±3–5% (often validated and documented)
Modern servo-driven capping heads maintain torque consistency far better than clutch-based systems. If your product requires documented torque validation (common in pharma), servo systems are the only practical choice.
Calculate your required speed using the same formula as your filling machine:
$$\text{Required BPM} = \frac{\text{Daily Target (bottles)}}{\text{Operating Hours} \times 60 \times \text{Efficiency Rate}}$$
Your capping machine must match or slightly exceed your filling machine's output speed. A bottleneck at the capping station backs up the entire line. Always build in a 20–25% speed buffer above your calculated requirement.
Every capping machine has a minimum and maximum cap diameter it can handle. If your product range spans multiple cap sizes (e.g., 28mm travel-size and 89mm family-size), confirm the machine covers the full range — or plan for a changeover procedure between SKUs.
The capping process applies both rotational and downward force to the container. If the bottle isn't held firmly, it rotates with the cap — resulting in cross-threading, incomplete sealing, or container damage.
Look for:
Adjustable bottle grippers or neck-holding conveyors for round bottles
Side-belt clamping systems for tall, narrow containers prone to tipping
Starwheel indexing for high-speed inline systems requiring precise positioning
A capping machine is only as fast as its cap supply. The cap feeding system — how caps are sorted, oriented, and delivered to the capping head — is often the limiting factor in overall line speed.
Options:
Vibratory bowl feeder: Standard for most screw caps and press-on caps. Sorts and orients caps automatically.

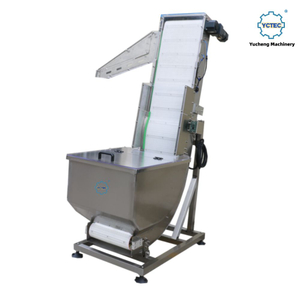

Cap elevator / sorter: Feeds bulk caps into the bowl from a hopper, reducing manual refill frequency. YCT's Automatic Cap Sorter & Elevator integrates directly with inline capping stations.
Manual cap placement: Only viable for very low-speed operations (under 20 BPM) or irregular cap shapes that automated feeders cannot handle reliably.
Machine Type | Best For | Torque Control | Speed | Typical Industries |

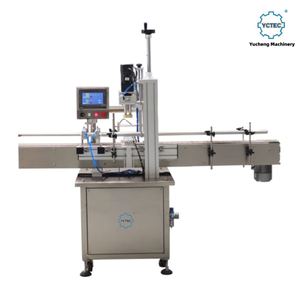

Inline Screw Capper | Standard threaded caps, medium–high speed | ±5% (clutch) / ±3% (servo) | 20–120 BPM | Food, beverage, cosmetics, chemicals |
Rotary Screw Capper | High-speed, multi-head screw capping | ±3–5% | 60–300 BPM | Beverage, pharma, large-scale FMCG |
Press-On Capper | Snap caps, flip-tops, eye drops | Force-controlled | 20–80 BPM | Pharma, cosmetics, personal care |
Chuck Capper | Precise torque-critical applications | ±2–3% | 10–60 BPM | Pharma, nutraceuticals, specialty food |
Spindle Capper | High-speed continuous screw capping | ±5–8% | 40–200 BPM | Water, juice, household chemicals |
2-in-1 Fill & Cap | Space-constrained lines, medium speed | ±5% | 10–40 BPM | Cosmetics, chemicals, small-batch food |

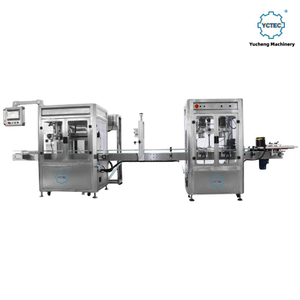

YCT's YCT-GG-02 Piston Tracking Filler Capper combines piston filling and screw capping in a single inline unit — ideal for manufacturers who need to minimize floor space without sacrificing throughput.
The capping station sits between your filling machine and your labeling machine. Poor integration at either interface creates the two most common packaging line problems: cap jams backing up into the filler, and unstable capped bottles causing label misalignment downstream.
Conveyor speed must be synchronized — the capper must accept bottles at the exact rate the filler releases them
Bottle spacing must be consistent — irregular gaps cause the cap feeder to misfire or the capping head to miss
Wet or slippery bottles (common after liquid filling) must be handled by the conveyor design to prevent tipping
Capped bottles must exit the capper in a stable, upright orientation
Cap height variation (from inconsistent torque) can cause label placement errors on top-label machines
For products with pump or trigger caps, the orientation of the cap must be consistent before entering the labeler
Every YCT capping module shares the same PLC architecture and conveyor interface as YCT's filling machines and labeling machines. Whether you're building a complete turnkey line or adding a capper to an existing YCT system, integration is engineered in — not bolted on afterward.
Bottle Unscrambler
↓
Filling Machine ←── [YCT Liquid/Paste Filler]
↓
Capping Machine ←── [YCT Inline Screw Capper + Cap Sorter]
↓
Labeling Machine ←── [YCT Round Bottle / Side / Top-Bottom Labeler]
↓
Coding / Date Marking
↓
Checkweigher / Vision Inspection
↓
Carton Packing / PalletizingPlanning your line as a complete system — rather than sourcing each machine independently — eliminates the most common integration problems and reduces commissioning time significantly.
For manufacturers supplying to regulated markets (EU, US, Australia, Japan), torque validation is not optional — it's a documented requirement for many product categories.
What torque validation involves:
Application torque — the torque applied by the machine during capping (controlled by the machine)
Removal torque — the torque required by the end user to open the cap (tested on finished product samples)
Target torque range — defined by your cap supplier and container manufacturer based on closure system specifications
Why machines fail torque validation:
Clutch-based capping heads wear over time, causing torque drift
Temperature variations in the production environment affect cap liner compression
Inconsistent bottle neck dimensions (from the container supplier) cause variation in seating depth
Best practice: Run torque testing on finished product samples at the start of every production shift, after every changeover, and every 2 hours during extended runs. Document results. For pharmaceutical applications, this documentation is part of your batch record.
Servo-driven capping heads with closed-loop torque feedback are the only reliable solution for applications requiring tight torque windows (±3% or better).
Cost Category | What to Evaluate |
Purchase price | Machine only, or including cap feeder, conveyor section, and integration? |
Cap feeder | Bowl feeder + elevator included, or quoted separately? |
Changeover tooling | Cost of additional chuck sets or gripper sets for multiple cap sizes |
Wear parts | Capping spindles, clutch pads, gripper inserts — replacement frequency and cost |
Downtime cost | MTBF data from real customers; cost of a 1-hour stoppage at your production rate |
Torque drift maintenance | Clutch systems require periodic recalibration; servo systems are self-correcting |
Spare parts lead time | Critical parts available locally, or 4–6 week lead time from China? |
A practical example:
A manufacturer running 40 BPM, 16 hours/day, 250 days/year produces approximately 9.6 million bottles annually. A capping machine that causes 30 minutes of unplanned downtime per week costs roughly 120,000 bottles per year in lost output — at a typical FMCG margin, that's a significant number. Investing in a higher-quality machine with documented MTBF data pays for itself quickly.
Before signing a purchase order, get clear answers to these questions:
"What is the torque accuracy spec, and is it clutch-based or servo-driven?"
Servo = better long-term consistency. Clutch = lower cost, but requires more maintenance.
"Can you show me this machine running my specific cap type and container at my target speed?"
Request a video or live demo. A confident supplier will have this available.
"What is the changeover time between my cap sizes, and what tooling is required?"
Get a specific answer in minutes, not "it's easy."
"What are the electrical component brands inside the machine?"
Schneider, Mitsubishi, Siemens, Panasonic, Omron — internationally supported brands matter for long-term maintenance.
"What is the MTBF reported by your existing customers in my industry?"
Ask for real data from comparable applications.
"Is the cap feeder included, and what is the cap refill interval at my target speed?"
A cap bowl that needs refilling every 10 minutes disrupts your line. Understand the full system.
"How do you support torque validation documentation for regulated markets?"
If you supply to EU, US, or pharmaceutical markets, this is non-negotiable.
Q: What is the difference between a spindle capper and a chuck capper?
A: A spindle capper uses rotating discs to apply torque continuously as the bottle passes through — fast and suitable for high-volume lines, but with less precise torque control. A chuck capper grips each cap individually and applies a precise, measured torque — slower, but significantly more accurate. For pharmaceutical or premium cosmetic applications where torque documentation is required, chuck cappers are the standard choice.
Q: Can one capping machine handle both screw caps and press-on caps?
A: Not typically with the same capping head. Screw caps require rotational torque; press-on caps require vertical force. Some machines offer interchangeable heads for different closure types, but changeover takes time. If you run both cap types regularly, evaluate whether two dedicated machines or a flexible system with changeover tooling is more cost-effective for your schedule.
Q: How do I prevent cap cross-threading on my production line?
A: Cross-threading is usually caused by cap misalignment before the capping head engages. Solutions include: (1) a cap pre-alignment chute that ensures caps are seated squarely before torque is applied; (2) a torque-limiting clutch or servo that stops if resistance exceeds the expected profile (indicating a cross-thread); (3) consistent bottle neck dimensions from your container supplier. If cross-threading is a recurring problem, it's worth auditing your container quality first.
Q: What stainless steel grade should capping machine components be made from?
A: For food, beverage, and pharmaceutical applications, product-contact components should be 304 stainless steel minimum. For applications involving corrosive products (acids, bleach-based cleaners), 316 stainless steel is recommended. Non-contact structural components are typically carbon steel with powder coating or anodized aluminum.
Q: How do I integrate a capping machine with my existing filling line from a different supplier?
A: The key parameters are: conveyor height (must match), conveyor speed (must synchronize), bottle spacing (must be consistent), and PLC communication protocol (Modbus, Profibus, or hardwired I/O signals). Provide your existing line's technical drawings and PLC specifications to the capping machine supplier before ordering. YCT's engineering team handles cross-brand integration projects regularly.
Q: Do you offer a 2-in-1 filling and capping machine?
A: Yes. The YCT-GG-02 combines piston tracking filling and screw capping in a single inline unit, handling containers from small cosmetic bottles to larger household product containers. It's ideal for manufacturers with limited floor space or those building a new line who want to minimize the number of equipment suppliers.
Before requesting a quote, have these answers ready:
Cap type (screw / press-on / pump / trigger / cork / induction seal)
Cap diameter range (minimum and maximum mm)
Required torque range (N·cm or in-lb) — get this from your cap supplier
Torque accuracy requirement (±3% pharma / ±5% cosmetics / ±8% general)
Target production speed (BPM)
Container type (round / square / oval / irregular; material: PET / glass / HDPE)
Container height and neck diameter range
Cap feeding method (bulk hopper / manual tray / automated elevator)
Integration requirements (existing filler brand, conveyor height, PLC protocol)
Regulatory requirements (CE, FDA, GMP, torque documentation)
Available floor space (L × W × H)
Power supply (voltage, phase, frequency)
Budget range and target lead time
The right capping machine is the one that matches your closure type, your torque requirements, your production speed, and your line integration needs — not just the one with the lowest price.
At Dongguan Yucheng Machinery Technology Co., Ltd. (YCT Machinery), our engineering team reviews your complete production requirements before recommending a configuration. We design capping solutions as part of a complete line — not as isolated machines.
Send us your cap samples, container specs, and target speed. We'll recommend the right capping solution within 24 hours.
