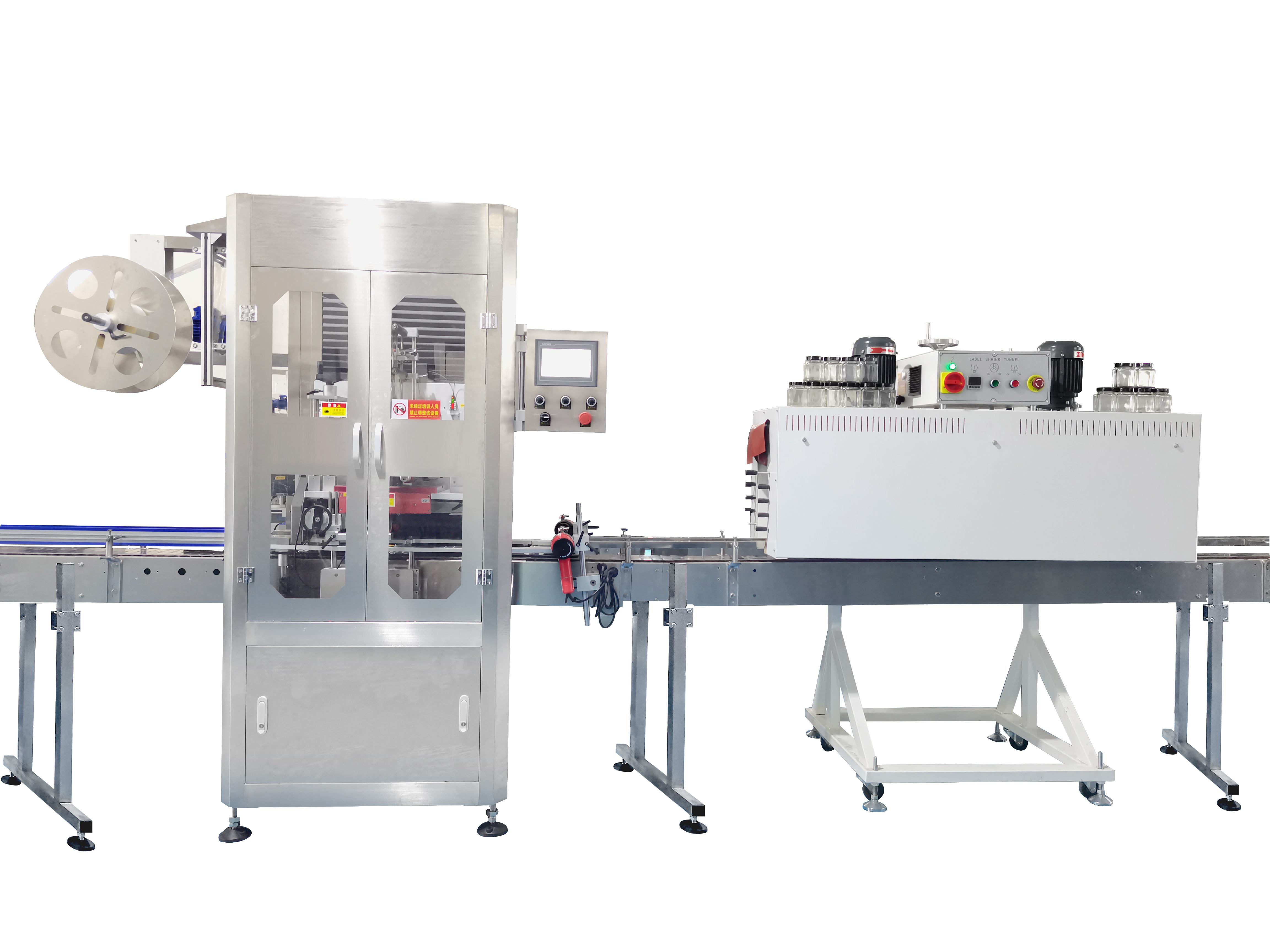

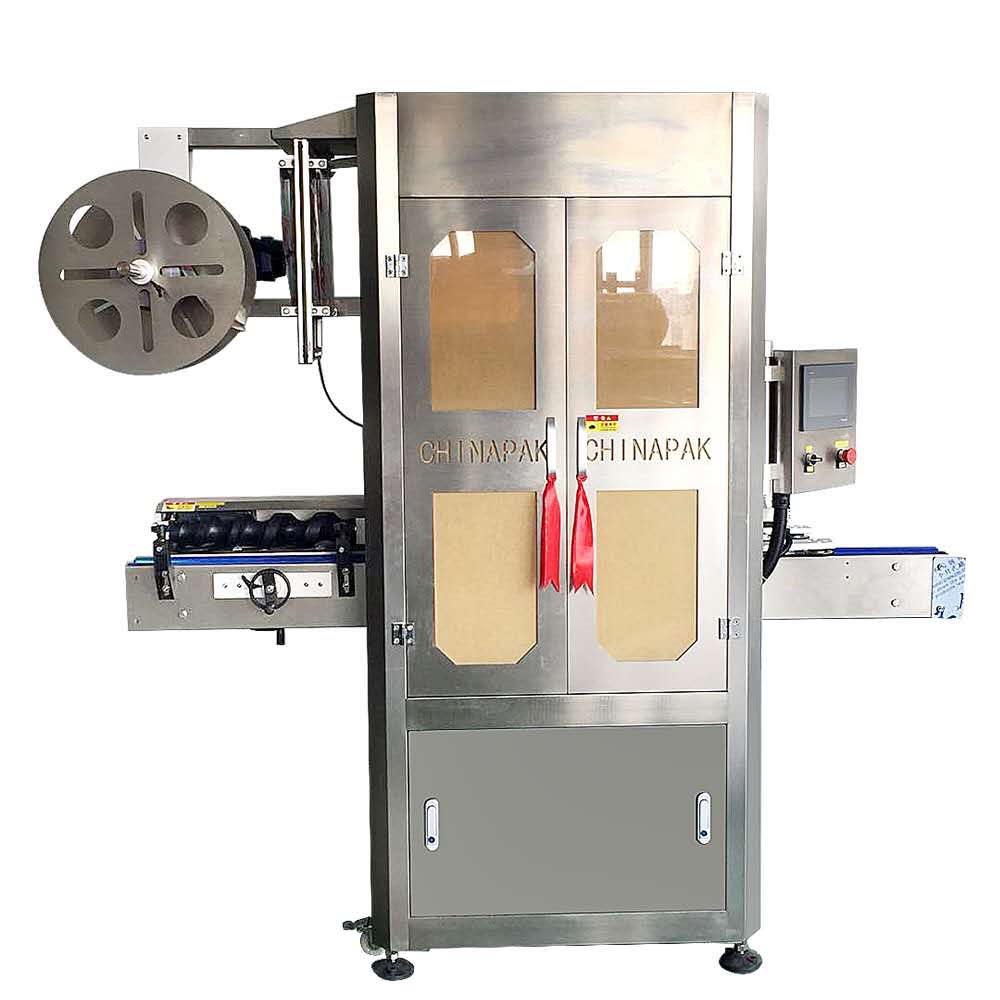

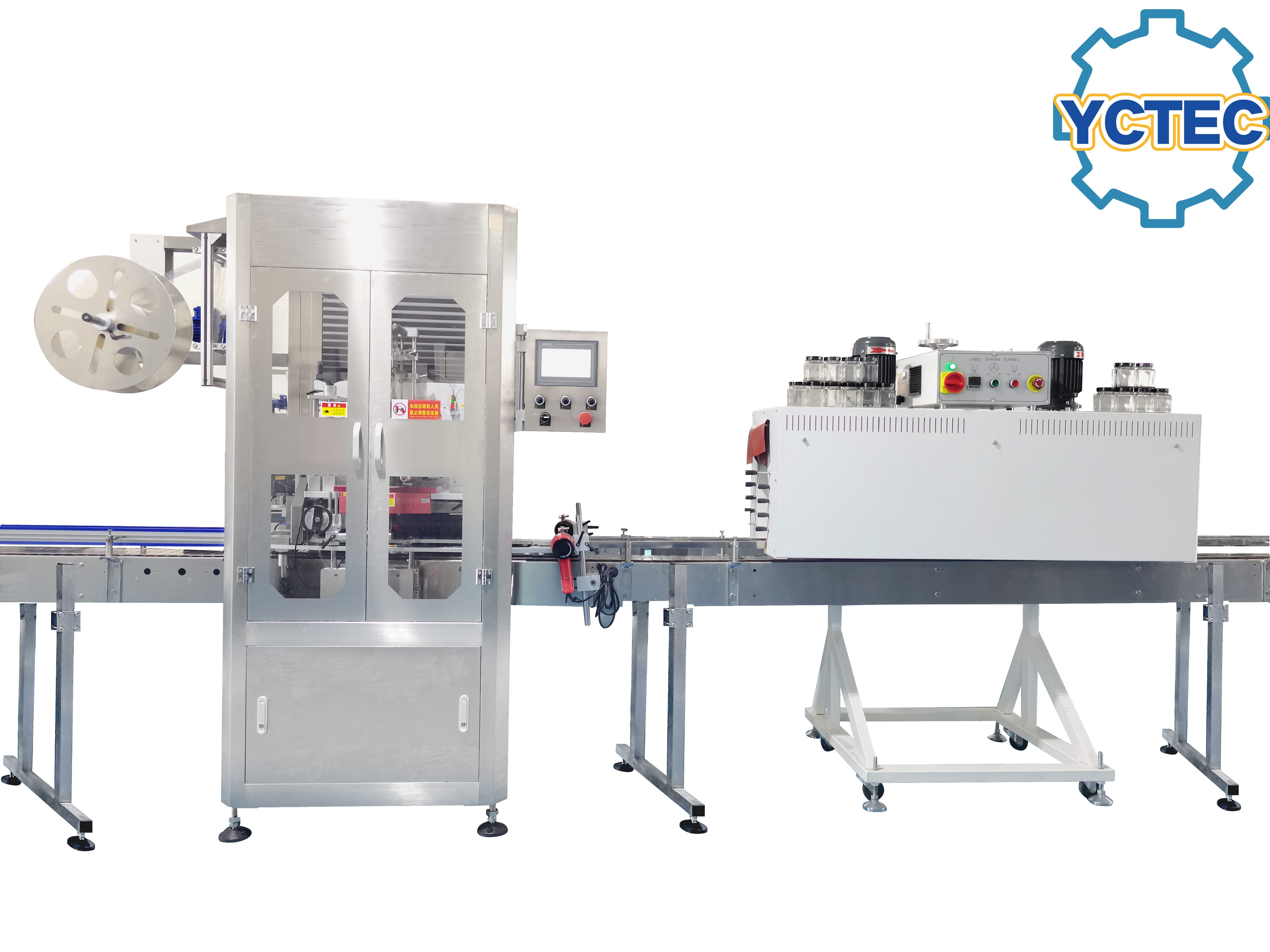

When your bottling line scales beyond entry-level output, label slippage, sleeve mis-cuts, and unplanned downtime become the silent profit killers. The YCT-200 high-speed automatic shrink sleeve labeling machine is designed for manufacturers who need consistent sleeve placement at up to 200 bottles per minute — without the wrinkles, missed sleeves, or angle drift that plague lower-grade applicators when speed climbs.
Manufactured by Dongguan Yucheng Machinery Technology Co., Ltd. (YCT Machinery) — a CE-certified packaging equipment maker with 15+ years of export experience and customers in 50+ countries — the YCT-200 is the natural next step from the YCT-100, sharing the same trusted frame and electrical architecture while running at double the throughput.
Parameter | YCT-200 Specification |
Model | YCT-200 |
Labeling Speed | 100 – 200 bottles/min (adjustable) |
Applicable Bottle Diameter | Φ38 mm – Φ120 mm |
Sleeve Label Length | 30 mm – 220 mm |
Sleeve Label Thickness | 0.03 mm – 0.13 mm (PVC / PET / OPS / PETG) |
Inner Paper Tube Diameter | 5" – 10" (freely adjustable) |
Power Supply | 220V, 2.0 kW (110V / 380V / 415V on request) |
Machine Dimensions | 2,100 mm (L) × 900 mm (W) × 2,000 mm (H) |
Net Weight | 280 kg |
Frame Material | 304 stainless steel (food-grade, corrosion-resistant) |
Control System | Mitsubishi PLC + Kunlun Tongtai touchscreen HMI (bilingual EN/CN) |
Servo System | Schneider (France) servo motor + servo driver |
Photoelectric Sensors | Panasonic (Japan) |
Bearings & Belts | NSK bearings (Japan), GATES drive belts (USA) |
Heat Shrink Option | Steam tunnel or electric heating tunnel |
Certification | CE Certified, ISO 9001:2015 |

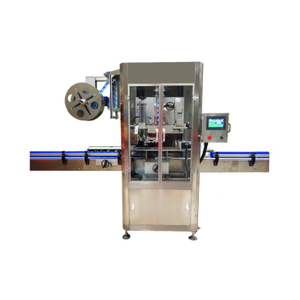

Both machines share the same frame footprint, electrical architecture, and component grade. The decision usually comes down to target throughput and shift planning:
Comparison | YCT-100 | YCT-200 |
Top Speed | 100 BPM | 200 BPM |
Best For | Pilot lines, SMEs, single-shift production | Multi-shift production, contract packagers, mid-to-large bottlers |
Daily Output (8h shift) | ~48,000 bottles | Up to ~96,000 bottles |
Bottle Diameter Range | Ø38–Ø120 mm | Ø38–Ø120 mm |
Sleeve Length | 30–220 mm | 30–220 mm |
Footprint | 2,100 × 900 × 2,000 mm | 2,100 × 900 × 2,000 mm |
Investment Level | Entry-level | Mid-range |
Upgrade Path | Can later integrate into full turnkey line | Drop-in ready for multi-head filling/capping lines |
Rule of thumb: if your daily target is above ~50,000 bottles or you run double shifts, the YCT-200 pays back faster in labor savings and avoids becoming the bottleneck of your line.
Holding ±sleeve placement accuracy at twice the speed of an entry-level machine isn't about pushing the motors harder — it's about how the control loop, mechanical structure, and sensors are engineered together:
Bottle detection — Panasonic photoelectric sensors detect each incoming bottle in milliseconds; the PLC issues a sleeving instruction within 1 second.
Servo-driven film delivery — Schneider servo motors deliver label film to the central guide pillar with low backlash, even under continuous high-speed operation.

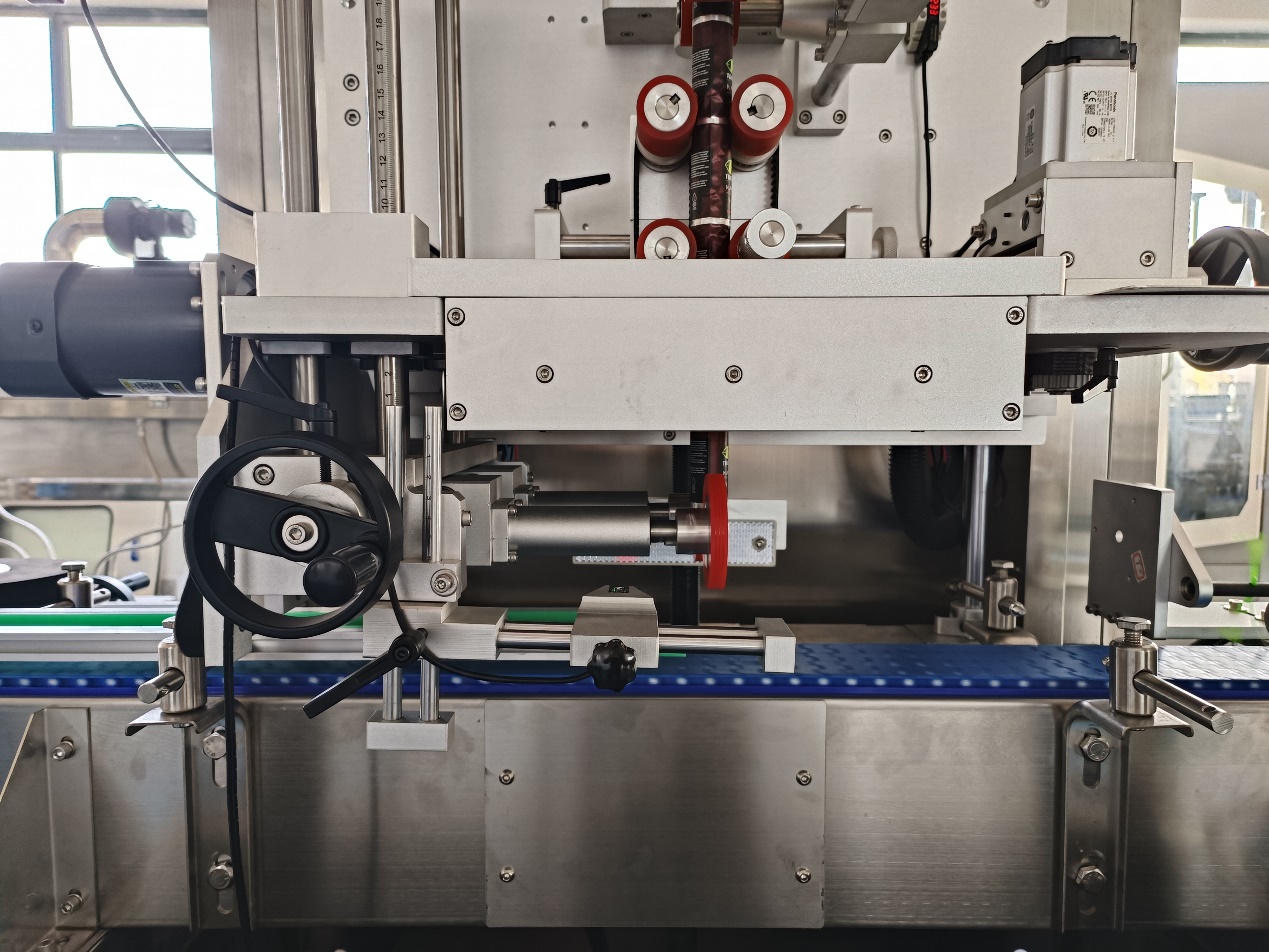

Precision cutting — The cutter head supports three modes: transparent-gap photoelectric registration, color-mark fixed-point registration, and fixed-length cutting for fully transparent unprinted film.
Brush-down and bottle-carrying groups — Synchronized with the conveyor speed to apply the sleeve onto the bottle body, neck, or cap without skew.
Heat shrinking — Downstream steam or electric tunnel locks the sleeve into a smooth, wrinkle-free finish.
This is why long-term customers in EU and US markets report an average MTBF above 4,000 hours in real-world 16-hour-shift production — the YCT-200 is designed to be a workhorse, not a sprinter.
The YCT-200 is deployed in mid-to-large bottling lines across:
Industry | Typical Applications |
Beverage | Fruit juice, tea, sports drinks, purified water, beer, RTD cocktails, energy drinks |
Dairy | Milk, yogurt drinks, flavored milk, plant-based milk bottles |
Condiments & Sauces | Soy sauce, vinegar, cooking oil, salad dressing, hot sauce |
Cosmetics & Personal Care | Shampoo, body wash, lotion, serum, hair care |
Daily Chemicals | Dishwashing liquid, laundry detergent, household cleaners |
Pharmaceutical | Tamper-evident cap banding for syrups and oral liquids |
The machine handles PET, HDPE, glass, and aluminum bottles with diameters from Ø38 mm to Ø120 mm. For non-standard bottle shapes, we provide custom center guide pillars and cutter heads at no extra design fee.
Speed without stability is a liability. The YCT-200 uses the same industrial-grade, internationally recognized components that power the YCT-100, dimensioned for sustained high-speed duty:
304# stainless steel frame — corrosion-resistant, food-safe, complies with FDA contact-surface requirements.
Mitsubishi PLC (Japan) — accurate signal processing, fewer missed labels, easy diagnostics for maintenance teams.
Schneider servo (France) — precise cutting and consistent sleeve length, even at sustained 200 BPM.
Panasonic photoelectric sensors (Japan) — reliable bottle and color-mark detection.
NSK bearings + GATES drive belts — long service life, globally available spares.

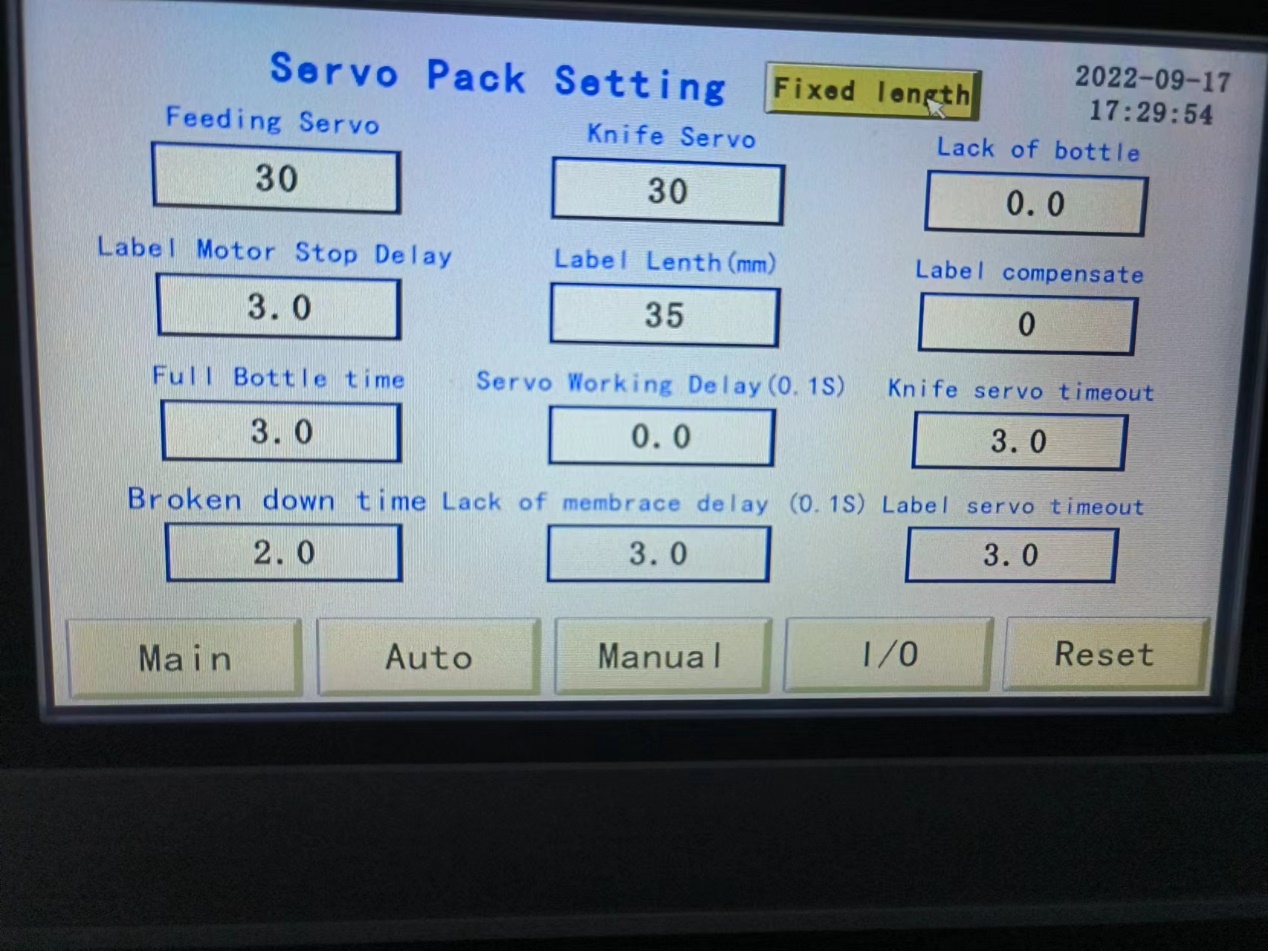

Kunlun Tongtai touchscreen HMI — bilingual EN/CN soft keyboard; Russian, Spanish, Arabic, Vietnamese, and Thai available on request.
All components are globally sourced — when you need a spare part in Vietnam, Russia, the EU, or the US, you're not waiting on a proprietary part from a single supplier.
At 200 BPM, tunnel selection matters more than at 100 BPM because heat transfer time per bottle is shorter. Here's how to choose:
Shrink Method | Best For | Pros | Considerations |

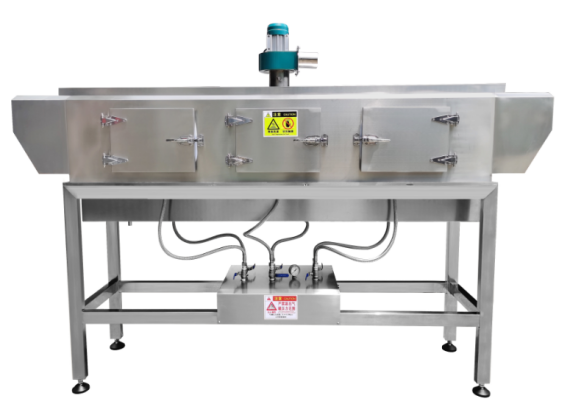

Steam Tunnel | PET beverage, water, dairy, juice at 150–200 BPM | Smoother and glossier sleeve finish; tolerant to label material variation; ideal for 360° body sleeves | Requires steam supply or built-in boiler; not suitable for moisture-sensitive products |

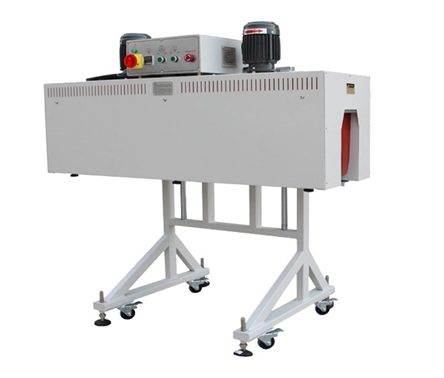

Electric Heat Tunnel | Glass bottles, metal containers, powders, biscuits, dry goods | Keeps environment dry; simpler installation, lower utility setup | Requires higher-grade label film with better shrink rate; slightly higher power draw at top speed |
Tell us your product, bottle material, and target speed — our engineers will recommend the right shrink tunnel length, heating zones, and label film specification together with your quote.
One YCT-200 base machine can be configured for:
Different bottle diameters (Ø38–Ø120 mm) via interchangeable center guide pillars
Different sleeve materials — PVC, PET, OPS, PETG
Sleeve cutting modes — transparent-gap photoelectric, color-mark registration, or fixed-length cutting
Voltage adaptation — 110V / 220V / 380V / 415V
HMI language — English, Chinese, Russian, Spanish, Arabic, Vietnamese, Thai, and more
OEM branding — machine color and logo customizable
Line integration — connect upstream filler/capper or downstream conveyor/case packer modules
15+ years of manufacturing experience — R&D, production, sales, and after-sales under one roof in Dongguan, China.
Exported to Southeast Asia, Russia, Japan, South Korea, Vietnam, Cambodia, Thailand, Myanmar, Nepal, Ethiopia, and EU/US markets.
CE Certified · ISO 9001:2015 — SGS / TÜV third-party inspection reports available on request.
Free sample test — send us your bottles and sleeves; we'll record a test video before shipment.
Same-day technical response — WhatsApp and video-call support from our engineering team.
Spare parts shipped within 48 hours — and on-site commissioning available in 30+ countries through partner integrators.
NDA available on request — for confidential product launches and OEM projects.
The YCT-200 is delivered pre-assembled, factory-tested at full 200 BPM, and packaged in fumigation-treated wooden crates. Upon arrival, our team supports:
Step-by-step video commissioning (English / Chinese / customer language on request)
Remote video-call setup with our engineers
On-site commissioning in 30+ countries via local partner integrators
Operator training covering bottle changeover, guide pillar replacement, label film loading, photoelectric calibration, and routine maintenance
For voltage-unstable regions, we strongly recommend installing a voltage stabilizer to protect the PLC and servo electronics — this is part of our standard pre-installation checklist.
The YCT-200 runs at 100–200 BPM, double the speed of the YCT-100 (100 BPM), while sharing the same frame size, control architecture, and component grade. It's designed for multi-shift production and mid-to-large bottlers who would otherwise need two YCT-100 machines running in parallel. The footprint, voltage, and bottle compatibility remain identical, so upgrading later from a YCT-100 to a YCT-200 doesn't require redesigning your line layout.
Pricing depends on configuration — base sleever, shrink tunnel type (steam vs. electric), voltage, HMI language, and any custom guide pillars or cutters. Send us your bottle sample and target speed for a full quote within 24 hours, including a complete sleeving-line quote (sleever + tunnel + conveyor) when needed.
Standard lead time is 30–40 working days after deposit, depending on customization. We ship FOB Shenzhen / Guangzhou by default, with CIF, DDP, and air freight options available. Export packaging is fumigation-treated wooden crate, suitable for sea freight to any port worldwide.
Yes — for bottle diameters between Ø38 mm and Ø120 mm, we customize the center guide pillar and cutter head to match your bottle profile. Send a sample bottle (or 3D drawing) and our engineering team will confirm compatibility before quoting. Free sample testing is included — we record and send you a test video before shipment.
Yes. The YCT-200 handles sleeve film thicknesses from 0.03 mm to 0.13 mm, covering common PVC, PET, OPS, and PETG sleeves. We will also recommend the right shrink rate, color, and material based on your bottle and shrink tunnel type.
Yes — when paired with a correctly specified shrink tunnel, upstream feed buffer, and quality sleeve film. Long-term customers in EU and US markets report average MTBF above 4,000 hours at sustained high-speed operation. We can share anonymized line performance data and recommended buffer configurations during the quotation process.
Steam tunnel is generally preferred for PET beverage, water, dairy, and juice lines at 150–200 BPM because heat is distributed more evenly at high speed, giving smoother sleeves with fewer wrinkles.
Electric tunnel is preferred for glass, metal, powder, or dry goods where moisture is a concern.
Our engineers will recommend the right tunnel based on your product, bottle, sleeve film, and factory layout.
The YCT-200 is CE certified and manufactured under ISO 9001:2015. SGS and TÜV third-party inspection reports are available on request. Food-contact components use 304 stainless steel (316 available on request) and comply with FDA contact-surface standards.
Yes. We provide:
Free remote commissioning via video call (same-day response on WhatsApp)
On-site commissioning through partner integrators in 30+ countries
24-month warranty on the main machine (excluding wear parts)
Spare parts shipped within 48 hours from our Dongguan warehouse
Lifetime technical support from our engineering team
Yes — the YCT-200 is modular by design. We supply it with conveyor sections that connect directly to upstream fillers/cappers and downstream packers. If you'd like a complete turnkey line, we can quote the labeling + filling + capping + conveying + packing system as a single project.
Absolutely. We routinely customize:
Machine color and logo (OEM branding available)
HMI language — English, Chinese, Russian, Spanish, Arabic, Vietnamese, Thai, and more
Voltage — 110V / 220V / 380V / 415V
Sleeve cutting mode — gap mark, color mark, or fixed-length
Tell us your bottle dimensions, sleeve material, and target speed — we'll send you a tailored quote, a free sample-test video, and a recommended line configuration within 24 hours.
