The YCT-31H Automatic Card High-Speed Labeling Machine is an industry-leading solution designed for high-speed, high-precision labeling and protective film application on flat products. Equipped with an advanced automatic paging/feeding system, it can process up to 400 pieces per minute with an exceptional accuracy of ±0.5mm, ensuring a smooth, bubble-free finish.
Inquire Now & Get a Free Sample Test on Your Cards
Table of Contents
Manually labeling flat cards, pouches, or applying protective films to plastic sheets is slow, labor-intensive, and highly prone to misalignment and unsightly air bubbles.

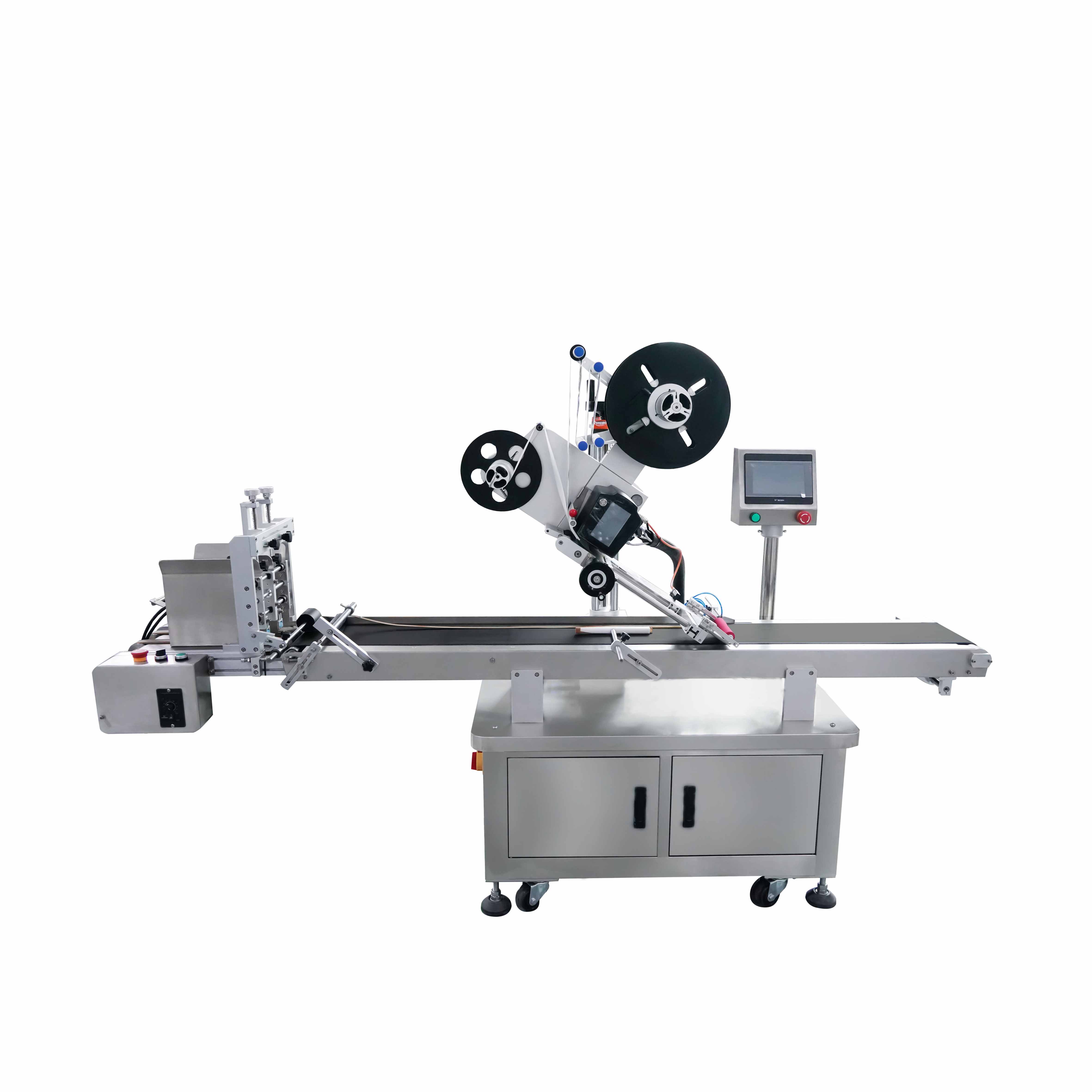

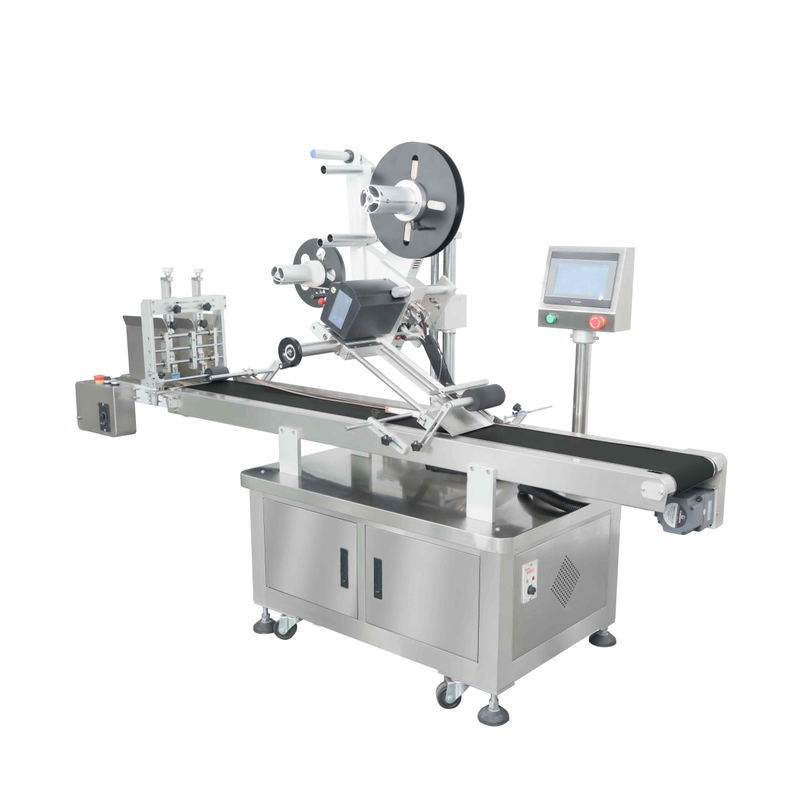

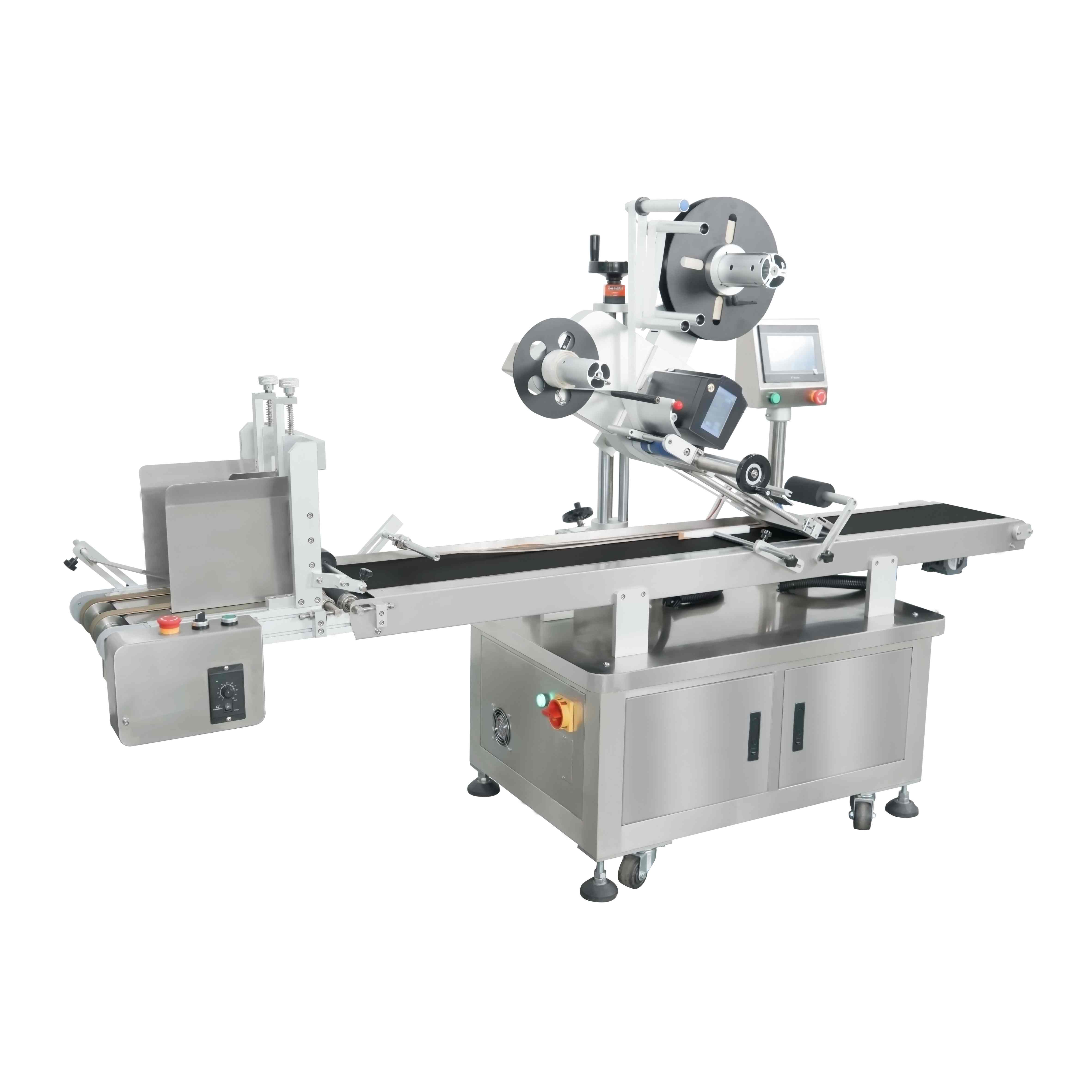

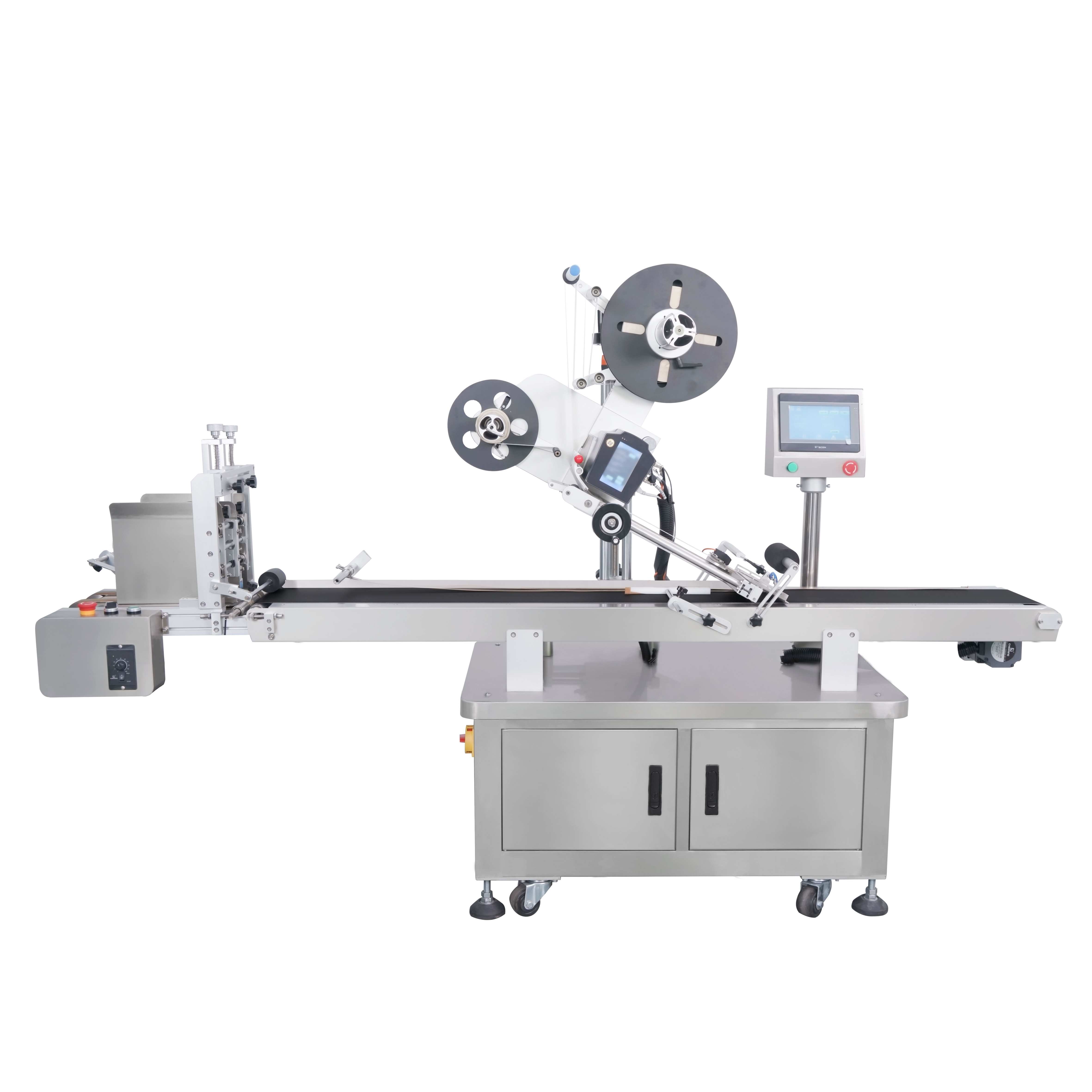

The YCT-31H Automatic High-Speed Card Labeling Machine automates this entire process. By integrating a high-performance friction paging mechanism with a state-of-the-art servo-driven labeling head, the YCT-31H automatically separates stacked cards, feeds them onto the conveyor, and applies labels or protective films at speeds of up to 400 pcs/min. The specialized pressing rollers guarantee a flawless, bubble-free, and perfectly aligned application, drastically improving your production efficiency and packaging quality.
Ultra-High-Speed Performance: Reaches throughputs of 50 to 400 pieces per minute, making it one of the fastest flat-surface labelers in the market.
Precision Paging System: The adjustable automatic paging feeder handles ultra-thin products (from 0.2mm up to 2mm thickness) with high stability, preventing double-feeding.
Flawless, Bubble-Free Finish: Engineered with specialized rubber rollers and static-elimination designs, making it ideal for applying clear protective films on sensitive plastic or acrylic surfaces.
Dual Coding Options:
Option A: Ribbon coding machine integrated directly into the labeling head for synchronous printing.
Option B: High-speed industrial inkjet printer mounted on the conveyor for pre- or post-labeling batch coding.
Industrial PLC & Servo Control: Powered by world-class electrics (Mitsubishi PLC, Panasonic servo motors, and Schneider components) for 24/7 heavy-duty operation.
Labeling Machine Samples
Parameter | Specification Details |
Model | YCT-31H |
Labeling Speed | 50 ~ 400 pcs/min (depending on product & label size) |
Labeling Accuracy | ±0.5mm to ±2.0mm (excluding product/label errors) |
Applicable Product Dimensions | Length: 40mm ~ 280mm | Width: 30mm ~ 190mm | Thickness: 0.2mm ~ 2mm |
Suitable Label Size | Length: 15mm ~ 190mm | Width: 15mm ~ 160mm |
Label Roll Inner Diameter | φ76mm (Standard) |
Label Roll Outer Diameter | φ300mm (Maximum) |
Power Supply | 220V / 50Hz (110V/380V customizable) |
Power Consumption | 2200W |
Machine Weight | Approx. 200 kg |
Machine Dimensions (L×W×H) | Approx. 2350mm × 800mm × 1400mm |
The YCT-31H is highly versatile and configured for a wide range of flat-surface products:
Smart Cards & Electronics: RFID cards, membership cards, scratch cards, phone cases, and flat electronic components.
Packaging & Printing: Unfolded carton boxes, paper bags, plastic pouches, and ziplock bags.
Cosmetics & Daily Chemicals: Flat cosmetic sachets, wet wipe bags, and facial mask pouches.
Manufacturing & Materials: Acrylic sheets, plastic plates, and metal sheets requiring protective film application.
15+ Years of Manufacturing Expertise: Dongguan Yucheng Machinery Technology Co., Ltd. (YCT Machinery is a leading OEM/ODM packaging machinery exporter trusted in 50+ countries.
Customized Engineering: We customize paging feeders and conveyor belts to fit your specific product dimensions, surface textures, and line integration needs.
Guaranteed Quality & Support: All machines are CE-certified and undergo 100% factory testing before shipment. We provide lifetime technical support, video commissioning, and 48-hour spare parts delivery.
Yes, absolutely. The YCT-31H features a high-precision friction paging feeder that can be finely adjusted to separate and feed products as thin as 0.2mm. It is widely used for labeling flat plastic bags, aluminum foil pouches, and paper envelopes before they are filled.
We use a combination of high-precision tension control on the label roll, a specialized elastic pressing mechanism, and anti-static devices. This ensures that the protective film is applied smoothly and evenly onto the plastic or metal surface, completely squeezing out any air to achieve a bubble-free finish.
Yes, very easy. Adjusting the machine for different card lengths, widths, and thicknesses takes less than 10 minutes. The conveyor guides and paging wheels can be adjusted via simple hand knobs, and the label positioning can be saved as presets in the PLC touchscreen.
We offer two main options: a ribbon hot-stamping coder installed on the labeling head (best for simple dates and batch codes on the label), or an industrial TIJ/CIJ inkjet printer mounted on the conveyor (best for high-speed printing of QR codes, barcodes, and dates directly on the card or label).
Every YCT-31H comes with step-by-step video tutorials and an English operation manual. If you encounter any issues, our engineering team will provide a remote video diagnosis within 24 hours to help you calibrate the machine. We also stock all standard wear parts for immediate shipping.
