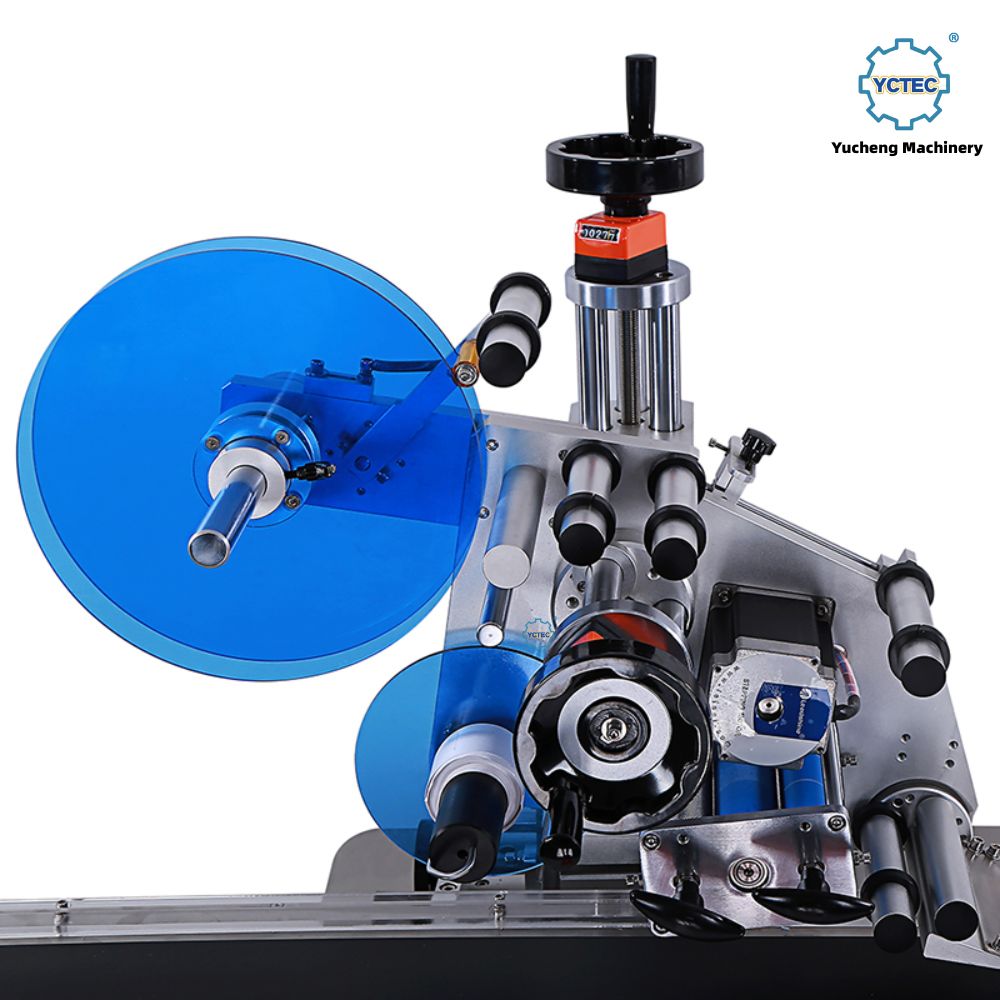

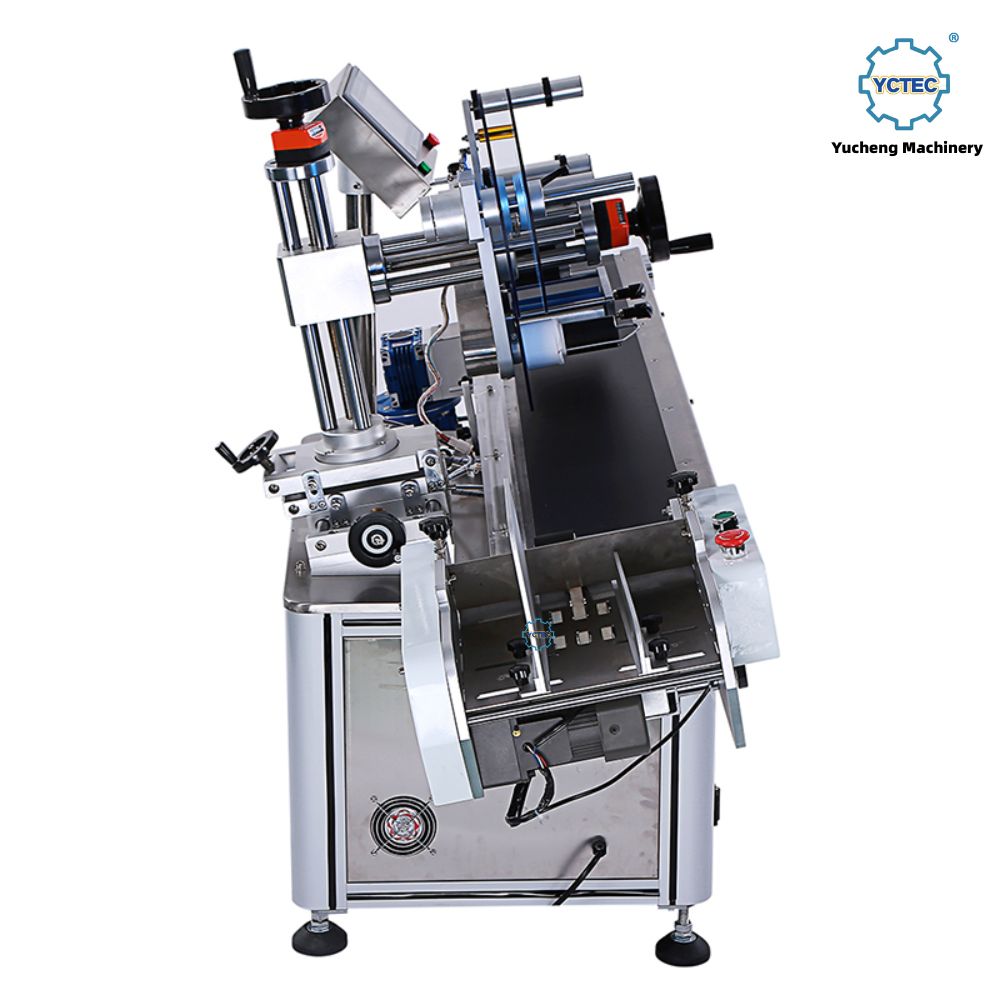

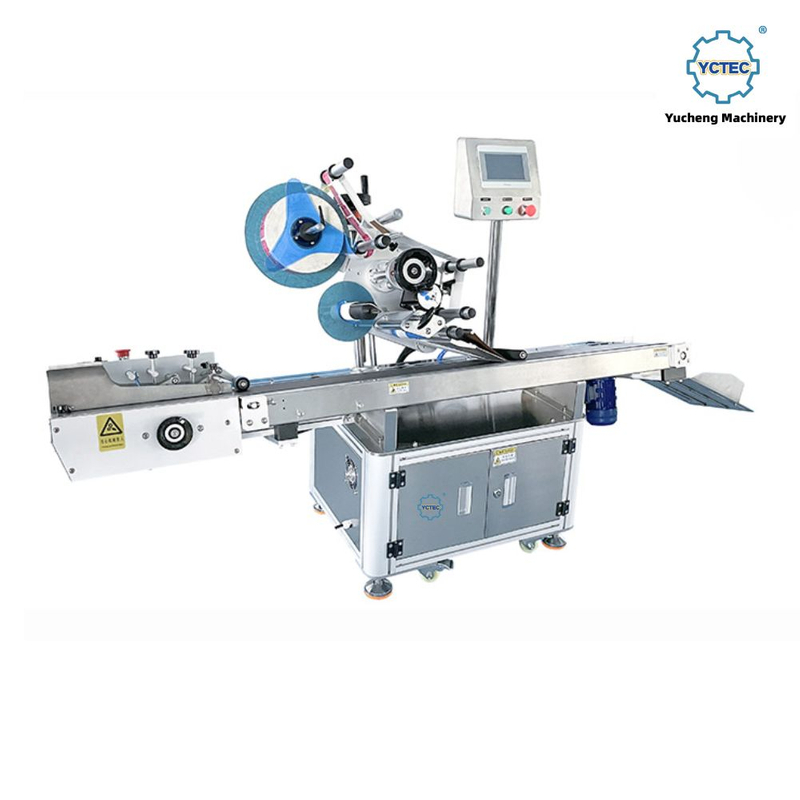

The YCT-31 Automatic Card Labeling Machine is a dedicated flat-product labeling solution engineered for applying self-adhesive labels and protective films to card-format products without trapping air bubbles or causing wrinkles. Whether you manufacture membership cards, loyalty cards, retail hang tags, or plastic-backed product inserts, consistent bubble-free label application is essential to finished-product quality. The YCT-31 achieves this with a controlled pressure-roller mechanism that lays each label or film smoothly from one edge to the other at speeds of up to 120 pieces per minute.
Designed and manufactured by Dongguan Yucheng Machinery Technology Co., Ltd. (YCTAUTO), the YCT-31 uses an automatic feeding belt that carries products beneath the precision labeling head and onto a downstream conveyor — all without operator intervention between pieces. A PLC touchscreen interface allows operators to adjust label position, speed, and dispense timing without specialist engineering knowledge.
The machine handles flat products up to 400 mm long, 200 mm wide, and 150 mm high, covering standard card stock, boxed card products, and thin plastic panels. An optional ribbon coding machine prints date codes and batch numbers inline, while an optional inkjet machine supports variable-data printing — both mounting directly to the YCT-31 frame.
Bubble-Free Film Application — The pressure-roller system progressively lays labels and protective films across flat surfaces, eliminating air entrapment and ensuring a flawless finish on every card.
40–120 pcs/min Throughput — Wide speed range accommodates both trial production runs and high-volume card labeling operations, with output adjusted via the touchscreen without mechanical intervention.
±1 mm Labeling Accuracy — Precision label dispensing and registration sensors ensure each label lands in exactly the specified position, maintaining brand integrity across the full production batch.
Wide Product Compatibility — Handles flat and card-format products from L: 40–400 mm × W: 40–200 mm × H: 0.2–150 mm, covering standard cards, thick plastic panels, and thin carton-backed card products. Dimensions are customizable on request.
Broad Label Size Range — Accepts labels from 6 mm up to 250 mm in length and 15–120 mm in width, compatible with standard Φ76 mm core label rolls up to Φ300 mm outer diameter.
Optional Ribbon Coding Machine — Inline hot-stamp coder prints manufacture dates, expiry dates, and lot numbers directly onto the label during the labeling cycle, combining two process steps into one pass.
Optional Inkjet Printer — A compatible inkjet head mounts for non-contact variable-data printing: sequential numbering, QR codes, and custom text on each card.
PLC Touchscreen Control — Stores parameters for multiple product types, enabling quick format switching without recalibration.
Parameter | Value |
Model | YCT-31 |
Labeling Accuracy | ±1 mm |
Labeling Speed | 40–120 pcs/min |
Applicable Product Size | L: 40–400 mm, W: 40–200 mm, H: 0.2–150 mm (customizable) |
Label Length | 6–250 mm |
Label Width | 15–120 mm |
Label Roll Inner Diameter | Φ76 mm |
Label Roll Outer Diameter | Φ300 mm (max) |
Power Supply | 220 V / 50 Hz |
Power Consumption | 820 W |
Machine Dimensions (L × W × H) | 2000 mm × 800 mm × 1400 mm |
Machine Weight | Approx. 180 kg |
Optional Accessories | Ribbon coding machine, inkjet printer |
The YCT-31 automatic card labeling machine is widely used across industries where flat cards, plastic panels, or card-backed products require precise label or protective film application:
Retail & Loyalty Cards — Membership cards, gift cards, loyalty reward cards requiring front-face label application or barcode sticker placement
Electronics Packaging — PCB identification labels, component spec stickers applied to flat circuit board packaging inserts
Cosmetics & Personal Care — Product insert cards inside cosmetic kits, flat compact packaging, skincare sample cards
Stationery & Publishing — Branded hang tags, file folder identification labels, library card labeling
Medical & Pharmaceutical — Flat blister pack identification stickers, patient record card labels, diagnostic kit inserts
Industrial Identification — Asset tags on flat plastic panels, equipment identification labels on flat metal or plastic workpieces
The pressure-roller mechanism also suits protective PET or PE film application onto polished plastic surfaces where conventional labeling heads would introduce bubbles.
Flat-Product Labeling Expertise — Yucheng's range spans flat, corner, round, and horizontal labeling. The YCT-31 reflects years of engineering refinement in bubble-free film and label application for rigid flat products.
In-House Manufacturing & QC — Every YCT-31 is built and individually tested at our Dongguan facility for speed accuracy, label placement repeatability, and mechanical stability before shipment.
OEM & ODM Support — We configure the YCT-31 to match your card dimensions, label specifications, and production line height. Custom conveyor widths, specialized holddown fixtures, and private branding are all available.
Integrated Production Line Solutions — Yucheng designs complete packaging lines. The YCT-31 can be positioned upstream of carton packers or downstream of printers to form a seamless card processing line.
Responsive Global After-Sales — Remote video commissioning, multilingual technical documentation, and fast spare-parts supply keep your line running with minimal downtime wherever you operate.
Q: What types of labels and films does the YCT-31 support?
A: The YCT-31 applies self-adhesive labels (paper, PE, PP, PET, foil) and protective films (PET, PE) on flat card surfaces. Specify your label material when inquiring so we can confirm sensor compatibility.
Q: Can the machine handle cards with varying thickness in the same batch?
A: Yes, within H: 0.2–150 mm. The holddown and feed system adjusts for mixed-thickness batches, though grouping similar products optimizes accuracy and throughput.
Q: How does the bubble-free application mechanism work?
A: A calibrated pressure roller progressively applies the label or film from one card edge to the other at a controlled angle, expelling trapped air outward. This avoids the simultaneous stamp application that causes bubbles on smooth plastic and coated card surfaces.
Q: What is the MOQ for the YCT-31?
A: The standard MOQ is 1 unit. We welcome single-unit orders for evaluation as well as multi-unit purchases for production scale-up. Volume discounts are available — please contact our sales team for a detailed quote.
Q: What is the typical lead time?
A: Standard units ship in 5–10 business days. Custom orders typically require 15–20 business days. Lead time is confirmed at order placement.
Q: Does the YCT-31 require a dedicated operator?
A: After initial setup, a single operator can run the YCT-31 while managing other tasks. The automated feed and collection system allows continuous production without the operator present for each cycle.
Q: Can I add coding and labeling in the same machine pass?
A: Yes. With the optional ribbon coder or inkjet printer, date codes and batch numbers are printed onto each label during the same pass, eliminating a separate coding step.
If you are labeling cards, plastic panels, or flat product inserts at scale, the YCT-31 reduces labor cost, eliminates bubble defects, and increases throughput over manual application. Share your card dimensions, label specifications, and target output for a tailored solution and competitive quotation.
