The YCT-51H Automatic Single Side High-Speed Labeling Machine is an ultra-fast, heavy-duty labeling solution designed to apply self-adhesive labels onto the side surface of various flat, square, or round products. Engineered with an adaptable labeling head, it can also be customized to apply labels onto uneven, concave, or arched side surfaces with maximum precision.
Inquire Now & Get a Free Sample Test on Your Products
Table of Contents
In high-volume manufacturing, side surface labeling requires absolute stability, especially when handling tall containers, flat-packed cartons, or products with non-standard shapes. Minor vibrations can lead to skewed labels, wrinkles, or poor adhesion.
The YCT-51H Automatic Single Side High-Speed Labeling Machine is engineered to deliver flawless side labeling under continuous, heavy-duty operation. Featuring a robust 3.1-meter conveyor frame and a high-torque servo-driven labeling head, the YCT-51H maintains exceptional stability at speeds up to 400 pcs/min. Its highly adjustable mechanical structure allows it to transition smoothly between flat boxes, round bottles, and even concave or arched surfaces, offering unmatched versatility for your packaging line.
Ultra-High-Speed Throughput: Delivers an impressive production rate of 100 to 400 pieces per minute, making it the ideal choice for high-speed beverage, daily chemical, and pharmaceutical lines.
Multi-Surface Adaptability: By modifying the labeling head and pressing mechanisms (such as flexible brushes or sponge rollers), the machine easily handles flat, round, concave, convex, or arched side surfaces.
Heavy-Duty & Stable Design: Weighing approximately 300kg and equipped with a 3100mm conveyor, the machine minimizes vibration, ensuring a high labeling accuracy of up to ±0.5mm.
Premium Component Integration: Built with world-class electronics, including a Mitsubishi PLC, Panasonic high-resolution servo motors, and Schneider electrical components, ensuring 24/7 reliability.
Seamless Coding Integration:
Ribbon Coder/Hot Stamp: Mounts directly to the labeling head for synchronized printing on the label.
Inkjet Printer: Mounts to the conveyor for high-speed printing directly onto the product surface before or after labeling.
Labeling Machine Samples
Parameter | Specification Details |
Model | YCT-51H |
Labeling Speed | 100 ~ 400 pcs/min (depending on product & label size) |
Labeling Accuracy | ±0.5mm to ±2.0mm (excluding product/label errors) |
Applicable Product Sizes | Length: 40mm ~ 400mm | Width: 40mm ~ 200mm | Height: 0.2mm ~ 150mm (Customizable) |
Suitable Label Size | Length: 6mm ~ 250mm | Width: 15mm ~ 120mm |
Label Roll Inner Diameter | φ76mm (Standard) |
Label Roll Outer Diameter | φ300mm (Maximum) |
Power Supply | 220V / 50Hz (110V/380V customizable) |
Power Consumption | 1740W |
Machine Weight | Approx. 300 kg (Heavy-duty stability) |

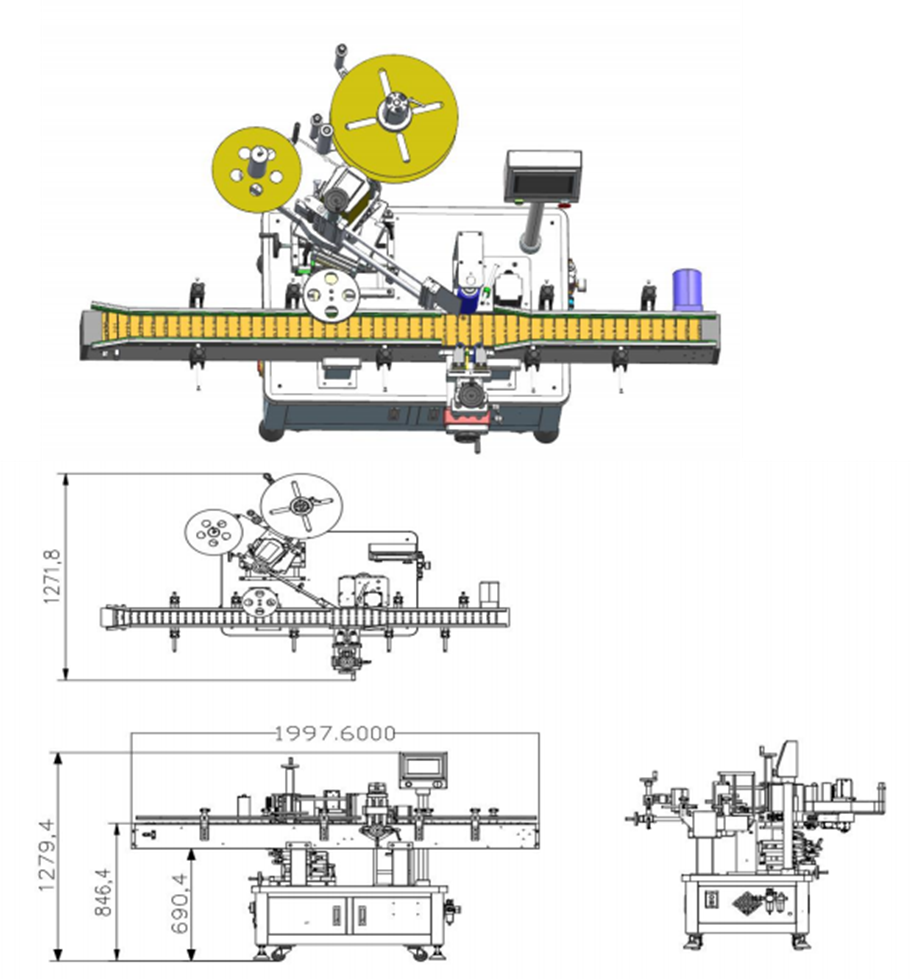

Machine Dimensions (L×W×H) | Approx. 3100mm × 1300mm × 1560mm |
The YCT-51H is a highly versatile side labeler used across a wide range of industries:
Daily Chemicals & Cosmetics: Side labeling of shampoo bottles, laundry detergent jugs, lotion pumps, and aerosol cans.
Logistics & Packaging: Labeling flat-packed cardboard boxes, shipping cartons, books, and file folders.
Pharmaceuticals & Healthcare: Side surface labeling of medicine boxes, supplement jars, and disinfectant containers.
Food & Beverage: Flat-sided olive oil tins, square juice bottles, sauce jars, and bulk food trays.
15+ Years of Packaging Expertise: Dongguan Yucheng Machinery Technology Co., Ltd. (YCT Machinery) is a trusted manufacturer exporting high-stability packaging equipment to 50+ countries.
Customization Capabilities: Over 60% of our orders are customized. We can engineer custom conveyor lengths, top-hold belts for tall bottles, and specialized label-pressing systems for uneven surfaces.
Global Service & Support: We provide 100% factory pre-shipment testing, comprehensive English manuals, video tutorials, and 48-hour spare parts delivery.
Yes, absolutely. The YCT-51H is highly versatile. By adding a round-bottle rolling attachment (wrap belt), the machine can easily switch between side labeling of flat/square products and wrap-around labeling of round bottles. This dual-purpose capability maximizes your investment.
To prevent tall or lightweight containers from wobbling or tipping over during high-speed conveying, the YCT-51H can be equipped with an overhead top-hold conveyor belt. This synchronizes with the main conveyor to clamp the top of the product, ensuring perfect vertical alignment during labeling.
Yes. Standard side labelers struggle with curved surfaces, but the YCT-51H can be modified with customized label-strengthening structures, such as soft rubber rollers, flexible brushes, or air-blow systems. This ensures the label conforms perfectly to the curved or recessed profile without wrinkles.
Our standard lead time is 25 to 35 days. For highly customized configurations (such as custom conveyor lengths, specialized voltage, or integration with existing upstream/downstream lines), the lead time is approximately 35 to 50 days.
We ensure a smooth, hassle-free setup:
Factory Pre-Testing: We calibrate and test the machine using your actual product and label samples before shipping.
Detailed Documentation: We provide step-by-step video guides and a comprehensive English operation manual.
Live Video Support: Our engineers are available for real-time video calls (WhatsApp/WeChat) to guide your team through installation, operation, and maintenance.
