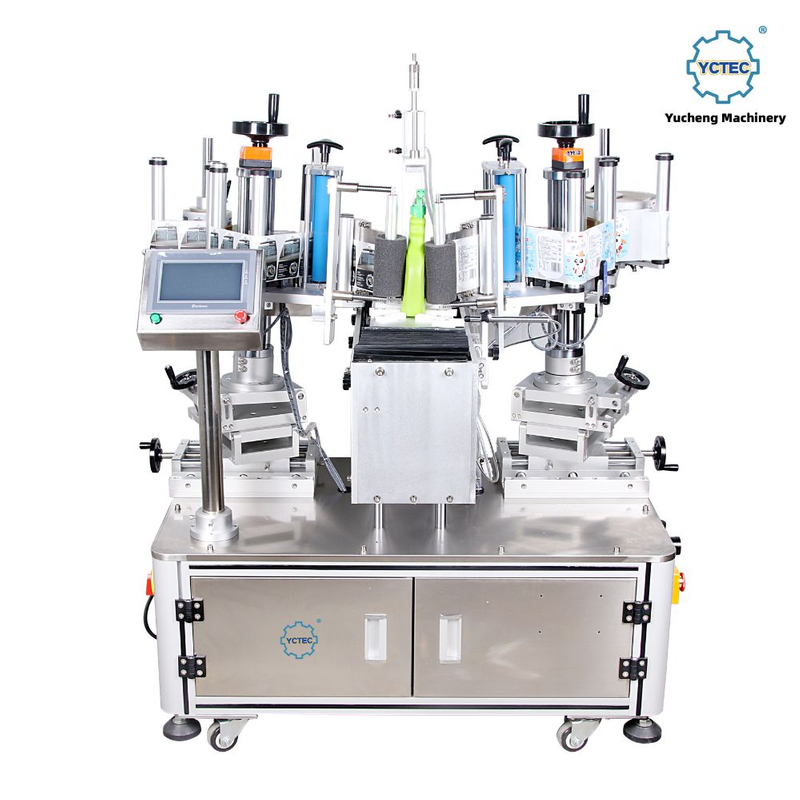

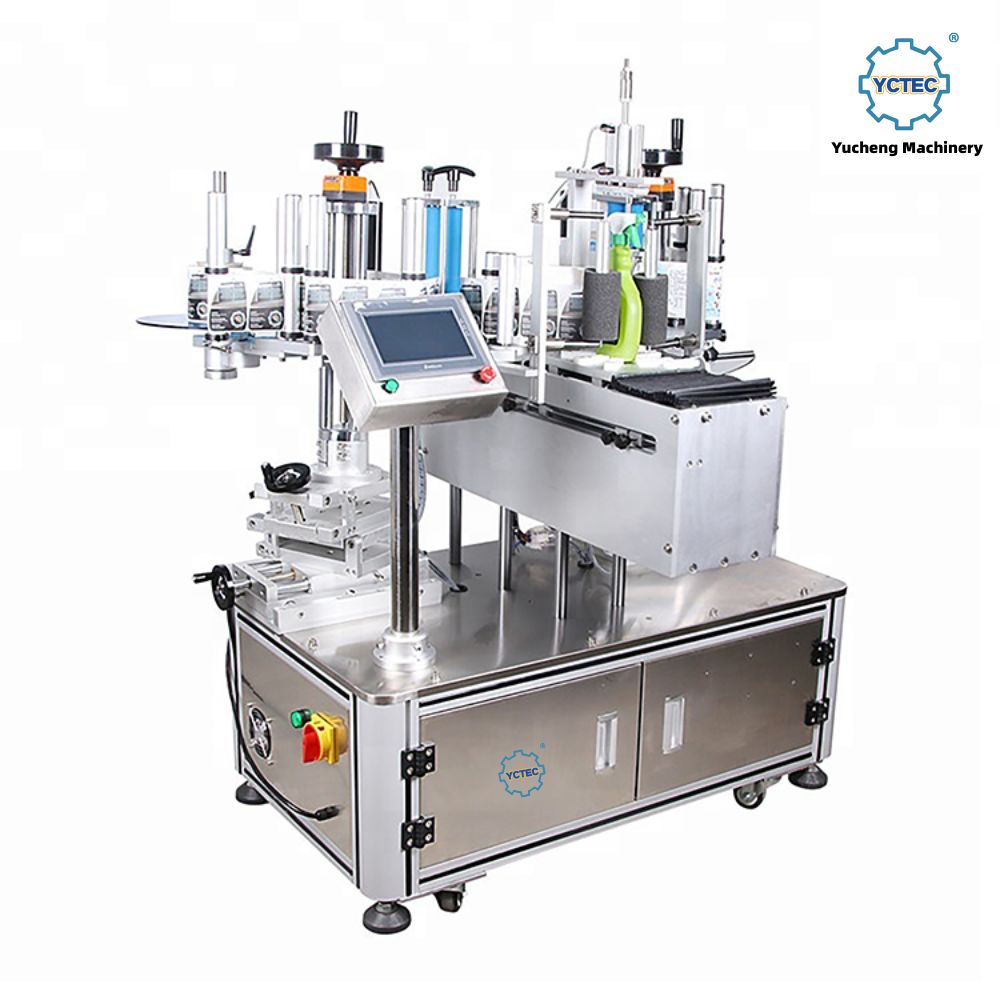

The YCT-99 Semi-Automatic Double-Sided Labeling Machine solves a persistent challenge in mid-volume packaging operations: applying perfectly aligned front and back labels to flat or square containers without a fully automated production line. Using a rolling-labeling method — where the container is guided through opposing label applicators in a single continuous motion — the YCT-99 applies both labels in one pass, ensuring label height and horizontal position match consistently on both faces, batch after batch.
Built by Dongguan Yucheng Machinery Technology Co., Ltd. (YCTAUTO), the YCT-99 targets production teams that label front and back in separate operations and face alignment inconsistencies or throughput bottlenecks. A single operator loads containers one at a time, the rolling mechanism drives each through both stations simultaneously, and the container exits fully labeled and ready for the next step.
The machine handles flat bottles (L: 20–200 mm, W: 20–150 mm, H: 0.2–120 mm), square bottles, gas bottles, and laundry detergent containers with two parallel labeling surfaces. Labels from 15 mm × 15 mm up to 100 mm × 110 mm are supported. An optional ribbon coding machine prints batch numbers, manufacture dates, and expiry dates during the labeling pass, eliminating a separate downstream coding step.
Simultaneous Dual-Side Application — Both front and back labels are applied in a single rolling pass, with label height symmetry mechanically controlled — eliminating the positional errors that accumulate across two separate labeling steps.
±0.5 mm Labeling Accuracy — Achieved through controlled container guidance and synchronized dual label dispensers, meeting cosmetic, pharmaceutical, and food labeling placement standards.
Rolling-Labeling Method — The container rolls through a guided channel that presses both labels onto the respective faces with even pressure — no vacuum or pneumatic tamp mechanisms required. Works on flat, square, and moderately irregular container profiles.
Wide Container Compatibility — Handles products L: 20–200 mm, W: 20–150 mm, H: 0.2–120 mm (customizable). Suitable for shampoo flat bottles, detergent containers, gas bottles, and square bottles across chemical and personal care categories.
Flexible Label Size Support — Label lengths from 15–100 mm and widths from 15–110 mm, with independently adjustable dispensing tension on each side for different label materials on front and back.
Optional Ribbon Coding Machine — A hot-stamp carbon belt coder prints MFG date, EXP date, and batch/LOT numbers onto labels on both faces simultaneously — no separate coding step required.
Optional Inkjet Module — Inline inkjet can be configured to print barcodes, QR codes, or variable text on the label or container surface.
Robust Floor-Standing Platform — At 150 kg and 1300 mm × 1200 mm × 1400 mm, a stable platform that simplifies label roll changes and routine maintenance.
Parameter | Value |
Model | YCT-99 |
Labeling Accuracy | ±0.5 mm |
Labeling Speed | 15–30 pcs/min |
Applicable Product (L × W × H) | 20–200 mm × 20–150 mm × 0.2–120 mm (customizable) |
Label Length | 15–100 mm |
Label Width | 15–110 mm |
Label Roll Inner Diameter | Φ76 mm |
Label Roll Outer Diameter | Φ300 mm (max) |
Power Supply | 220 V / 50 Hz |
Power Consumption | 990 W |
Machine Dimensions (L × W × H) | 1300 mm × 1200 mm × 1400 mm |
Machine Weight | Approx. 150 kg |
Labeling Method | Rolling labeling (simultaneous dual-side) |
Optional Accessories | Ribbon coding machine, inkjet printer |
The YCT-99 is widely used across industries packaging products in flat, square, or dual-face containers requiring front and back label presentation:
Daily Chemicals & Household Products — Shampoo flat bottles, detergent containers, and household cleaning product packaging where front-and-back label alignment is critical for retail presentation
Industrial & Chemical — Gas bottles, lubricant containers, and chemical reagent square bottles requiring compliance labels on both faces
Food & Condiments — Flat sauce bottles, vinegar containers, and cooking oil flat-sided packaging carrying ingredient labels on front and nutritional panels on back
Cosmetics & Personal Care — Flat lotion bottles, toner containers, and sunscreen packaging where label symmetry affects brand perception
Pharmaceutical & Healthcare — Oral liquid flat bottles and sanitizer containers requiring regulatory labels on both primary and secondary faces
Agriculture & Specialty Chemicals — Pesticide flat containers and specialty chemical packaging requiring GHS hazard information on both faces
Proven Rolling-Labeling Technology — YCTAUTO has refined the rolling-labeling method across multiple machine generations, delivering ±0.5 mm accuracy and reliable dual-side synchronization without complex pneumatic systems.
Semi-Automatic at a Production-Ready Scale — A single operator achieves consistent, high-quality results without the conveyor infrastructure and PLC overhead of a fully automatic line — bridging the gap between manual labeling and full automation.
Customization for Your Containers — Container guide channels, label dispenser positions, and drive rollers can be modified to accommodate container formats outside standard parameters.
Factory-Verified Before Shipment — Every machine is test-run with representative containers and labels before dispatch, with accuracy and tension settings verified to specification.
After-Sales Support and Spare Parts — Technical documentation, video setup guides, and remote engineering support are included. Critical wear parts are stocked for rapid dispatch.
Q: What container types work best with the YCT-99?
A: The machine suits flat-sided and square containers with two parallel labeling surfaces — shampoo bottles, detergent containers, gas bottles, and condiment flat bottles. Slightly irregular faces can be accommodated. Round bottles are better served by a wrap-around or rotary labeler.
Q: How does simultaneous dual-side labeling prevent misalignment?
A: Both labels are applied in one rolling pass using the same mechanical reference point, synchronizing vertical and horizontal positions on both faces and eliminating the cumulative error that occurs in two-pass operations.
Q: Can the machine handle different label sizes on front and back?
A: Yes. Each labeling station has independent dispensers and tension controls, so different label sizes and materials can be configured for front and back independently.
Q: What is the MOQ and lead time?
A: MOQ is 1 unit. Standard configurations ship within 7–12 business days; custom configurations within 15–20 business days. Lead times are confirmed after order placement.
Q: Does the optional ribbon coder print on both faces simultaneously?
A: Yes. Two independent coding heads — one per labeling station — print MFG date, EXP date, and LOT number onto front and back labels in the same pass.
Q: What efficiency gain can we expect by switching from two-pass to single-pass labeling?
A: Single-pass dual-side labeling typically halves total labeling time per container, eliminates the repositioning step, and produces better-aligned output. Contact us to discuss your current process.
Share your container dimensions, label sizes, and current throughput requirements with our team for a detailed quotation.
