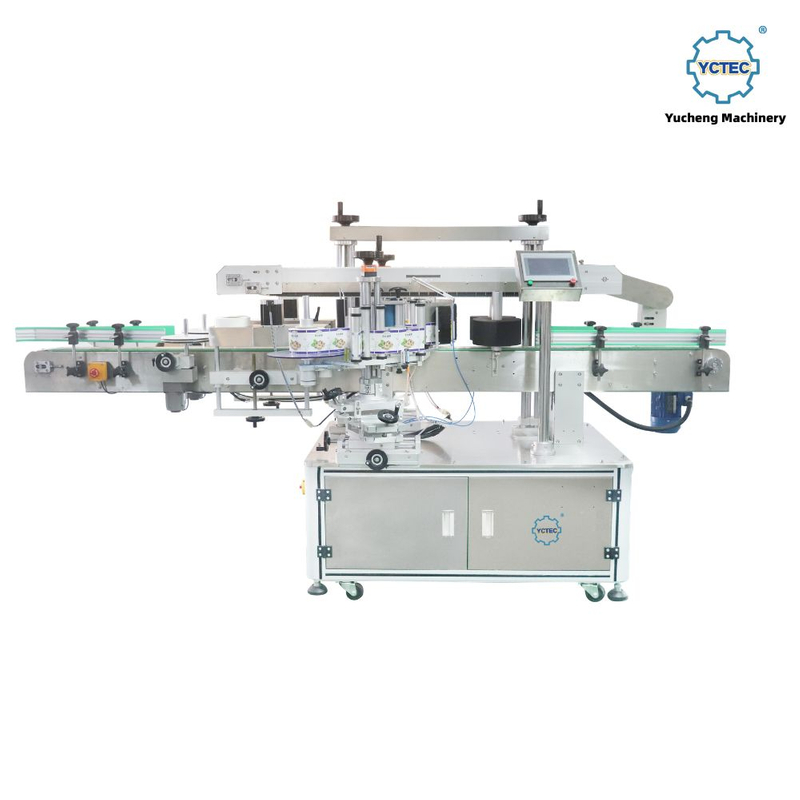

The YCT-52 Automatic Double-sided Labeling Machine is engineered to apply labels to both the front and back surfaces of flat and round bottles in a single, synchronized pass. Where conventional setups require two passes or two separate machines, the YCT-52 combines both operations — cutting cycle time, reducing floor space, and ensuring consistent front-to-back label registration on every unit.
Manufactured by Dongguan Yucheng Machinery Technology Co., Ltd. (YCTAUTO), the YCT-52 serves the chemical, cosmetics, pharmaceutical, and petrochemical industries where front-and-back dual labeling is standard for shampoo bottles, lubricating oil containers, sanitizers, and personal care products. It accommodates bottles from L: 20–250 mm × W: 30–100 mm × H: 60–280 mm (customizable).
Two drive configurations are available: a stepper motor version at 30–160 pcs/min, and a servo motor version reaching 40–180 pcs/min. Both deliver ±1 mm accuracy. The servo configuration offers enhanced speed stability and lower long-term maintenance, making it the recommended choice for high-volume continuous production.
Simultaneous Front & Back Labeling — Both label heads apply front and back labels in a single pass, eliminating the need for product re-handling or a second machine and reducing total labeling cycle time by up to 50%.
Servo & Stepper Drive Options — Step-motor version delivers 30–160 pcs/min; servo version reaches 40–180 pcs/min for maximum throughput. Servo configuration also offers improved speed consistency and lower long-term maintenance requirements.
±1 mm Labeling Accuracy — Precise dual-label placement ensures front and back labels are aligned correctly relative to each other and to the bottle's orientation — critical for retail presentation and barcode scanning compliance.
Broad Bottle Compatibility — Handles flat and round bottles from L: 20–250 mm × W: 30–100 mm × H: 60–280 mm. Customizable for non-standard container dimensions, accommodating the wide variety of bottle formats in chemical and cosmetic packaging.
Flexible Label Dimensions — Accepts labels from 20 mm to 200 mm in length and 20 mm to 120 mm in width, supporting compact front labels and larger back-panel labels with ingredient and regulatory text.
Multi-Industry Versatility — Specifically proven across chemical, cosmetic, petrochemical, and pharmaceutical applications where dual-surface labeling is required for compliance, retail, and brand identity requirements.
Optional Ribbon Coding & Inkjet Printing — Hot-stamp or inkjet modules print production dates, expiry dates, and batch numbers on one or both labels during the labeling pass, supporting regulatory compliance without additional handling.
Heavy-Duty Production Construction — At 330 kg and 2070 W, the YCT-52 is built for sustained continuous-duty operation with a footprint of 3100 mm × 1450 mm × 1560 mm designed for industrial floor installation.
Parameter | Value |
Model | YCT-52 |
Labeling Accuracy | ±1 mm |
Labeling Speed (Stepper) | 30–160 pcs/min |
Labeling Speed (Servo) | 40–180 pcs/min |
Applicable Product Length | 20–250 mm (customizable) |
Applicable Product Width | 30–100 mm (customizable) |
Applicable Product Height | 60–280 mm (customizable) |
Label Length | 20–200 mm |
Label Width | 20–120 mm |
Label Roll Inner Diameter | Φ76 mm |
Label Roll Outer Diameter | Φ300 mm (max) |
Power Supply | 220 V / 50 Hz |
Power Consumption | 2070 W |
Machine Dimensions (L × W × H) | 3100 mm × 1450 mm × 1560 mm |
Machine Weight | Approx. 330 kg |
Drive Configuration | Stepper motor or Servo motor (specify at order) |
Labeling Mode | Simultaneous front and back dual-surface |
Optional Accessories | Ribbon coding machine, inkjet printer |
The YCT-52 is the standard dual-labeling solution for industries requiring front-and-back label coverage on bottle packaging:
Daily Chemicals & Household Care — Shampoo flat bottles, conditioner bottles, body wash containers, and household cleaner packaging requiring front brand labels and back ingredient labels
Lubricants & Petrochemicals — Lubricating oil flat bottles, engine oil containers, and hydraulic fluid packaging requiring front product labels and back specification sheets on every unit
Sanitizers & Disinfectants — Hand sanitizer and disinfectant spray bottles requiring dual regulatory labels on front and back faces
Cosmetics & Personal Care — Lotion bottles, toner flat bottles, serum packaging, and personal care products requiring front branding and back ingredient listings
Pharmaceutical & Healthcare — Medicine bottles and supplement containers requiring front dosage labels and back product information labels
Chemical & Industrial — Specialty chemical containers requiring dual-surface hazard labeling and compliance markings
Proven Dual-Label Expertise — Yucheng has engineered double-sided labeling solutions for demanding cosmetic, chemical, and pharmaceutical bottle formats, with in-house R&D for non-standard container geometries.
Servo Motor Upgrade Available — The YCT-52 is offered in both stepper and servo motor versions, letting you match machine performance to your throughput and budget requirements.
Comprehensive Factory Testing — Every machine undergoes full production simulation before shipment, verifying label alignment, drive consistency, and coding integration against specification.
Custom Bottle & Label Configuration — We configure label head spacing, guide width, and peeling-plate geometry to your bottle and label dimensions at the time of order, reducing on-site setup time.
Full Packaging Line Integration — Yucheng supplies filling, capping, and conveying equipment designed to integrate with the YCT-52 for a complete, co-engineered packaging line.
Q: Can the YCT-52 apply different-sized labels on the front and back of the same bottle?

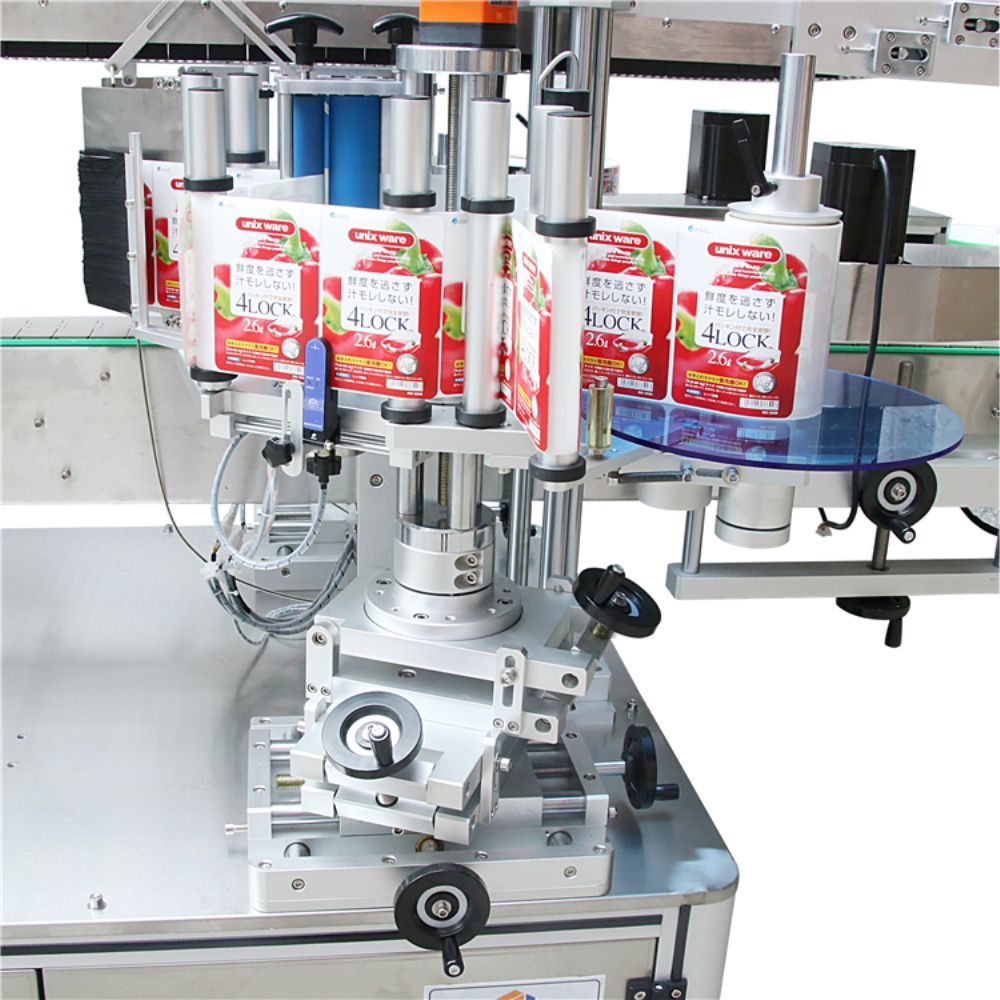

A: Yes. The two labeling heads are independently adjustable for different label lengths and widths. Please specify both label dimensions when requesting a quote.
Q: What is the difference between stepper and servo motor configurations?
A: The stepper version handles 30–160 pcs/min at a lower investment level. The servo version reaches 40–180 pcs/min with better speed stability and lower long-term maintenance — recommended for high-volume continuous production.
Q: What label materials are supported?
A: Standard self-adhesive labels in paper, PE, PP, PET, and aluminum foil. For transparent labels, specify during inquiry so we can configure the appropriate detection sensors.
Q: What is the MOQ and lead time?
A: MOQ is 1 unit. Standard machines ship within 7–12 business days; custom machines within 15–25 business days. Lead time is confirmed at order.
Q: How is front-to-back label alignment controlled?
A: Synchronized drive control and product positioning guides maintain consistent registration between both heads. Label offset can be fine-tuned through the control interface during initial setup.
Q: Can date coding be added to only one label?
A: Yes. Coding modules install on either or both heads independently. Specify single or dual coding, and ribbon or inkjet preference, when placing your order.
Share your bottle dimensions, label specifications, and required throughput, and our engineering team will recommend the right YCT-52 configuration — stepper or servo — with a detailed quotation.
