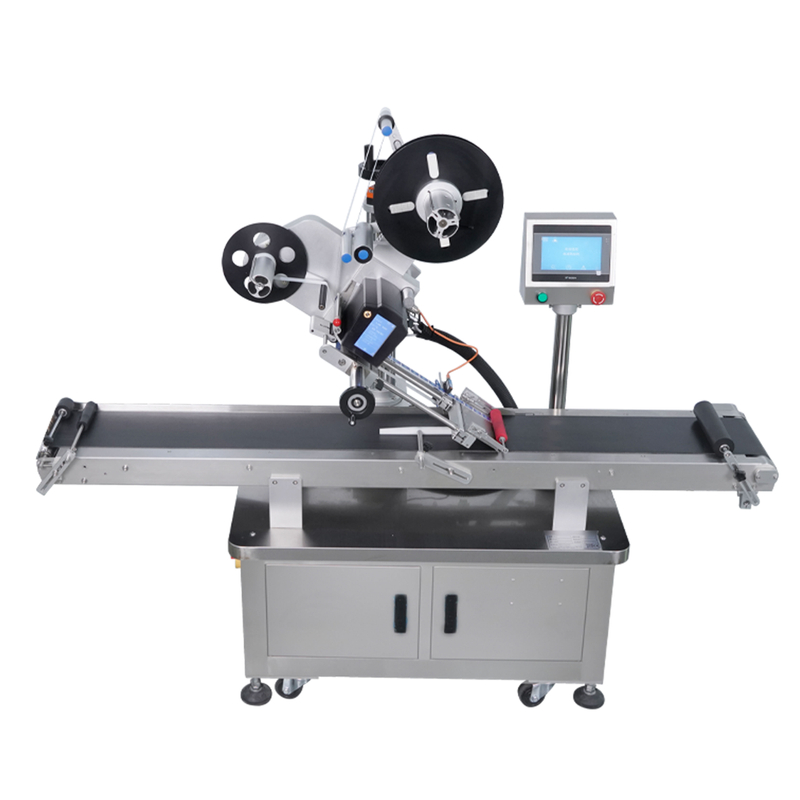

The YCT-30H Automatic High-Speed Plane Labeling Machine is a heavy-duty, highly versatile solution designed for applying adhesive stickers or protective films onto the top surface of a wide range of flat products. Engineered with an adaptable label-strengthening structure, it can be customized to label not only flat items but also uneven, concave, or arched surfaces.
Inquire Now & Get a Custom Labeling Solution
Table of Contents
Whether you are labeling flat shipping cartons, retail cosmetic boxes, or products with slightly curved or recessed surfaces, achieving consistent label placement without wrinkles or lifting edges is critical to your packaging quality.

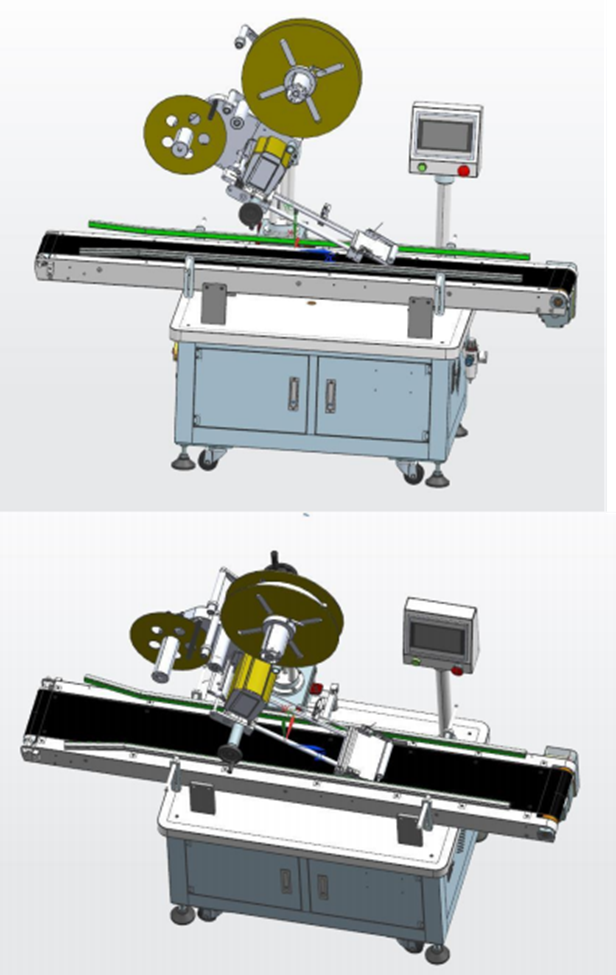

The YCT-30H Automatic High-Speed Plane Labeling Machine is designed to handle these diverse challenges with ease. Built on a robust chassis, it features a high-torque servo-driven labeling head that delivers precise top-surface labeling at speeds up to 250 pcs/min. What sets the YCT-30H apart is its mechanical flexibility: by adjusting the label-pressing and overhead stabilization mechanisms, it can seamlessly apply labels to uneven, concave, or arc-shaped surfaces, making it one of the most adaptable flat labelers on the market.
Broad Product Size Compatibility: Handles large-format products with lengths up to 300mm, widths up to 170mm, and heights up to 120mm, making it ideal for bulk packaging and large cartons.
Uneven & Curved Surface Capability: With optional customized brush-down rollers and sponge-pressing mechanisms, the machine easily adapts to concave, convex, or arched product profiles.
High-Speed, Continuous Operation: Reaches throughputs of 100 to 250 pieces per minute, drastically reducing bottlenecking in high-volume packaging lines.
Premium Component Architecture: Equipped with a Mitsubishi PLC, Panasonic servo motors, and Schneider electrical components, ensuring a long service life and an average MTBF of over 4,000 hours.
Dual-Printing Integration:
Ribbon Coder: Mounts directly to the labeling head to print dates/batches on the label before application.
Inkjet Printer: Mounts to the conveyor to print directly onto the product surface before or after labeling.

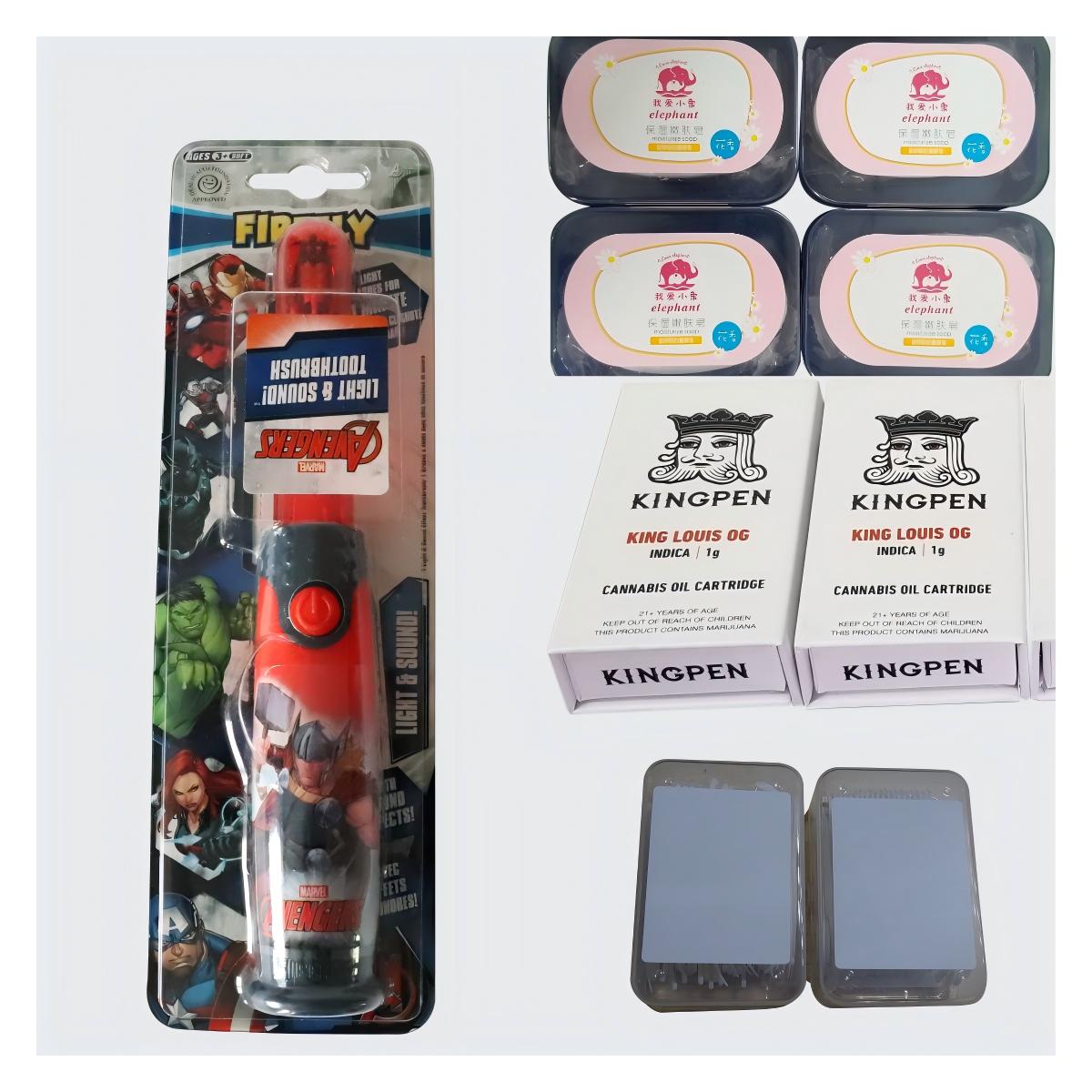

Labeling Machine Samples
Parameter | Specification Details |
Model | YCT-30H |
Labeling Speed | 100 ~ 250 pcs/min (depending on product & label size) |
Labeling Accuracy | ±1.0mm (excluding product/label errors) |
Applicable Product Sizes | Length: 30mm ~ 300mm | Width: 40mm ~ 170mm | Height: 0.2mm ~ 120mm |
Suitable Label Size | Length: 30mm ~ 300mm | Width: 15mm ~ 160mm |
Label Roll Inner Diameter | φ76mm (Standard) |
Label Roll Outer Diameter | φ300mm (Maximum) |
Power Supply | 220V / 50Hz (110V/380V customizable) |
Power Consumption | 1800W |
Machine Weight | Approx. 280 kg (Heavy-duty stability) |
Machine Dimensions (L×W×H) | Approx. 2300mm × 780mm × 1400mm |
The YCT-30H is widely utilized across multiple industries for its high speed and top-surface precision:
Logistics & E-commerce: Labeling shipping cartons, flat-packed delivery boxes, and mailing envelopes.
Publishing & Stationery: Books, notebooks, file folders, and document holders.
Food & Daily Chemicals: Flat-top food trays, plastic tubs, wet wipe lids, and detergent boxes.
Electronics & Hardware: Phone accessory boxes, battery packs, and flat plastic/metal components with recessed areas.
15+ Years of Manufacturing Expertise: Dongguan Yucheng Machinery Technology Co., Ltd. (YCT Machinery) is a certified manufacturer delivering reliable packaging automation to 50+ countries.
Custom Engineering: Over 60% of our machines are customized. We can design specialized conveyor belts, hold-down devices, and label-pressing mechanisms tailored to your unique product shape.
Uncompromised Quality & Support: All machines are CE-certified and undergo a rigorous 100% functional test before shipping. We provide lifetime remote video support and 48-hour spare parts dispatch.
Yes. While standard plane labelers only work on flat surfaces, the YCT-30H can be modified with customized label-strengthening structures, such as flexible sponge rollers, air-blow systems, or soft brushes. This allows the label to conform perfectly to concave, convex, or slightly curved surfaces without trapping air or wrinkling.
Extremely easy. The machine features a manual height-adjustment handwheel with a clear scale. You can adjust the height of the entire labeling head from 0.2mm up to 120mm in less than 2 minutes to accommodate different product thicknesses.
Yes, absolutely. The YCT-30H is designed with a standard modular control architecture. We can customize the conveyor height and speed to match your existing production line, allowing products to flow seamlessly from your filling/capping station directly through the labeler.
Our standard lead time is 25 to 35 days. For highly customized projects involving non-standard product dimensions, specialized voltage requirements, or custom pressing mechanisms for uneven surfaces, the lead time is approximately 35 to 50 days.
We ensure a seamless startup through:
Factory Pre-Calibration: We calibrate the machine using your actual product and label samples before shipping.
Video Tutorials: We provide step-by-step video guides covering installation, operation, and routine maintenance.
24/7 Remote Assistance: Our engineering team is available via video call (WhatsApp/WeChat) to assist your operators with setup and troubleshooting.
