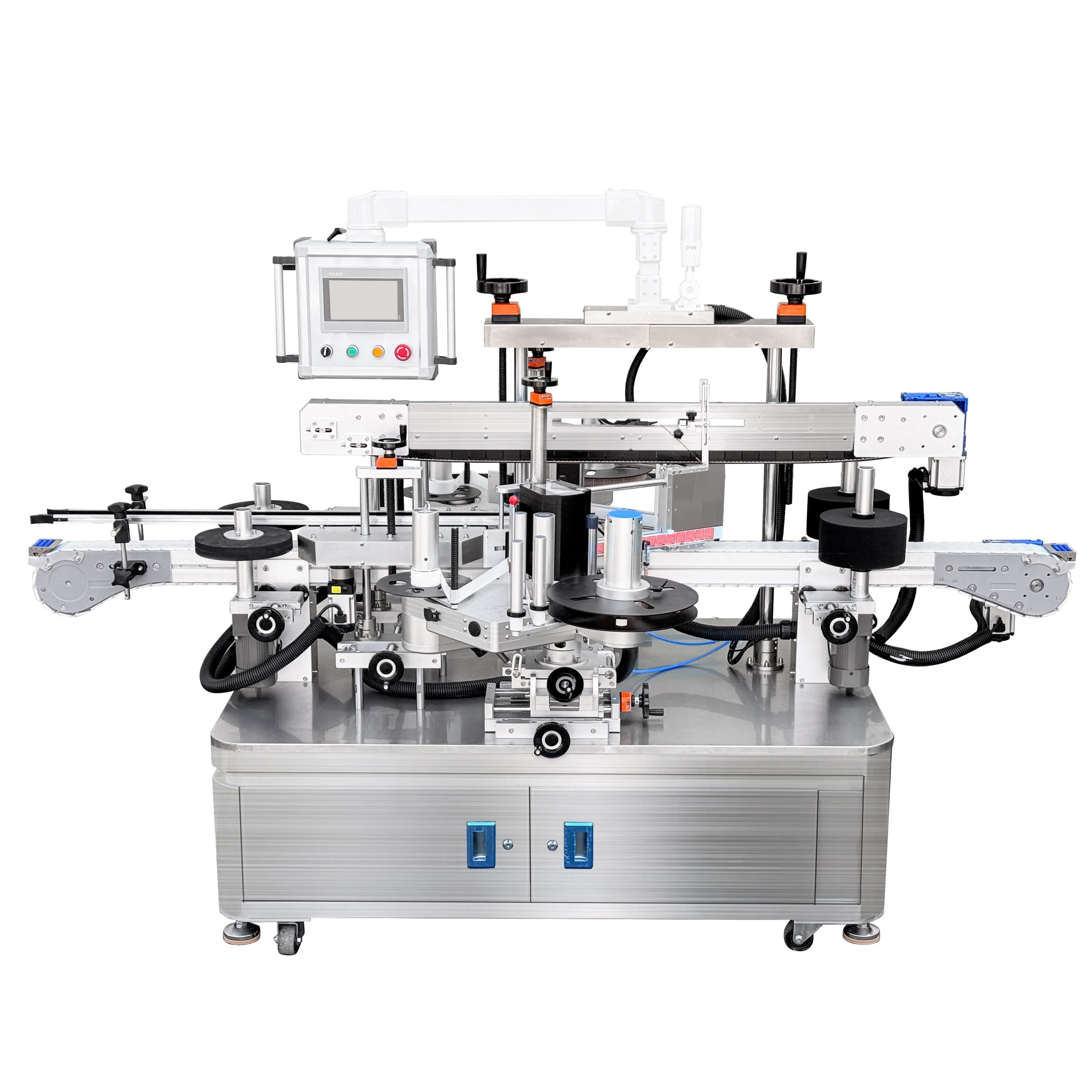

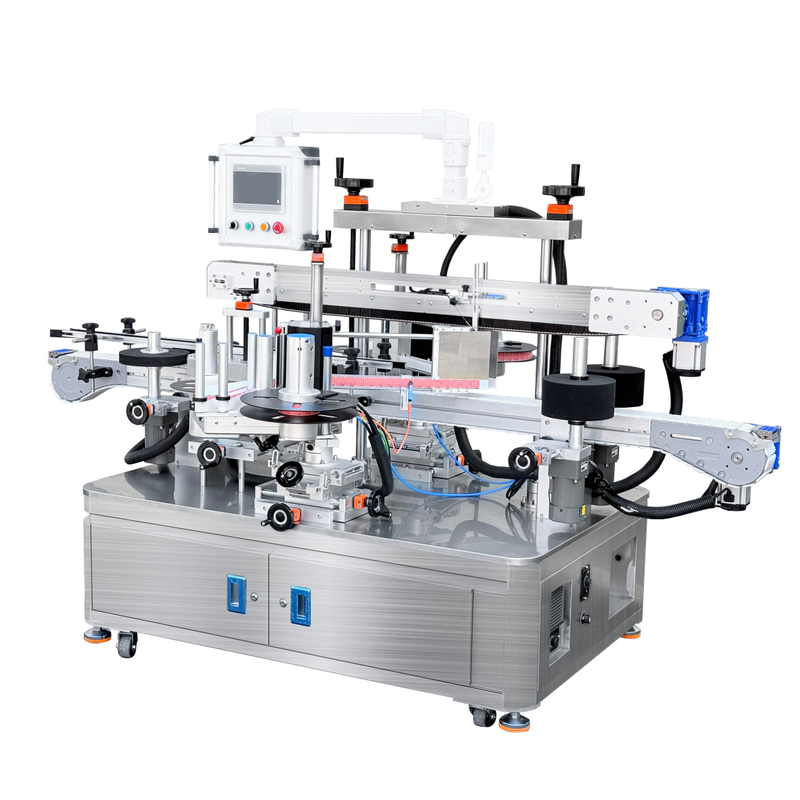

The YCT-52H Automatic High-Speed Double-Sided Labeling Machine is a heavy-duty, high-performance packaging solution designed to apply front and back labels simultaneously on flat, square, or cylindrical containers. Engineered with dual independent labeling heads, it delivers synchronous, high-precision labeling, making it the industry standard for high-volume production lines.
Inquire Now & Get a Free Turnkey Line Configuration
Table of Contents
In modern packaging lines for cosmetics, daily chemicals, and lubricants, products often require both a front brand label and a back ingredient/barcode label. Using two separate single-side labeling processes is inefficient and takes up valuable floor space.
The YCT-52H Automatic High-Speed Double-Sided Labeling Machine solves this by applying both labels in a single pass. Utilizing two high-precision, servo-driven labeling heads and an overhead top-hold alignment belt, the YCT-52H ensures that both front and back labels are perfectly aligned, wrinkle-free, and applied at speeds of up to 400 bottles per minute. Whether you are packaging flat shampoo bottles or square motor oil jugs, this machine delivers retail-ready aesthetics with maximum throughput.
Synchronous Dual-Side Labeling: Two independent labeling heads work in perfect synchronization to apply front and back labels simultaneously, doubling your packaging efficiency.
Overhead Top-Hold Alignment Belt: Features a synchronized top-clamping belt that secures the bottles from the top, preventing any tilting or wobbling during high-speed conveying.
Flat & Round Bottle Multi-Functionality: By adding an optional round-bottle rolling attachment, the machine seamlessly transitions from dual-side flat bottle labeling to wrap-around round bottle labeling.
Industrial-Grade Robustness: Built with a heavy-duty 420kg frame using SUS304 stainless steel and anodized aluminum. It integrates premium Mitsubishi PLCs, Panasonic servo motors, and Schneider electrics for maximum uptime.
Advanced Date & Batch Printing:
Ribbon Coder: Mounts directly to the labeling heads for synchronized printing on both labels.
Inkjet Printer: Integrates with the conveyor to print batch numbers, QR codes, or expiry dates directly onto the bottles.

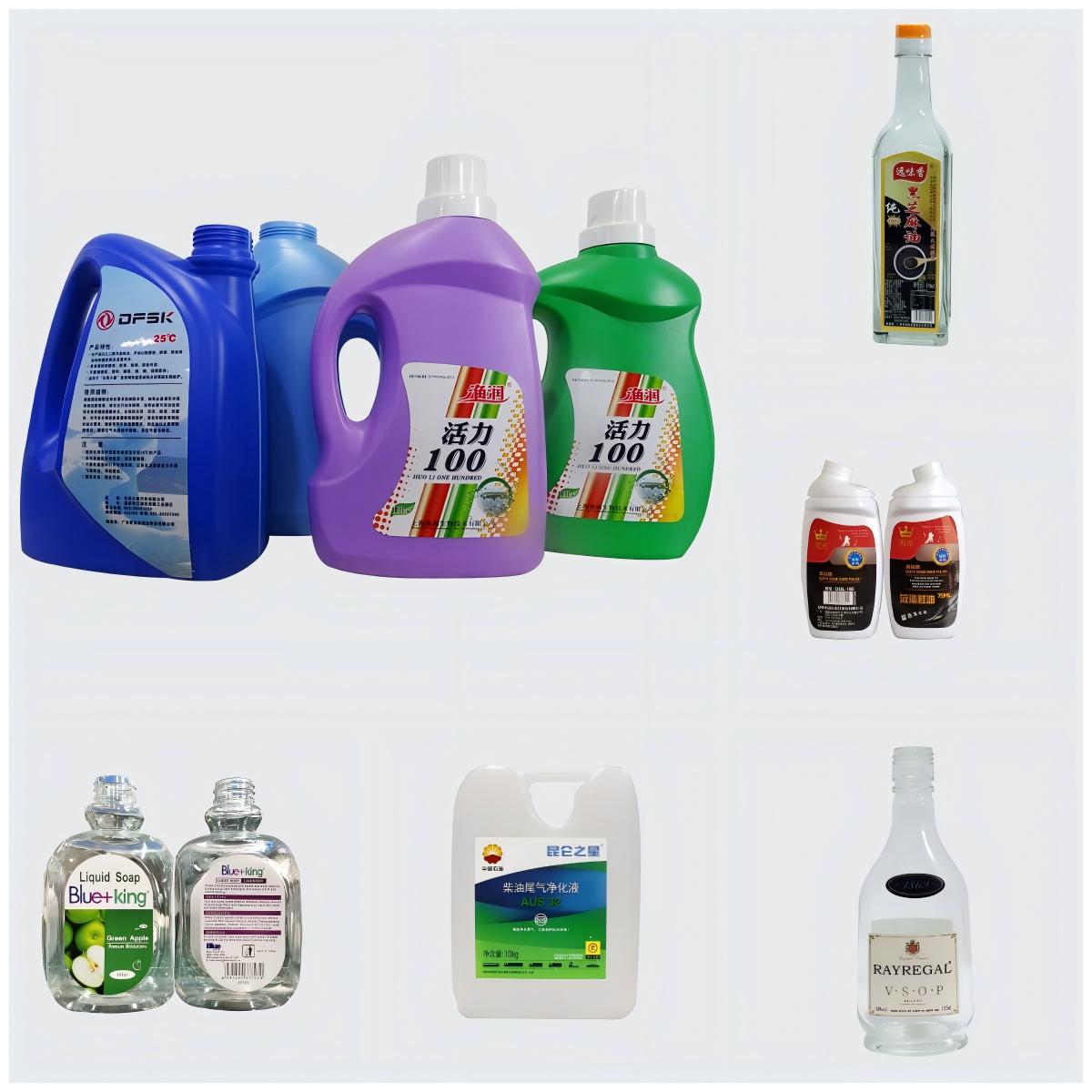

Labeling Machine Samples
Parameter | Specification Details |
Model | YCT-52H |
Labeling Speed | 100 ~ 400 pcs/min (depending on product & label size) |
Labeling Accuracy | ±0.5mm to ±2.0mm (excluding product/label errors) |
Applicable Product Sizes | Length: 20mm ~ 250mm | Width: 30mm ~ 100mm | Height: 60mm ~ 240mm (Customizable) |
Suitable Label Size | Length: 20mm ~ 160mm | Width: 20mm ~ 120mm |
Label Roll Inner Diameter | φ76mm (Standard) |
Label Roll Outer Diameter | φ300mm (Maximum) |
Power Supply | 220V / 50Hz (110V/380V/415V customizable) |
Power Consumption | 4700W (High-power stability) |
Machine Weight | Approx. 420 kg (Heavy-duty design) |
Machine Dimensions (L×W×H) | Approx. 2450mm × 1650mm × 1700mm |
The YCT-52H is the ultimate workhorse for high-speed packaging lines requiring dual-sided labeling:
Daily Chemicals & Sanitizers: Front and back labeling for hand sanitizers, liquid soaps, laundry detergents, and household cleaners.
Cosmetics & Personal Care: Flat or oval bottles for shampoos, conditioners, body washes, and body lotions.
Petrochemicals & Lubricants: Dual-side labeling for motor oil jugs, engine lubricants, and chemical additive bottles.
Pharmaceuticals & Nutraceuticals: Rectangular or square medicine bottles and dietary supplement containers.
15+ Years of Manufacturing Excellence: Dongguan Yucheng Machinery Technology Co., Ltd. (YCT Machinery) is a certified manufacturer delivering reliable packaging automation to 50+ countries.
Customization Expertise: Over 60% of our orders are customized. We can engineer custom-shaped bottle separators, specialized alignment guides, and integrated filling/capping/labeling turnkey lines.
Global Service & Support: We provide 100% factory pre-shipment testing, comprehensive English manuals, video tutorials, and 48-hour spare parts delivery.
Yes, absolutely. The YCT-52H is designed with flexibility in mind. By adding an optional round-bottle wrap-around belt attachment, you can easily switch the machine from dual-side labeling on flat/oval bottles to single or double-label wrap-around labeling on round bottles.
Perfect alignment is achieved through three synchronized systems:
Chain-Type Bottle Aligning Device: Straightens the bottles before they enter the labeling zone.
Overhead Top-Hold Belt: Clamps the bottles from the top to prevent any movement or vibration.
High-Resolution Servo Motors: Dispense the labels at the exact millisecond required based on sensor detection.
No. The machine features user-friendly handwheels with position indicators for all mechanical adjustments (such as conveyor width, top-hold belt height, and labeling head angles). Most product changeovers can be completed in under 20 minutes without requiring special tools.
Our standard lead time is 25 to 35 days. For customized configurations (such as custom bottle shapes, non-standard voltages like 110V or 415V, or integration with existing upstream filling lines), the lead time is approximately 35 to 50 days.
We ensure a seamless startup through:
Factory Pre-Calibration: We calibrate and test the machine using your actual bottle and label samples before shipping.
Video Tutorials: We provide step-by-step video guides covering installation, operation, and routine maintenance.
24/7 Remote Assistance: Our engineering team is available via video call (WhatsApp/WeChat) to guide your team through installation and operator training.
