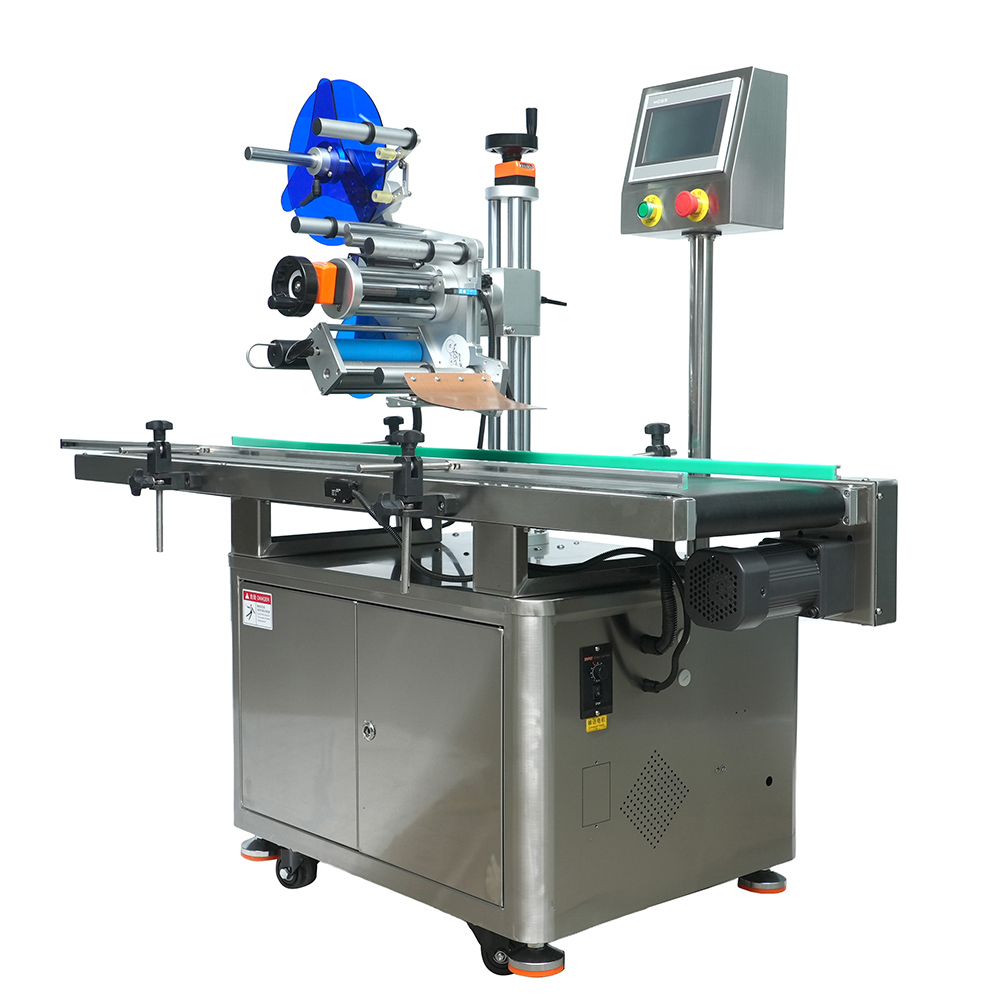

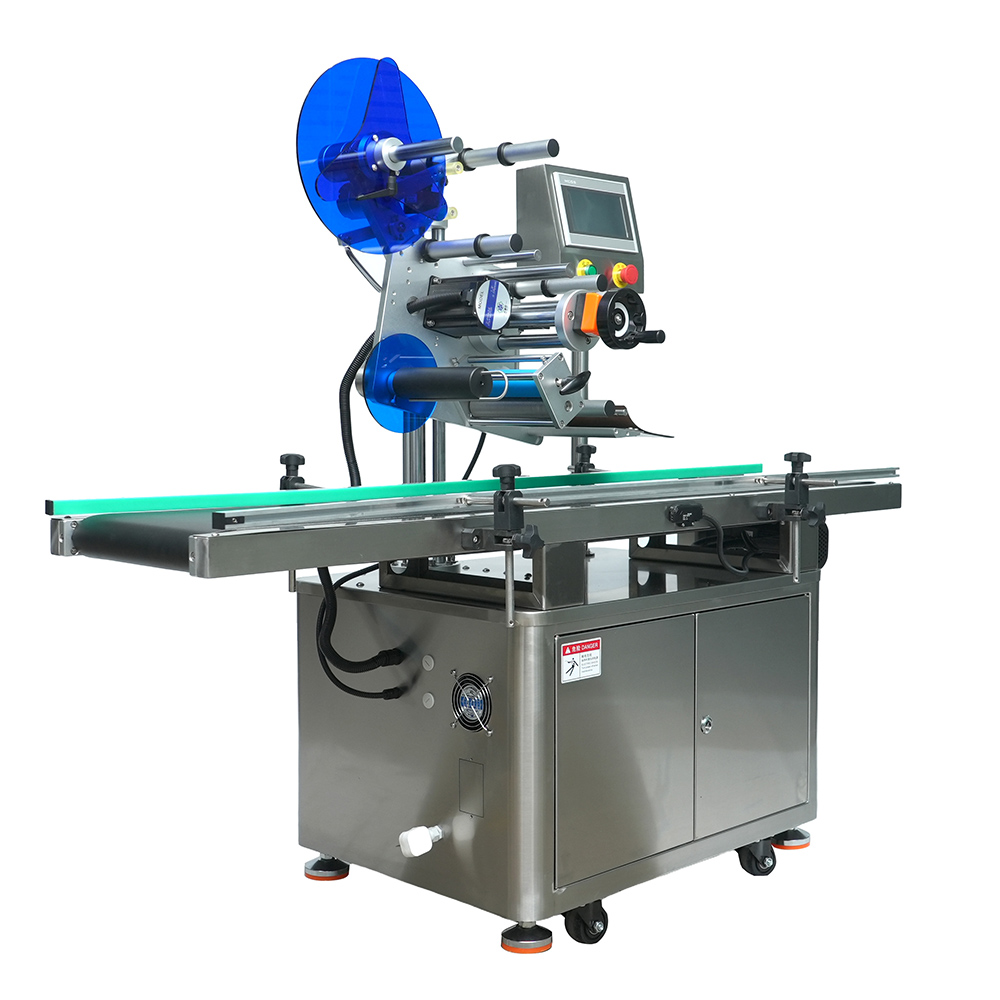

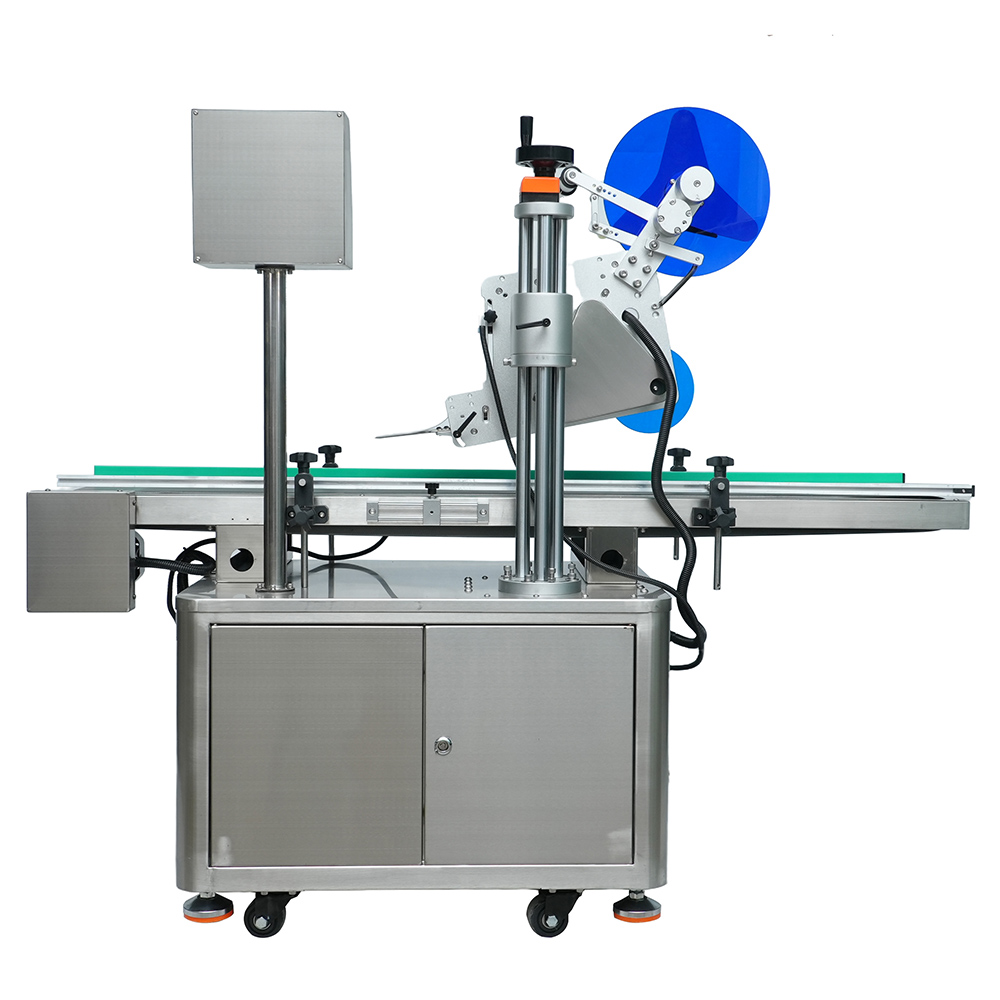

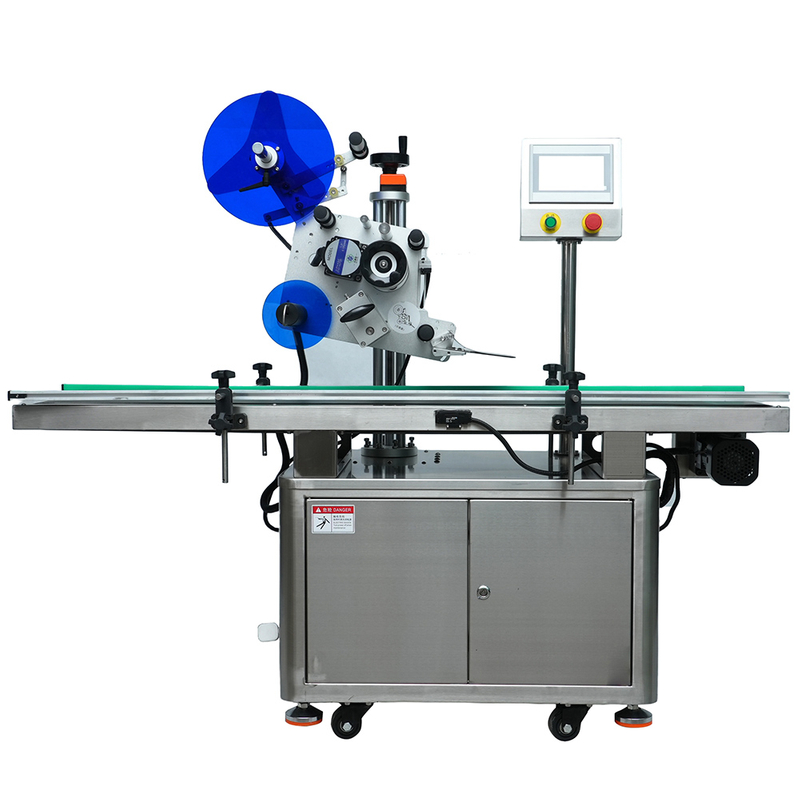

YCT-301 is a fully automatic flat surface labeling machine designed for boxes, lids, batteries, cartons, plastic covers, and other flat or irregular-base products. It supports full coverage labeling, partial precise labeling, vertical multi-label labeling, and horizontal multi-label labeling. With ±0.5 mm labeling accuracy, 40-80 pcs/min output, and optional coding or printing functions, this machine is suitable for high-precision and high-output labeling applications.
The YCT-301 fully automatic flat surface labeling machine is developed for manufacturers who need accurate and efficient labeling on flat products, packaging boxes, lids, cartons, and various irregular-base items. It is widely used in industries such as food, cosmetics, toys, chemical, electronics, medicine, and packaging materials.
Many standard labelers work well only on simple bottle shapes, but packaging factories often need to apply labels to products such as plastic covers, boxes, battery packs, toy covers, food containers, and shaped plastic cases. The YCT-301 is designed to handle these applications with stable feeding, accurate label dispensing, and reliable label pressing.
This machine is suitable for businesses looking for a practical flat surface labeling machine, box labeling machine, or carton labeling machine for products requiring high precision and consistent output.
The YCT-301 is suitable for a wide range of products, including:
Boxes
Cartons
Lids and covers
Batteries
Plastic covers
Food cans
Toy covers
Plastic boxes
Egg-shaped plastic boxes
Packaging materials
Flat bottles such as shampoo bottles
Plastic shells and other flat-base products
Depending on the actual product structure and label layout, the machine can also be applied to products requiring labeling on:
Flat surfaces
Arc-shaped surfaces
Round surfaces
Concave surfaces
Convex surfaces
Other special surfaces after engineering confirmation
The YCT-301 supports several common labeling modes for different packaging projects:
Suitable for products that require the label to cover a large flat area or most of the target labeling surface.
Suitable for products that need the label to be placed only in a specific position with high accuracy.
Suitable for applications where multiple labels need to be applied in a vertical arrangement.
Suitable for products that require multiple labels in a horizontal arrangement on the same item.
This flexibility makes the YCT-301 a strong choice for factories that run different SKUs or customized packaging formats.
The machine offers ±0.5 mm labeling tolerance, which is suitable for products that require high precision and clean label presentation. For many packaging applications, the error is difficult to see with the naked eye.
With a standard capacity of 40-80 pcs/min, the YCT-301 is suitable for production environments that require both speed and consistent labeling quality.
The machine is designed for easy adjustment. Operators can conveniently adjust:
Labeling mechanism height
Conveyor speed
Labeling speed
Sensor position
Brush height
This helps reduce changeover time and makes daily operation easier.
The YCT-301 is developed for flat-base products as well as certain irregular items, making it more flexible than a basic flat-only labeler.
The machine can be configured with:
A code printer
An inkjet printer
An optional printer for variable information
This allows production batch number, production date, expiry date, and other variable information to be printed during labeling, helping improve efficiency and reduce additional processing steps.
According to the actual product and project requirements, the machine can be equipped with:
Automatic feeding function
Automatic material collection function
Additional labeling device
These options help create a more integrated labeling solution for production lines.
The machine uses a touch screen with a clear visual interface. Chinese and English are available, and operators can easily set parameters and manage counting functions.
The YCT-301 is equipped with:
Japan Panasonic control system
German LEUZE / Italian Datalogic label sensor
Japanese Panasonic product sensor
These components help ensure stable labeling performance and reliable detection accuracy.
The machine and spare parts use stainless steel and anodized senior aluminum alloy, providing strong corrosion resistance and long-term durability.
If problems occur, such as:
Label spill
Label breakage
Other malfunctions
the machine can issue an alarm, helping operators respond quickly.
The working process is simple and easy to understand:
Click start on the touch screen
The product is placed next to the guardrail
The conveyor moves the product forward
When the sensor detects that the product has reached the target position, the machine sends out the label
The brush presses the label onto the product
One labeling cycle is completed
In terms of control logic, the label sensor and product sensor send signals to the PLC. After signal processing, the PLC controls the related parts such as motors and starts the labeling operation automatically.
The YCT-301 is suitable for:
Sticker labels
Film labels
Electronic supervision code labels
Bar code labels
Adhesive labels, transparent or opaque
This makes the machine applicable to a wide range of packaging and traceability requirements.
Item | Specification |
Model | YCT-301 |
Machine Type | Fully Automatic Flat Surface Labeling Machine |
Label Specification | Adhesive sticker, transparent or opaque |
Labeling Tolerance | ±0.5 mm |
Capacity | 40-80 pcs/min |
Suitable Product Size | L: 40-400 mm, W: 20-200 mm, H: 0.2-150 mm, can be customized |
Suitable Label Size | L: 15-200 mm, W(H): 15-130 mm |
Machine Size | 1930 × 695 × 1390 mm |
Packing Size | 1950 × 730 × 1450 mm |
Voltage | 220V / 50(60)Hz, can be customized |
Power | 1030 W |
Net Weight | 195 kg |
Gross Weight | 360 kg |
Label Roll | ID: Ø76 mm, OD: ≤260 mm |
Structure | Function |

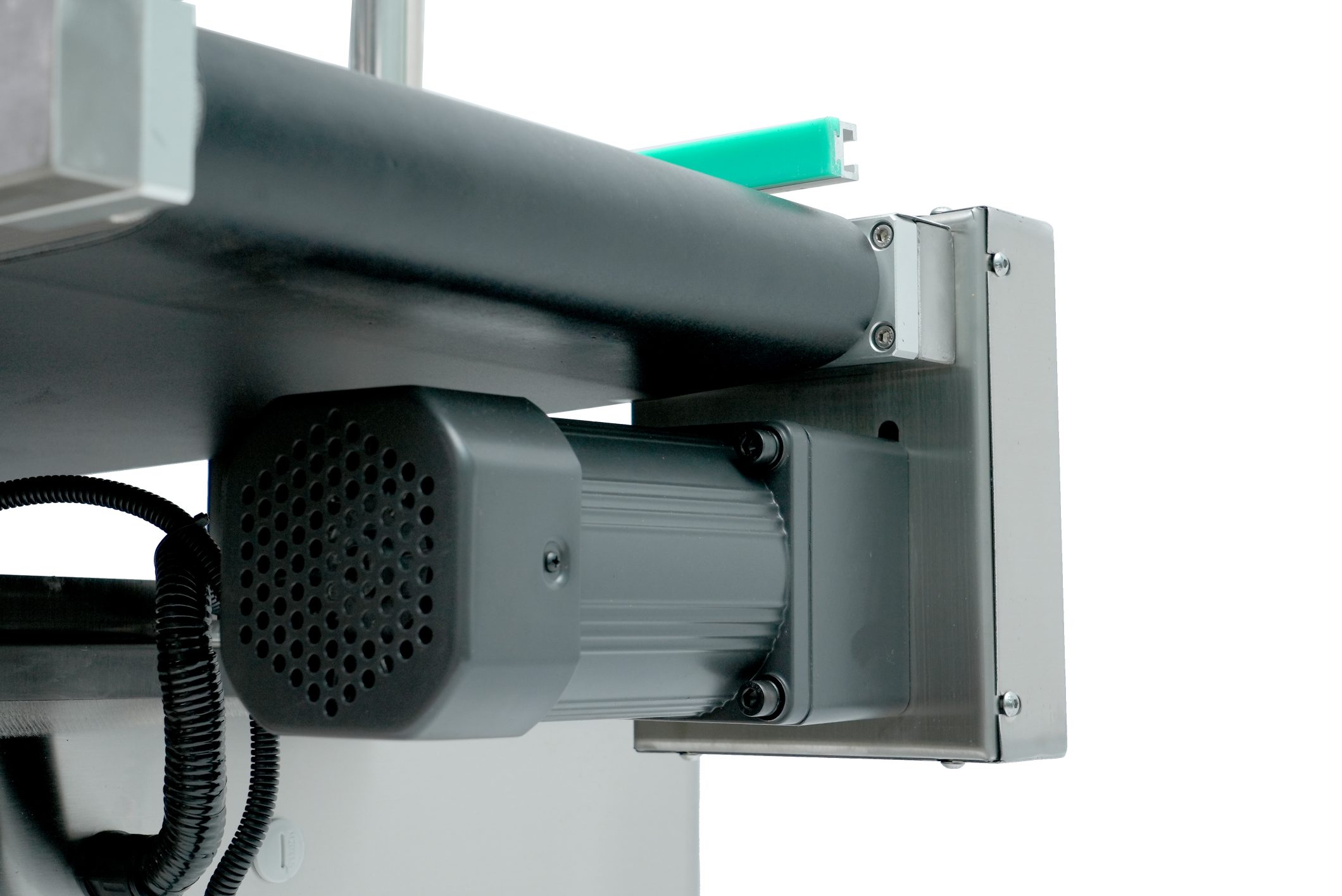

Conveyor | Transmits the product |

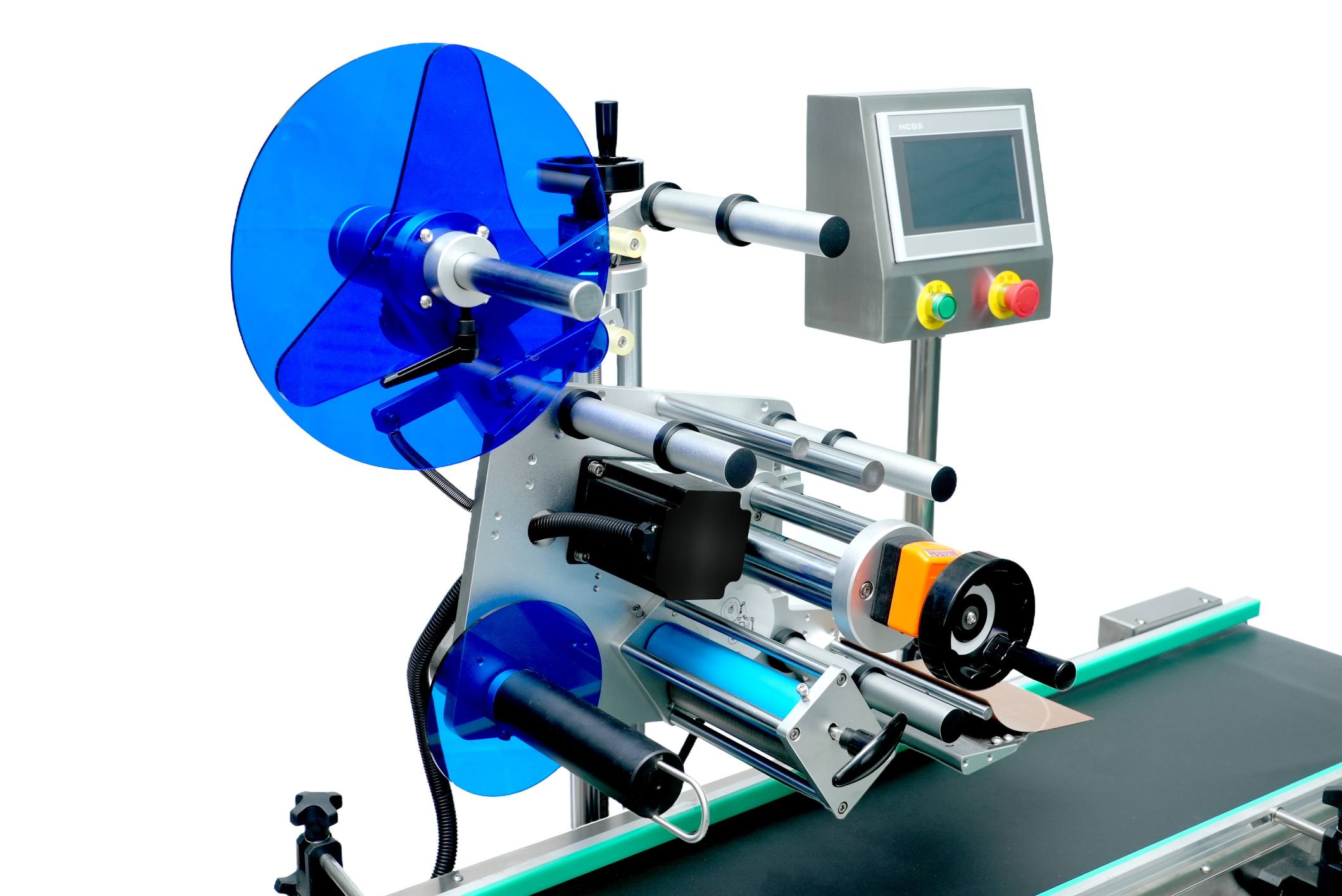

Labeling Head | Core part of the machine, including label winding and driving structure |
Touch Screen | Used for operation and parameter setting |
Collection Plate | Collects labeled products |
Strengthening Sponge Roller | Presses the labeled product to strengthen adhesion |
Main Switch | Turns the machine on |
Emergency Stop | Stops the machine if abnormal operation occurs |
Electric Box | Houses electrical configurations |
To ensure stable labeling performance, the following label requirements are recommended:
The gap between one label and the next should be 2-3 mm
The distance between the label and the edge of the backing paper should be 2 mm
The backing paper should be made of glassine with good toughness to reduce breakage risk
The inner diameter of the core should be 76 mm
The outer diameter should be less than 280 mm
Labels should be arranged in a single row
Final label specifications should always be confirmed according to your actual product and after communication with YCTAUTO engineers.
The YCT-301 can be configured with optional functions such as:
Code printer
Inkjet printer
Variable information printer
Automatic feeding function
Automatic material collection function
Additional labeling device
Customized machine structure according to product requirements
This makes the machine suitable for OEM projects, packaging upgrades, and different production line layouts.
The YCT-301 is widely used in:
Food industry
Cosmetics industry
Toy industry
Chemical industry
Electronics industry
Pharmaceutical industry
Packaging materials industry
The YCT-301 is suitable for boxes, lids, batteries, cartons, plastic covers, food containers, toy covers, plastic boxes, and other flat or irregular-base products.
No. It is mainly designed for flat surface and flat-base applications, but it can also be used for certain arc-shaped, concave, convex, and irregular products after application confirmation.
The machine supports full coverage labeling, partial accurate labeling, vertical multi-label labeling, and horizontal multi-label labeling.
The labeling tolerance is ±0.5 mm, making it suitable for products that require high precision.
The standard speed is 40-80 pcs/min, depending on product size, label size, and actual operating conditions.
Yes. Optional code printer, inkjet printer, or printing modules can be added to print production batch number, production date, expiry date, and other information during labeling.
The machine supports adhesive labels, including transparent or opaque sticker labels, film labels, bar code labels, and electronic supervision code labels.
Yes. The machine supports customization according to product dimensions, labeling requirements, optional devices, and line integration needs.
Looking for a high-accuracy flat surface labeling machine for boxes, cartons, lids, batteries, or irregular products?
Send us your:
Product photo
Product size
Label size
Required output
Labeling position
Optional coding or printing needs
YCTAUTO will recommend a suitable machine configuration based on your actual application.
