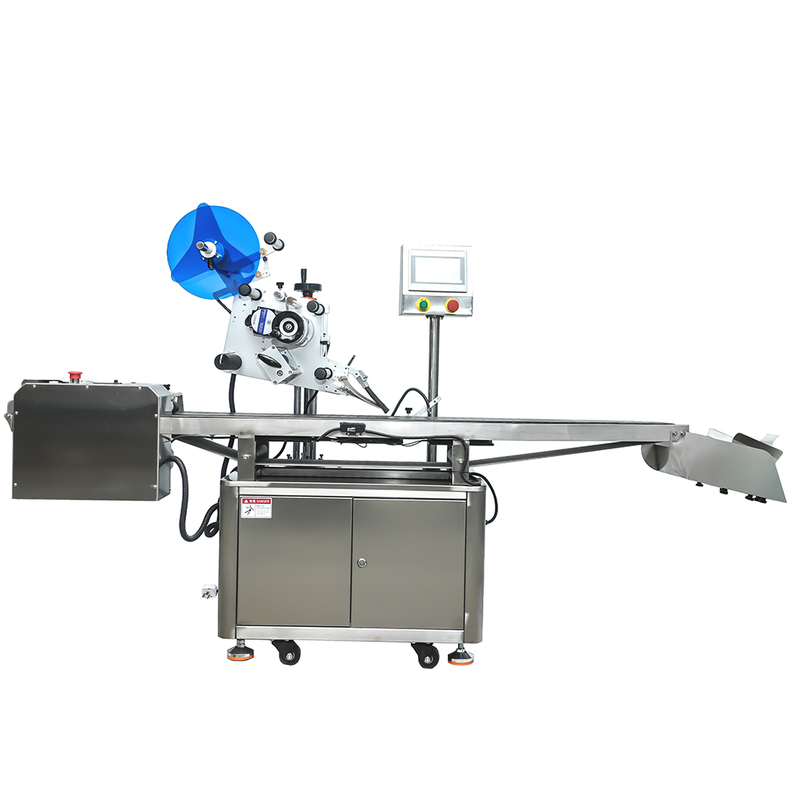

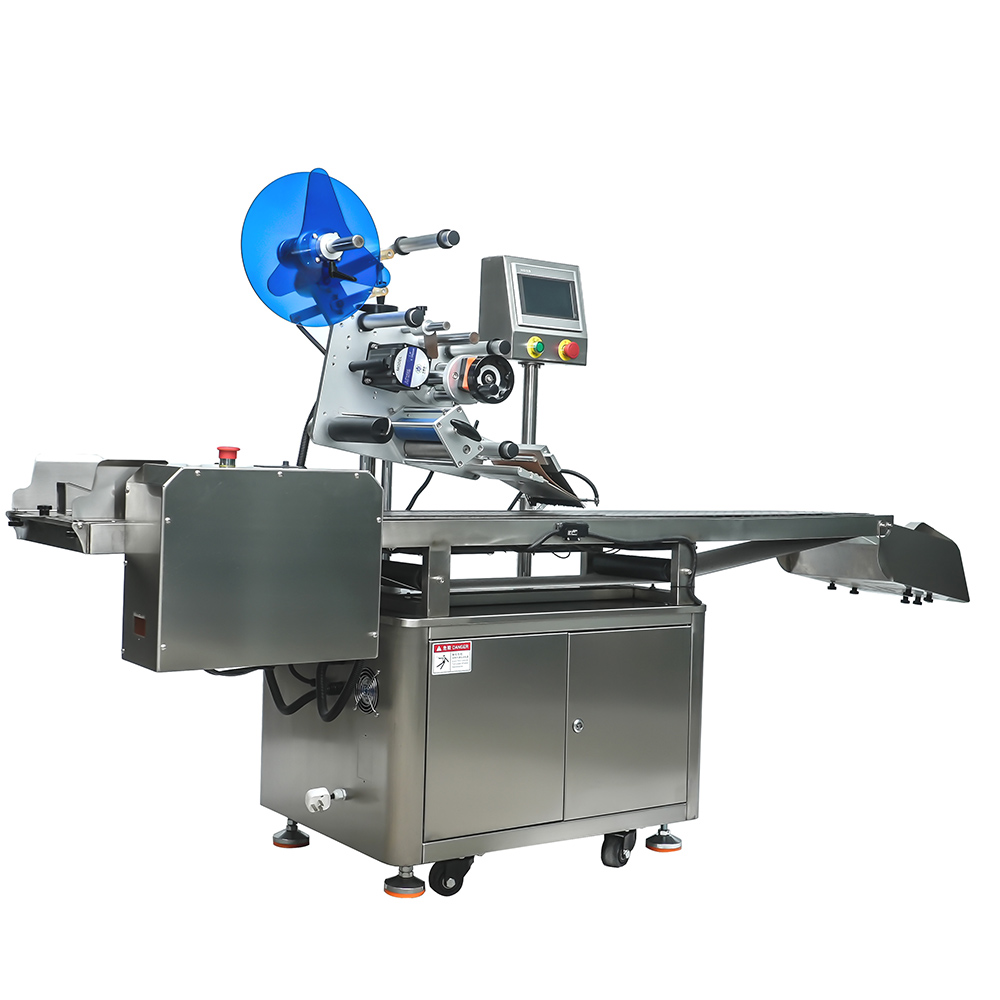

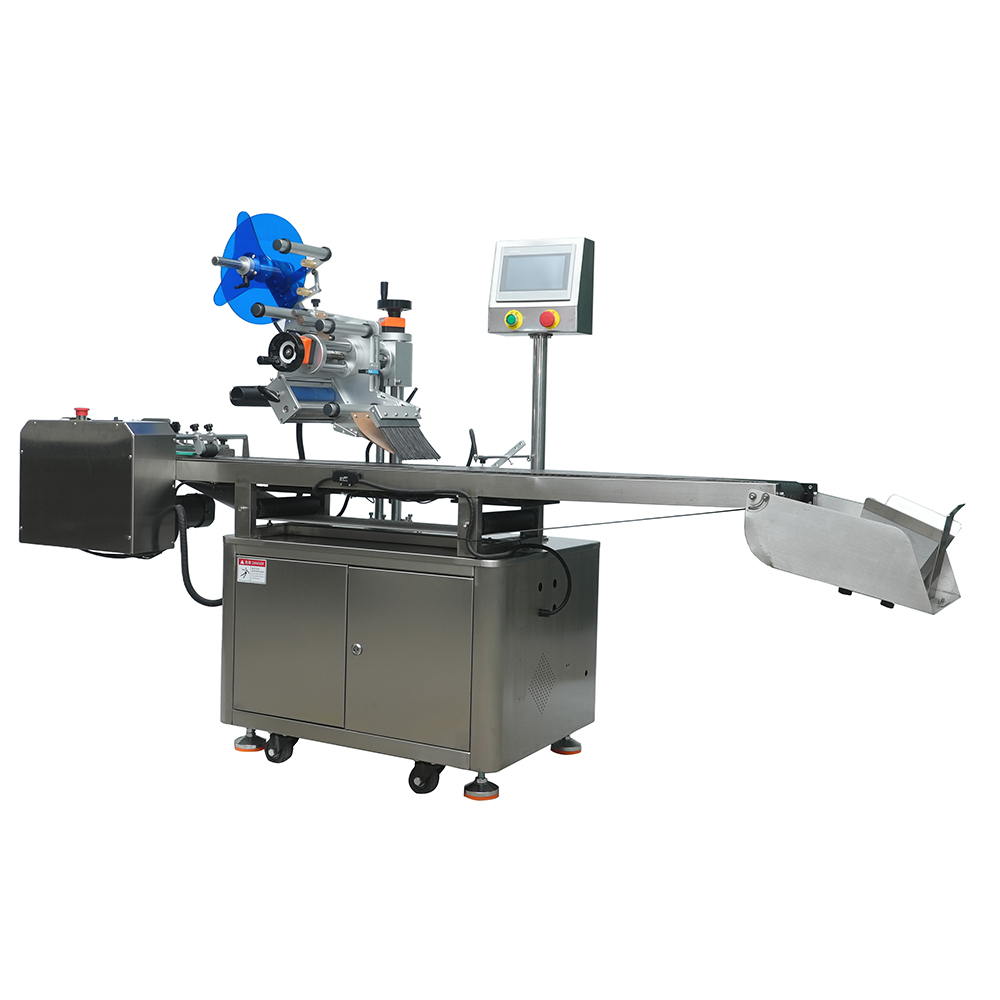

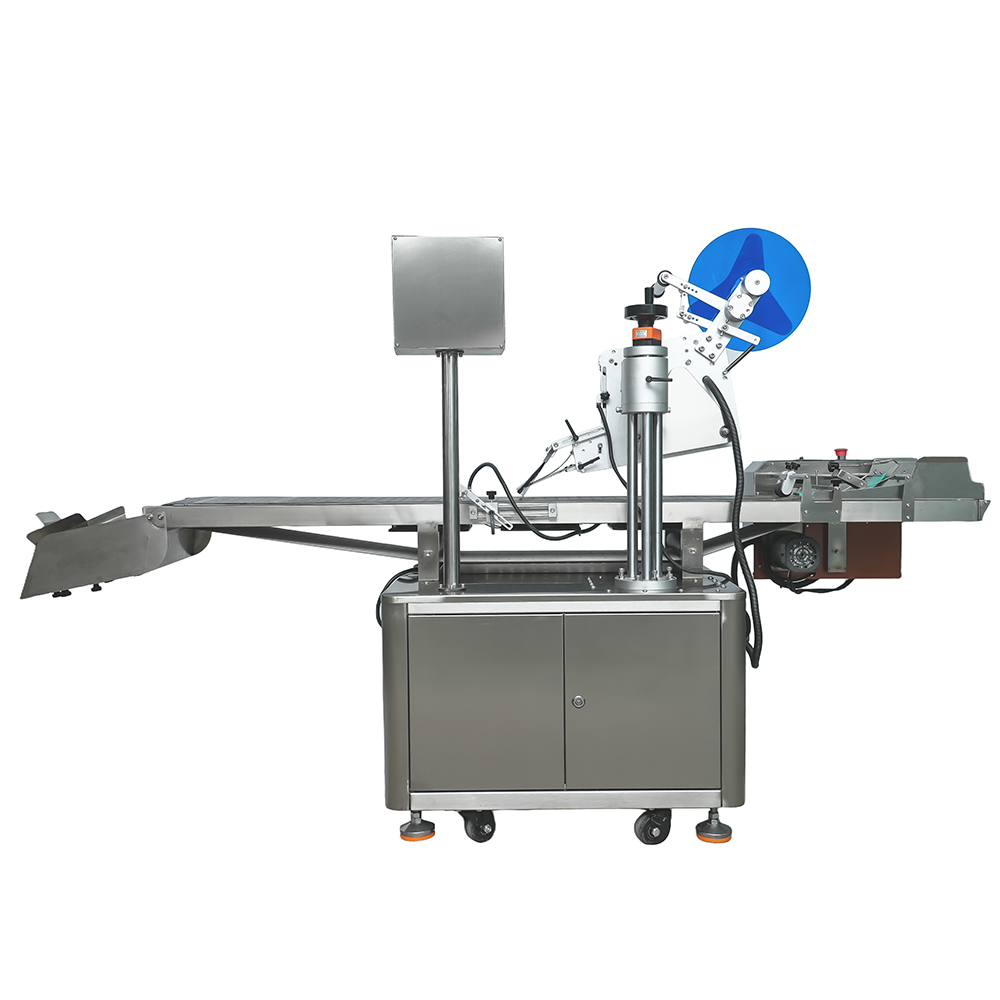

YCT-311 is a fully automatic suction-feed flat surface labeling machine designed for cards, plastic bags, cartons, paper sheets, thin pouches, and other lightweight flat products. Equipped with a pagination device and vacuum adsorption conveyor, it helps separate, feed, and hold products flat during conveying for stable high-speed labeling. The machine supports full coverage labeling, partial precise labeling, vertical multi-label labeling, and horizontal multi-label labeling, with ±0.5 mm accuracy and speeds of 40-120 pcs/min.
The YCT-311 fully automatic suction-feed flat surface labeling machine is developed for manufacturers who need accurate and efficient labeling on lightweight, thin, flat, or sheet-type products that are difficult to feed stably with ordinary conveyor systems.
For products such as cards, plastic bags, cartons, paper sheets, thin pouches, thin plastic pieces, and flat packaging materials, ordinary flat labeling machines may encounter issues such as product drifting, overlapping, poor spacing, or unstable label placement. The YCT-311 addresses these problems by combining a pagination device with a vacuum adsorption conveyor, helping feed products one by one and keep them flat during the labeling process.
This makes the YCT-311 a practical solution for customers searching for a card labeling machine, pouch labeling machine, flat surface labeling machine, or vacuum-feed labeling machine for high-precision and high-output applications.
For many thin or lightweight products, the biggest challenge is not only label application, but also stable product handling before labeling.
Products such as:
Cards
Thin plastic bags
Small pouches
Paper sheets
Thin cartons
Lightweight printed materials
can easily shift, lift, overlap, or feed unevenly. The YCT-311 is designed to solve these issues through:
Pagination feeding for one-by-one separation
Vacuum adsorption conveying for stable transport
Accurate sensor detection
Consistent pressing during label application
This is why the YCT-311 is especially suitable for projects where standard flat labelers may struggle with light, flexible, or thin products.
The YCT-311 is suitable for labeling a wide range of lightweight flat or sheet-type products, including:
Cards
Plastic bags
Thin pouches
Paper sheets
Cartons
Packaging inserts
Printed materials
Thin plastic sheets
Small flat cartons
Light OEM packaging materials
Depending on the actual product structure and label position, the machine can also be considered for products requiring labeling on:
Flat surfaces
Arc-shaped surfaces
Round surfaces
Concave surfaces
Convex surfaces
Other special surfaces after engineering evaluation
The YCT-311 is widely used in:
Carton packaging industry
Plastic products industry
Electronics industry
Card product industry
OEM packaging industry
Printing materials industry
Food industry
Cosmetics industry
Toy industry
Chemical industry
Pharmaceutical industry
The YCT-311 supports several common labeling formats for different product and packaging requirements.
Suitable for products that require the label to cover most or all of the target flat surface.
Suitable for products that require a label to be applied in a specific position with high precision.
Suitable for products that require multiple labels to be arranged vertically.
Suitable for applications where multiple labels need to be applied in a horizontal arrangement.
This flexibility makes the YCT-311 suitable for factories running different SKUs, promotional packs, or customized OEM packaging jobs.
The machine is equipped with a pagination device that helps separate stacked cards, pouches, paper sheets, or similar products and feed them to the conveyor one by one. This helps improve feeding stability and reduce overlap.

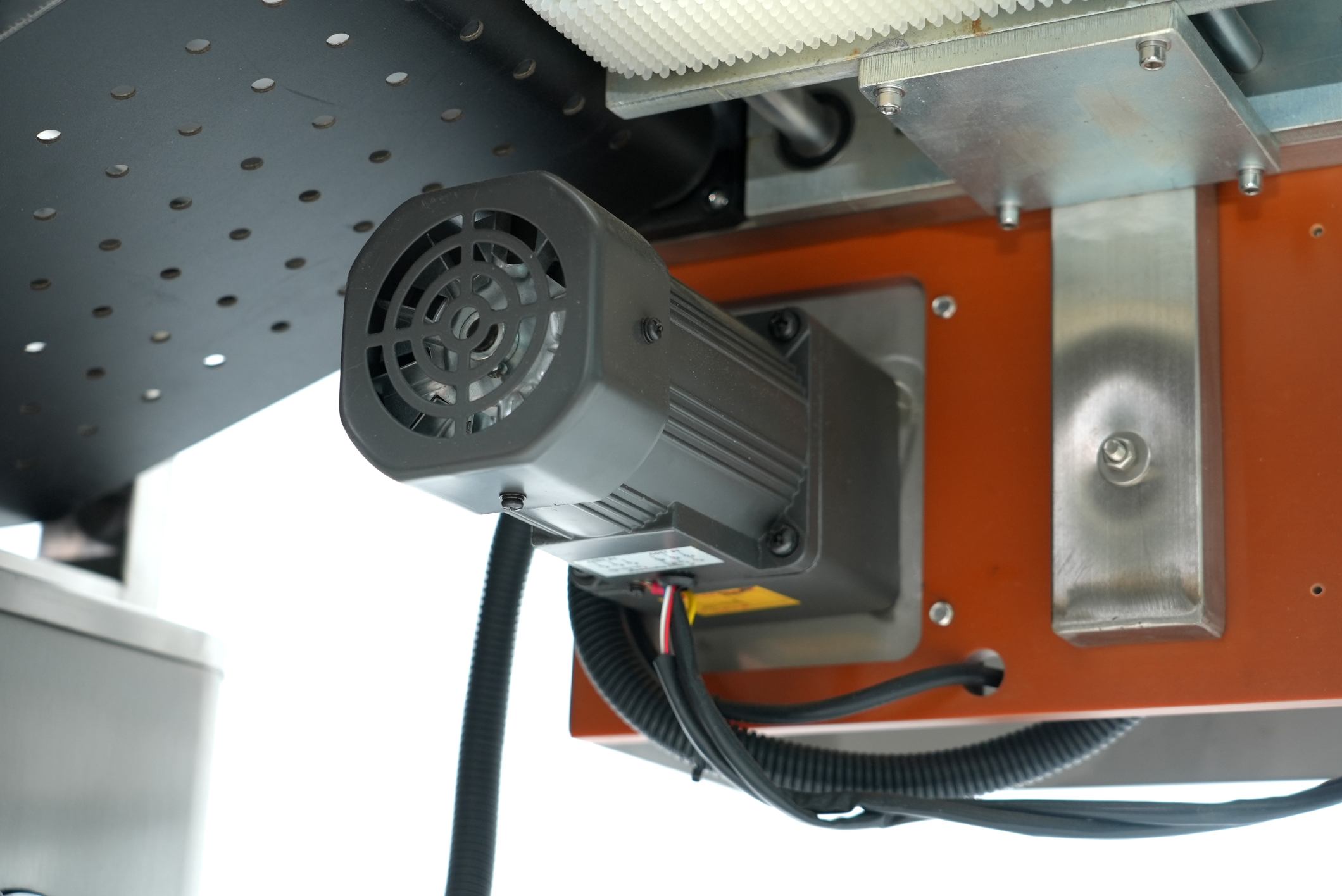

One of the key advantages of the YCT-311 is its adsorption conveyor. The conveyor belt is perforated and supported by a blower motor underneath, generating vacuum suction that helps keep lightweight products flat and stable during conveying.
This is especially useful for:
Empty bags
Thin pouches
Flexible cards
Printed sheets
Lightweight plastic pieces
The machine offers ±0.5 mm labeling tolerance, making it suitable for products that require precise and clean label placement.
With a standard capacity of 40-120 pcs/min, the YCT-311 is suitable for customers that need both speed and consistent labeling quality.
The machine can be configured with:
Code printer
Inkjet printer
Variable information printer
This allows the machine to print:
Production batch number
Production date
Expiry date
Other variable information
during the labeling process, improving production efficiency.
The touch screen interface is clear and easy to use, with Chinese and English available. Operators can adjust parameters directly and use counting functions for production management.
The YCT-311 is equipped with:
Japan Panasonic control system
German LEUZE / Italian Datalogic label sensor
Japan Panasonic product sensor
These components help ensure stable machine operation and accurate detection performance.
If problems such as:
Label spill
Label breakage
Other machine malfunctions
occur during operation, the machine can give an alarm to help operators react quickly.
The machine and spare parts use stainless steel and anodized senior aluminum alloy, helping provide corrosion resistance, durability, and long service life.
A voltage transformer is equipped to better adapt the machine to local voltage requirements in different export markets.
The working process is simple and suitable for production environments requiring stable continuous labeling.
Click start on the touch screen
Products are placed on the pagination device
The pagination device separates the products and sends them one by one to the conveyor
The adsorption conveyor moves the product forward while holding it flat by vacuum suction
When the sensor detects the target position, the machine dispenses the label
The roller presses the label onto the product surface
One labeling cycle is completed
In terms of control logic, the label sensor and product sensor send signals to the PLC, and the PLC then controls different machine parts such as motors to complete the automatic labeling process.
The YCT-311 is suitable for:
Sticker labels
Film labels
Electronic supervision code labels
Bar code labels
Adhesive labels, transparent or opaque
This makes the machine suitable for both standard labeling and traceability-related labeling requirements.
Item | Specification |
Model | YCT-311 |
Machine Type | Fully Automatic Suction-Feed Flat Surface Labeling Machine |
Label Specification | Adhesive sticker, transparent or opaque |
Labeling Tolerance | ±0.5 mm |
Capacity | 40-120 pcs/min |
Suitable Product Size | L: 40-400 mm, W: 20-200 mm, H: 0.2-150 mm, can be customized |
Suitable Label Size | L: 15-100 mm, W(H): 15-130 mm |
Machine Size | 2080 × 695 × 1390 mm |
Packing Size | 2130 × 730 × 1450 mm |
Voltage | 220V / 50(60)Hz, can be customized |
Power | 820 W |
Net Weight | 200 kg |
Gross Weight | 365 kg |
Label Roll | ID: Ø76 mm, OD: ≤260 mm |
Structure | Function |

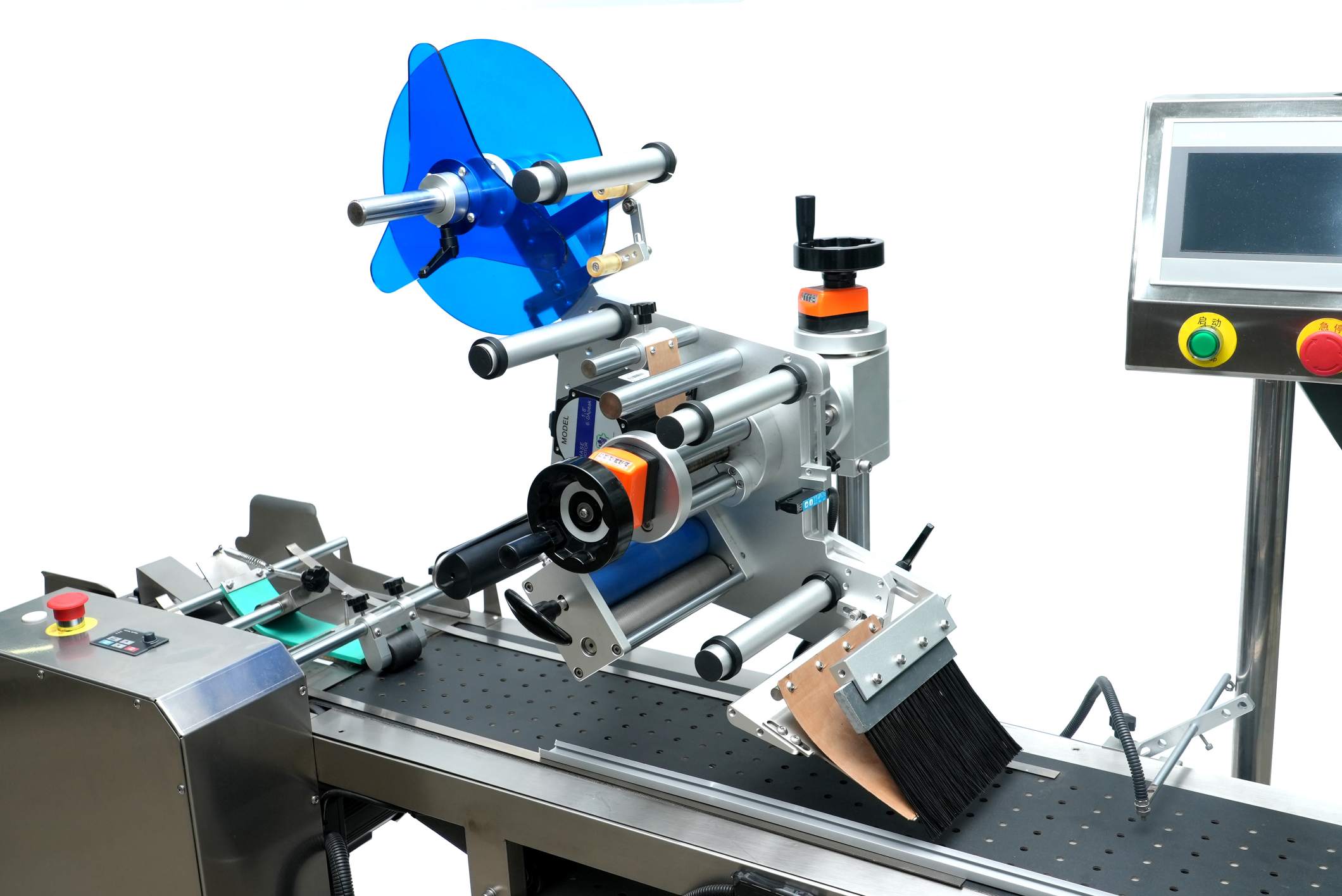

Adsorption Conveyor | Perforated conveyor with blower motor underneath to create vacuum suction, helping keep light products flat during conveying |

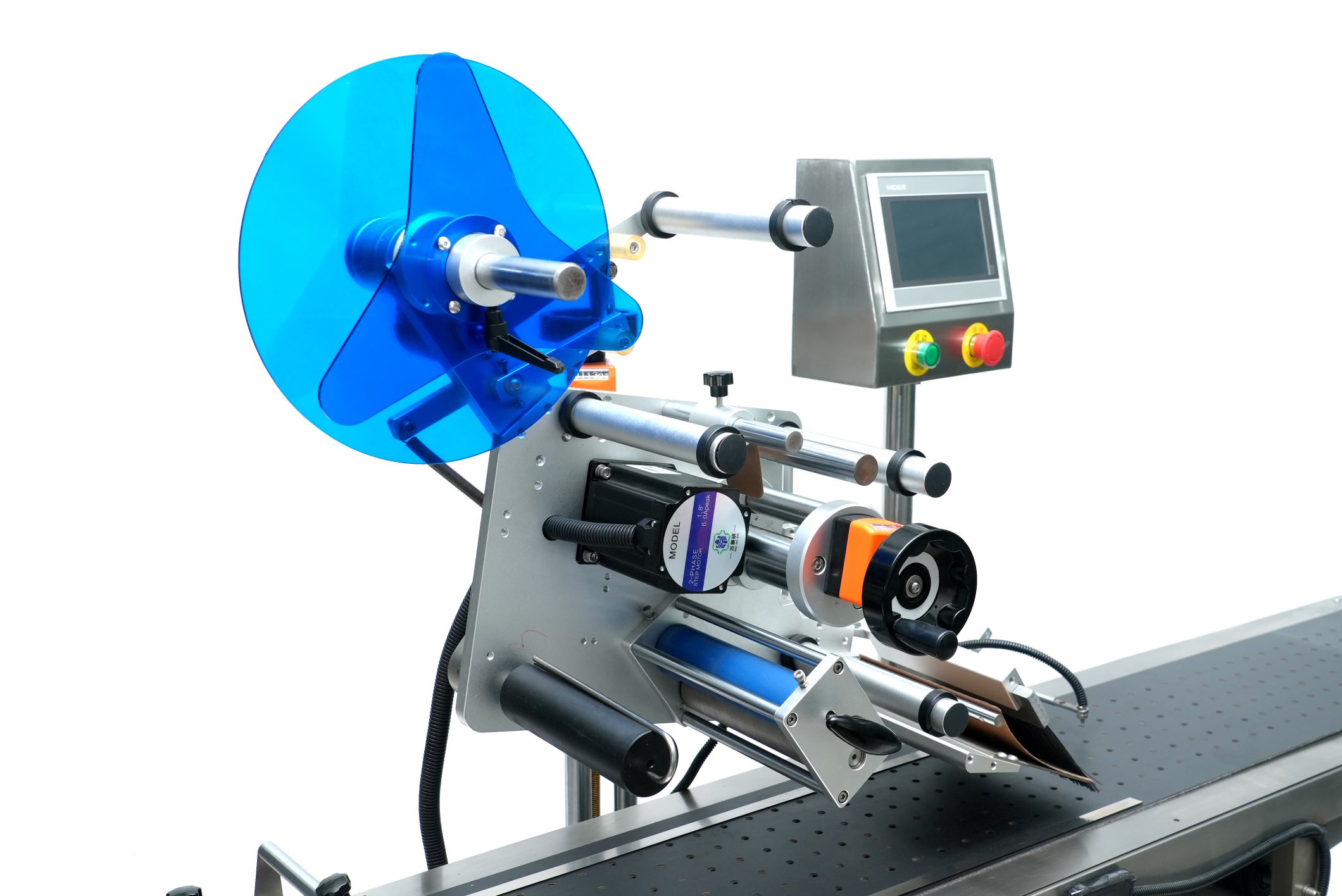

Labeling Head | Core of the labeler, including label winding and driving structure |
Touch Screen | Used for operation and parameter setting |
Collection Plate | Collects labeled products |

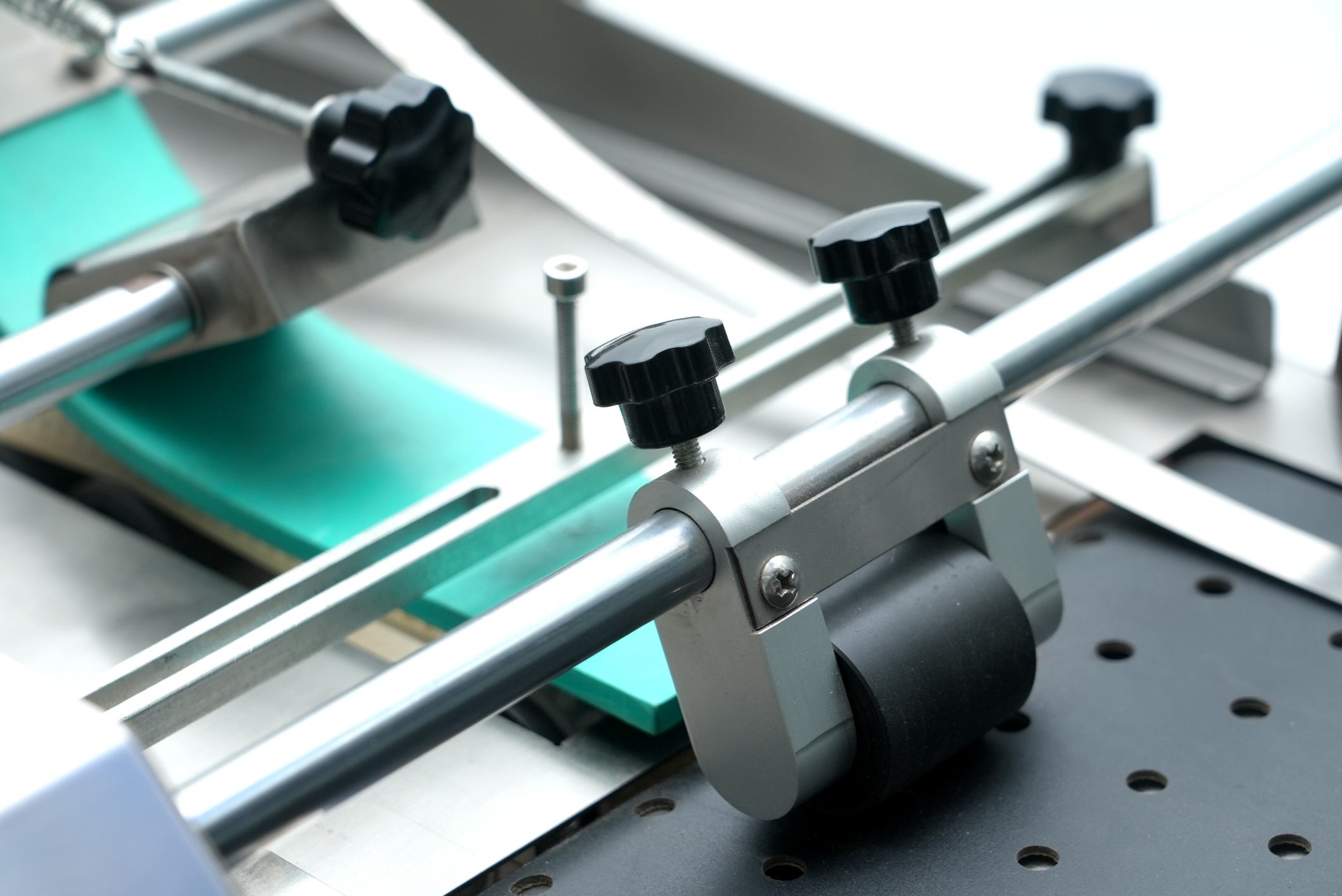

Strengthening Sponge Roller | Presses labeled products to strengthen label adhesion |
Main Switch | Turns the machine on |
Emergency Stop | Stops the machine in case of abnormal operation |
Electric Box | Houses electrical configurations |

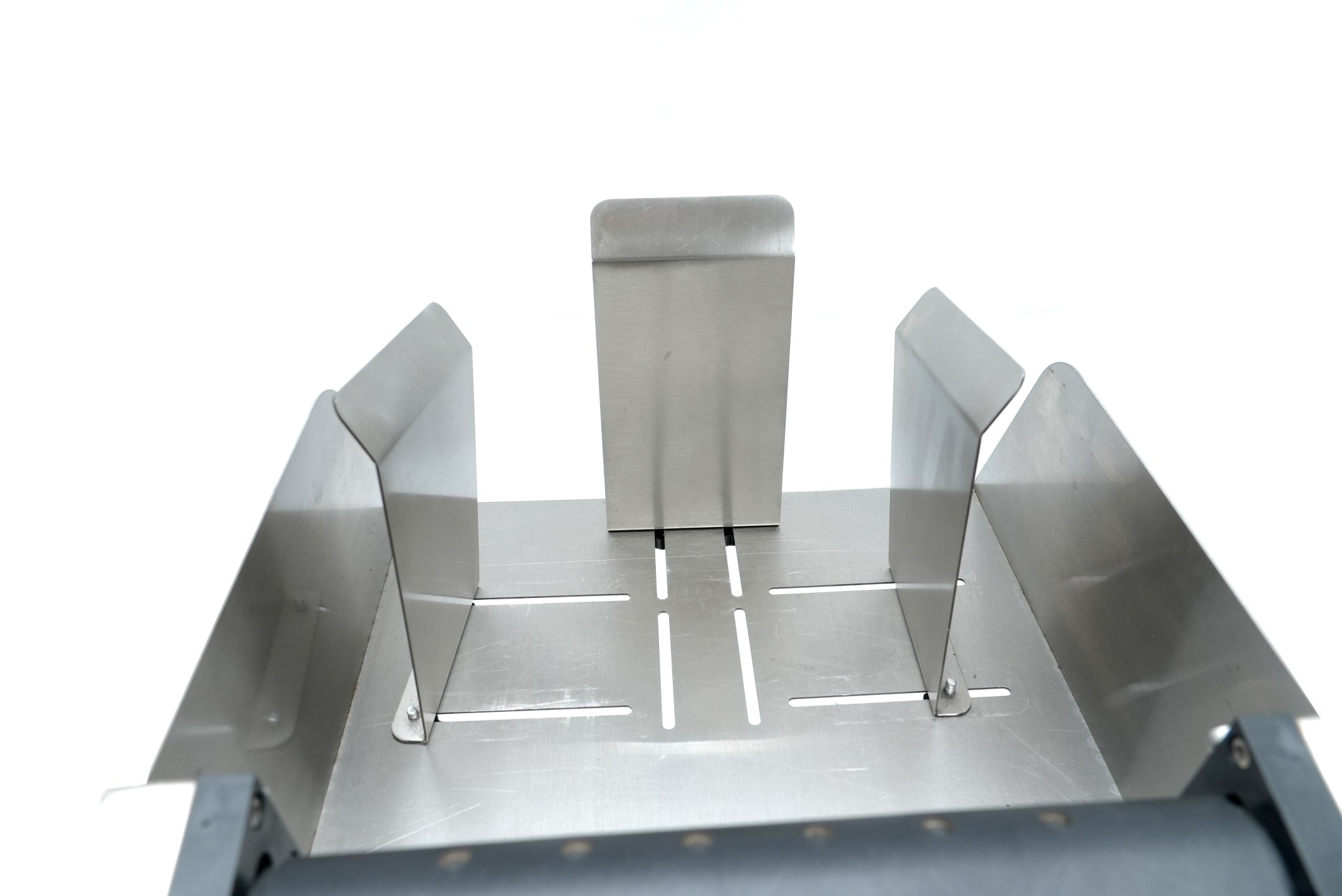

Pagination Device | Separates stacked pouches, cards, and similar products, feeding them one by one to the conveyor |
The machine is designed for simple adjustment in daily production. Operators can adjust:
The height of the machine mechanism so that the labeling knife edge is about 2 mm higher than the product height and level with the target position
The conveyor speed and labeling speed on the touch screen so that both match properly
The sensor position so each label can be dispensed completely
The roller position so that it is parallel to the conveyor belt and presses properly on the product surface
This helps reduce setup time and improves operating convenience during product changeover.
To ensure stable labeling performance, the following label requirements are recommended:
The gap between one label and the next should be 2-3 mm
The distance between the label edge and the edge of the backing paper should be 2 mm
The backing paper should be made of glassine with good toughness to reduce the risk of breakage
The inner diameter of the core should be 76 mm
The outer diameter should be less than 280 mm
Labels should be arranged in a single row
Final label specifications should always be confirmed according to your actual product and after communication with YCTAUTO engineers.
The YCT-311 can be configured with optional functions such as:
Code printer
Inkjet printer
Variable information printer
Automatic feeding function
Automatic material collection function
Additional labeling device
Customized machine design according to product requirements
This makes the machine suitable for OEM projects, packaging upgrades, and integrated production line applications.
The YCT-311 is suitable for cards, plastic bags, cartons, paper sheets, thin pouches, printed materials, and other lightweight flat or sheet-type products.
The YCT-311 includes a pagination device and vacuum adsorption conveyor, making it more suitable for lightweight, thin, or flexible products that need stable feeding and flat conveying during labeling.
The machine supports full coverage labeling, partial accurate labeling, vertical multi-label labeling, and horizontal multi-label labeling.
The labeling tolerance is ±0.5 mm, making it suitable for products that require high precision.
The standard speed is 40-120 pcs/min, depending on product size, label size, and actual operating conditions.
Yes. Optional code printer, inkjet printer, or printer modules can be added to print production date, batch number, expiry date, and other information during labeling.
The machine supports adhesive labels including transparent or opaque sticker labels, film labels, bar code labels, and electronic supervision code labels.
Yes. The machine supports customization according to product dimensions, label requirements, optional devices, and line integration needs.
Looking for a high-speed flat surface labeling machine for cards, pouches, cartons, paper sheets, or lightweight flexible products?
Send us your:
Product photo
Product size
Label size
Required labeling position
Output requirement
Coding or printing requirement
Production line details
YCTAUTO will recommend a suitable configuration based on your actual application.
Contact us today for a customized labeling solution and quotation.
