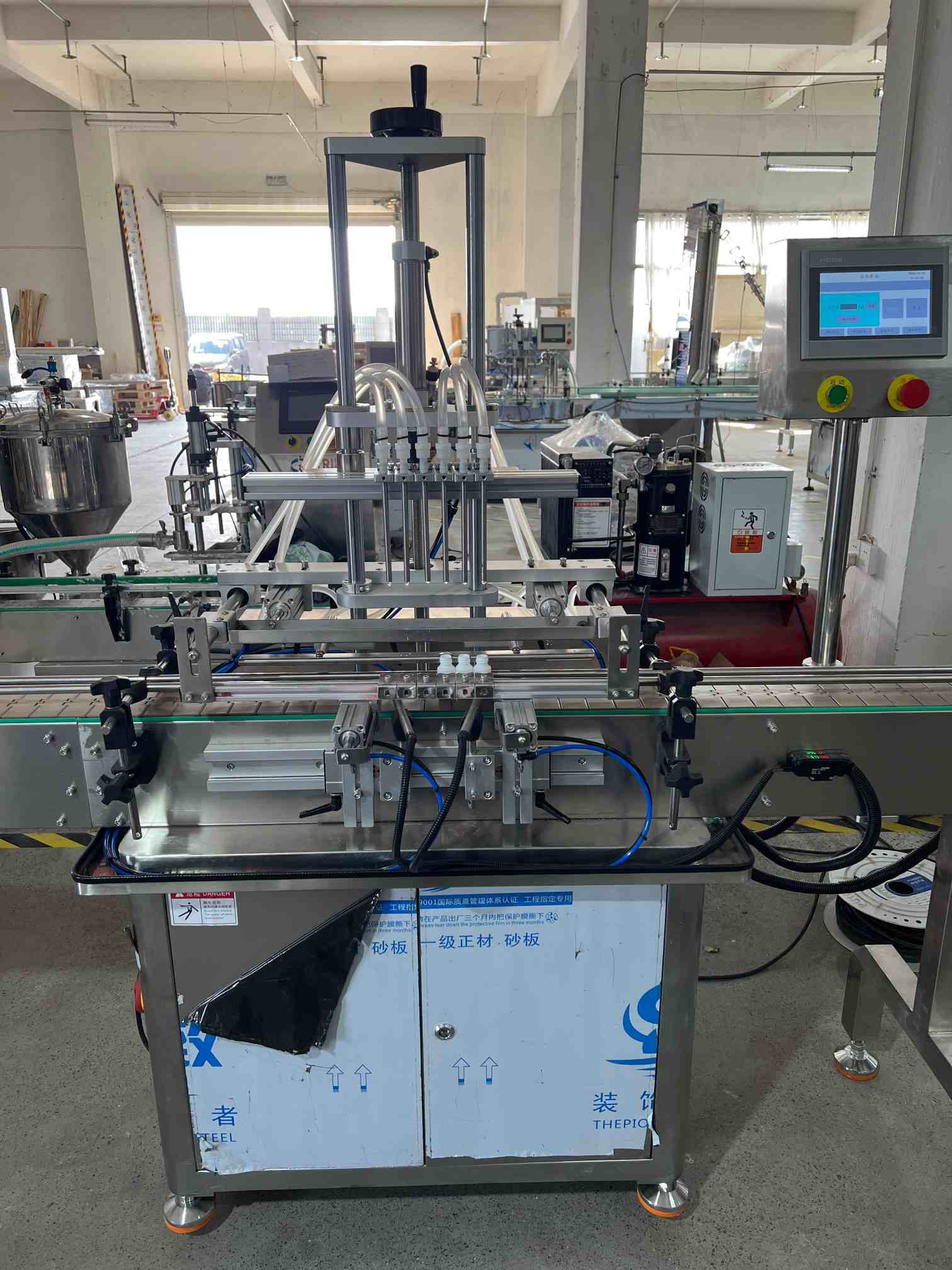

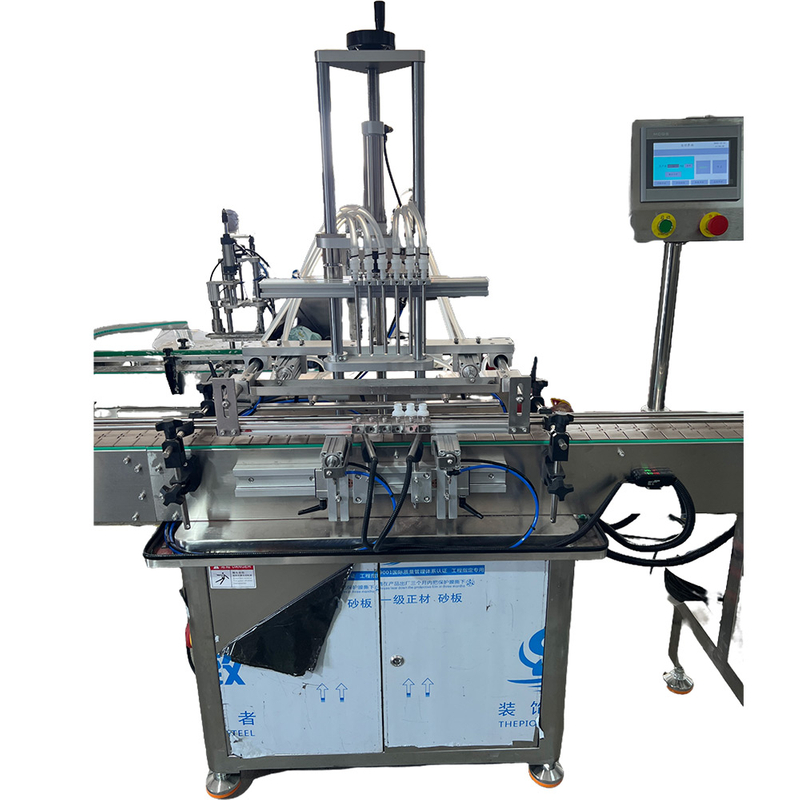

The YCT-CL-06 automatic six-head magnetic pump filling machine is designed for filling free-flowing, low-viscosity liquids into a wide range of bottle types, including round bottles, flat bottles, square bottles, and similar containers. It is widely used in industries such as daily chemical, food, pharmaceutical, and chemical processing.
This model is especially suitable for products that require clean filling, stable flow control, and reliable filling consistency. Typical applications include purified water, juice, liquor, toner, disinfectant, detergent, and other low-viscosity liquids.
Equipped with six magnetic pump filling heads, the YCT-CL-06 helps improve production efficiency while maintaining stable filling performance. Its magnetic drive structure eliminates the need for a shaft seal, reducing leakage risks and improving long-term operational reliability. With features such as anti-drip nozzles, no-bottle no-fill detection, and individually adjustable filling heads, this machine is a practical choice for manufacturers looking for a compact and efficient automatic liquid filling solution.
The YCT-CL-06 is suitable for free-flowing and low-viscosity liquids, including but not limited to:
Purified water
Juice
Liquor
Toner
Disinfectant
Detergent
Other similar low-viscosity liquids
If your filling material is highly corrosive, please inform us in advance so that the appropriate contact material configuration can be confirmed.

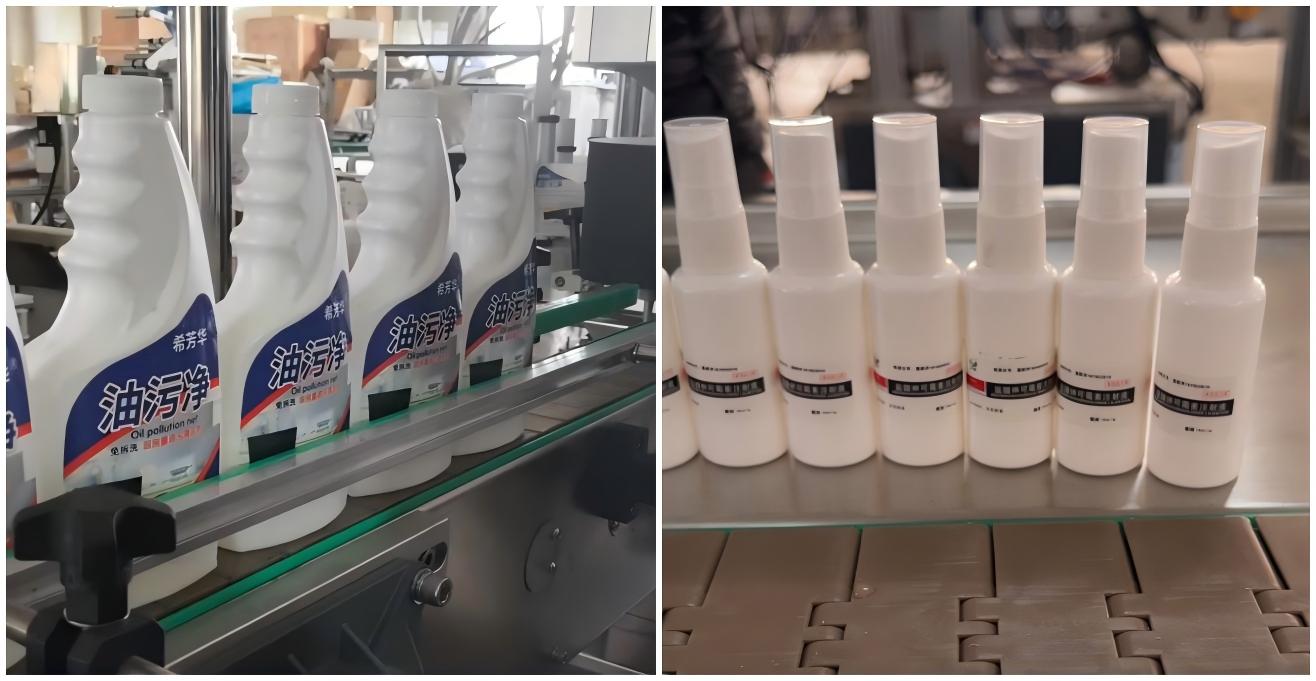

This machine is suitable for a variety of containers, including:
Round bottles
Flat bottles
Square bottles
Other common bottle types after sample confirmation
The YCT-CL-06 is widely used in:
Daily chemical industry
Food industry
Pharmaceutical industry
Chemical industry
Bottled water filling
Juice filling
Disinfectant filling
Toner filling
Detergent filling

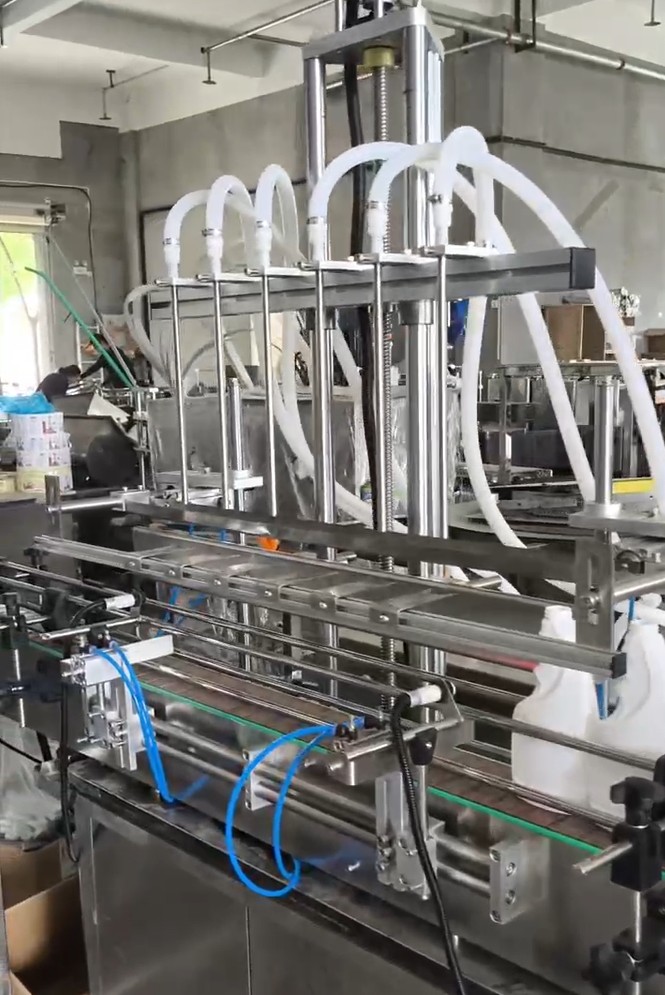

The machine is equipped with six independent magnetic pump filling heads, which can work individually or together according to production needs. This helps improve filling efficiency and consistency.
The pump head and motor are magnetically coupled without a shaft seal, which helps:
Reduce leakage risk
Improve operational safety
Prevent motor damage caused by high load conditions
This machine is specially suitable for free-flowing, low-viscosity liquid products. It is a good choice for light liquids that require accurate and clean filling.
The machine is controlled by a microcomputer or PLC system and can maintain a filling accuracy of approximately ±1.5% under standard working conditions.
Each of the six heads can be adjusted independently, making it easier to fine-tune filling consistency and adapt to different product requirements.
The filling nozzles are designed with anti-drip function, helping to reduce:
Dripping
Stringing
Material waste
Bottle contamination
The machine is equipped with no-bottle no-fill detection, which helps avoid empty filling cycles and reduce unnecessary product loss.
The wetted parts are typically made of SUS304 or SUS316L stainless steel, offering good hygienic performance and suitable corrosion resistance for many liquid filling applications.
The machine offers an intuitive operating interface, making it easy for operators to adjust parameters and manage daily production.
According to project needs, the machine can be configured with optional functions such as:
Automatic feeding
Liquid level control
After the machine starts, the sensor detects the bottle and sends a signal to the control system. The conveyor motor stops, the filling process starts, and once the preset filling volume is completed, the conveyor motor starts again. The machine then continues the same cycle automatically.
Start → Bottle loading → Filling → Repeat cycle
This process helps ensure stable production rhythm and efficient automatic filling.
Item | Specification |
Model | YCT-CL-06 |
Machine Type | Automatic Six-Head Magnetic Pump Filling Machine |
Suitable Materials | Free-flowing and low-viscosity liquids |
Application Examples | Purified water, juice, liquor, toner, disinfectant, detergent |
Applicable Bottle Types | Round bottle, flat bottle, square bottle, etc. |
Filling Capacity | Approx. 1200-1500 pcs/h |
Filling Accuracy | ±1.5% |
Air Pressure | 0.6-0.8 MPa |
Voltage | AC220V / 50Hz |
Machine Size | Approx. 3000 × 700 × 1150 mm |
Weight | Approx. 250 kg |
Note: Filling capacity is based on 500 ml and may vary depending on liquid properties, bottle size, and actual production conditions.
The YCT-CL-06 is a practical solution for manufacturers who need:
Automatic multi-head filling
Stable filling for low-viscosity liquids
Clean filling with reduced dripping
Reliable performance for daily production
Easy adjustment across multiple filling heads
Hygienic contact parts for food, pharmaceutical, and chemical applications
Compared with filling machines for thicker products, this model is more suitable for light, easy-flowing liquids and is ideal for businesses looking for an efficient and easy-to-operate filling machine for standard bottled liquid products.
The YCT-CL-06 is suitable for free-flowing and low-viscosity liquids such as purified water, juice, liquor, toner, disinfectant, and detergent.
No. This model is mainly designed for low-viscosity liquids and is not recommended for high-viscosity or particulate products.
The machine is suitable for round bottles, flat bottles, square bottles, and other similar containers depending on the sample and project requirements.
The standard filling capacity is approximately 1200-1500 pcs/h, calculated based on 500 ml filling volume. Actual speed depends on the material and bottle conditions.
The standard filling accuracy is approximately ±1.5%.
Yes. The machine is equipped with anti-drip filling nozzles to reduce dripping and stringing.
Yes. The machine includes no-bottle no-fill function to reduce waste and improve filling efficiency.
Yes. Each of the six filling heads can be adjusted individually for better filling consistency.
Please inform us in advance if the liquid is highly corrosive, so the correct contact material can be selected.
