Overview

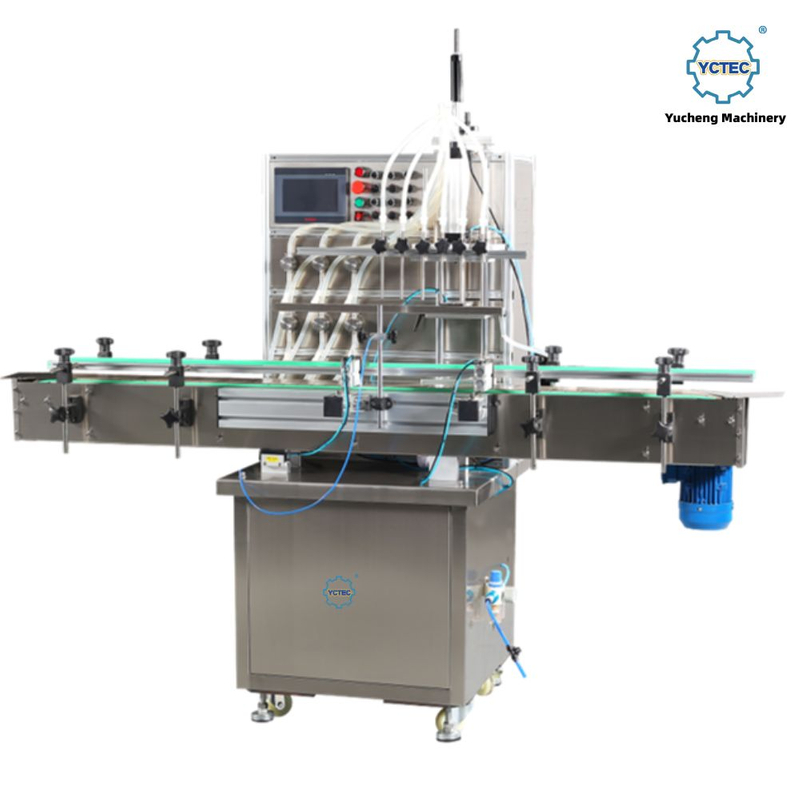

The Automatic 6-Head Magnetic Pump Filling Machine is designed to deliver fast, accurate, and contamination-free filling for water-based and low-viscosity liquids across a broad range of packaging lines. By combining six independent magnetic pump heads with a PLC-controlled automation platform, this machine achieves throughput of 900–3,600 pieces per hour — making it equally suited to medium-scale production facilities and high-demand packaging lines that require continuous, reliable operation.

Unlike conventional gear pumps or piston fillers, magnetic pump technology uses a magnetically coupled impeller to transfer liquid without any mechanical seals or shaft penetration. This eliminates the most common sources of pump leakage and cross-contamination, making the machine especially well-suited for products such as beverages, alcohols, vinegar, soy sauce, liquid soap, and chemical disinfectants where product purity and equipment hygiene are non-negotiable.

Built by Dongguan Yucheng Machinery Technology Co., Ltd. (YCTAUTO), the 6-head magnetic pump filler is constructed from food-grade SUS304/316 stainless steel and equipped with a touchscreen HMI for straightforward operation, quick recipe recall, and intuitive volume adjustment. The machine integrates smoothly into complete packaging lines alongside capping machines, labelers, and conveyors, allowing you to build a fully automated filling-and-sealing workflow from a single supplier.

Key Features & Advantages

• 6-Head Simultaneous Filling — Six magnetic pump heads operate in parallel, achieving throughput of 900–3,600 pcs/h and significantly reducing cost-per-unit compared to single- or dual-head systems.

• Magnetic Pump Technology — Zero Mechanical Seal Leakage — Magnetically coupled pump design eliminates shaft seals, removing the primary leakage point and reducing maintenance requirements. The result is cleaner operation and a longer service interval.

• ±1% Filling Accuracy — Time-based or flowmeter-controlled dosing ensures consistent fill weights across all six heads, minimizing product giveaway and supporting label compliance for regulated industries.

• Wide Fill Volume Range: 50–1,800 ml — A single machine accommodates small personal care bottles through large cooking oil containers. Volume adjustments are made via the touchscreen without tool changes.

• Individual Head Volume Adjustment — Each of the six filling heads can be independently calibrated, compensating for minor flow variations and keeping all heads synchronized to the same target volume.

• PLC + Touchscreen Control System — A programmable logic controller paired with an intuitive touchscreen HMI enables recipe storage, output counting, fault alerts, and real-time production monitoring.

• Anti-Drip Nozzle Design — Spring-loaded anti-drip nozzles prevent product from dripping between fill cycles, keeping containers and the machine surface clean and reducing product waste.

• Food-Grade SUS304/316 Stainless Steel Construction — All product-contact surfaces are manufactured from SUS304 or SUS316 stainless steel, meeting food, pharmaceutical, and chemical industry hygiene standards. The smooth-finish surfaces support easy cleaning and CIP compatibility.

Technical Specifications

Applications

The 6-Head Magnetic Pump Filling Machine serves a wide range of low-viscosity liquid products across multiple industries:

• Food & Beverage — Purified water, mineral water, juice, tea drinks, soy sauce, vinegar, cooking wine, rice wine, edible alcohol

• Daily Chemicals & Personal Care — Liquid hand soap, shampoo (thin formulas), shower gel, disinfectant, mouthwash, toner, facial mist

• Pharmaceutical & Health — Oral liquid medicines, eye drops (with appropriate nozzle), alcohol-based sanitizers, medical disinfectants

• Chemical & Industrial — Liquid detergents, surface cleaners, agricultural chemicals (water-based), solvent-free chemical liquids, perfumes and colognes

• Cosmetics — Hydrating serums, lightweight lotions, micellar water, makeup setting sprays

Any free-flowing liquid with viscosity comparable to water or thin syrup is a candidate for this filling system.

Why Choose Yucheng Machinery

• Filling Technology Specialists — Dongguan Yucheng Machinery Technology Co., Ltd. (YCTAUTO) focuses on liquid and paste filling systems with in-house R&D, tooling, and manufacturing, ensuring technical consistency from design through delivery.

• Rigorous Pre-Shipment Testing — Every machine runs production trials at our factory before dispatch. We verify filling accuracy, head synchronization, and control system function under load so your line starts on schedule.

• OEM & ODM Customization — Fill range, nozzle type, hopper capacity, conveyor length, frame dimensions, and electrical standards can all be adapted to match your product, container, and facility requirements. Private labeling is available for distributors.

• Complete Packaging Line Supply — Beyond filling, Yucheng manufactures capping machines, aluminum foil sealers, cap sorters, and labeling equipment. We help you source and integrate a full line from one engineering team.

• Global After-Sales Support — Our service team provides remote commissioning guidance, video-based troubleshooting, spare-parts supply, and on-site support coordination to minimize downtime wherever your facility is located.

Frequently Asked Questions

Q: What types of liquids is this machine suitable for?

A: The magnetic pump filler is optimized for water-like and low-viscosity liquids — including water, juice, alcohol, vinegar, soy sauce, liquid soap, disinfectant, and perfume. It is not recommended for thick pastes or products with solid particles. For viscous materials, consider our piston or rotor pump filling models.

Q: Can the machine handle foamy liquids like detergents?

A: Yes, with the appropriate configuration. For foam-prone liquids, we recommend a bottom-up (diving) nozzle option that fills from the base upward to minimize agitation. Please specify your product when requesting a quote.

Q: How is fill volume adjusted between different products or bottle sizes?

A: Volume is adjusted via the touchscreen HMI. Operators enter the target fill volume per head and the control system updates the pump run time accordingly. No physical tooling changes are required within the machine's range.

Q: What is the minimum order quantity (MOQ)?

A: MOQ is 1 unit. We supply single machines and multi-unit orders for distributors and line integrators. Volume pricing is available — contact our sales team for a formal quotation.

Q: What cleaning and maintenance does the machine require?

A: The sealless pump design greatly reduces maintenance intervals. Product-contact components — nozzles, manifolds, and pump chamber — disassemble quickly for manual or CIP cleaning. Frequency depends on the product filled.

Q: What is the typical lead time after order confirmation?

A: Standard machines ship within 7–12 business days. Customized configurations typically require 15–25 business days. We confirm the exact timeline at the time of order.

Q: Can this machine be integrated with a capping machine and labeler?

A: Yes. We supply matched capping machines, cap sorters, foil sealers, and labelers alongside this filler to create a synchronized packaging line. Share your layout requirements and we will provide a complete line proposal.

Ready to Streamline Your Liquid Filling Operation?

Whether you are filling beverages, cleaning products, or liquid personal care items, the 6-Head Magnetic Pump Filling Machine offers the throughput, accuracy, and hygiene standards your operation demands. Share your product details, container specifications, and target output, and our engineering team will provide a tailored recommendation and competitive quotation.
