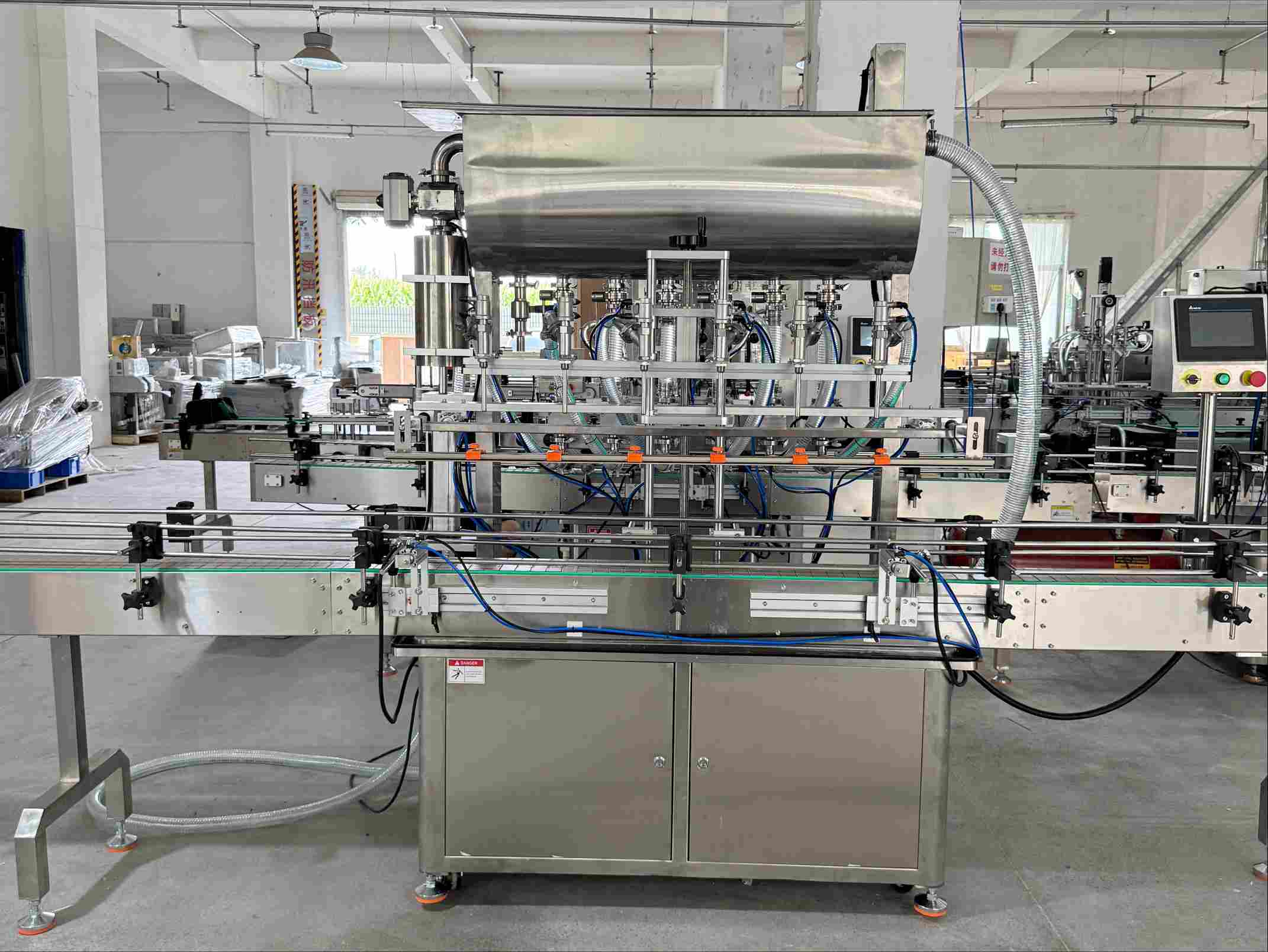

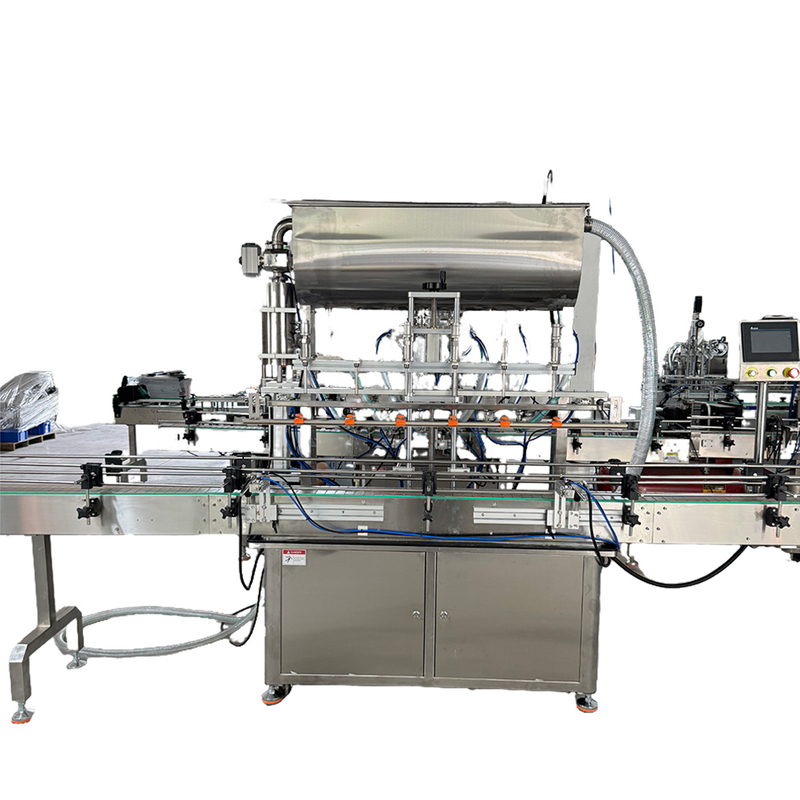

YCT-CB-06 is an automatic six-head gear pump filling machine developed for viscous liquids, fluid liquids, and paste products. It is suitable for round bottles, flat bottles, square bottles, and other common container types used in cosmetics, daily chemical, petrochemical, food, and related industries. Equipped with six independent gear pumps, anti-drip suck-back nozzles, fast-slow filling control, and no-bottle no-fill function, the machine delivers stable, accurate, and clean filling performance for a wide range of products.
The YCT-CB-06 automatic six-head gear pump filling machine is designed for manufacturers who need reliable multi-head filling for liquid and semi-liquid products. It is suitable for both fluid materials and more viscous products, making it a flexible solution for factories handling different formulations and bottle types.
This machine is widely used for packaging products in industries such as daily chemical, petrochemical, cosmetics, and food. With its six-head structure, the machine can improve filling efficiency while maintaining stable product flow and good filling consistency.
One of the key advantages of the YCT-CB-06 is its use of independent gear pumps, which help ensure smooth and consistent material delivery. Combined with fast-slow filling control and suck-back anti-drip nozzles, the machine helps reduce splashing, foaming, dripping, and stringing during the filling process.
The machine is also designed for production flexibility. It can save multiple filling recipes for fast product changeover, supports self-priming feeding without the need for an overhead tank, and can be connected with downstream packaging equipment for more automated production.
The YCT-CB-06 is suitable for filling:
Viscous liquids
Fluid liquids
Pastes
Cosmetic liquids
Daily chemical products
Food-related liquid products
Petrochemical liquid products
Other similar materials after confirmation
The machine is suitable for:
Round bottles
Flat bottles
Square bottles
Other common container types depending on actual sample confirmation
The machine is widely used in:
Cosmetics industry
Daily chemical industry
Petrochemical industry
Food industry
Related liquid and paste packaging industries
The product-contact surface is made of stainless steel. If your material is highly corrosive, please inform us in advance so that the suitable material configuration can be confirmed before production.
A gear pump filling machine is a practical solution for customers who need stable and repeatable filling performance for liquid and paste products.
Independent gear pumps help provide more consistent and smooth material transfer during filling.
The machine can handle both fluid liquids and more viscous materials, making it suitable for different product formulations.
With fast-slow filling control and anti-drip suck-back nozzles, the machine helps reduce splashing, foaming, dripping, and stringing.
The system can save multiple recipes, helping operators switch products more quickly and efficiently.
The machine can be connected with downstream packaging machines for a more complete automatic production line.
The machine is equipped with six separate gear pumps, helping ensure stable and smooth filling performance across multiple filling heads.
The filling action uses a fast-slow filling method, which helps reduce:
Splashing
Foaming
Unstable liquid flow
This is especially useful for products that require cleaner filling and better bottle appearance.
The filling nozzles are designed with a suck-back anti-drip function, helping prevent:
Dripping
Stringing
Material waste
Bottle mouth contamination
The machine includes a no-bottle no-fill function, which helps reduce unnecessary filling action and minimize material waste.
The system can save multiple filling recipes, making it easier to switch between different products or bottle specifications.
The machine supports self-priming feeding, so there is no need for an overhead tank in standard applications.
The machine adopts a modular structure, making it easier to:
Disassemble
Clean
Maintain
Service
The YCT-CB-06 can connect with downstream packaging equipment, helping customers build a more automated filling and packaging line.
After the machine starts, the sensor detects the bottle and sends the signal to the control system. The conveying motor stops, the machine performs filling, and after the preset filling volume is completed, the conveying motor restarts to move the bottle forward.
Start → Bottle loading → Filling → Repeat cycle
This automatic process helps maintain stable filling rhythm and improve production efficiency
Item | Specification |
Model | YCT-CB-06 |
Machine Type | Automatic Six-Head Gear Pump Filling Machine |
Suitable Materials | Viscous liquids, fluid liquids, pastes |
Applicable Bottle Types | Round bottle, flat bottle, square bottle, etc. |
Production Speed | Approx. 1500-2200 pcs/h |
Filling Accuracy | ±1% |
Air Pressure | 0.6-0.8 MPa |
Voltage / Frequency | 220V / 50Hz |
Machine Size | Approx. 4000 × 900 × 1700 mm |
Weight | Approx. 400 kg |
Note: Production speed is calculated based on 500 mL filling volume and may vary depending on material condition, viscosity, bottle size, and actual production environment.
The YCT-CB-06 is especially suitable for customers who need:
Multi-head automatic filling
Stable filling of liquid and paste products
Reduced dripping and splashing
Faster product changeover
Lower manual intervention
Easy cleaning and maintenance
Future line expansion with downstream packaging equipment
This makes it a strong choice for OEM factories, contract manufacturers, and brands looking to improve packaging efficiency.
The YCT-CB-06 is suitable for viscous liquids, fluid liquids, and paste products used in cosmetics, daily chemical, petrochemical, food, and related industries.
The machine is suitable for round bottles, flat bottles, square bottles, and other similar containers depending on the actual sample and filling requirement.
The standard production speed is approximately 1500-2200 pcs/h, calculated based on 500 mL filling volume. Actual speed depends on the material and bottle conditions.
The filling accuracy is ±1% under standard conditions.
Yes. The machine uses suck-back anti-drip nozzles to help prevent dripping and stringing.
Yes. It includes a no-bottle no-fill function to reduce material waste.
No. The machine supports self-priming feeding, so an overhead tank is not required in standard applications.
Yes. The machine can connect with downstream packaging machines for more complete line automation.
The contact surface is stainless steel. If your product is highly corrosive, please inform us in advance so that the proper contact material can be confirmed.
Looking for a reliable six-head filling machine for liquid or paste products?
Send us your:
Product photo
Product viscosity or material type
Bottle type and size
Filling volume
Required output
Whether the liquid is corrosive
Line integration requirement
YCT will recommend a suitable filling solution based on your actual application.
Contact us today for detailed specifications, filling videos, and a customized quotation.
