Ultra High-Speed Shrink Sleeve Labeling Machine YCT-400 — 300–400 BPM, CE Certified Production Workhorse

YCT-400 Ultra High-Speed Shrink Sleeve Labeling Machine — Where Single-Head Throughput Reaches Its Industrial Ceiling

At 400 bottles per minute, a sleeve applicator is no longer a labeling machine — it's a production-line keystone. One missed sleeve per 1,000 bottles means 24 rejects per hour. One misaligned cutter at 400 BPM derails the downstream packer. The YCT-400 ultra high-speed automatic shrink sleeve labeling machine is engineered specifically for this regime — where speed, accuracy, and stability must hold simultaneously across continuous shifts.

Manufactured by Dongguan Yucheng Machinery Technology Co., Ltd. (YCT Machinery) — a CE-certified packaging equipment maker with 15+ years of export experience to 50+ countries — the YCT-400 is the flagship of our single-head sleever family, chosen by large-scale beverage bottlers, water mega-lines, dairy producers, and contract packagers who need their sleever to match (not constrain) the throughput of high-speed PET fillers and cappers.

YCT-400 Technical Specifications at a Glance

When Do You Need 400 BPM? Real Production Scenarios

The YCT-400 is not for everyone — it's for production lines where mid-range sleevers have become the silent ceiling. You need 400 BPM when:

1. Your downstream filler/capper already runs at 350+ BPM

Mid-range fillers in beverage and water lines often run 350–400 BPM. If your sleever runs slower, you either throttle the entire line or build buffers that hurt overall efficiency. The YCT-400 matches your line speed instead of constraining it.

2. You operate 24/7 / multi-shift mega-lines

Three-shift water and beverage bottling lines need consistent throughput across 24 hours. At 400 BPM, the YCT-400 delivers up to ~576,000 bottles/day — eliminating the need to run two parallel mid-range sleevers.

3. You're a contract packager / co-packer with high SKU diversity

When your daily mix changes between major beverage brands, line speed flexibility (300–400 BPM adjustable) lets you match each brand's required tempo without reconfiguring the line.

4. You're scaling for export volume

Export contracts (large supermarket chains, regional distributors) usually come with hard daily output commitments. 400 BPM gives you the headroom to meet peaks and absorb planned changeovers without missing SLAs.

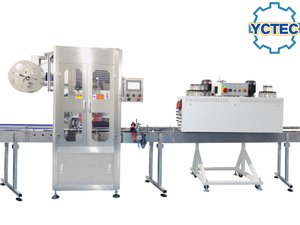

If none of these apply, the YCT-300 (150–300 BPM) is the smarter starting point — and you can upgrade your line layout to the YCT-400 footprint later, since both share the same 2,600 × 900 × 2,000 mm dimensions.

Full Sleeve Family Compared — Pick the Right Tier

The YCT shrink sleeve family covers five throughput/configuration tiers on a shared engineering platform. Use this table to identify the right model:

Rule of thumb: if your single line needs to push more than ~430,000 bottles per day, or your downstream fills run above 350 BPM, the YCT-400 is the right machine.

How the YCT-400 Maintains Accuracy at 400 BPM

400 BPM is the regime where every millisecond of PLC latency, every micron of servo backlash, and every degree of bearing thermal drift becomes visible in sleeve placement. The YCT-400 holds the line through:

1. Bottle detection — Panasonic photoelectric sensors detect each incoming bottle in milliseconds; the Mitsubishi PLC issues a sleeving instruction within 1 second.

2. Low-backlash servo film delivery — Schneider servo motors with optimized control loops deliver label film to the central guide pillar with consistent tension, even under sustained 400 BPM operation.

3. High-speed cutter coordination — The cutter head supports all three modes (transparent-gap photoelectric, color-mark fixed-point, fixed-length) and is dimensioned to sustain 400 cuts/min without blade chatter.

4. Synchronized brush-down and bottle-carrying groups — Tuned to the higher conveyor speed so sleeves are applied without skew on lightweight PET bottles.

5. Steam shrink tunnel coordination — Bottle spacing into the tunnel is held precisely to avoid wrinkle defects at high heat-transfer rates.

This is the engineering layer that allows long-term customers in EU and US markets to report MTBF above 4,000 hours on the YCT-400 in continuous-shift production.

Engineering Behind Sustained 400 BPM Stability — Components You Can Trust

At 400 BPM, component grade is not a marketing point — it's the difference between a workhorse and a warranty claim. The YCT-400 uses the same industrial-grade, internationally recognized components as our entire sleever family, dimensioned for top-tier duty:

• 304# stainless steel frame — 400 kg structure absorbs vibration from sustained 400 BPM servo cycles; food-safe, FDA-compliant for water and beverage applications.

• Mitsubishi PLC (Japan) — accurate signal processing with no missed labels; easy diagnostics for line maintenance teams.

• Schneider servo (France) — precise, low-backlash cutting and consistent sleeve length at sustained 400 BPM.

• Panasonic photoelectric sensors (Japan) — millisecond bottle detection that keeps spacing stable at the highest single-head speed in our family.

• NSK bearings + GATES drive belts — long service life under high cyclic load; globally available spares.

• Kunlun Tongtai bilingual HMI — Russian, Spanish, Arabic, Vietnamese, and Thai available on request — important for large export brands with multi-region factories.

Industries & Applications

The YCT-400 is deployed in the largest bottling and packaging lines our customers operate, across:

The machine handles PET, HDPE, glass, and aluminum bottles with diameters from Ø38 mm to Ø120 mm. For non-standard bottle shapes, we provide custom center guide pillars and cutter heads at no extra design fee.

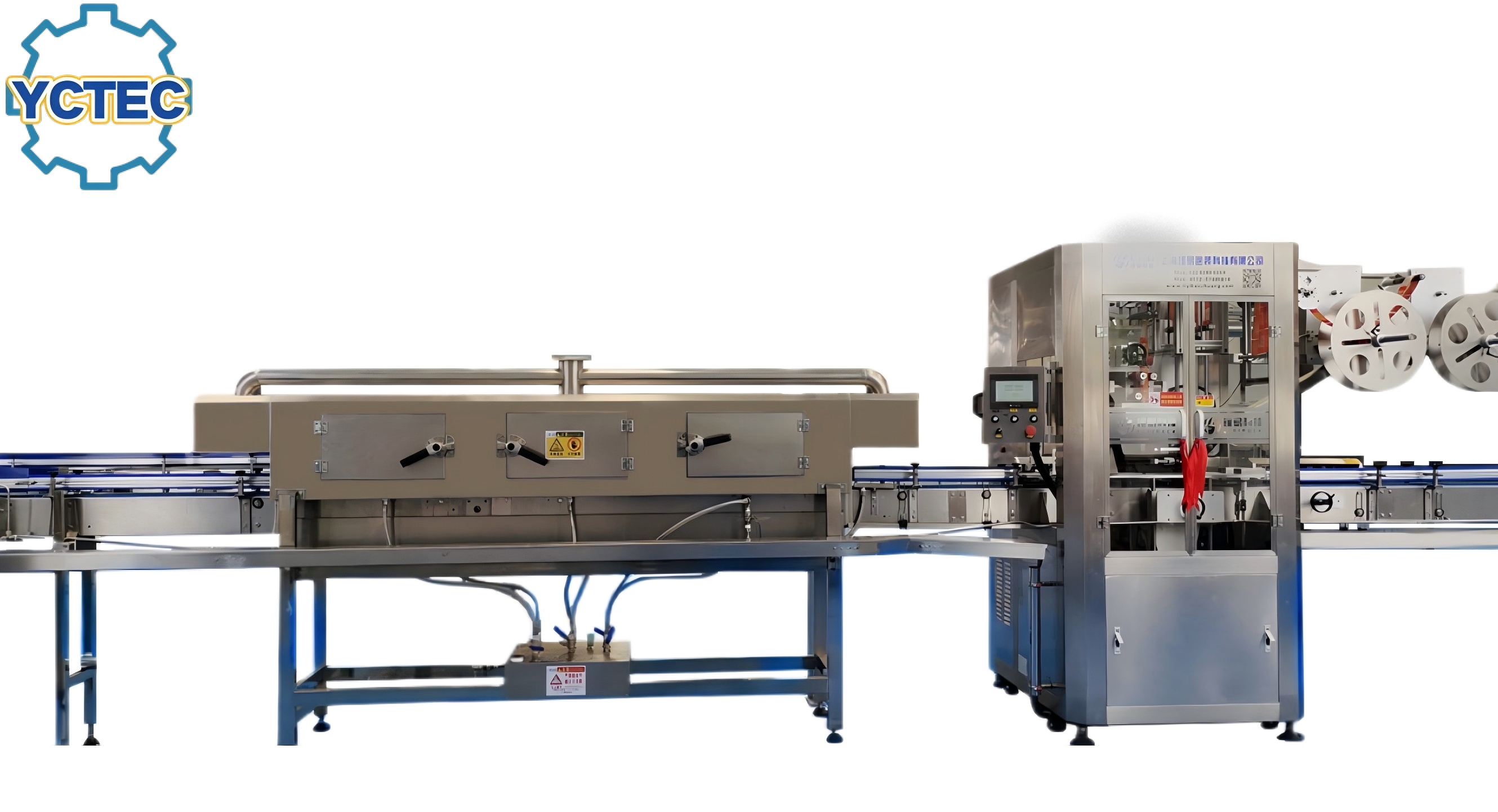

Matching the Right Shrink Tunnel to a 400 BPM Line

Shrink tunnel sizing is the single biggest variable in delivering real 400 BPM output. Push too many bottles through an undersized tunnel and you get wrinkles, partial shrinkage, and shelf rejections. Here's our engineering team's general guidance:

When you request a YCT-400 quote, we supply a matched shrink tunnel with the correct length, zone count, and heating capacity for your bottle, sleeve, and 400 BPM dwell time — so the tunnel never becomes the bottleneck.

Line Integration — From Blow Molder to Case Packer

The YCT-400 is modular by design and built to drop into existing high-speed bottling lines or anchor a new turnkey line. Standard integration points:

• Upstream: PET blow molders, rinse stations, fillers, cappers — all sync via conveyor speed and bottle-presence sensors

• Downstream: Shrink tunnel → conveyor → date coder → case packer / shrink wrapper / palletizer

• Line speed control: Master PLC handshake with upstream/downstream stations to maintain throughput balance

• Layout: Standard 2,600 × 900 mm footprint fits most existing line layouts without reconfiguration

We can quote and engineer the complete turnkey water/beverage line (blow molder → filler → capper → sleever → shrink tunnel → coder → packer → palletizer) as a single project. Share your line drawing and SKU mix during quotation for a complete proposal.

Customization Options

One YCT-400 base machine can be configured for:

• Different bottle diameters (Ø38–Ø120 mm) via interchangeable center guide pillars

• Different sleeve materials — PVC, PET, OPS, PETG

• Sleeve cutting modes — transparent-gap photoelectric, color-mark registration, or fixed-length cutting

• Voltage adaptation — 110V / 220V / 380V / 415V

• HMI language — English, Chinese, Russian, Spanish, Arabic, Vietnamese, Thai, and more

• OEM branding — machine color and logo customizable

• Line integration — full turnkey scope available

Why Mega-Line Bottlers in 50+ Countries Choose YCT Machinery

• 15+ years of manufacturing experience — R&D, production, sales, and after-sales under one roof in Dongguan, China.

• Exported to Southeast Asia, Russia, Japan, South Korea, Vietnam, Cambodia, Thailand, Myanmar, Nepal, Ethiopia, and EU/US markets.

• CE Certified · ISO 9001:2015 — SGS / TÜV third-party inspection reports available on request.

• Free 400 BPM sample test — send us your PET bottles and sleeves; we'll record a high-speed test video before shipment.

• Same-day technical response — WhatsApp and video-call support from our engineering team.

• Spare parts shipped within 48 hours — and on-site commissioning available in 30+ countries through partner integrators.

• NDA available on request — for confidential product launches and OEM mega-brand projects.

Installation, Commissioning & Operator Training

The YCT-400 is delivered pre-assembled, factory-tested at full 400 BPM with your sample bottles, and packaged in fumigation-treated wooden crates. Upon arrival, our team supports:

• Step-by-step video commissioning (English / Chinese / customer language on request)

• Remote video-call setup with our engineers

• On-site commissioning in 30+ countries via local partner integrators — strongly recommended for first-time 400 BPM operators

• Operator training focused on ultra-high-speed handling, steam tunnel coordination, label film loading, photoelectric calibration, and preventive maintenance scheduling (critical at 400 BPM)

• Voltage stabilizer recommendation for regions with unstable power — protecting PLC and servo electronics is non-negotiable at this speed

Frequently Asked Questions — YCT-400 Ultra High-Speed Shrink Sleeve Labeling Machine

Q1. Can the YCT-400 really sustain 400 BPM in real production, not just bench tests?

Yes — when paired with a correctly sized steam shrink tunnel, an upstream filler/capper synchronized to 400 BPM, and quality PVC/PET sleeve film. Long-term customers in EU and US markets report MTBF above 4,000 hours at sustained 350–400 BPM. We factory-test every YCT-400 at full speed with your sample bottles before shipment and send you the test video for confirmation.

Q2. How is the YCT-400 different from the YCT-300?

Same frame size and weight (2,600 × 900 × 2,000 mm, 400 kg) and same 3.0 kW power supply. The key difference is that the YCT-400 is engineering-tuned and components-dimensioned for the 300–400 BPM regime, while the YCT-300 covers 150–300 BPM. If your line target is below 300 BPM, the YCT-300 is more cost-effective. If you need ≥350 BPM headroom or you're matching a high-speed filler, the YCT-400 is the right choice.

Q3. What is the price of the YCT-400?

Pricing depends on configuration — base sleever, steam vs electric shrink tunnel, voltage, HMI language, custom guide pillars, and whether you need a turnkey line quote. Send us your bottle samples, target speed, and downstream filler model for a complete quote within 24 hours.

Q4. What is the lead time and shipping arrangement?

Standard lead time is 35–45 working days after deposit (slightly longer than mid-range models due to extended factory QA at 400 BPM). We ship FOB Shenzhen / Guangzhou by default, with CIF, DDP, and air freight options available. Export packaging is fumigation-treated wooden crate, suitable for sea freight to any port worldwide.

Q5. Can the YCT-400 handle my specific bottle shape?

Yes — for bottle diameters between Ø38 mm and Ø120 mm, we customize the center guide pillar and cutter head to match your bottle profile. Send a sample bottle (or 3D drawing) and our engineering team will confirm 400 BPM compatibility before quoting. Free sample testing at full speed is included — we record and send you the test video.

Q6. Does the YCT-400 support PVC, PET, and OPS sleeves?

Yes. The YCT-400 handles sleeve film thicknesses from 0.03 mm to 0.13 mm, covering PVC, PET, OPS, and PETG. At 400 BPM we typically recommend high-quality PET or OPS film for the most consistent shrink quality — our team will advise on the right film spec for your bottle and tunnel.

Q7. Steam tunnel or electric tunnel for a 400 BPM line?

For PET water/beverage/juice at 400 BPM, steam shrink is strongly recommended — even heat distribution at high throughput delivers smoother sleeves with fewer wrinkles. Electric tunnels are still viable for glass, metal, powder, or dry goods, but typically require longer tunnel length to achieve full shrink at 400 BPM.

Q8. What certifications does the YCT-400 come with?

The YCT-400 is CE certified and manufactured under ISO 9001:2015. SGS and TÜV third-party inspection reports are available on request. Food-contact components use 304 stainless steel (316 available on request) and comply with FDA contact-surface standards.

Q9. Do you provide installation and after-sales service overseas?

Yes — and at the YCT-400 tier we strongly recommend on-site commissioning for first-time 400 BPM operators. We provide:

• Free remote commissioning via video call (same-day response on WhatsApp)

• On-site commissioning through partner integrators in 30+ countries

• 24-month warranty on the main machine (excluding wear parts)

• Spare parts shipped within 48 hours from our Dongguan warehouse

• Lifetime technical support from our engineering team

• Preventive maintenance schedule tailored for 400 BPM continuous operation

Q10. Can the YCT-400 integrate with my existing high-speed filler and capper?

Yes. The YCT-400 is modular by design with standard conveyor sections and a master PLC handshake protocol that syncs with upstream blow molders, fillers, and cappers, and downstream tunnels, coders, and packers. Share your line drawing during quotation so we can confirm conveyor heights, infeed direction, and tunnel placement.

Q11. Should I buy a YCT-400 or two YCT-200s in parallel?

For most large-volume bottlers, one YCT-400 is the better choice:

• One footprint (2,600 × 900 mm) vs two YCT-200 footprints

• One operator vs two

• One shrink tunnel (matched to 400 BPM) vs two parallel tunnels or a long shared tunnel

• Simpler line layout — single infeed/outfeed instead of merging two streams

Two YCT-200s only make sense when you need to run two different SKUs in parallel — in that case, consider the YCT-D22 double-head machine instead, which gives you parallel-SKU capability on one frame.

Q12. Can I customize machine appearance, HMI language, and voltage?

Absolutely. We routinely customize:

• Machine color and logo (OEM branding available)

• HMI language — English, Chinese, Russian, Spanish, Arabic, Vietnamese, Thai, and more

• Voltage — 110V / 220V / 380V / 415V

• Sleeve cutting mode — gap mark, color mark, or fixed-length

400 Bottles a Minute. Engineered to Hold the Line.

Tell us your bottle SKU, target daily output, and downstream filler speed — our engineers will recommend the right YCT-400 configuration, send you a free 400 BPM sample-test video on your bottles, and deliver a complete line quote within 24 hours.
