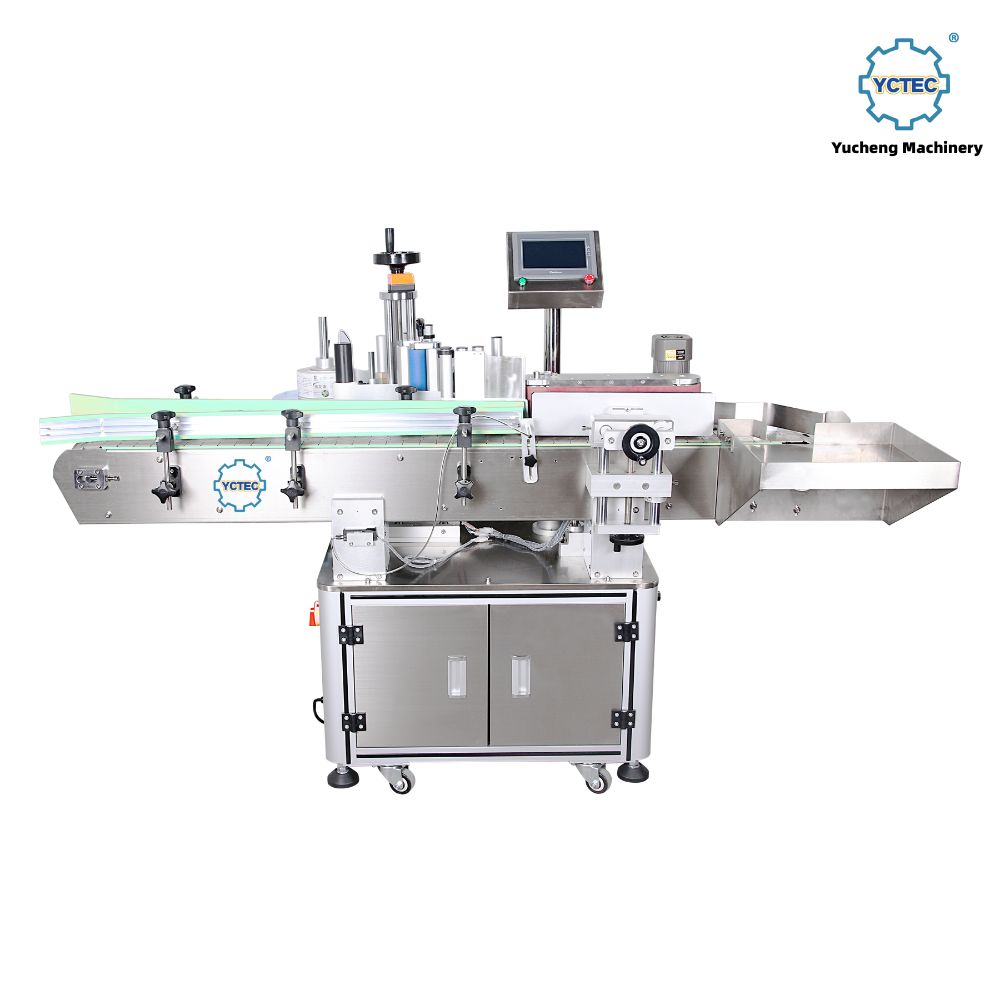

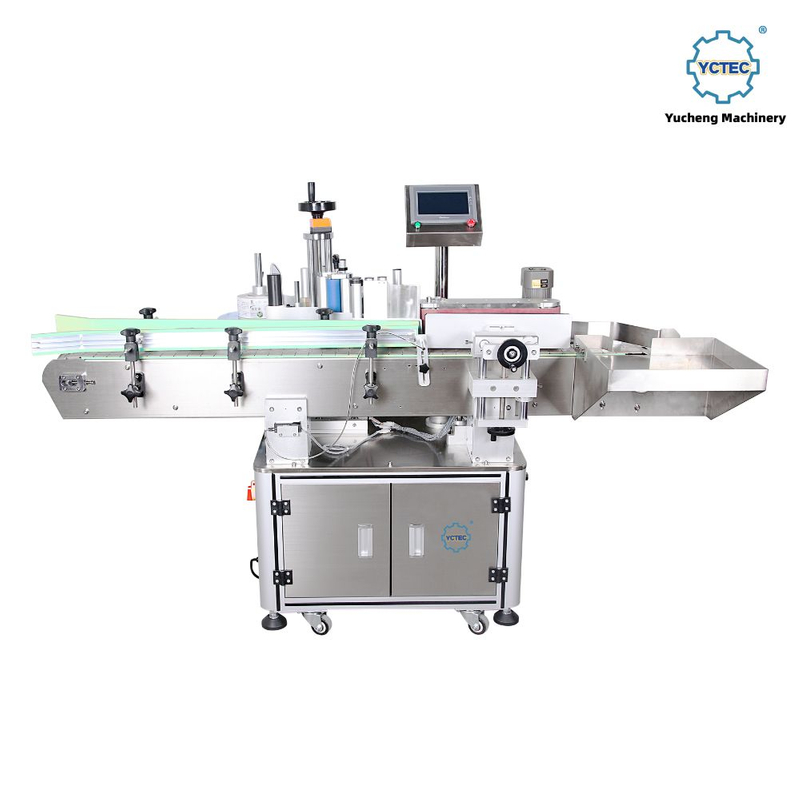

The YCT-60 Automatic Rotary Round Bottle Labeling Machine is engineered for wrap-around and half-wrap label application on cylindrical containers. Beverages, sauces, pharmaceutical liquids, and personal care products all require a label that wraps cleanly without skew, bubbles, or uneven overlap. The YCT-60 achieves this through a rotary driving mechanism that spins each bottle against the label-dispensing belt, ensuring the adhesive label conforms tightly to the container surface from start edge to end point.
Manufactured by Dongguan Yucheng Machinery Technology Co., Ltd. (YCTAUTO), the YCT-60 handles bottles from Φ25–100 mm diameter and 25–150 mm height — covering most commercial beverage, health supplement, condiment, and pharmaceutical bottle formats. Label lengths up to 380 mm support full-circumference wrap-around coverage, while shorter labels serve half-wrap configurations. Output runs at 30–80 pieces per minute with ±1 mm labeling accuracy throughout the run.
The YCT-60 integrates flexibly into existing production environments. It operates standalone with the optional automatic rotary bottle-feeding machine or connects directly to an upstream filling and capping conveyor. An optional ribbon coding machine prints manufacture dates, expiry dates, and batch numbers inline, eliminating a separate coding step.
Rotary Wrap-Around Mechanism — The driving roller and belt rotate each bottle as the label is applied, ensuring uniform tension across the entire label surface and eliminating skew and bubble defects.
30–80 pcs/min Throughput — Speed is adjusted via the PLC panel without mechanical intervention, suiting both controlled runs and continuous high-output operations.
±1 mm Labeling Accuracy — Sensor-triggered label dispensing and mechanical bottle registration combine to deliver consistent label start-point accuracy across the full production run, maintaining brand appearance at every unit.
Φ25–100 mm Bottle Diameter Range — Covers the widest-used commercial bottle diameters in beverage, pharmaceutical, food, and chemical markets. Height range of 25–150 mm is customizable for taller containers on request.
Label Length up to 380 mm — Supports full wrap-around and half-circle wrap configurations, providing SKU flexibility on a single machine.
Optional Rotary Bottle-Feeding Machine — An automatic orienting feeder delivers bottles in controlled sequence, enabling continuous unattended operation.
Production Line Integration Ready — Connects directly to upstream filling and capping conveyors without custom platform engineering.
Optional Ribbon Coding Machine — A hot-stamp inline coder prints MFG date, EXP date, and lot/batch numbers onto labels during the labeling pass, eliminating a separate downstream coding step.
Parameter | Value |
Model | YCT-60 |
Labeling Accuracy | ±1 mm |
Labeling Speed | 30–80 pcs/min |
Applicable Bottle Diameter | Φ25–100 mm |
Applicable Bottle Height | 25–150 mm (customizable) |
Label Length | 20–380 mm |
Label Width | 15–100 mm |
Label Roll Inner Diameter | Φ76 mm |
Label Roll Outer Diameter | Φ300 mm (max) |
Power Supply | 220 V / 50 Hz |
Power Consumption | 655 W |
Machine Dimensions (L × W × H) | 1900 mm × 1100 mm × 1400 mm |
Machine Weight | Approx. 45 kg |
Optional Accessories | Automatic rotary bottle-feeding machine, ribbon coding machine |
The YCT-60 rotary round bottle labeling machine is used across a broad range of industries where cylindrical containers require accurate, consistent wrap-around label application:
Beverage Industry — Juice bottles, mineral water bottles, energy drink containers, iced tea, functional beverage cans and bottles requiring full or half wrap-around label coverage
Pharmaceutical & Health Products — Syrup bottles, liquid medicine containers, vitamin supplement bottles, herbal extract vials requiring tamper-evident or full-wrap prescription labels
Food & Condiments — Soy sauce bottles, vinegar bottles, seasoning liquid containers, honey jars, hot sauce bottles with wrap-around product labels
Cosmetics & Personal Care — Lotion bottles, shampoo bottles, toner and essence bottles, body oil containers — typically round and benefiting from clean wrap-around label presentation
Chemical & Industrial — Lubricating oil bottles, cleaning agent bottles, disinfectant containers, agrochemical liquid bottles requiring durable adhesive labels
Daily Consumer Products — Household spray bottles, fabric softener containers, detergent bottles in cylindrical formats
Rotary Labeling Engineering — Yucheng's rotary labeling mechanism is purpose-built for cylindrical containers, not adapted from flat-labeling hardware. This means tighter accuracy, better wrap-around tension control, and longer mechanical service life.
Compact High-Performance Design — At approximately 45 kg and a modest floor footprint, the YCT-60 delivers rotary labeling capability without the heavy infrastructure requirements of some competing industrial labelers, making installation straightforward.
Full OEM & ODM Customization — We adapt bottle diameter range, conveyor height, belt speed, and label head configuration to your specific bottle and label specifications. Custom container formats beyond the standard range are handled on a project basis.
End-to-End Line Integration — Yucheng produces filling, capping, and conveying equipment alongside labelers. We can supply the YCT-60 as part of a complete filling-capping-labeling line, reducing your supplier coordination effort.
Dedicated After-Sales Support — Our service team provides video-guided installation and commissioning, technical documentation in multiple languages, and prompt spare-parts dispatch to minimize production disruption globally.
Q: What is the difference between full wrap-around and half-circle wrap labeling on the YCT-60?
A: Full wrap-around covers 360° of the bottle with a defined overlap at the end point. Half-circle wrap covers approximately 180°, leaving the bottle reverse unlabeled — common where the reverse carries regulatory text under a separate label. The YCT-60 supports both; label length determines coverage.
Q: Can the YCT-60 run without the optional bottle-feeding machine?
A: Yes. The YCT-60 connects directly to an existing conveyor. The optional bottle-feeding machine is an add-on for operations without an upstream conveyor, or where bottle orientation needs pre-labeling control.
Q: What bottle shapes are suitable — only perfectly cylindrical?
A: The YCT-60 is optimized for cylindrical bottles. Slightly tapered bottles within the diameter range may also work depending on taper angle. Share your bottle specs and we will confirm compatibility.
Q: Is the machine suitable for both glass and plastic bottles?
A: Yes. The YCT-60 handles glass and plastic (PET, HDPE, PP) cylindrical bottles within Φ25–100 mm, provided the surface is clean and the label adhesive suits the substrate.
Q: What is the MOQ and lead time?
A: MOQ is 1 unit. Standard configurations ship in 5–10 business days; custom orders in 15–20 business days. Lead time confirmed at order placement.
Q: Can I integrate the YCT-60 with my existing filling and capping line?
A: Yes. Share your conveyor height, bottle dimensions, and line speed and our team will confirm integration parameters and any adaptor requirements.
Q: Does the machine support label position registration for embossed logos?
A: The standard YCT-60 applies labels based on bottle arrival position. For registration relative to an embossed feature, a positioning sensor upgrade can be added. Specify this requirement at inquiry stage.
If your production handles cylindrical containers and demands consistent, high-speed wrap-around label application, the YCT-60 is designed to deliver exactly that. Share your bottle dimensions, label specifications, and target throughput with our team and we will provide a detailed recommendation with a competitive quotation.
