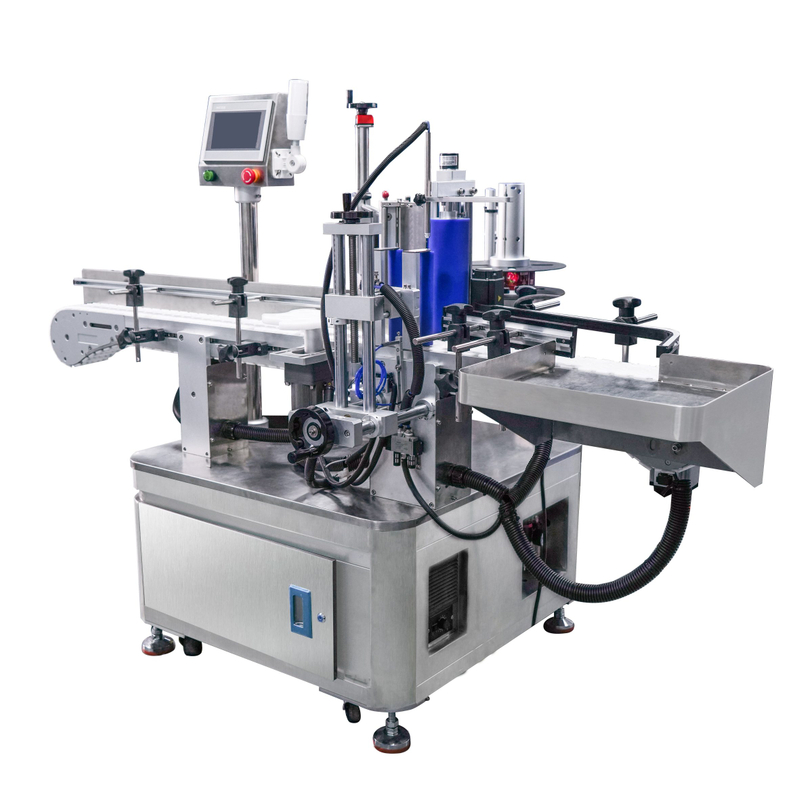

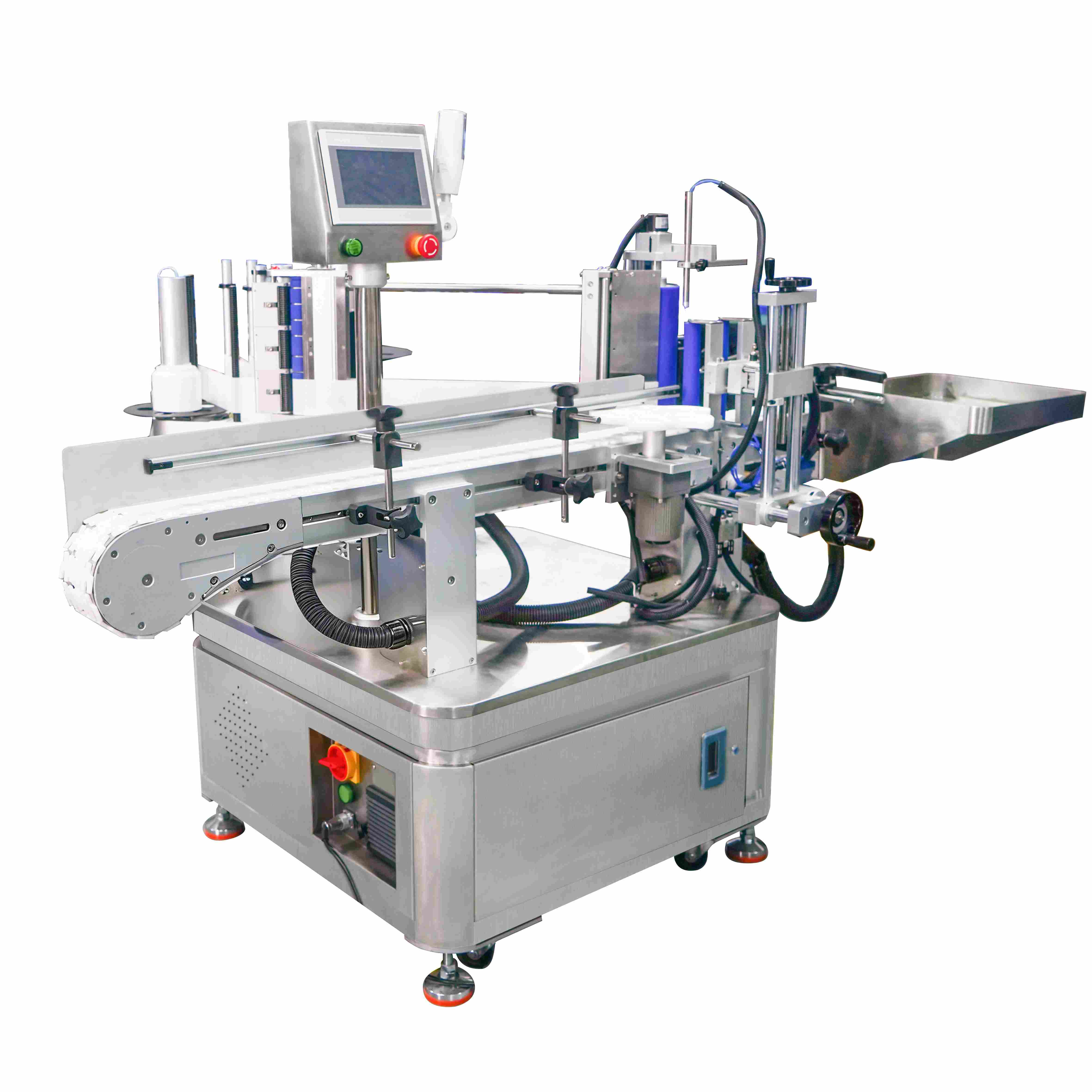

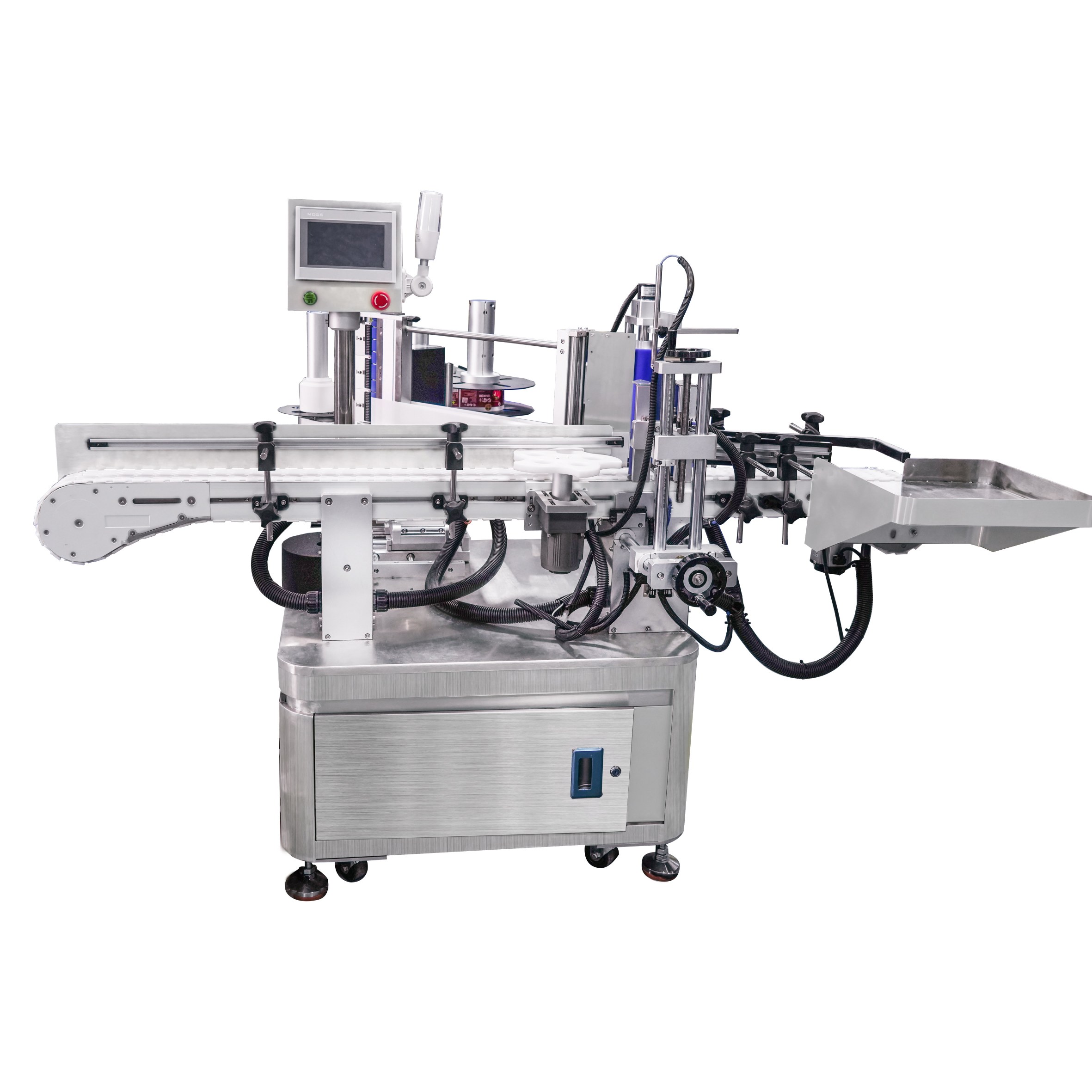

The YCT-61H Automatic Positioning Round Bottle Labeling Machine is a highly versatile, high-speed solution designed for both single-label and double-label applications on cylindrical containers. Equipped with an advanced circumferential position detection system, it allows for precise label placement at specified locations (such as aligning with bottle handles, seam lines, or pre-printed graphics).
Inquire Now & Get a Free Configuration Proposal
Table of Contents
For premium cosmetics, pharmaceuticals, and food products, label placement is critical to brand identity. Standard round bottle labelers often apply labels randomly, which can cover important bottle features, misalign front-and-back labels, or look unprofessional on store shelves.
The YCT-61H Automatic Positioning Round Bottle Labeling Machine is engineered to eliminate these issues. Featuring an optional high-precision circumferential positioning sensor, the machine detects specific reference points on the bottle (such as a handle, a molded logo, or a glass seam) and applies the label in the exact designated spot. With the ability to apply one or two labels simultaneously, the YCT-61H offers the ultimate flexibility and aesthetic perfection for your packaging line.
Precise Position Detection (Oriented Labeling): The advanced optical/sensor positioning system ensures the label is applied at the exact specified location on the bottle's circumference, perfect for asymmetrical or branded bottles.
Single & Double Labeling Versatility: A single machine can handle full wrap-around, partial wrap-around, or front-and-back double labeling. Adjusting between these modes is quick and intuitive via the touchscreen.
High-Speed & Stable Performance: Delivers a throughput of 30 to 180 bottles per minute (depending on bottle and label dimensions) while maintaining a high accuracy of up to ±0.5mm.
Premium Component Architecture: Built with industrial-grade PLC control systems and high-resolution servo motors (from top brands like Mitsubishi, Panasonic, and Schneider) to ensure 24/7 continuous operation.
Optional Date Coding Integration: Can be integrated with a ribbon coding machine, inkjet printer, or laser marker to print batch numbers, manufacturing dates, and expiry dates online.

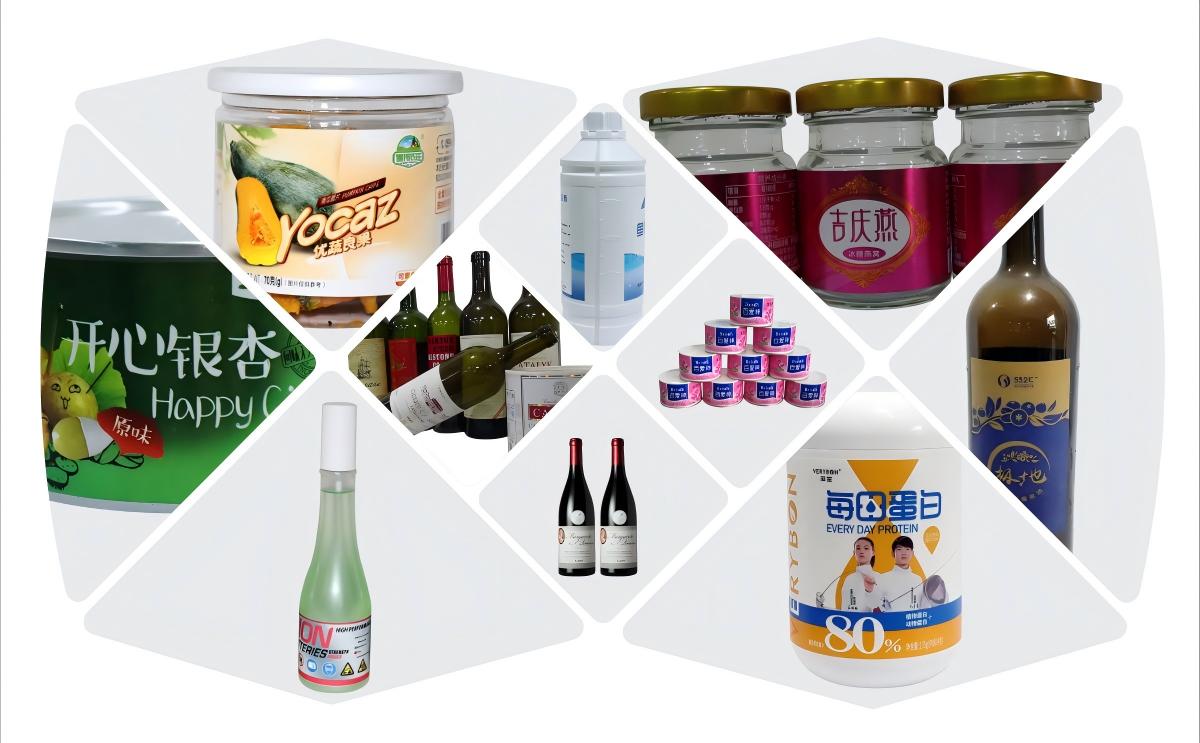

Labeling Machine Samples
Parameter | Specification Details |
Model | YCT-61H |
Labeling Speed | 30 ~ 180 pcs/min (depending on bottle & label size) |
Labeling Accuracy | ±0.5mm to ±2.0mm (excluding bottle/label errors) |
Applicable Product Diameter | φ25mm ~ φ100mm (Customizable for other sizes) |
Suitable Label Size | Length: 20mm ~ 280mm | Width: 20mm ~ 160mm |
Label Roll Inner Diameter | φ76mm (Standard) |
Label Roll Outer Diameter | φ300mm (Maximum) |
Power Supply | 220V / 50Hz (110V/380V customizable) |
Power Consumption | 2350W |
Machine Weight | Approx. 185 kg |
Machine Dimensions (L×W×H) | Approx. 1750mm × 1050mm × 1400mm |
The YCT-61H is the preferred choice for industries requiring premium presentation and double-sided labeling:
Cosmetics & Personal Care: Essential oil vials, luxury lotion bottles, shampoo bottles, and cream jars requiring front/back labeling.
Pharmaceuticals & Healthcare: Supplement jars, syrup bottles, and disinfectant containers requiring precise warning label placement.
Food & Beverage: Wine and craft beer bottles, honey jars, gourmet sauce bottles, and olive oil containers.
Daily Chemicals: Detergent bottles, spray bottles, and household chemical containers.
15+ Years of Manufacturing Excellence: Dongguan Yucheng Machinery Technology Co., Ltd. (YCTAUTO) integrates R&D, production, and global sales to deliver highly reliable packaging automation.
100% Quality Assurance: Every machine undergoes strict testing with your actual bottle and label samples before shipping to ensure zero-defect performance on day one.
Comprehensive After-Sales Support: We provide free remote video commissioning, detailed English manuals, and rapid spare parts delivery within 48 hours.
Standard labelers apply labels randomly on the bottle surface. The YCT-61H features a specialized positioning mechanism (using photoelectric sensors or visual cameras) that detects a specific mark, handle, or seam on the bottle, ensuring the label is applied in the exact same designated spot every time. It also easily supports front-and-back double labeling.
Yes. The YCT-61H is designed to apply both front and back labels from a single roll, provided the labels are printed alternately on the roll. The PLC system allows you to easily adjust the spacing between the two labels via the touchscreen.
The machine is highly adjustable and handles bottle diameters from φ25mm to φ100mm. For different bottle sizes, you only need to make simple mechanical adjustments using the handwheels (no tools required). For extremely different bottle shapes, custom mold parts can be provided.
Our standard lead time is 25 to 35 days. If your project requires highly customized positioning sensors (such as color-mark sensors or vision cameras for specific bottle features), the lead time is approximately 35 to 45 days.
We provide a complete support package:
Factory Calibration: We pre-configure the machine using your sample bottles and labels before shipping.
Video & Manual Guides: We send step-by-step video tutorials and a comprehensive English manual.
Live Video Support: Our engineers are available for real-time video calls on WhatsApp/WeChat to guide your team through the startup process.
