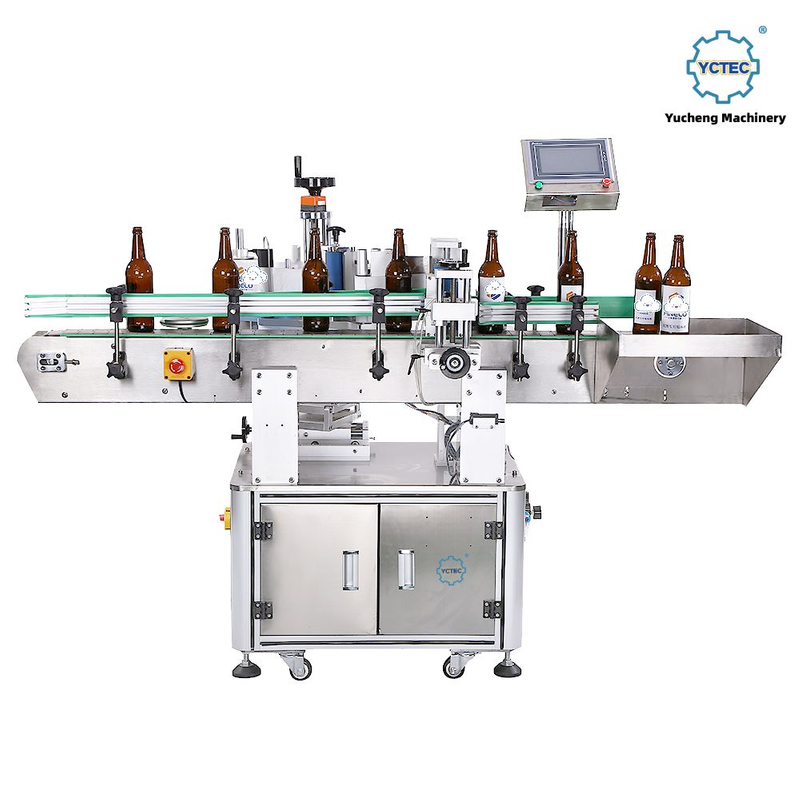

The YCT-61 Automatic Round Bottle Labeling Machine (Cylinder Type) is designed for cosmetic, pharmaceutical, food, and disinfectant producers applying labels to standard cylindrical round bottles at medium production speeds. The "cylinder type" refers to the core drive mechanism: driven rubber cylinders grip each bottle and rotate it against the label-dispensing belt, pulling the label tightly around the surface with consistent tension. This produces labels that sit flat, align accurately, and adhere firmly — without lifting edges or wrinkles from manual application.
Manufactured by Dongguan Yucheng Machinery Technology Co., Ltd. (YCTAUTO), the YCT-61 accommodates bottles from Φ25 mm to Φ120 mm in diameter — covering the majority of round bottle formats in personal care, health, food, and disinfectant packaging. The machine accepts standard Φ76 mm core label rolls up to Φ300 mm outer diameter, with label lengths of 20–380 mm and widths of 20–130 mm.
A core advantage is built-in support for both single-label and dual-label application. In dual-label mode, a second labeling head applies a back label in the same pass at an independently adjustable offset — eliminating a second machine pass for front-back labeling. This is standard in pharmaceutical and cosmetic production where front and back labels carry different regulatory information. All label position adjustments are operator-accessible without specialist engineering skills.
Cylinder-Drive Labeling Mechanism — Driven rubber cylinders rotate each bottle in synchrony with label dispensing, producing consistent wrap tension from Φ25 mm to Φ120 mm — more reliable than conveyor-only systems for small-diameter bottles.
Single and Dual Label Application — One or two labels per bottle in a single pass, with independently adjustable label spacing — standard in pharmaceutical, cosmetic, and food packaging.
25–60 pcs/min Throughput — Output speed suited to medium-volume production runs, with consistent labeling performance maintained across extended batches without requiring operator intervention between bottles.
±1 mm Labeling Accuracy — Sensor-triggered label release and cylinder rotation deliver consistent positional accuracy across the full production run.
Φ25–120 mm Bottle Diameter Coverage — Wider than many comparable machines, accommodating narrow vials to larger cosmetic and food containers without mechanical reconfiguration.
Tooling-Free Label Position Adjustment — Height, angular start, and inter-label spacing are set via the control panel for fast format changeover.
Optional Ribbon Coding Machine — An integrated hot-stamp coder prints manufacture dates, expiry dates, and batch/lot numbers onto labels during the labeling cycle, keeping your compliance coding in the same automated step as label application.
Standard Label Roll Compatibility — Accepts industry-standard Φ76 mm core rolls, compatible with the widest range of label printing suppliers.
Parameter | Value |
Model | YCT-61 |
Labeling Accuracy | ±1 mm |
Labeling Speed | 25–60 pcs/min |
Applicable Bottle Diameter | Φ25–120 mm |
Label Length | 20–380 mm |
Label Width | 20–130 mm |
Label Roll Inner Diameter | Φ76 mm |
Label Roll Outer Diameter | Φ300 mm (max) |
Power Supply | 220 V / 50 Hz |
Power Consumption | 865 W |
Machine Dimensions (L × W × H) | 1950 mm × 1200 mm × 1450 mm |
Machine Weight | Approx. 185 kg |
Labeling Modes | Single label, dual label (front-back) |
Optional Accessories | Ribbon coding machine |
The YCT-61 cylinder-type round bottle labeling machine is well suited to a wide range of cylindrical container types across multiple industries:
Cosmetics & Personal Care — Lotion bottles, toner bottles, serum vials, body wash bottles, hair oil containers, and foundation bottles requiring single front or front-back dual labeling
Food & Beverage — Round sauce bottles, condiment jars, drinking bottles, honey cylinders, and health drink containers where consistent label placement is critical to retail shelf appearance
Pharmaceutical & Healthcare — Liquid medicine bottles, disinfectant bottles, supplement liquid containers, and antiseptic solution bottles requiring regulatory front and back labels in a single pass
Disinfectant & Sanitizer — Sanitizer round bottles, alcohol disinfectant containers, and antibacterial liquid packaging where dual labels carry usage instructions and compliance information on separate faces
Chemical Products — Round chemical reagent bottles, pesticide liquid containers, and solvent bottles requiring durable adhesive label application
Daily Consumer Goods — General round containers used in household product lines that require consistent automated labeling at medium production speeds
Proven Cylinder-Type Drive System — The rubber-cylinder mechanism delivers reliable bottle engagement across a broad diameter range with consistent label tension that belt-only systems cannot match on small-diameter bottles.
Dual-Label Capability as Standard — The YCT-61 supports single and dual labeling from the outset, giving you front-back flexibility across your product range without requiring an add-on module.
Comprehensive Factory Testing — Every unit is tested across multiple bottle diameters and label sizes at our Dongguan facility before shipment, verified to perform to specification from day one.
OEM & Custom Configuration Support — We adapt the YCT-61 to non-standard bottle heights, custom conveyor integration heights, and specific label specifications. Private machine branding for distributors and resellers is available.
Full After-Sales Service — Remote video installation guidance, multilingual operation manuals, and reliable spare-parts supply globally minimize your downtime after delivery.
Q: What is the difference between the YCT-61 (Cylinder Type) and the YCT-60 (Rotary Type)?
A: The YCT-61 uses rubber cylinders to rotate bottles through the labeling station, offering medium-speed flexible production with single or dual label capability. The YCT-60 uses a rotary turntable mechanism for higher-throughput wrap-around labeling with optional automatic bottle feeding. Share your requirements and we will recommend the right model.
Q: Can the YCT-61 apply front and back labels in a single pass?
A: Yes. The two labels are dispensed from separate rolls, and the spacing between them is independently adjustable via the control panel.
Q: How difficult is it to change between bottle sizes?
A: Changeover involves repositioning the guide rollers for the new bottle diameter and recalling parameters via the touchscreen. No tooling changes are required within the Φ25–120 mm range.
Q: What label materials are compatible with the YCT-61?
A: The YCT-61 handles paper, PE, PP, PET, and foil self-adhesive labels. For transparent labels, specify at inquiry stage so we can confirm the correct sensor configuration.
Q: What is the MOQ and lead time?
A: MOQ is 1 unit. Standard machines ship in 5–10 business days; custom configurations in 15–20 business days. Lead time confirmed at order placement.
Q: Does the YCT-61 integrate with my existing line?
A: Yes. Share your conveyor height, line speed, and bottle dimensions and we will confirm integration parameters and any required adaptors.
Q: What warranty does the YCT-61 come with?
A: Yucheng provides a standard warranty covering manufacturing defects with ongoing technical support. Contact our sales team for warranty terms applicable to your region.
The YCT-61 is a reliable, flexible, and easy-to-operate solution for single and dual label application on cylindrical bottles across cosmetic, pharmaceutical, food, and chemical packaging lines. Share your bottle dimensions, label specifications, and production volume with us and our team will provide a targeted recommendation and quotation within one business day.
