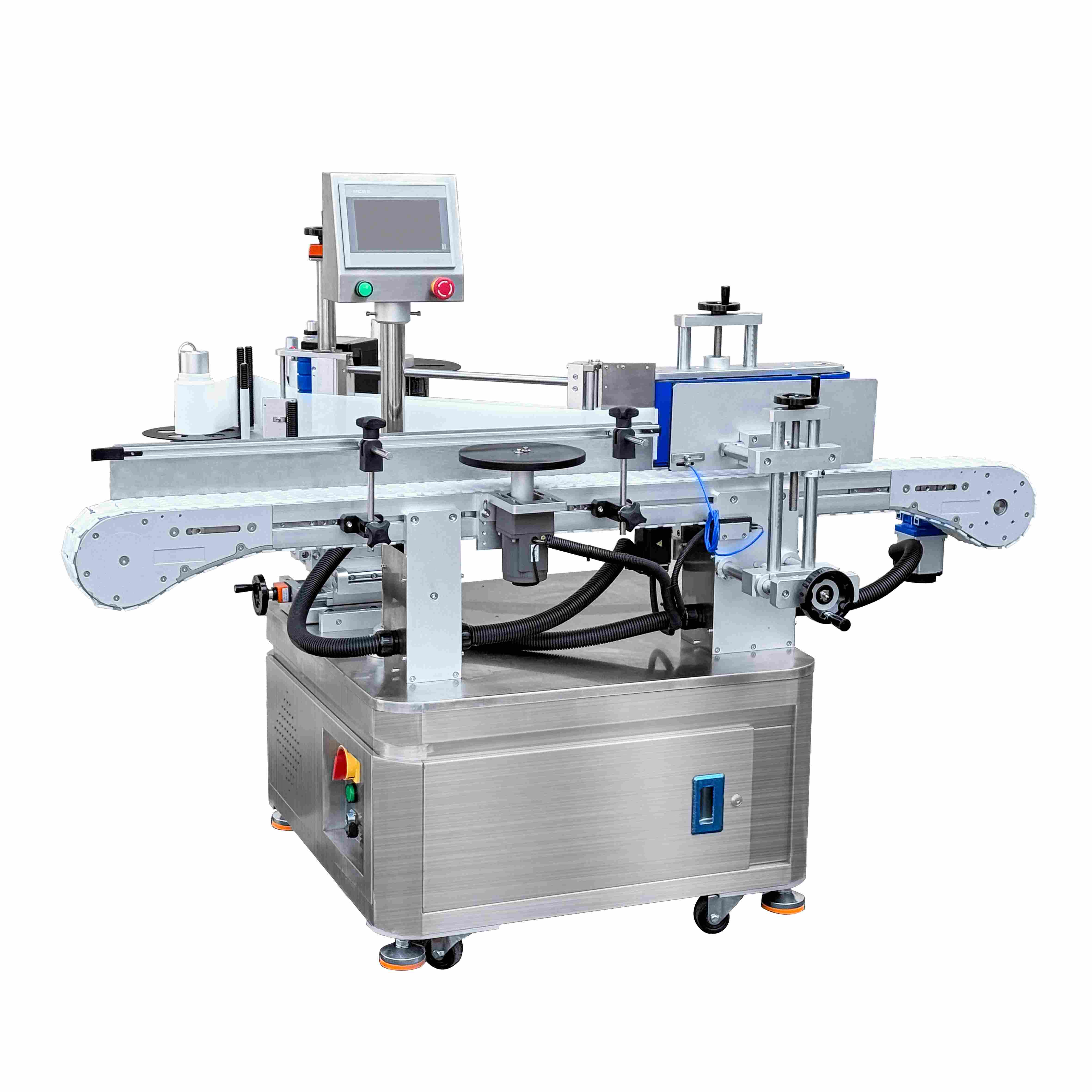

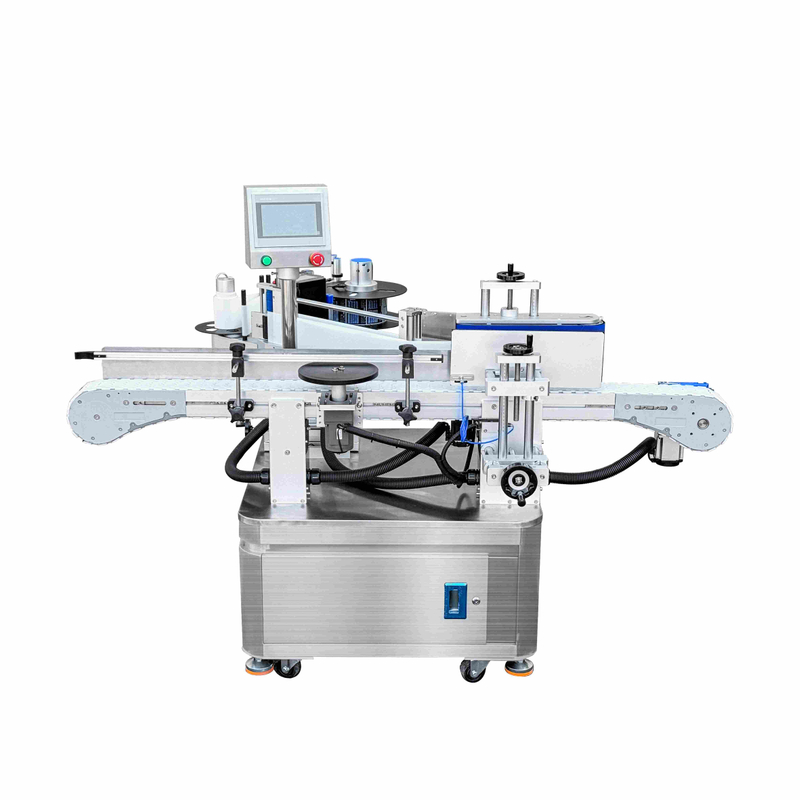

The YCT-60H Automatic Rotary Round Bottle Labeling Machine is engineered for high-speed, continuous wrap-around and semi-circle labeling of cylindrical containers. Featuring an advanced rotary feeding system, it achieves stable labeling speeds of up to 200 bottles per minute with an accuracy of up to ±0.5mm.
Table of Contents
In high-volume packaging lines, traditional linear labeling machines often struggle with bottle wobbling, leading to misaligned labels, bubbles, and costly downtime.
The YCT-60H Rotary Round Bottle Labeling Machine solves these challenges. By utilizing a continuous rotary positioning mechanism, each bottle is securely held and rotated during the labeling process. This ensures perfect wrap-around alignment, eliminates wrinkles, and maintains exceptional stability even at speeds up to 200 bottles per minute. Whether you are packaging pharmaceutical vials, beverage bottles, or cosmetic jars, the YCT-60H delivers retail-ready aesthetics shift after shift.
High-Speed Rotary Precision: Unlike standard linear labelers, the rotary design ensures smooth bottle handling, achieving stable speeds of 70–200 pcs/min with a labeling accuracy of up to ±0.5mm.
Seamless Line Integration: Easily connects to your existing filling and capping lines. Optional automatic rotary bottle feeding tables can be integrated to minimize manual labor.
Real-Time Date & Batch Coding: Supports optional ribbon coding or laser marking systems to print manufacture/expiry dates and batch numbers directly during the labeling process.
Industrial-Grade Durability: Constructed with premium SUS304 stainless steel and anodized aluminum alloy. Critical electrical components are sourced from world-class brands (Schneider, Mitsubishi, Panasonic) to ensure an MTBF of over 4,000 hours.
User-Friendly HMI Touchscreen: Multi-language PLC control system makes it easy to adjust labeling parameters, save product presets, and perform quick changeovers between different bottle sizes.
Parameter | Specification Details |
Model | YCT-60H |
Labeling Speed | 70 ~ 200 pcs/min (depending on bottle & label size) |
Labeling Accuracy | ±0.5mm to ±2.0mm (excluding bottle/label errors) |
Applicable Bottle Diameter | φ25mm ~ φ100mm (Customizable for larger sizes) |
Suitable Label Size | Length: 20mm ~ 320mm | Width: 30mm ~ 160mm |
Label Roll Inner Diameter | φ76mm (Standard) |
Label Roll Outer Diameter | φ300mm (Maximum) |
Power Supply | 220V / 50Hz (110V/380V customizable) |
Power Consumption | 2350W |
Machine Weight | Approx. 180 kg |
Machine Dimensions (L×W×H) | Approx. 1800mm × 1030mm × 1400mm |
The YCT-60H is highly versatile and configured for various round containers, including glass, PET, PE, PP, and metal cans:
Beverage Industry: Mineral water, juice, craft beer, and energy drink bottles.
Pharmaceutical & Biotech: Syrup bottles, supplement jars, vaccine vials, and medicine containers.
Food & Condiments: Sauce jars, honey bottles, salad dressing containers, and spice jars.
Daily Chemicals & Cosmetics: Shampoo bottles, lotion pumps, essential oil vials, and sanitizer spray bottles.
15+ Years of Expertise: Dongguan Yucheng Machinery Technology Co., Ltd. (YCTAUTO) is a trusted manufacturer exporting to over 50 countries, including the US, EU, and South America.
Strict Quality Control: Every YCT-60H undergoes a rigorous 100% functional test with real bottles and labels before shipment.
Global Support & Service: We offer free remote video commissioning, detailed English manuals, and fast spare parts shipping within 48 hours. On-site engineer dispatch is available for turnkey projects.
Yes. The YCT-60H is highly adjustable. It supports bottle diameters from φ25mm to φ100mm. Changing between different bottle sizes is quick and requires minimal tools, taking less than 15 minutes for an experienced operator. For non-standard or larger bottles, we offer custom-engineered rotary star wheels.
Our high accuracy is achieved through a combination of a high-resolution servo-driven labeling head, a precise rotary positioning mechanism, and premium optical sensors. This ensures that the label is released and applied at the exact millisecond the bottle reaches the target position.
Yes, absolutely. You can choose to equip the YCT-60H with an optional ribbon coding machine, inkjet printer, or laser marking system. This allows you to print production dates, expiry dates, and batch codes on the label or the bottle online, eliminating a separate packaging step.
Our standard lead time for the YCT-60H is 25 to 35 days. For customized voltage or special bottle configurations, it may take up to 45 days. All machines are securely packed in export-standard wooden crates with desiccant to prevent moisture during sea freight.
We provide three layers of support:
Pre-tested Delivery: The machine is fully calibrated at our factory based on your bottle and label samples. It is essentially "plug-and-play."
Comprehensive Guides: You will receive detailed English user manuals and step-by-step video tutorials.
Remote/On-site Support: Our engineering team is available for free video-call commissioning. On-site technical dispatch is also available upon request.
