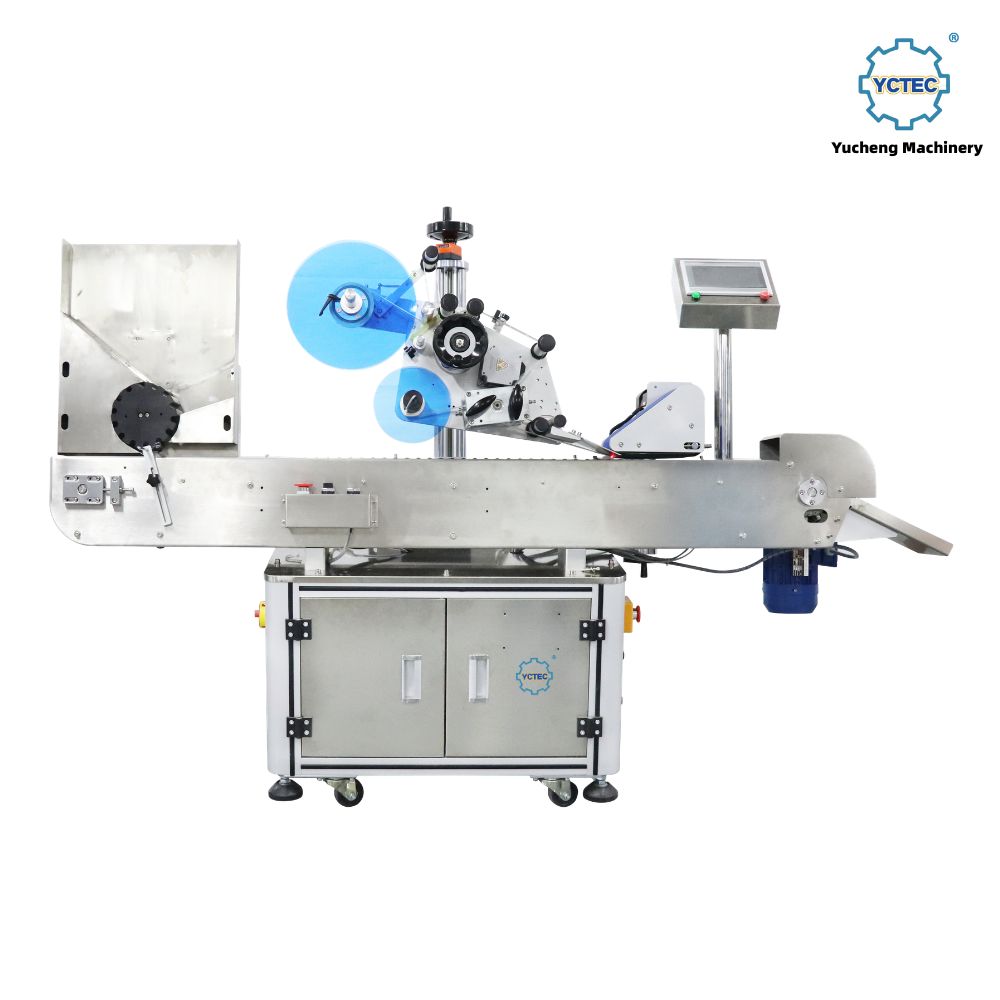

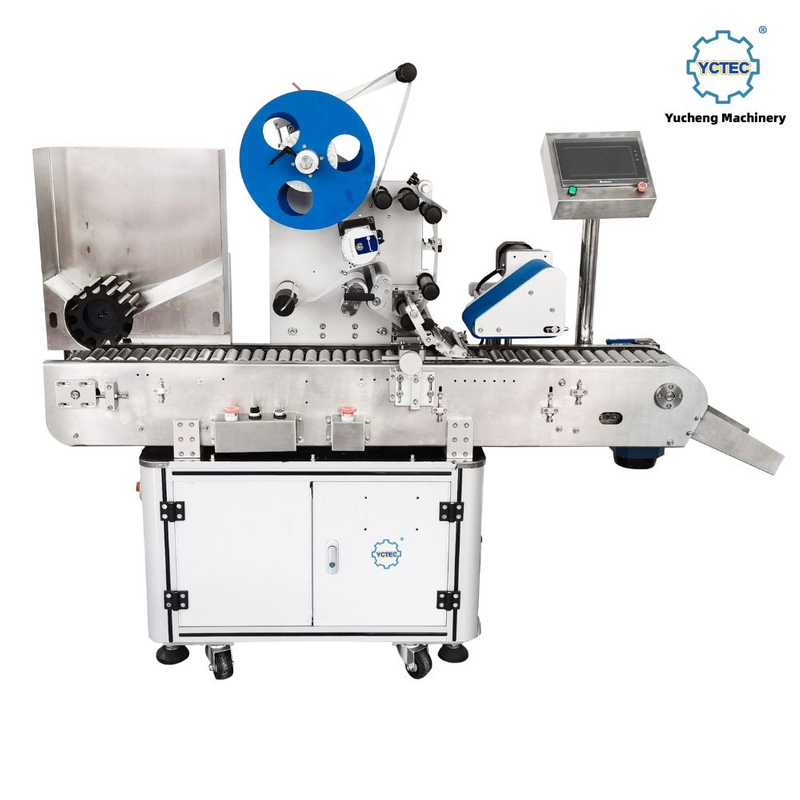

The YCT-66 Automatic Horizontal Round Bottle Labeling Machine solves a production challenge that vertical labeling machines cannot address: labeling small-diameter cylindrical containers — lip balm tubes, slim cosmetic sticks, ampoules, and narrow vials — that topple on a standard upright conveyor. The YCT-66 conveys containers horizontally through the labeling station, using precision guide rails and driven belts to control each container's rotation and linear speed as the label is applied, eliminating jamming and placement errors.
Built by Dongguan Yucheng Machinery Technology Co., Ltd. (YCTAUTO), the YCT-66 handles containers from Φ10–30 mm in diameter — covering cosmetic tubes, mascara tubes, ampoules, cigar tubes, and slim vials — at 100–300 pieces per minute, making it one of the highest-output labelers in Yucheng's product range. Labels from 20–250 mm in length and 20–110 mm in width support both short band labels and near-full wrap-around coverage.
Horizontal orientation also improves label adhesion quality: gravity does not pull the label during application, and the container surface presents uniformly to the labeling head. An optional ribbon coding machine and optional inkjet printer mount directly to the YCT-66 frame for inline marking.
Horizontal Feeding for Maximum Stability — Containers travel and rotate horizontally through the labeling station, eliminating the toppling and jamming that vertical-feed systems cause with small-diameter products.
100–300 pcs/min Throughput — Among the highest output rates in Yucheng's range, designed for the volume demands of cosmetic, pharmaceutical, and food lines running small-container SKUs continuously.
±1 mm Labeling Accuracy — Precision guide rails and driven belts maintain consistent label start-position accuracy at maximum speed across high-volume batches.
Φ10–30 mm Container Diameter Range — Engineered for narrow containers that are problematic for vertical labelers: lip balm sticks, mascara tubes, ampoules, pen applicators, and similar formats.
Wrap-Around Label Support — Labels up to 250 mm in length support full or near-full wrap-around coverage on narrow-body packaging.
Optional Ribbon Coding Machine — Inline hot-stamp coder prints manufacture dates, expiry dates, and batch numbers onto labels during the labeling pass, combining two compliance-critical process steps into one automated cycle.
Optional Inkjet Printer — A compatible inkjet head mounts directly to the frame for sequential codes, QR codes, and variable-data marking.
Compact Footprint — Machine dimensions of 2100 mm × 750 mm × 1400 mm offer a narrow width for a high-speed automatic labeler, making the YCT-66 practical for factories where floor space is at a premium.
Parameter | Value |
Model | YCT-66 |
Labeling Accuracy | ±1 mm |
Labeling Speed | 100–300 pcs/min |
Applicable Container Diameter | Φ10–30 mm (customizable) |
Label Length | 20–250 mm |
Label Width | 20–110 mm |
Label Roll Inner Diameter | Φ76 mm |
Label Roll Outer Diameter | Φ300 mm (max) |
Power Supply | 220 V / 50 Hz |
Power Consumption | 940 W |
Machine Dimensions (L × W × H) | 2100 mm × 750 mm × 1400 mm |
Machine Weight | Approx. 200 kg |
Optional Accessories | Ribbon coding machine, inkjet printer |
The YCT-66 horizontal round bottle labeling machine is the preferred solution wherever narrow, unstable cylindrical containers require high-speed, accurate label application:
Cosmetics & Beauty — Lip balm sticks, eyeliner tubes, mascara tubes, roll-on applicators, foundation sticks, concealer tubes, and slim perfume rollers that cannot stand upright in a conventional vertical labeler
Pharmaceutical & Healthcare — Glass and plastic ampoules, injection vials, slim supplement tubes, nasal spray containers, eye drop containers, and other narrow medical packaging requiring compliant label application
Food & Condiments — Mini sauce tubes, slim condiment containers, squeeze-pack flavoring tubes, and other narrow-body food product packaging formats
Confectionery & Snacks — Candy tubes, mints containers, slim snack stick packaging, and similar narrow cylindrical confectionery formats
Personal Care — Deodorant sticks, roll-on fragrance tubes, hair serum applicator bottles, and similar narrow personal care product formats
Industrial & Technical — Calibration tube labels, reagent ampoules, reference standard tubes, and laboratory sample containers requiring consistent placement
Purpose-Designed Horizontal Labeling — The YCT-66 is designed from the ground up for horizontal feeding of small cylindrical containers — not adapted from a vertical labeler. This specificity delivers higher speed, better accuracy, and lower jam rates for these container formats.
Verified High-Speed Performance — The 100–300 pcs/min throughput is tested at our Dongguan facility with real containers and labels before shipping, so the machine arrives calibrated and production-ready.
OEM & Custom Diameter Options — The standard Φ10–30 mm range covers the majority of small cylindrical container formats. For specialized containers outside this range, we offer custom configuration upon request. Private-label machine branding is available for distributors.
Integrated Coding Solutions — Ribbon coding and inkjet printing are available at order stage or retrofit. We supply and integrate both, eliminating the need to source third-party coding equipment separately.
Responsive Technical Support — Video-guided installation, multilingual documentation, and fast spare-parts supply keep your high-speed line running reliably after delivery.
Q: Why does horizontal feeding outperform vertical for small tubes and ampoules?
A: Small-diameter containers with a high aspect ratio tip easily on a vertical conveyor, causing jams and misapplication. Horizontal feeding eliminates this — each container lies on its side, supported along its length, and rotates as the label is applied, producing consistent wrap-around coverage without toppling.
Q: What is the smallest container diameter the YCT-66 can handle?
A: The standard minimum is Φ10 mm, covering lip balm tubes, mascara tubes, and most pharmaceutical ampoules. For smaller containers, contact us to discuss customization.
Q: Can the YCT-66 handle tapered containers?
A: The YCT-66 is optimized for straight cylindrical containers. Significantly tapered containers may require a custom guide-rail configuration. Share your container drawings when inquiring for compatibility advice.
Q: How does the machine feed containers — does it need a vibratory bowl feeder?
A: The YCT-66 includes an integrated horizontal belt-guide conveyor. For fully automated bulk feeding, a vibratory bowl or sorting feeder can be paired with the machine. Contact us to discuss your line layout.
Q: What is the MOQ and lead time?
A: MOQ is 1 unit. Standard units ship in 5–10 business days; custom configurations in 15–20 business days. Delivery schedule confirmed at order placement.
Q: Can the YCT-66 handle both plastic and glass ampoules?
A: Yes, for smooth-surfaced containers within Φ10–30 mm. For glass ampoules, specify the container weight and fragility at inquiry stage so we can confirm appropriate belt tension settings.
Q: My line runs at 250 pcs/min — can the YCT-66 sustain that continuously?
A: Yes. The YCT-66 is rated for up to 300 pcs/min, so 250 pcs/min sits within the middle of its operating range with headroom for surges. Share your container and label specs for a verified throughput confirmation.
If your production line handles lip balm tubes, ampoules, cosmetic sticks, or other small cylindrical containers, the YCT-66 delivers fast, stable, and accurate wrap-around labeling. Send us your container diameter, label dimensions, and target throughput for a detailed proposal and competitive quotation.
