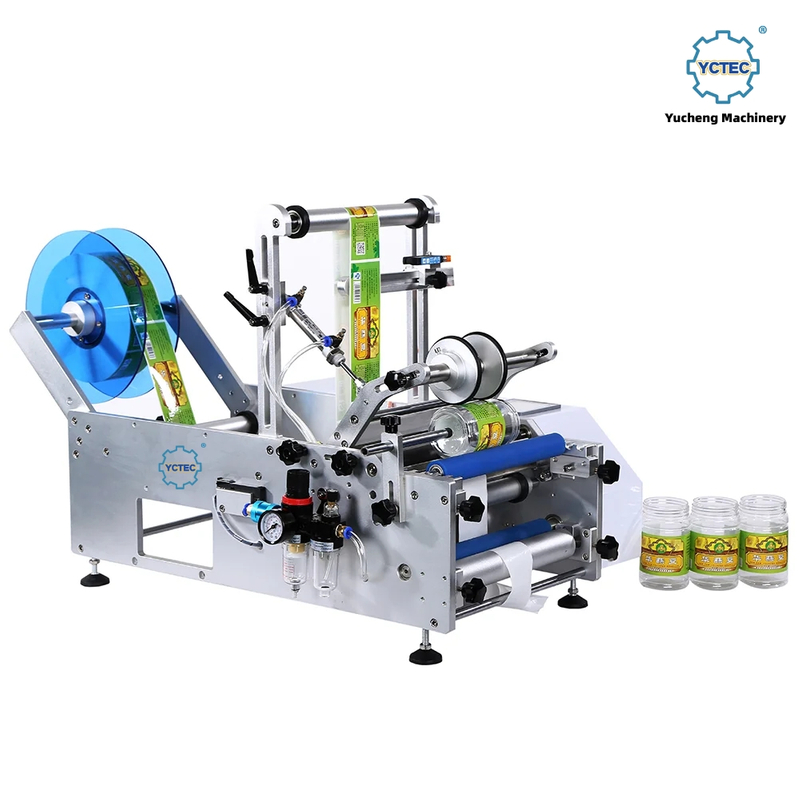

The YCT-20 Semi-Automatic Round Bottle Labeling Machine is a versatile, desktop-style label applicator engineered for small-to-medium production runs of round and cylindrical containers. Whether you are labeling cosmetic jars, wine bottles, xylitol containers, or pharmaceutical vials, the YCT-20 places self-adhesive labels with consistent ±0.5 mm accuracy — eliminating the uneven appearance and rework costs associated with hand labeling.
Built by Dongguan Yucheng Machinery Technology Co., Ltd. (YCTAUTO), this machine combines a robust mechanical platform with a user-friendly operator interface. A single worker can load bottles, trigger the labeling cycle, and achieve throughput of 20–35 pieces per minute depending on container and label dimensions. The result is a measurable upgrade in output speed and label quality for workshops that have outgrown manual labeling but do not yet require a fully automatic line.
The YCT-20 also supports an optional ribbon coding machine (carbon belt date coder) that prints manufacture date (MFG), expiry date (EXP), and lot/batch numbers onto each label in the same pass. This eliminates a separate coding step, reduces handling, and helps you meet regulatory labeling requirements for food, pharmaceutical, and cosmetic products.
±0.5 mm Labeling Accuracy — Precision label placement on every bottle, reducing waste and ensuring a professional product appearance (excluding errors caused by container or label irregularities).
20–35 pcs/min Throughput — Semi-automatic operation delivers consistent speed suitable for small and medium batch production, controlled by operator loading pace and proficiency.
Wide Container Compatibility — Accommodates round bottles from Φ10 mm to Φ150 mm in diameter and up to 250 mm in height (custom heights available on request).
Flexible Label Sizes — Handles labels from 20 mm × 20 mm up to 380 mm × 220 mm, supporting wrap-around labeling, single-side labeling, and front-and-back dual labeling with adjustable label spacing.
Optional Position Detection — Circumferential positioning sensor enables labels to be applied at a specified location on the bottle surface, critical for products with embossed logos or orientation requirements.
Optional Ribbon Coding Machine — Integrated hot-stamp carbon belt coder prints MFG date, EXP date, and batch/LOT numbers directly on the label during application, combining two packaging steps into one.
Compact Desktop Footprint — Machine dimensions of only 920 mm × 470 mm × 500 mm and a weight of approximately 45 kg make it easy to place on a standard workbench and relocate between workstations.
Low Power Consumption — Runs on a standard 220 V / 50 Hz single-phase supply at just 120 W, keeping operating costs minimal.
Parameter | Value |
Model | YCT-20 |
Labeling Accuracy | ±0.5 mm |
Labeling Speed | 20–35 pcs/min |
Applicable Bottle Diameter | Φ10 mm – Φ150 mm |
Applicable Bottle Height | Up to 250 mm (customizable) |
Label Length | 20 mm – 380 mm |
Label Width | 20 mm – 220 mm |
Label Roll Inner Diameter | Φ76 mm |
Label Roll Outer Diameter | Φ300 mm (max) |
Power Supply | 220 V / 50 Hz |
Power Consumption | 120 W |
Machine Dimensions (L × W × H) | 920 mm × 470 mm × 500 mm |
Machine Weight | Approx. 45 kg |
Labeling Modes | Wrap-around, single-label, front-and-back |
Optional Accessories | Ribbon coding machine (date coder), position detection sensor |

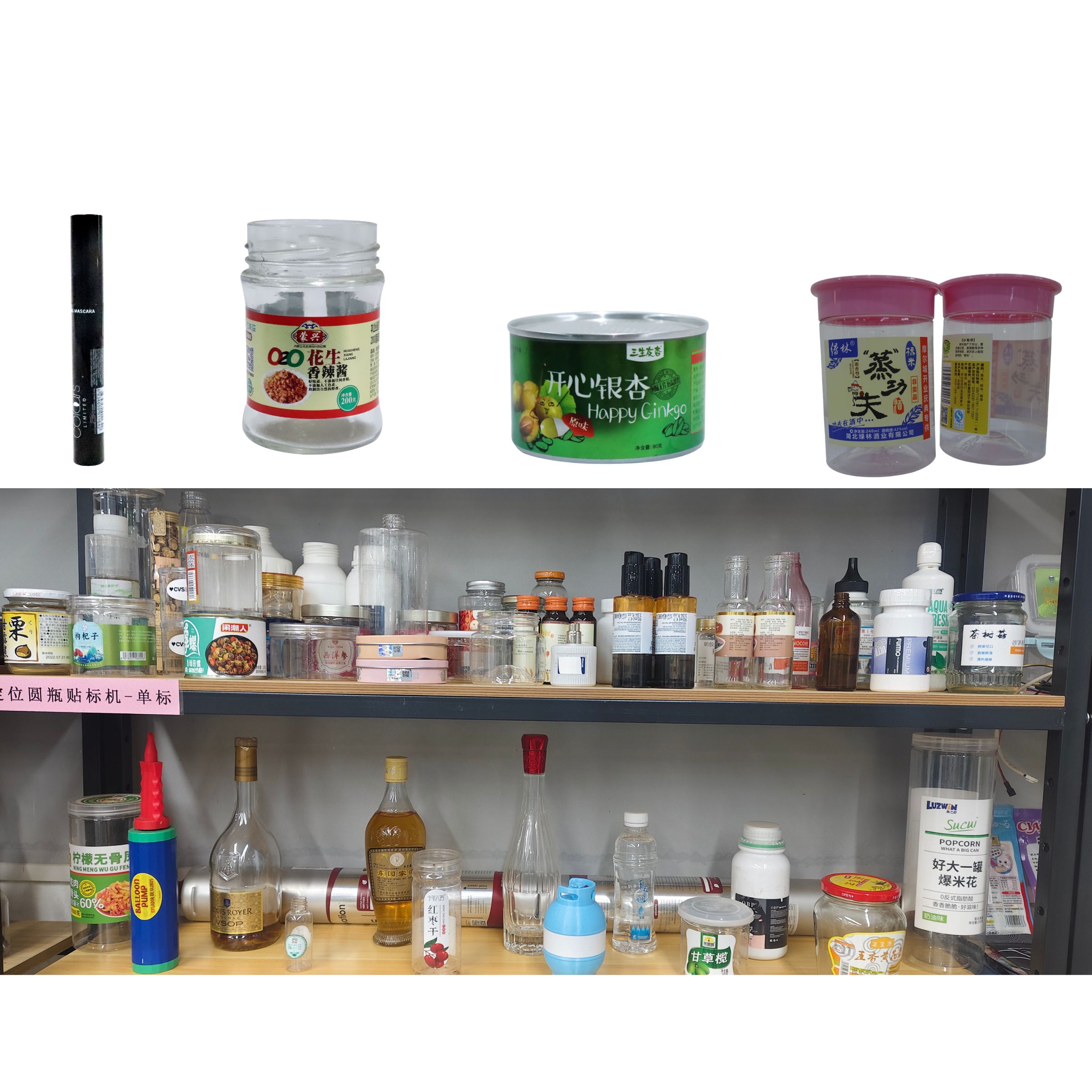

The YCT-20 semi-automatic round bottle labeling machine serves a broad range of industries and container types:
Food & Beverage — Seasoning bottles, honey jars, juice bottles, xylitol containers, soy sauce bottles, canned drinks
Cosmetics & Personal Care — Cream jars, lotion bottles, essential oil vials, skincare round bottles, perfume bottles
Pharmaceutical & Health — Medicine bottles, vitamin containers, supplement jars, herbal extract vials
Chemical & Industrial — Lubricant bottles, cleaning agent containers, pesticide bottles, paint cans
Wine & Spirits — Wine bottles, craft beer bottles, spirit bottles requiring wrap-around or front-back labels
The machine also handles slightly tapered round bottles commonly found in premium cosmetic and beverage packaging.
Specialized Labeling Manufacturer — Dongguan Yucheng Machinery Technology Co., Ltd. focuses exclusively on labeling and filling equipment, with years of in-house R&D and manufacturing experience under the YCTAUTO brand.
In-House Quality Control — Every machine undergoes rigorous testing and calibration before shipment, ensuring you receive a unit that performs to specification from day one.
OEM & ODM Capability — We customize machines to your specific container dimensions, label requirements, and production line layout. Private labeling and branding are available for resellers and distributors.
Global After-Sales Support — Our technical team provides remote installation guidance, video-based troubleshooting, and spare-parts dispatch to keep your downtime to a minimum.
Production Line Integration — Beyond standalone labelers, Yucheng offers filling machines, capping equipment, and conveyor systems, enabling us to help you design and build a complete packaging line from a single supplier.
Q: What is the minimum order quantity (MOQ) for the YCT-20?
A: The standard MOQ is 1 unit. We welcome both sample orders and bulk purchases. Volume pricing is available — contact our sales team for a detailed quotation.
Q: Can this machine handle transparent (clear) labels?
A: The standard YCT-20 is optimized for opaque self-adhesive labels (paper, foil, PE, PP). For transparent label detection, please let us know your requirements so we can recommend the appropriate sensor upgrade.
Q: How does the optional ribbon coding machine work?
A: The ribbon coder mounts onto the labeling path. As each label feeds through, it hot-stamps characters (MFG date, EXP date, LOT number) onto the label before application. Character sets are changeable, and printing temperature is adjustable to suit different ribbon and label materials.
Q: What is the typical lead time for delivery?
A: Standard machines ship within 5–10 business days. Custom orders may require 15–20 business days depending on specifications. We confirm exact lead time after order placement.
Q: Does Yucheng provide installation and training support?
A: Yes. Every machine ships with a detailed operation manual and setup video. Our engineers also offer remote video guidance during installation and on-site support for large projects upon request.
Q: Can the YCT-20 apply two labels (front and back) on one bottle?
A: Yes. The YCT-20 supports front-and-back dual labeling. The distance between the two labels is adjustable through the machine's control settings to match your specific bottle and label dimensions.
Q: I need a labeling solution integrated with filling and capping — can you help?
A: Absolutely. Yucheng manufactures filling and capping equipment alongside labelers. We design turnkey packaging lines matched to your throughput and container type. Contact us to discuss your project.
