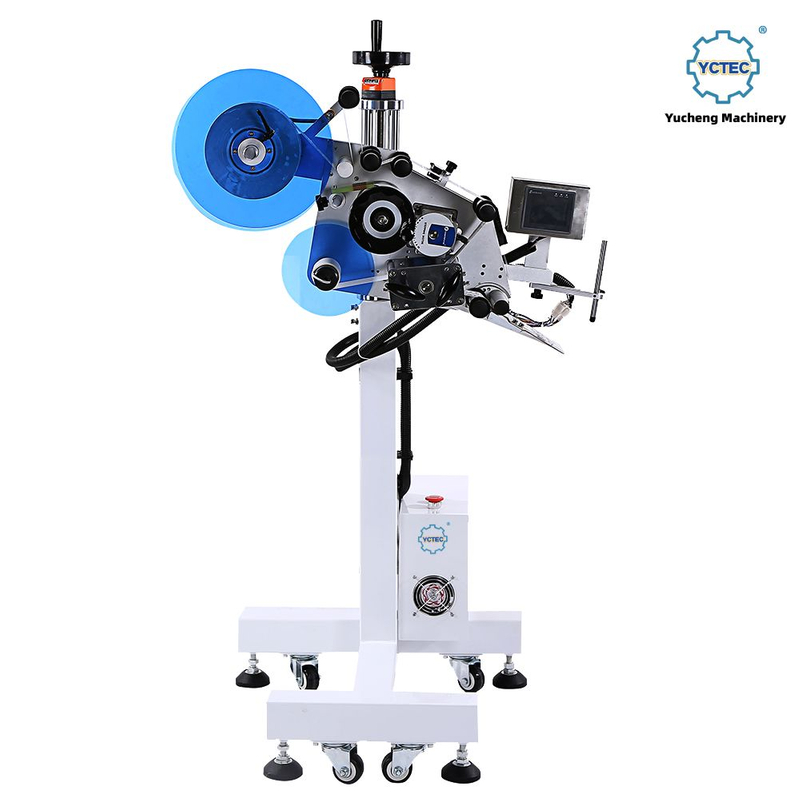

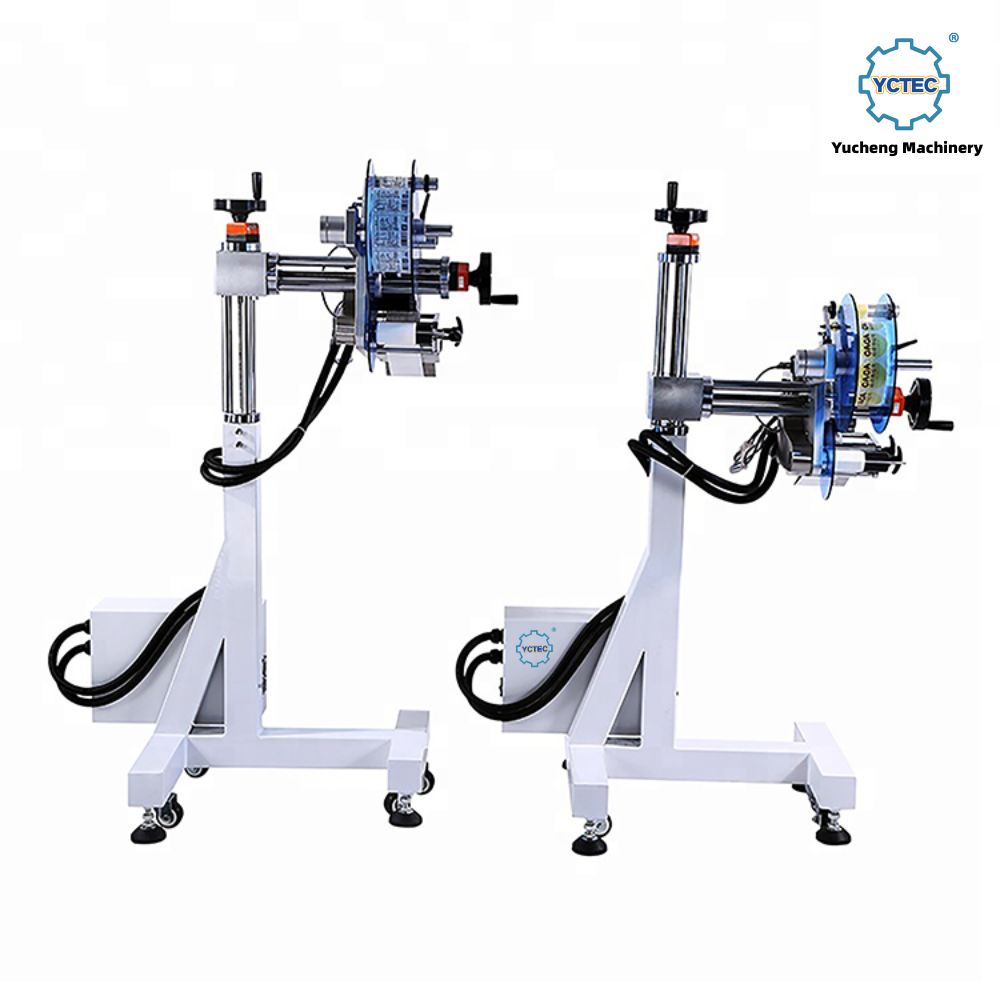

The YCT-90 Automatic Production Line Plane Labeling Machine is designed to mount directly on an existing assembly line conveyor and apply labels to products as they flow through the production process. This inline model adds automated labeling capability to established lines without reconfiguring facility layouts or replacing conveyor infrastructure.
Produced by Dongguan Yucheng Machinery Technology Co., Ltd. (YCTAUTO), the YCT-90 labels the upper plane and cambered surfaces of moving objects. It has no fixed product size requirement — applicable product dimensions are determined by the host conveyor parameters, giving it exceptional versatility on mixed and flexible production lines.
Available in stepper motor (40–150 pcs/min) and servo motor (50–200 pcs/min) configurations, both achieving ±1 mm accuracy. At 70 kg and 330 W, the YCT-90 is one of the most compact and energy-efficient inline labeling solutions in the YCTAUTO range — ideal for lines where space and power capacity are constrained.
Direct Assembly Line Integration — Designed specifically to mount on existing conveyor systems, the YCT-90 adds automated top-plane and cambered-surface labeling to live production lines without requiring a separate feeding or transport system.
No Fixed Product Size Requirement — Applicable product dimensions are determined by the host conveyor parameters rather than machine-fixed constraints, giving the YCT-90 the broadest product compatibility of any YCTAUTO plane labeler.
Stepper & Servo Drive Options — Stepper motor configuration reaches 40–150 pcs/min; servo motor configuration achieves 50–200 pcs/min. Servo version delivers enhanced speed precision and smoother high-speed operation for demanding lines.
±1 mm Labeling Accuracy — Precise label placement on flat and cambered product surfaces as they move along the conveyor, ensuring consistent barcode positioning, brand label alignment, and regulatory label compliance.
Flat and Cambered Surface Capability — Labels upper flat surfaces and cambered (arc) top profiles, covering a wide range of product geometries including flat cartons, slightly domed lids, and curved-top containers.
Compact, Lightweight Design — At 70 kg and a machine footprint of 1100 mm × 700 mm × 1450 mm, the YCT-90 installs easily on constrained production floors and adds minimal weight load to existing conveyor structures.
Low Power Consumption — 330 W operating power is significantly lower than comparable inline labeling stations, reducing energy costs and simplifying electrical integration on lines where power points are limited.
Optional Inkjet Printing Module — An integrated inkjet printer option enables variable data printing — including batch numbers, production dates, QR codes, and serial numbers — directly onto each label during the labeling pass.
Parameter | Value |
Model | YCT-90 |
Labeling Accuracy | ±1 mm |
Labeling Speed (Stepper) | 40–150 pcs/min |
Labeling Speed (Servo) | 50–200 pcs/min |
Applicable Product | No fixed size requirement (determined by conveyor parameters) |
Label Length | 10–250 mm |
Label Width | 10–120 mm |
Label Roll Inner Diameter | Φ76 mm |
Label Roll Outer Diameter | Φ300 mm (max) |
Power Supply | 220 V / 50 Hz |
Power Consumption | 330 W |
Machine Dimensions (L × W × H) | 1100 mm × 700 mm × 1450 mm |
Machine Weight | Approx. 70 kg |
Labeling Mode | Upper plane and cambered surface |
Drive Configuration | Stepper motor or Servo motor (specify at order) |
Optional Accessories | Inkjet printer |
The YCT-90's conveyor-mount design and product-agnostic compatibility make it applicable across a wide range of industries and production environments:
Food & Beverage — Top-surface labeling of food trays, beverage caps, snack packaging, and condiment jars on food-grade production conveyors
E-Commerce & Fulfillment — In-line shipping label placement on moving cartons and address label application in automated fulfillment systems
Daily Chemicals — Top-surface labeling of detergent boxes, cleaning product cartons, and household product packaging on high-speed lines
Electronics & Appliances — Product box top labeling, serial number stickers on electronics packaging, and compliance label placement on appliance cartons
Pharmaceuticals & Medical — In-line top-surface labeling of medicine cartons, medical device outer boxes, and supplement cartons requiring lot-coded labels
Cosmetics & Personal Care — Cap label application, jar lid sticker placement, and brand label application on product boxes on cosmetic packaging lines
Inline-First Engineering — The YCT-90 is designed from the ground up for production line integration. Mounting brackets, speed synchronization inputs, and compact dimensions reflect genuine inline engineering — not a standalone machine modified for conveyor use.
Flexible Drive Selection — Stepper and servo motor configurations are available at point of order, allowing you to match machine performance and investment level to your speed requirements.
Verified Pre-Shipment Performance — Every YCT-90 is tested at rated speed and accuracy before dispatch. We verify label placement consistency, drive synchronization, and sensor operation against specification.
Lightweight Integration-Friendly Design — At 70 kg, the YCT-90 mounts on existing conveyor frames without structural reinforcement, reducing installation cost compared to heavier inline labeling alternatives.
Complete Line Supply Capability — Yucheng supplies filling, capping, and conveyor systems alongside labelers — a single supplier for your entire automated packaging line.
Q: How does the YCT-90 synchronize with my existing conveyor speed?
A: The YCT-90 label dispensing speed is adjustable to match your conveyor. During setup, the labeling head timing is calibrated to product spacing and conveyor speed. Our installation guide and remote support team walk you through this process.
Q: What is the difference between the YCT-90 and the YCT-30 plane labeling machine?
A: The YCT-30 is a standalone plane labeler with its own product feeding conveyor. The YCT-90 mounts directly on an existing line conveyor — the right choice when you need to add labeling to an established line without a separate machine footprint.
Q: Can the YCT-90 label cambered (curved) top surfaces?
A: Yes. The labeling head pressure and angle are adjustable to conform to domed lids, convex carton surfaces, and rounded container tops.
Q: What inkjet printing options are available?
A: The optional inkjet module prints batch numbers, dates, QR codes, and variable serial numbers during application. Specify your data requirements when requesting a quote.
Q: What is the MOQ and lead time?
A: MOQ is 1 unit. Standard machines ship within 7–12 business days; custom configurations within 15–20 business days. We confirm timelines after reviewing your order.
Q: Do you provide conveyor mounting and commissioning support?
A: Yes. Every YCT-90 ships with detailed mounting instructions. Our team provides remote video support for bracket mounting, speed calibration, and sensor setup. On-site support is available for complex projects.
Share your conveyor specifications, product dimensions, label requirements, and target throughput, and our team will recommend the right YCT-90 configuration and provide a detailed integration quotation.
Get in touch today:
Email: amy@yctauto.com
Website: www.yctauto.com
WhatsApp / WeChat: +86-18664140847
We are ready to help you integrate precise, high-speed plane labeling directly into your existing production line.
