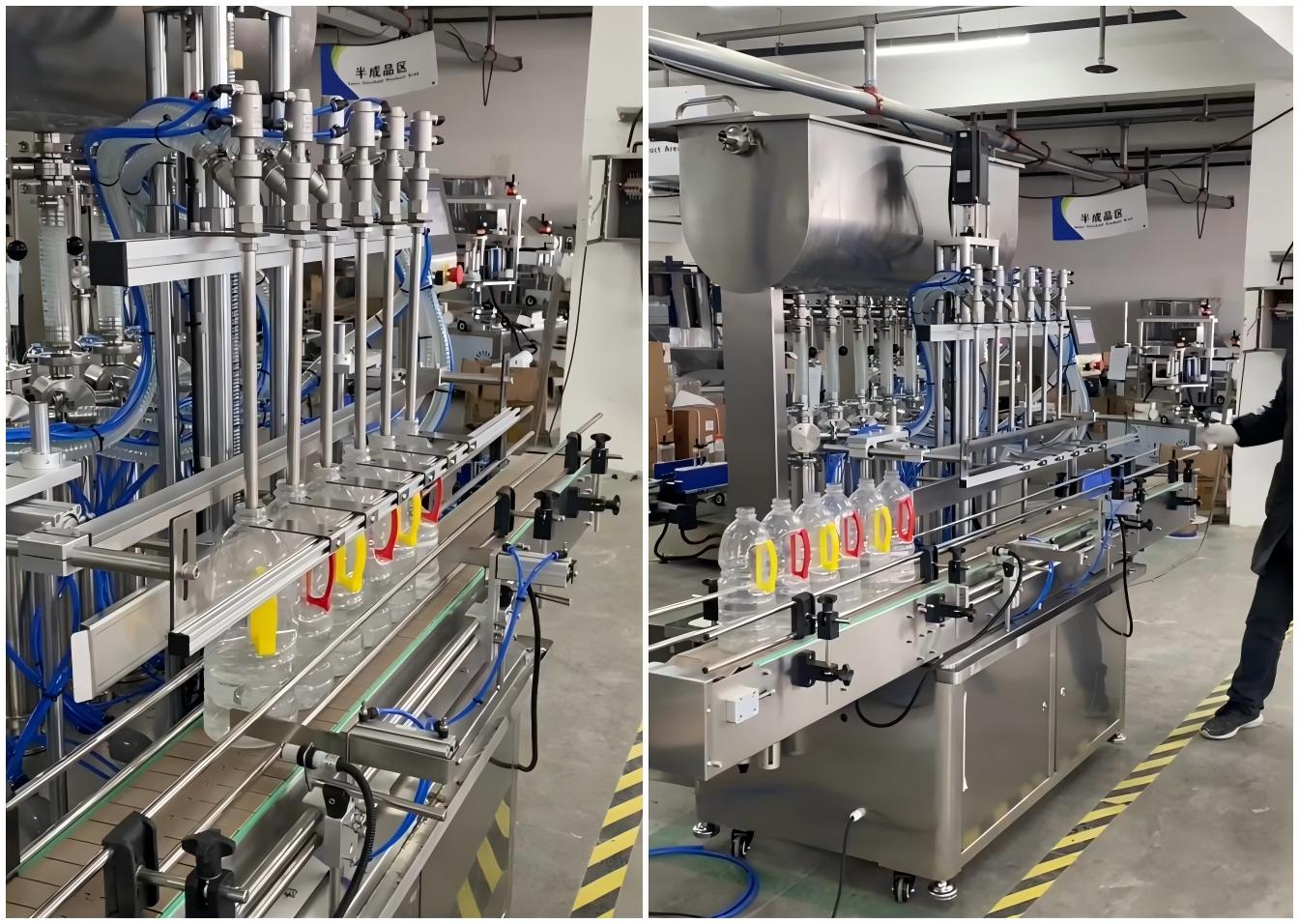

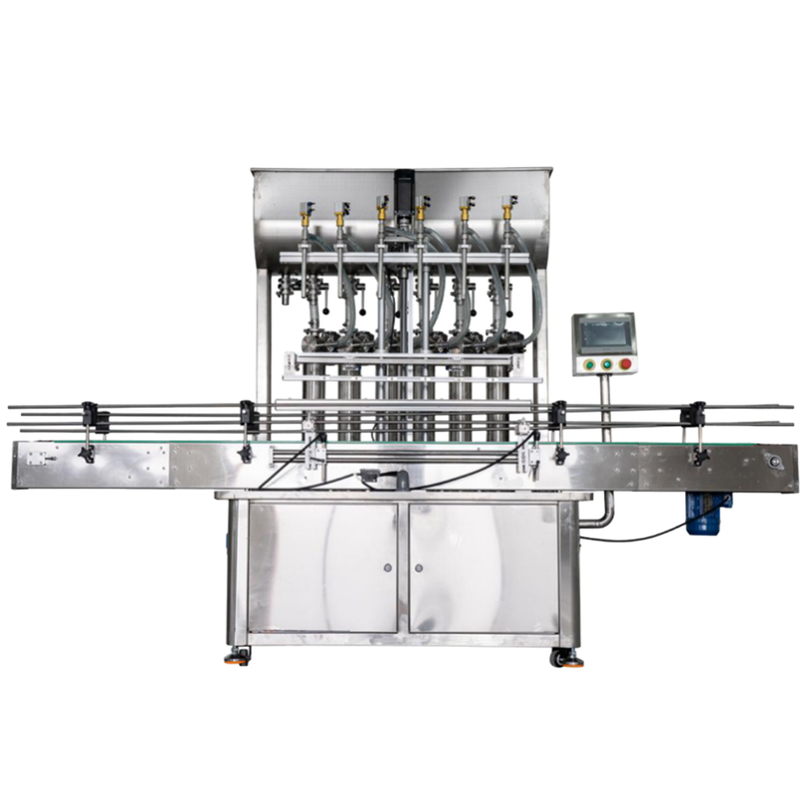

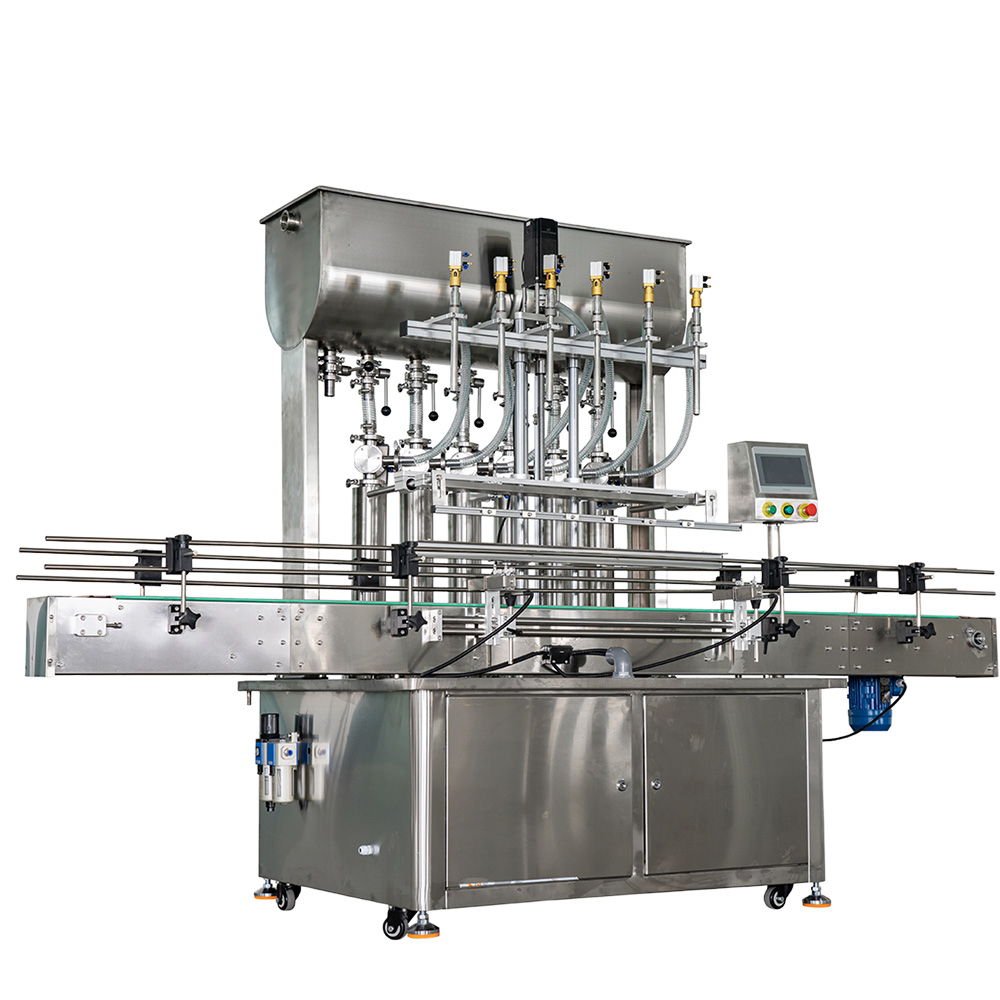

YCT-ZS-06 is an automatic six-head piston filling machine developed for quantitative filling of liquids, emulsions, semi-fluids, and paste products of various viscosities. It is widely used in food, daily chemical, pharmaceutical, chemical, and oil industries. With six filling heads, linear bottle feeding, PLC touch screen control, and a quick-release filling structure for easy cleaning, the machine provides stable, efficient, and user-friendly filling performance for a wide range of bottle types.
The YCT-ZS-06 automatic six-head piston filling machine is designed for manufacturers who need accurate and efficient filling of products with different viscosities, from free-flowing liquids to thicker emulsions and paste materials. It is suitable for a wide range of products such as shampoo, shower gel, hand sanitizer, laundry detergent, honey, sauce, and edible oil.
This machine adopts a six-head quantitative filling structure, helping improve production efficiency while maintaining stable filling consistency. It uses linear bottle feeding and positioning, making it suitable for various bottle shapes including round bottles, flat bottles, and square bottles. Bottle clamps can also be customized according to actual product requirements.
With its PLC + touch screen control system, filling volume and filling speed can be adjusted directly on the screen, making operation simple and convenient. The machine also features a quick-release pipeline and metering structure, allowing easier disassembly, cleaning, and sanitation, which is especially important for food, daily chemical, and pharmaceutical applications.
For factories looking for a practical and reliable piston filling machine for liquid and paste products, the YCT-ZS-06 is a strong option for both standard production and multi-product filling projects.
The YCT-ZS-06 is suitable for liquids, emulsions, semi-fluids, and pastes of various viscosities, including but not limited to:
Shampoo
Shower gel
Hand sanitizer
Laundry detergent
Honey
Sauce
Edible oil
Similar liquid and paste products
Because piston filling technology is suitable for a wide viscosity range, this model can be applied to both low-viscosity and relatively high-viscosity materials, depending on the actual product condition and filling requirement.

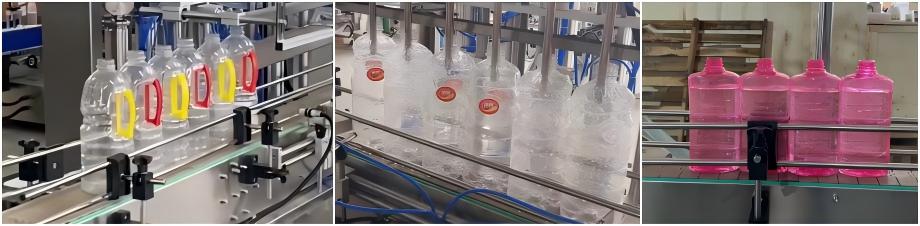

The machine is suitable for straight-line bottle feeding and can handle a variety of bottle types, including:
Round bottles
Flat bottles
Square bottles
Other bottle shapes after sample confirmation
Bottle clamps can be customized according to the actual bottle structure.
The YCT-ZS-06 is widely used in:
Food industry
Daily chemical industry
Pharmaceutical industry
Chemical industry
Oil industry
Shampoo filling
Shower gel filling
Hand sanitizer filling
Laundry detergent filling
Honey filling
Sauce filling
Edible oil filling
This machine is designed for quantitative filling of liquids and pastes with different viscosities, making it suitable for a broad range of products from light liquids to thicker materials.
The six-head filling structure improves productivity and is suitable for customers requiring higher output than single-head or dual-head filling systems.
The machine uses linear bottle feeding and positioning, suitable for different bottle shapes. When changing bottle types, no parts replacement is needed in many cases, and adjustment is quick and convenient.
The filling pipeline and metering mechanism are connected by quick couplings, making the machine easier to:
Disassemble
Clean
Sanitize
Maintain
This is especially useful for manufacturers handling multiple products or requiring frequent cleaning.
The parts in contact with the material are made of stainless steel, offering:
Corrosion resistance
Easy cleaning
Better hygiene
Suitability for food-related applications
The machine uses a PLC and touch screen control system, allowing operators to set:
Filling volume
Filling speed
Production parameters
directly on the screen with simple operation.
The machine adopts an integrated mechanical-electrical-pneumatic structure, offering:
High automation
Compact design
Easy operation
Lower maintenance cost
The standard filling accuracy is ±1-2%, depending on the material properties and actual production conditions.
After the machine starts, the sensor detects the product and sends the signal to the control system. The conveying motor stops, filling begins, and after the preset filling volume is completed, the conveying motor starts again. The machine then continues the cycle automatically.
Start → Bottle loading → Filling → Repeat cycle
This process helps ensure stable operation and continuous production.
Item | Specification |
Model | YCT-ZS-06 |
Machine Type | Automatic Six-Head Piston Filling Machine |
Suitable Materials | Liquids, emulsions, semi-fluids, and pastes of various viscosities |
Typical Products | Shampoo, shower gel, hand sanitizer, laundry detergent, honey, sauce, edible oil |
Applicable Bottle Types | Round bottles, flat bottles, square bottles, etc. |
Production Speed | Approx. 1200-1500 pcs/h |
Filling Accuracy | ±1-2% |
Air Pressure | 0.6-0.8 MPa |
Voltage / Frequency | 220V / 50Hz |
Machine Size | Approx. 4000 × 980 × 2030 mm |
Weight | Approx. 350 kg |
Note: Production speed is calculated based on 500 ml and may vary according to material properties, bottle type, and actual production conditions.
Item | Configuration |
Filling Mechanism | 6 sets (aluminum alloy, stainless steel) |
Hopper / Guiding / Conveying Mechanism | Stainless steel |
Product Detection Sensor | Autonics × 2 sets |
PLC | Delta × 1 set |
Dosing Adjustment Motor | Servo motor × 2 sets |
Rotary Valve | 6 pcs (domestic) |
Conveying Motor | Speed-regulating motor × 1 pc |
Cylinder | AirTac |
HMI | Kunlun Tongtai |
Switching Power Supply | Delta |
The YCT-ZS-06 is a practical filling solution for customers who need:
Filling of both liquid and paste products
Stable multi-head production
Fast bottle specification adjustment
Easy cleaning and sanitation
Convenient parameter setting
Reliable structure for continuous production
Compared with filling machines designed only for low-viscosity liquids, this piston filling machine is more suitable for customers who handle thicker daily chemical, food, or paste-like products and want broader application flexibility.
The YCT-ZS-06 is suitable for liquids, emulsions, semi-fluids, and paste products of various viscosities, such as shampoo, shower gel, hand sanitizer, laundry detergent, honey, sauce, and edible oil.
Yes. Compared with low-viscosity liquid filling machines, this piston filling machine is more suitable for products with medium to higher viscosity, including creams, gels, sauces, and similar materials, depending on the actual condition.
The machine is suitable for round bottles, flat bottles, square bottles, and other bottle types after confirmation. Bottle clamps can be customized when needed.
The standard production speed is approximately 1200-1500 pcs/h, calculated at 500 ml. Actual speed depends on the material properties and bottle specification.
The standard filling accuracy is ±1-2%.
Yes. The machine uses a quick-release structure for the filling pipeline and metering mechanism, making cleaning and disassembly easier.
Yes. Filling volume and filling speed can be set directly on the touch screen.
Yes. The material-contact parts are made of stainless steel, which is corrosion resistant, easy to clean, and suitable for food and daily chemical applications.
Looking for a reliable six-head piston filling machine for liquids, emulsions, or paste products?
Please send us your:
Product name or material type
Viscosity condition
Bottle type and bottle size
Filling volume
Required output
Special hygiene or cleaning requirements
YCT will recommend a suitable filling solution based on your actual production needs.
Contact us today for more technical details, filling videos, and a customized quotation.
