How to Choose the Right Labeling Machine for Your Bottles

Short description: Choosing a bottle labeling machine starts with your container, not the price. This 7-step selection guide walks you through bottle shape, labeling position, speed, label material, accuracy and line integration — so you can specify the right machine and get an accurate quote the first time.

Short Answer: How Do You Choose a Labeling Machine?

Choosing the right labeling machine depends on 6 core factors:

1. Container shape – round, flat, square, tapered or irregular

2. Labeling position – wrap-around, front and back, single side, top or bottom

3. Production speed – small batch, medium line or high-speed continuous production

4. Label size and material – paper, transparent, film or special self-adhesive labels

5. Accuracy requirement – standard ±1 mm or high-precision ±0.5 mm

6. Line integration needs – standalone machine, conveyor-connected, or a full filling and labeling line

Define these six items first, and the machine model almost selects itself. Skip them, and you risk buying a machine that cannot hold tolerance on your actual product.

Step 1: Identify Your Bottle or Container Shape

Container geometry determines the machine structure, so this is always the first question an engineer will ask.

Round Bottles

The most common case in beverage, sauce, daily chemical and pharmaceutical production. A round bottle labeling machine with wrap-around application is the standard solution. Explore our round bottle labeling machine series, from the compact YCT-08 tabletop automatic model to the YCT-60 automatic rotary round bottle labeling machine for continuous lines. Small vials and unstable cylinders are better served by horizontal designs like the YCT-66 horizontal round bottle labeling machine.

Flat Bottles

Flat bottles (shampoo, detergent, edible oil) usually take labels on one or both flat faces. A side labeling machine is the right category — see our side labeling machine series and the YCT-51 automatic side labeling machine.

Square Bottles

Square containers often need front-and-back labeling, or precise positioning so the label aligns with the bottle's edges. This typically means a double-sided labeler such as the YCT-52 automatic double-sided labeling machine, sometimes with a positioning mechanism.

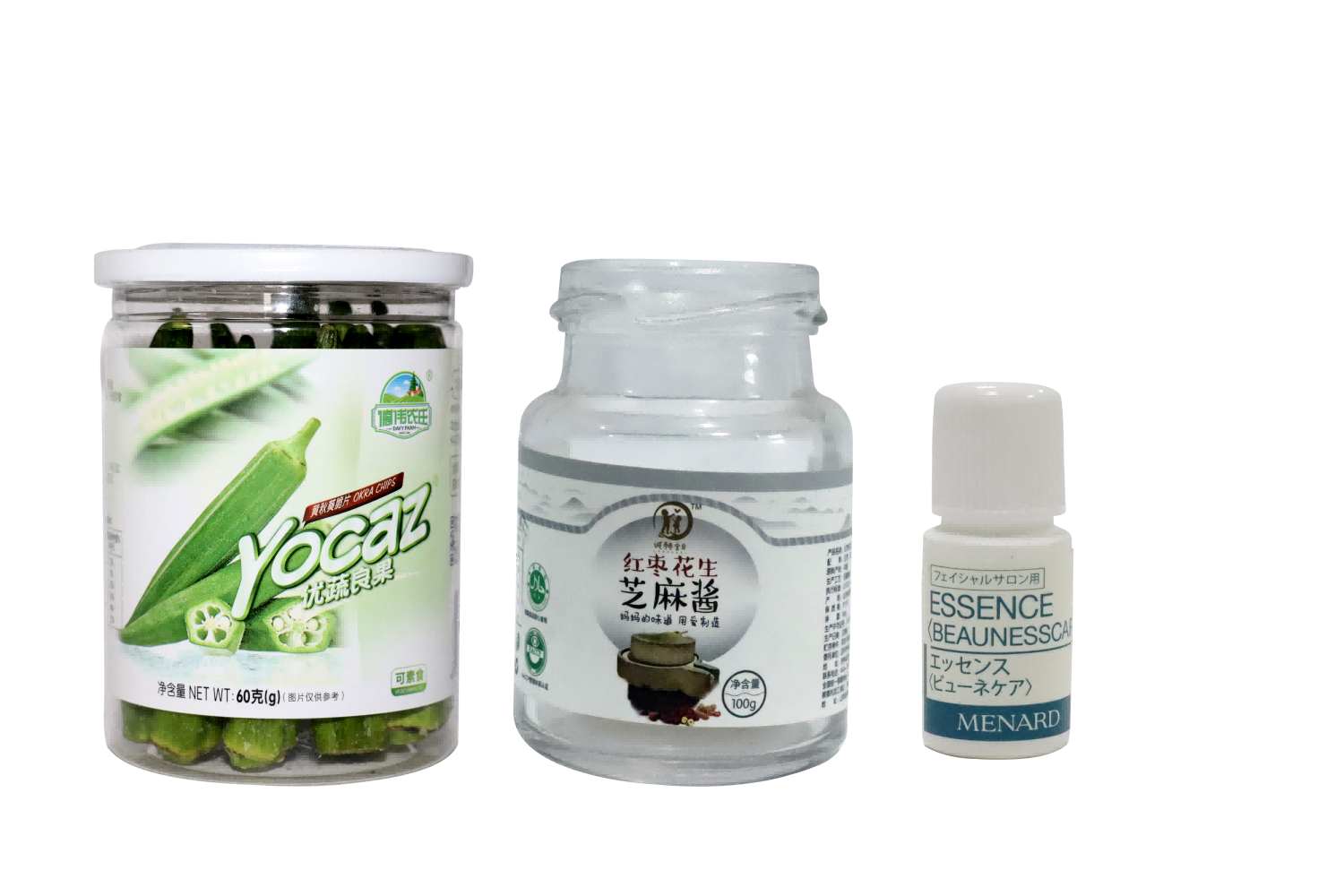

Jars and Cans

Jars (cream, honey, sauce) and cans often combine a wrap-around body label with a top lid label. A wrap-around machine handles the body; for combined applications, look at top-and-bottom designs like the YCT-33 automatic top-bottom labeling machine.

Boxes, Cartons and Bags

Flat surfaces need a plane (flat surface) labeling machine. Our plane labeling machine series covers cartons, trays, cards and bags — including the YCT-30 automatic plane labeling machine and the YCT-31 card labeling machine.

Tapered or Irregular Bottles

Tapered cups, curved cosmetic bottles and other non-standard shapes rarely label well on generic equipment. These applications call for customized fixtures, rotary structures or a custom labeling machine engineered around your container. This is where sending samples for testing matters most.

Step 2: Confirm the Labeling Position

One bottle can carry labels in very different positions — each requires a different labeling head arrangement:

• Wrap-around labeling – full or partial wrap on round containers

• Front and back labeling – two labels on flat or square bottles, applied by dual heads

• Single side labeling – one label on one face

• Top labeling – lids, cartons, trays and flat packs

• Bottom labeling – price labels, traceability labels under jars and containers

• Multi-side labeling – combination applications, e.g. body + lid, or three-sided wrap on boxes

Confirm the exact label count and positions per container before requesting quotes — the number of labeling heads is a major cost factor.

Step 3: Define Your Production Speed

Be realistic about your current volume and your 2–3 year growth plan:

• Small batch production (under 40 pcs/min): a semi-automatic machine like the YCT-20 semi-automatic round bottle labeling machine is the most economical entry point

• Medium production line (40–100 pcs/min): a standard fully automatic labeling machine with conveyor feeding

• High-speed continuous production (100+ pcs/min): high-speed models with reinforced mechanics and servo control, such as the YCT-51H high-speed single-side labeling machine or YCT-60H high-speed rotary round bottle labeling machine

Speed directly affects machine structure and cost — higher speeds demand better servo systems, bottle separation and conveyor stability. For a detailed cost breakdown, see our automatic labeling machine price guide.

Step 4: Check Label Size and Material

Label stock affects the dispensing, sensing and application design:

• Paper labels – the standard, easiest to handle

• Transparent labels – require photoelectric sensors that detect the label gap rather than printed marks; confirm the machine is equipped accordingly

• Film labels (PP/PET) – flexible, need stable tension control

• Self-adhesive labels – the mainstream format for automatic applicators

• Special materials – foil, textured, very thin or very large labels may need customized dispensing or pressing mechanisms

Also note your label roll specifications (inner core diameter, max roll diameter) and label dimensions — these determine the unwind and rewind configuration.

Step 5: Consider Labeling Accuracy

Different industries tolerate different placement errors:

• Food and beverage: ±1 mm is generally acceptable

• Cosmetics and personal care: brand-facing packaging often needs tighter placement, especially with oriented graphics

• Pharmaceuticals and premium export products: high precision is typically mandatory

YCT machines can achieve ±0.5 mm labeling accuracy with servo-driven control. Where label orientation relative to the container matters (logo alignment, seam avoidance), a vision positioning labeling machine like the YCT-01 high-precision automatic visual positioning labeling machine is the right choice.

Step 6: Decide Whether You Need Integration

Think beyond the labeler itself:

• Standalone labeling machine – feed and collect by hand; simplest and cheapest

• Labeling machine with conveyor – connects into your existing line; confirm conveyor height and flow direction

• Filling, capping and labeling line – one synchronized line from empty bottle to labeled product, combining liquid or paste filling machines, capping machines and labeling

• Coding, printing or inspection – ribbon coders, inkjet printers, or real-time print and apply systems for batch numbers, dates and barcodes

If you plan to automate filling later, tell the manufacturer now — it affects conveyor and control decisions.

Step 7: Plan for Future Product Changes

Most factories add SKUs over time. Ask about:

• Adjustable guides and changeover time between bottle sizes

• Whether the machine covers your full container diameter/height range

• Modular labeling heads that can be repositioned or upgraded

• Reserved interfaces for printers, vision or extra heads

A slightly more flexible machine today is far cheaper than replacing a rigid one in two years.

Labeling Machine Selection Table

What Information Should You Send to a Manufacturer?

To get a fast, accurate machine recommendation, prepare:

• Bottle photos or drawings (all SKUs if multiple)

• Bottle dimensions (diameter/width × height)

• Label size and roll specifications

• Label material (paper, transparent, film)

• Labeling position(s) per container

• Required speed (pieces per minute/hour)

• Voltage and frequency in your country

• Existing line layout, if the machine will be integrated

With these details, an experienced manufacturer can recommend a configuration and quotation within 24 hours.

Why Choose YCT Machinery for Labeling Machine Selection?

• Engineering-led selection: our engineers review your bottles and labels before recommending a model — we do not sell from a catalog

• Free sample testing: send your containers and labels; we run them on the recommended machine and send you videos before you commit

• Full product range: from semi-automatic labelers to vision positioning systems and complete filling-labeling lines

• Custom machine capability: non-standard bottles, special labels and line integration are our daily work

• CE certified, 15+ years, exported to 50+ countries, with 24-hour response and remote commissioning support

See how we work in our service process, or browse real projects in our case studies.

FAQ

What type of labeling machine is best for round bottles?

A wrap-around round bottle labeling machine is the standard choice. For small or unstable cylinders (vials, ampoules), a horizontal design works better; for high volumes, choose a rotary or high-speed model.

Can one labeling machine handle different bottle sizes?

Yes, within an adjustable range. Most automatic machines accommodate a span of diameters and heights via adjustable guides. If your bottles vary greatly in shape (not just size), tell the manufacturer — tooling or fixture changes may be needed.

Can a labeling machine apply front and back labels?

Yes. A double-sided labeling machine applies front and back labels in one pass using two labeling heads. Some models can also switch to single-side mode when needed.

What machine is used for flat bottles?

A side labeling machine applies labels to the flat faces of bottles. For one label, use a single-side model; for front and back labels, use a double-sided model.

Can automatic labeling machines work with transparent labels?

Yes, but the machine must be equipped with a photoelectric sensor that detects the gap between transparent labels. Confirm this option when requesting a quote.

Do I need a custom labeling machine?

You need customization if your bottles are tapered or irregularly shaped, your labels use special materials, or the machine must fit an unusual line layout. Standard round and flat bottles rarely require fully custom machines.

How fast can an automatic labeling machine run?

Standard automatic machines run at roughly 40–100 pieces per minute. High-speed models reach 100–200+ pieces per minute depending on container size and label length. Always compare tested stable speed, not theoretical maximums.

Can the labeling machine connect with my existing production line?

Yes. Automatic labeling machines are designed to integrate with existing conveyors and upstream/downstream equipment. Provide your conveyor height, flow direction and line layout so the machine can be built to match.

Conclusion

Choosing a bottle labeling machine is a specification exercise, not a price comparison. Define your container shape, labeling position, speed, label material, accuracy requirement and integration plan — then let an engineer match the machine to those six answers. That is how you get a machine that holds tolerance from day one and still fits your line three years from now.

Not sure which labeling machine fits your bottles? Send your bottle photos, label size, and required speed to YCT Machinery. Our engineers will recommend a suitable configuration within 24 hours. Contact us to get started.
