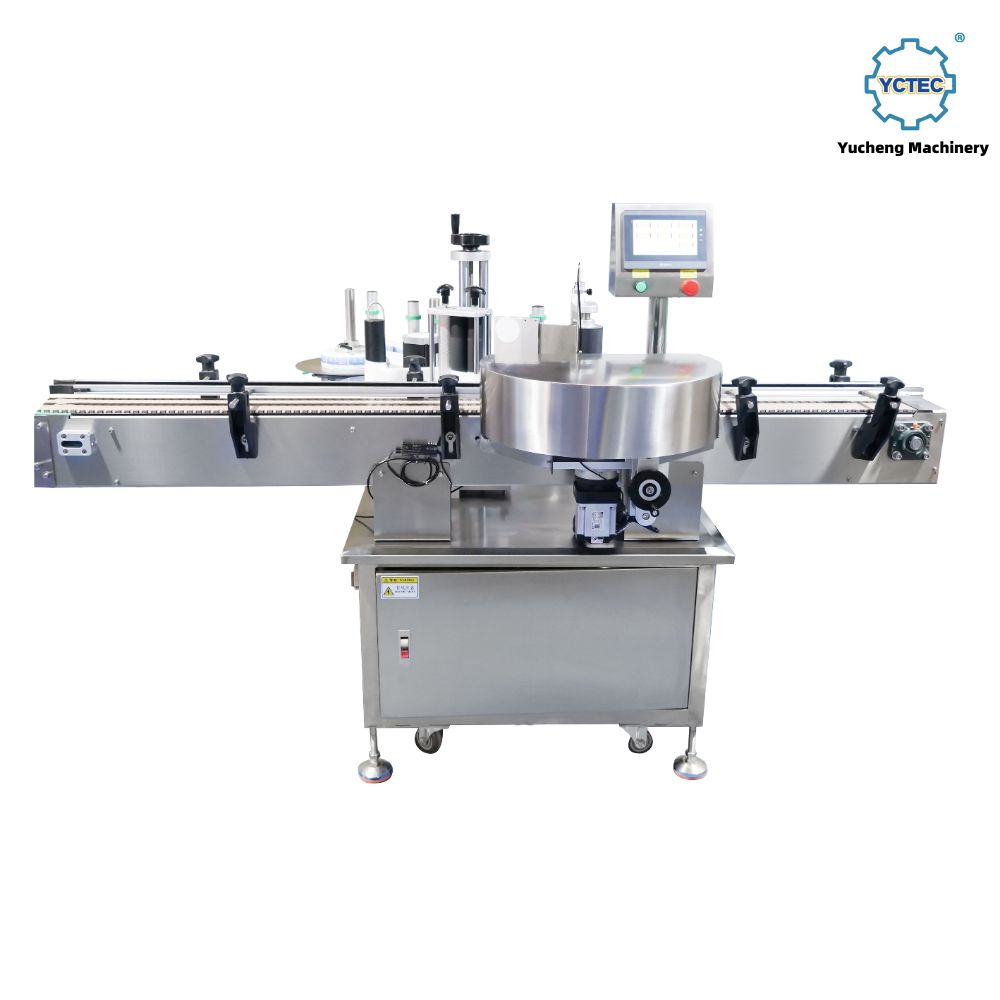

Automatic Round Bottle Labeling Machine | High Speed 0-80P/min for Cans, Glass & PET Bottles

A fully automatic round bottle labeling machine built for high-volume food and beverage packing lines. Handles cans, glass bottles, and PET containers from 20-80mm diameter with ±1-1.5mm labeling accuracy at up to 80 bottles per minute — powered by a Panasonic PLC and Autonics photoelectric sensor for reliable, no-object-no-label operation. Request your machine test video and free label sample today.

[Get a Free Quote & Test Video →]

Why Manufacturers Choose the YCTEC Round Bottle Labeling Machine

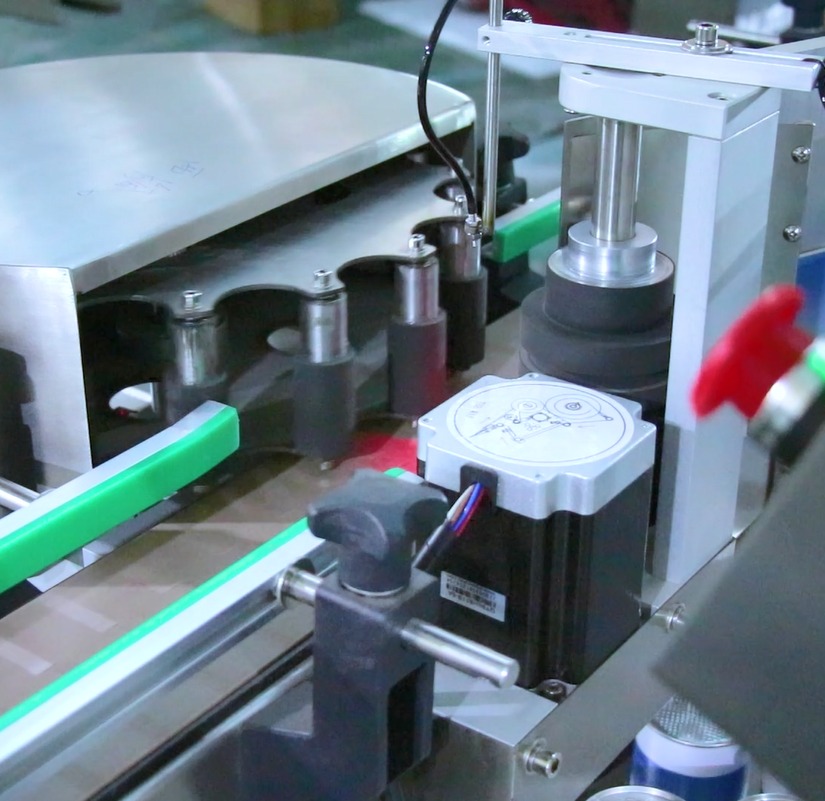

Packaging lines lose money in two ways: labeling errors that trigger customer complaints, and downtime from machines that jam on inconsistent bottle shapes. The YCTEC round bottle labeling machine is engineered to solve both. Its three-axis rubber-coated traction system keeps every bottle stable through the labeling zone, while the photoelectric tracking sensor stops the applicator automatically when no bottle is detected — eliminating wasted labels and misapplied labels on the line.

This machine is currently running in food, beverage, cosmetics, and chemical packing lines across 50+ countries, handling everything from easy-open cans and tin cans to glass bottles and PET containers.

Technical Specifications

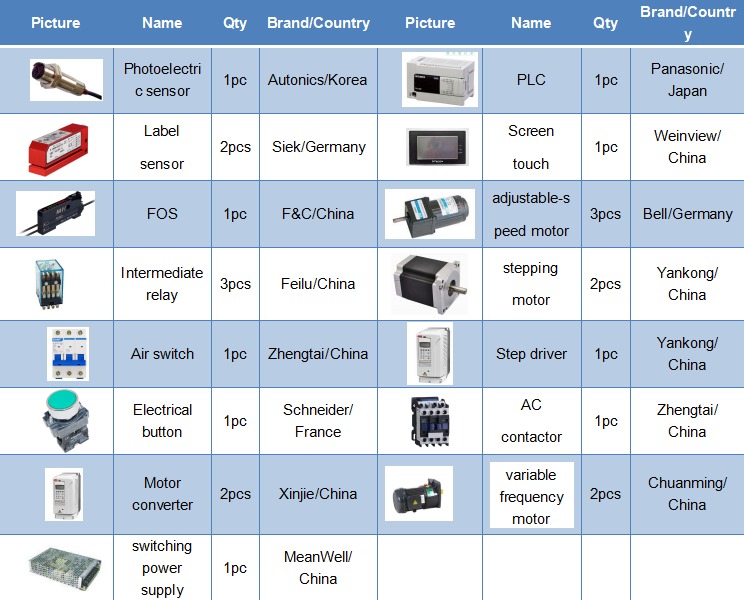

Built With Trusted Industrial Components

Machine reliability starts with the parts inside it. The YCTEC round bottle labeling machine is assembled with branded components sourced from established industrial suppliers — not generic substitutes — so replacement parts remain available worldwide and performance stays consistent over years of operation:

Machine Structure

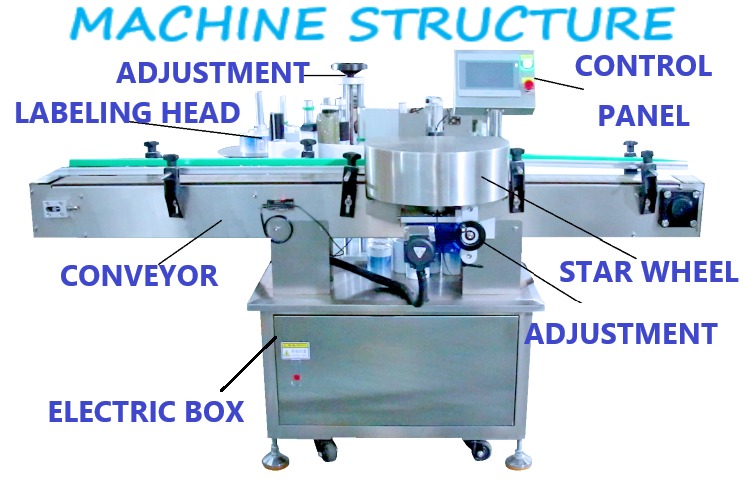

The round bottle labeling machine is built around six functional zones that work together for consistent, hands-off operation:

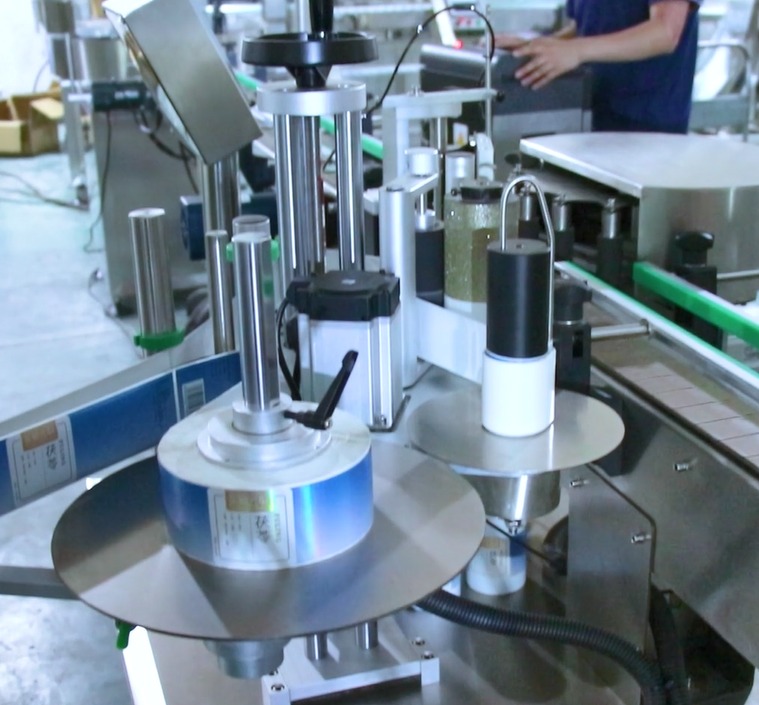

• Labeling Head with Adjustment – positions and applies labels with fine adjustment for different bottle profiles

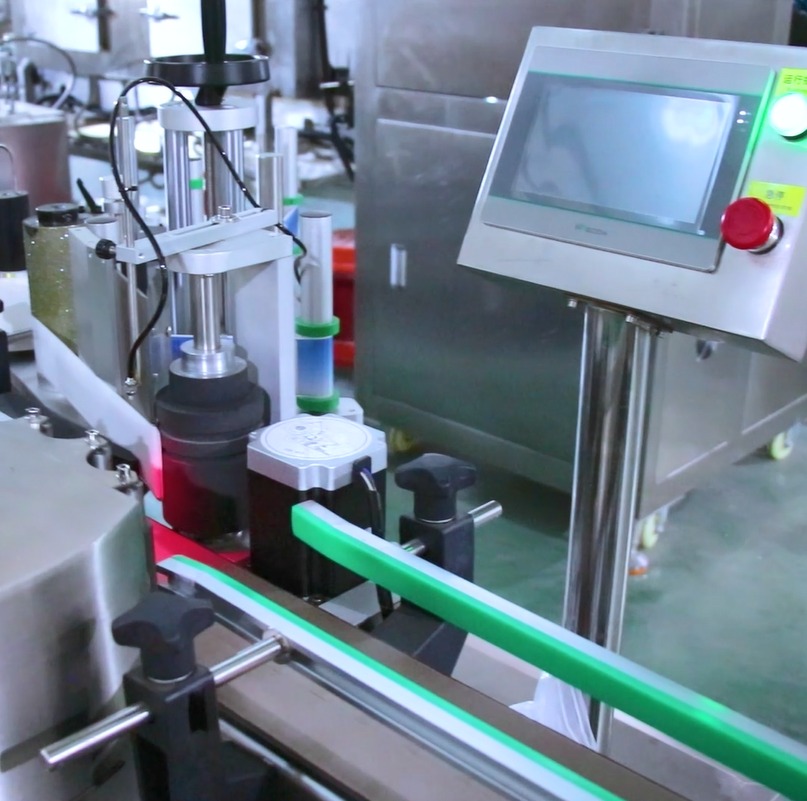

• Control Panel – touchscreen interface for speed, count, and mode settings

• Star Wheel with Adjustment – rotates bottles into position for even wrap-around or spot labeling

• Conveyor – transports bottles smoothly through the labeling zone

• Electric Box – houses the PLC, relays, and power components

• Adjustable Guide Rails – accommodate the 20-80mm bottle diameter range without tool changes

Key Advantages

1. Precise and Efficient

±1-1.5mm labeling accuracy at 0-80 pieces/min, driven by a three-axis rubber-coated traction system that keeps bottles stable and labels straight — even at top speed.

2. Strong Adaptability

Runs round bottles from 20-80mm diameter and 30-350mm height, with support for label rolls from 10-260mm long. One machine covers multiple product lines instead of requiring separate equipment per bottle size.

3. Smart and Easy to Operate

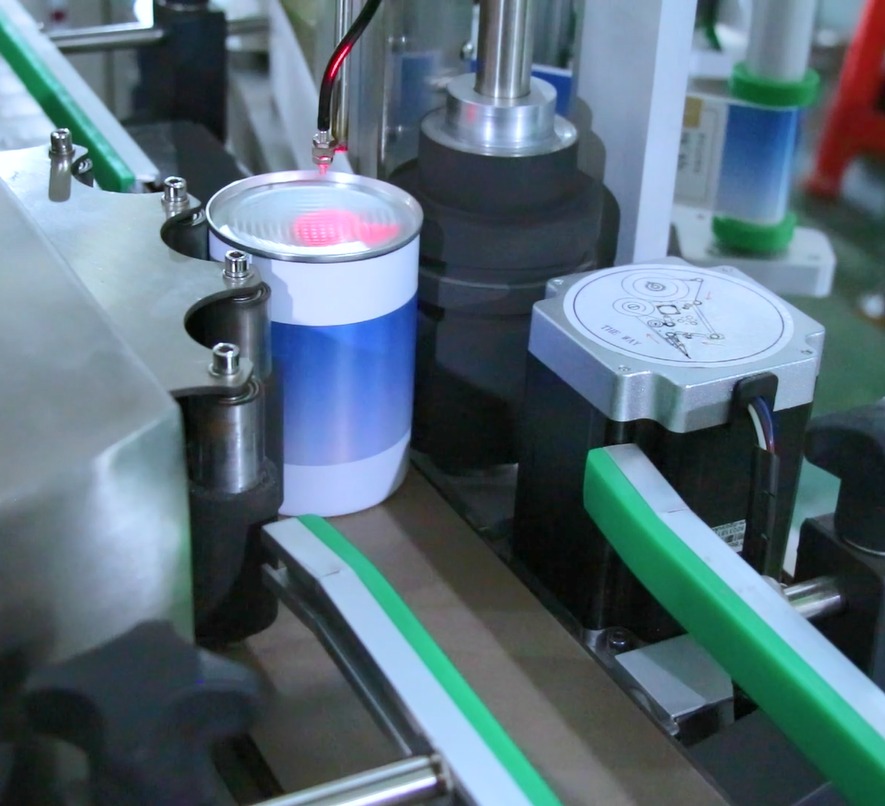

Photoelectric tracking means no bottle, no label — preventing waste and mislabeling. Standard 220V power supply and touchscreen controls mean operators can be trained in minutes, not days.

4. Durable and Reliable

Stainless steel and aluminum alloy construction with a 1.7KW motor is built for continuous multi-shift operation in food and beverage production environments, including washdown-adjacent packing areas.

5. Expandable

Add an optional coding/inkjet unit to print production dates, batch numbers, or expiry information in the same pass — useful for customers who need traceability without adding a second machine to the line.

Suitable Applications

This round bottle labeling machine is built for:

• Easy-open cans, tin cans, and metal cans

• PET plastic bottles and containers in round shapes

• Glass bottles (wine, beverage, sauce, condiment, cosmetic)

• Half-label, full-label (wrap-around), corner-label, and flat-label applications

• Food & beverage, daily chemicals, cosmetics, and chemical industry packing lines

Have a non-standard bottle or label shape? Send us your label sample or bottle dimensions — our engineering team will confirm compatibility and can customize the guide rails and star wheel for your specific container before you order.

Quality Assurance & After-Sales Support

Every machine ships with a machinery test report and video outgoing inspection, so you can verify performance before the equipment leaves our factory. Post-installation, our team provides video technical support to walk your operators through setup, calibration, and troubleshooting — no need to wait for an on-site visit for most issues. All machines carry a 1-year warranty.

Frequently Asked Questions

Q1: What bottle sizes can this labeling machine handle?

The machine accommodates round bottles with a diameter of 20-80mm and a height of 30-350mm. If your bottles fall outside this range, contact us with your exact dimensions — we offer customized guide rail configurations for non-standard sizes.

Q2: Can this machine label both glass bottles and PET plastic bottles?

Yes. The machine is designed to handle cans, easy-open cans, tin cans, PET containers, and glass bottles, including half-label, full-label (wrap-around), corner-label, and flat-label formats on the same platform.

Q3: What label sizes are compatible with this machine?

It supports label rolls with a length of 10-260mm and a width of 10-150mm. If you have a specific label sample, send it to us and we'll confirm compatibility or recommend adjustments.

Q4: How fast is the labeling speed, and how accurate is the placement?

The machine runs at 0-80 pieces per minute with a labeling accuracy of ±1-1.5mm, suitable for standard production lines that need consistent, error-free label placement without slowing down output.

Q5: Can I add date or batch coding to the labels?

Yes. An optional coding/inkjet function can be added to print production dates, batch numbers, or other traceability information directly during the labeling process.

Q6: What is included in after-sales support?

Every unit comes with a 1-year warranty, a machinery test report, video outgoing inspection before shipment, and ongoing video technical support for installation, calibration, and troubleshooting.

Q7: Can I request a free sample test or see the machine running before I order?

Yes. We provide a free sample test and can share a video demonstration using your own bottle and label specifications so you can confirm performance before placing an order.

Q8: Where is this machine manufactured, and what certifications does it have?

The machine is manufactured in Guangdong, China under the YCTEC brand, and is CE certified in line with our standard export documentation for international buyers.

Ready to Automate Your Bottle Labeling Line?

Send us your bottle dimensions, label size, and required output speed — our engineering team will confirm the right configuration and send a free machine test video within 24 hours.
