Views: 0 Author: Amy Wang Publish Time: 2026-06-05 Origin: YCT Machinery
I want to share this project not because it went perfectly from day one — it did not — but because the way it unfolded is a good illustration of what custom labeling machine development actually looks like when you take it seriously. There were two moments where the real product behaved differently from what the brief described, and both times we had to stop, reassess, and redesign. The customer got a better machine because of it. That is the part worth documenting.
This project came to us in early 2025, introduced through a mutual contact — a friend who knew both our company and the customer and thought we would be a good fit for what they needed.
The customer is based in Malaysia. They are a contract packaging manufacturer serving children's clothing brands — their core business is producing the retail packaging bags that branded children's garments go into before they reach the shop floor. The bags carry brand graphics, product information, and labels that identify size, SKU, and other retail-relevant details. Quality and consistency matter here because the end products end up on the shelves of brand retailers, where presentation is part of the product.
On the customer's side, the project was driven by two people: their Purchasing Manager and a Sales Representative who worked alongside her. The initial contact came through the referral, and after we exchanged the basic project information and I put together a quotation, they decided they wanted to see the factory before committing.
That visit happened in 2025. Both the Purchasing Manager and the Sales Representative flew to our facility in Dongguan. We walked them through the production floor, showed them machines at various stages of assembly and testing, and sat down to go through every detail of their requirement — bag dimensions, label positions, speed targets, collection method, all of it. By the end of that visit, there were no open questions. They confirmed the specification, we confirmed the feasibility, and they arranged the deposit to start production.
On our side, this project involved our sales team handling the customer relationship and requirement documentation, and our engineering team taking the lead on machine design, sample testing, and the two rounds of mechanical modification that the project ultimately required. The collaboration between those two functions — sales understanding what the customer needed, engineering understanding what the product actually demanded — was what made this work.
The labeling task itself was more complex than a standard flat-product application. Here is what the customer needed:
Simultaneous top and bottom labeling — both surfaces of each bag labeled in a single pass through the machine
Different label positions on each surface — the top label and bottom label were not mirror placements; each had its own specified position

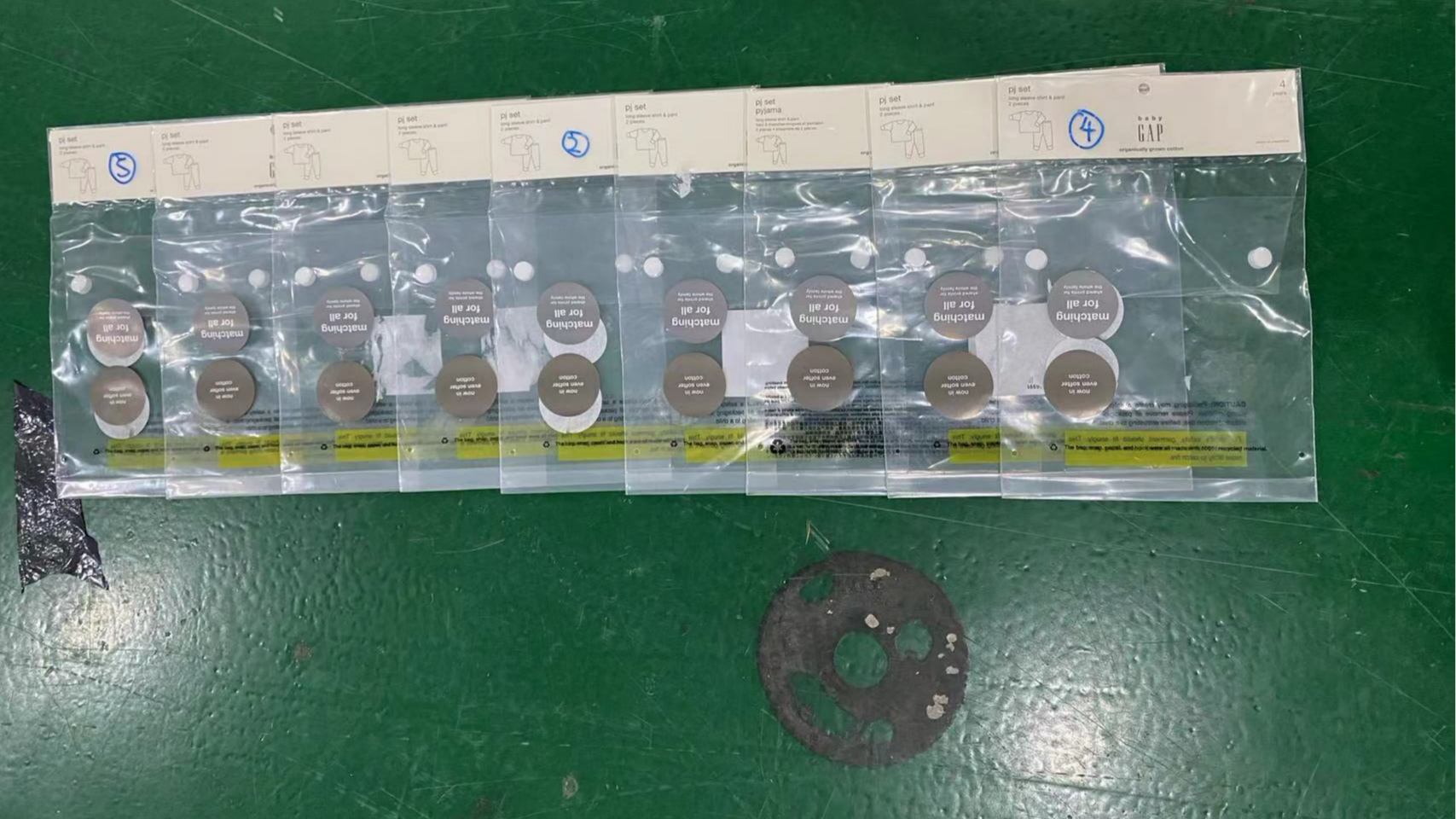

Multiple bag variants — the customer sent several different bag styles for testing
Automatic feed — bags separated and fed into the machine without manual placement per cycle
Automatic collection — labeled bags collected neatly at the exit, ready for the next stage of packing
Labeling accuracy: ±1 mm — required across all variants
Speed — meeting the customer's production throughput target
On paper, this is a well-defined brief. In practice, the bags themselves introduced two problems that the brief did not — and could not — anticipate.

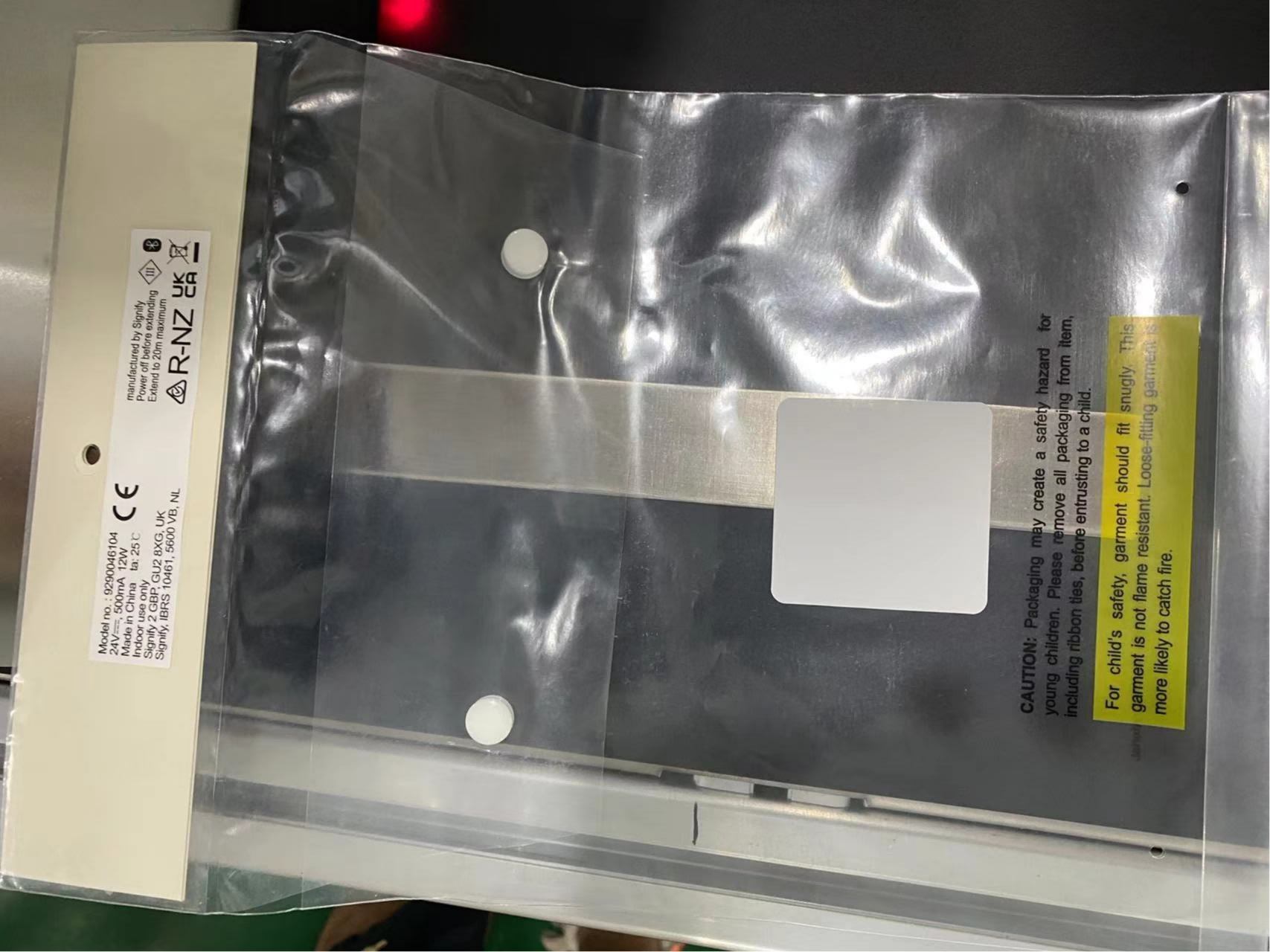

When the customer's bag samples arrived at our facility, we began testing the automatic feed mechanism. Most of the variants fed without issue. Two of them did not.
Those two bags were made from a softer material than the others. The feed mechanism — designed to separate and advance individual bags — could not get consistent purchase on them. Soft bags flex and deform under the feed pressure in ways that stiffer bags do not. They would bunch, overlap, or fail to separate cleanly, which meant the downstream labeling cycle could not run reliably.
We did not try to force the existing mechanism to work with a product it was not suited for. We went back to the design, evaluated the feed geometry and pressure profile for soft-material bags specifically, and modified the feed mechanism to handle them. After the modification, all variants — soft and standard — fed cleanly and consistently.
The second issue was subtler. When we examined the bags more carefully during testing, we noticed that the printed graphic positions on the bags were not perfectly consistent from bag to bag. The artwork was in roughly the same place, but there was measurable variation across the batch.
This matters for labeling accuracy because many automatic labeling systems use a fixed product reference point — typically the leading edge of the product — to determine where to place the label. If the label position is specified relative to a printed graphic rather than the product edge, variation in print position translates directly into variation in label placement.
We raised this with the customer. Through that conversation, we aligned on a placement reference and tolerance approach that kept the labeling accuracy within the ±1 mm specification the customer required, even accounting for the print position variation in the bags. This was a design decision that required input from both sides — we could not have resolved it without the customer's clarification on what "correct" label placement meant relative to their bags.
The collection side of the machine presented its own challenge. One of the bag variants included a paper card insert at the front of the bag — a hang tag or stiffener that added weight to one end of the bag but not the other.
When bags with uneven weight distribution exit a labeling machine and fall onto a collection surface, they do not land flat. The heavier end drops first, and bags start to stack unevenly — which creates a pile that is difficult for an operator to handle and can damage labels on bags lower in the stack.
The customer's requirement was explicit: collection had to be neat. So we modified the collection mechanism to account for this. The redesigned collector controls the descent of each bag so that it lands flat regardless of the weight distribution, producing a clean, even stack that the operator can lift and move without reorganizing.

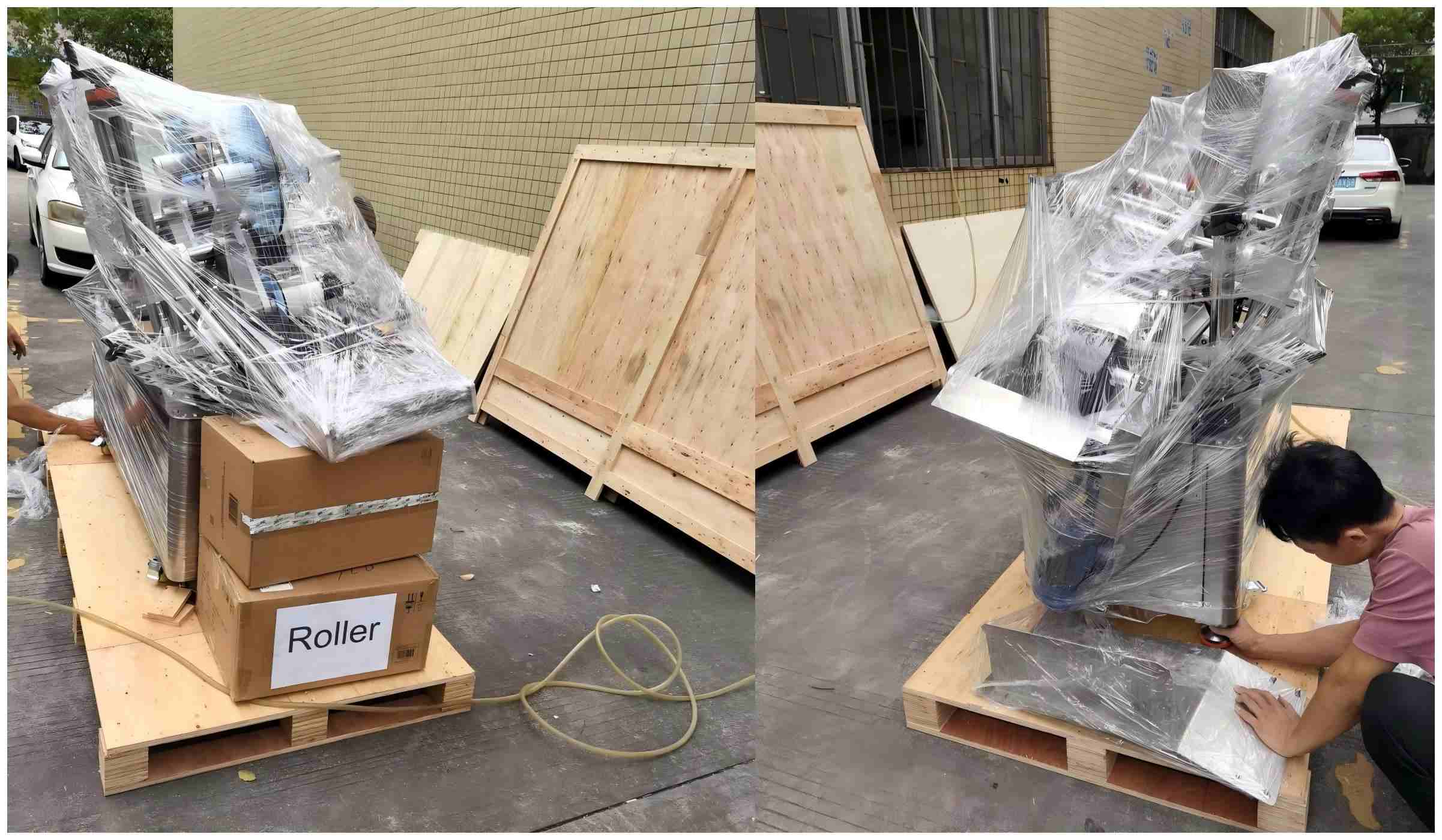

The machine that shipped to Malaysia was a custom configuration built on the YCT-30 Automatic Plane Labeling Machine platform, with three areas of custom engineering:
Custom Element | What We Changed | Why |
Feed mechanism | Redesigned for soft, flexible bag materials | Two variants too soft for standard vacuum feed |
Dual label head configuration | Top and bottom labeling in one pass, different positions | Customer requirement: simultaneous dual-surface labeling |
Collection mechanism | Modified descent control for uneven-weight bags | Paper card insert caused uneven stacking |
The YCT-30 platform underneath all of this provided what it always provides: a proven label dispensing head, reliable conveyor synchronization, and ±1 mm placement accuracy that we have validated across hundreds of applications. The custom work addressed the specific challenges this product introduced — it did not need to reinvent the core labeling mechanics.
Parameter | Result |
Labeling surfaces | Top and bottom simultaneously |
Labeling accuracy | ±1 mm — within customer specification |
Speed | Met customer's production throughput target |
Feed reliability | All variants, including soft-material bags |
Collection | Flat, even stacking across all variants including card-insert bags |
The Purchasing Manager and her colleague had seen the factory, reviewed the specification, and followed the project through production. When the machine was tested and the results confirmed, the feedback was straightforward: the machine met the requirements, the labeling quality was good, and the team was satisfied with both the outcome and the process.
For a brand-focused packaging manufacturer whose end customers are children's clothing retailers, "the labeling quality was good" carries real weight. These bags go into retail environments where presentation is part of the brand promise. A label that is crooked, bubbled, or inconsistently placed is a visible problem. That did not happen here.
I have been involved in enough custom labeling projects to know that the brief is never the whole story. The brief tells you what the customer wants. The samples tell you what the product actually is. Those two things are not always the same, and the gap between them is where most custom machine projects either succeed or run into trouble.
In this project, we found three gaps — soft bag feeding, print position variation, and uneven-weight collection — and we addressed all three before the machine left our facility. That is the right sequence. Finding these issues during testing in Dongguan is a one-week engineering problem. Finding them after installation in Malaysia is a much more disruptive and expensive situation for everyone.
A few things made that possible:
Physical samples are non-negotiable for soft or flexible products. You cannot evaluate a soft bag's feed behavior from a drawing or a photograph. The material flex, the surface friction, the way it responds to feed pressure — these are things you only learn from the actual product. We always request samples before finalizing any custom design, and this project is a clear illustration of why.
Accuracy specifications need a shared reference point. "±1 mm accuracy" is only meaningful if both parties agree on what the measurement is taken from. When print position varies across a batch, the question of whether a label is "in the right place" depends on whether you are measuring from the product edge or from the graphic. Clarifying this early — as we did with this customer — prevents a disagreement at the end of the project.
Collection is part of the machine, not an afterthought. A lot of labeling machine conversations focus entirely on the labeling head and the feed system. Collection gets less attention. But for a customer whose operators need to handle labeled products efficiently at the end of the line, a poorly designed collection system creates real daily friction. The card-insert bag problem in this project was a reminder that the exit of the machine matters as much as the entry.
If you are producing garment bags, retail packaging bags, or any flexible flat packaging that requires automatic labeling, this project is probably worth reading carefully — because the challenges we encountered here are not unusual. Soft materials, print position variation, and uneven product weight are common in this category, and they all affect how a labeling machine needs to be designed.
The YCT-30 platform is a strong foundation for these applications. Its label dispensing accuracy and conveyor synchronization are proven. The custom engineering work — feed system, dual-head configuration, collection mechanism — is where we adapt it to your specific product.
Applications where this approach is relevant:
Garment and apparel packaging bags — retail poly bags, OPP bags, zipper bags requiring brand or SKU labels
Soft or flexible flat packaging — any product where standard rigid-product feed mechanisms are not reliable
Dual-surface labeling requirements — products that need labels on both top and bottom in a single pass
Multi-variant production — operations running several bag styles or sizes that need one machine to handle all of them
Retail-quality label placement — brand packaging where label appearance is a quality standard, not just a functional requirement
View YCT-30 specifications and enquire about custom configurations
Q: Can your labeling machine apply labels to both the top and bottom of a bag simultaneously?
A: Yes. This project is a direct example. The custom YCT-30 configuration we built for this customer applied labels to both surfaces in a single pass, with different label positions on each side. The dual-head setup is engineered to the specific position requirements of your product — it is not a generic mirrored configuration.
Q: Our bags are made from soft, flexible material. Can an automatic labeling machine handle them?
A: It depends on the material and the feed mechanism design. Standard vacuum-based feed systems can struggle with very soft or flexible bags — we encountered exactly this in the Malaysia project, where two of the six bag variants required a redesigned feed mechanism. The answer is to test your actual samples before finalizing the machine design, which is what we always do for custom projects.
Q: The print position on our bags varies slightly from bag to bag. Will this affect labeling accuracy?
A: It can, depending on how your label position is defined. If the label must align with a printed graphic, print variation will affect placement. If the label position is defined relative to the product edge, print variation is irrelevant. We work through this with every customer during the specification phase — it is an important detail to resolve before the machine is built, not after.
Q: What does ±1 mm labeling accuracy mean in practice for flexible bags?
A: For flat, rigid products, ±1 mm is straightforward to achieve and measure. For flexible bags, the product needs to be fed and held flat during labeling for the accuracy to be consistent. The feed mechanism design directly affects this — which is another reason why physical sample testing matters for soft-material applications.
Q: Our bags have an insert card that makes one end heavier. Can the collection system handle this?
A: Yes, and this was a specific engineering challenge in this project. We modified the collection mechanism to control the descent of each bag so it lands flat regardless of weight distribution. If your product has similar characteristics, share the details with us and we will design the collection system accordingly.
Q: How do you handle projects where the product samples reveal problems not mentioned in the original brief?
A: We treat sample testing as a required part of the design process, not a formality. When the Malaysia bags arrived and we found the soft-material feeding issue and the print position variation, we stopped, assessed, and redesigned before continuing. We communicated the findings to the customer, aligned on the solution, and only proceeded once we were confident the machine would perform correctly. This adds time to the project, but it is the right way to handle it.
Q: What information do I need to provide to get a quotation for a custom bag labeling machine?
A: The most useful starting point is: bag dimensions and material type, label size and position on each surface, target labeling speed, whether you need automatic feed and collection, and any special features (card inserts, multiple variants, etc.). Physical samples of your bags are required before we finalize the design. Send us what you have and we will take it from there.
Q: Do you support customers in Malaysia and Southeast Asia?
A: Yes. We have customers and distribution partners across Southeast Asia. Remote video support is our standard first response for commissioning and troubleshooting. For customers who prefer an in-person visit before ordering — as the Malaysia team did in this project — we welcome factory visits at our Dongguan facility.
If you are working with garment bags, retail packaging, or any flexible flat product that needs automatic labeling — and especially if you have had trouble finding a standard machine that handles your specific material or configuration — we would like to hear about it.
Send us your bag samples and tell us what you need. We will test them, identify any challenges, and come back with a clear technical proposal.
