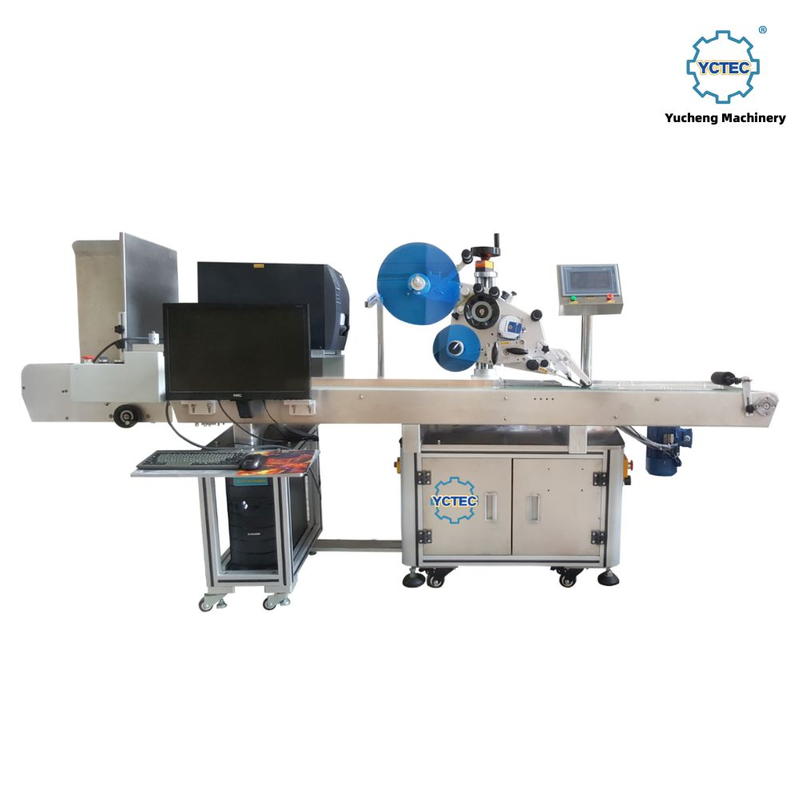

The YCT-ZX Online Cache Print Labeling Machine represents a fundamentally different approach to label application. Where standard labelers peel pre-printed labels from a roll, the YCT-ZX generates each label at the point of application — triggered by a barcode scan, populated with content from a connected database, printed on demand, and applied by a precision labeling head in the same pass.
This print-and-apply architecture is designed for facilities with variable-content labeling requirements — where each product requires a unique label that cannot be pre-printed in bulk. Traceability codes, serialized barcodes, variable batch data, and compliance labels all benefit from this approach. You print exactly the right label at the right moment, eliminating pre-print waste, mislabeling risk, and label inventory overhead.
Developed by Dongguan Yucheng Machinery Technology Co., Ltd. (YCTAUTO), the YCT-ZX scans each product, queries the connected database, retrieves the correct label template, sends the print job to the onboard thermal printer, and delivers the finished label to a vacuum suction labeling head — applying it with ±1 mm accuracy at 10–15 pieces per minute.
Scan-to-Apply Workflow — An upstream barcode scanner reads each product's identifier, the system queries the database, retrieves matching content, and routes the print job — all before the product reaches the labeling head.
Real-Time Variable Data Printing — Every label is printed on demand with content matched to that specific product, supporting serialized barcodes, QR codes, variable weight fields, LOT numbers, and expiry dates.
Cache Print Architecture — The label is printed and held ready in the vacuum pad before the product arrives, eliminating latency and ensuring smooth, uninterrupted throughput.
±1 mm Label Placement Accuracy — The vacuum suction labeling head applies each printed label to the product's flat upper surface with ±1 mm accuracy, meeting barcode readability and compliance placement standards.
Database Integration Capability — Connects with production databases, ERP systems, and MES platforms via standard protocols. Variable fields are populated automatically from the database at print time.
Reduced Label Inventory and Waste — Printing on demand eliminates pre-printed label stock for multiple SKUs, reduces obsolete label waste, and avoids costly reprints from content errors.
Flexible Label Size Support — Supports label dimensions from 20 mm × 20 mm up to 150 mm × 100 mm for thermal direct and thermal transfer label formats.
Compact Inline Footprint — At 1700 mm × 1000 mm × 1400 mm, the YCT-ZX integrates into most production floor layouts without a dedicated isolated station.
Parameter | Value |
Model | YCT-ZX |
Labeling Accuracy | ±1 mm |
Labeling Speed | 10–15 pcs/min |
Applicable Product | Customizable (flat top surface products) |
Label Length | 20–150 mm |
Label Width | 20–100 mm |
Power Supply | 220 V / 50 Hz |
Power Consumption | 1020 W |
Machine Dimensions (L × W × H) | 1700 mm × 1000 mm × 1400 mm |
Labeling Method | Vacuum suction print-and-apply (plane labeling) |
Print Engine | Thermal / thermal-transfer (onboard label printer) |
Data Input | Upstream barcode scanner + database query |
Label Content | Variable — populated from connected database at print time |
The YCT-ZX addresses labeling needs where pre-printed label stock is impractical or prohibited:
Traceability and Serialization — Pharmaceutical, medical device, and food manufacturers implementing unit-level serialization, where each package requires a unique serial number or 2D barcode generated at the packing stage
Mixed-SKU Fulfillment Lines — E-commerce and 3PL operations packing multiple different products per session, where each item requires different label content from an order management system
Regulated Food Labeling — Fresh or batch-specific food products where label content (best-before date, batch code, weight) varies by production run and must be drawn from current data
Industrial Parts and Components — Manufacturers applying part numbers, revision codes, and serial numbers where pre-printing is cost-prohibitive across thousands of active part numbers
Export Compliance Labeling — Products requiring destination-specific content — language, regulatory symbols, unit conversions — selected automatically from the scanned product identifier
Cosmetics and Healthcare — Brands managing multiple formula versions or lot traceability requiring real-time label generation rather than pre-printed SKU inventories
Integrated Systems Experience — The YCT-ZX is a production-ready integrated system — not a labeler with a printer bolted on — with a control architecture designed for stable, synchronized scan-to-apply operation.
Configurable to Your Database — Our engineers configure the database connection, define label templates, and map variable data fields during setup. The machine ships pre-configured to your specifications.
On-Demand Labeling Eliminates Pre-Print Risk — Every label is generated from current, authoritative database content at the moment of application, eliminating costly rework from incorrect dates or superseded label versions.
OEM and Custom Configuration — Printer model, scanner placement, conveyor interface, label template design, and database protocol are all configurable for your specific operation.
Full After-Sales Technical Support — Remote diagnostics, printer maintenance training, database troubleshooting, and label template update support are provided with comprehensive documentation for operators and IT staff.
Q: What database or ERP systems can the YCT-ZX connect to?
A: The YCT-ZX communicates with production databases, ERP platforms, and MES systems via ODBC, API connections, and SQL query. Our engineers establish and test the connection during pre-delivery configuration.
Q: What type of printer is installed in the YCT-ZX?
A: The machine can be configured with a thermal direct printer (cost-effective for short-life labels) or a thermal transfer printer (durable output for industrial and pharmaceutical applications). We advise the right choice during quotation.
Q: Does the cache print architecture slow down the line?
A: No. Each print job is queued while the previous product is in transit, so the label is held ready before the product arrives. The 10–15 pcs/min rate reflects the full scan-query-print-apply cycle.
Q: What happens if the barcode scan fails or the database returns no match?
A: The system halts the labeling action and alerts the operator. The product is diverted for manual review. Error response behavior is configurable during setup.
Q: Can we use our existing label templates?
A: Templates in standard formats (ZPL, EPL, common label software) can typically be imported and used directly. Our engineers advise on any adjustments needed during configuration.
Q: We use pre-printed label rolls for 30+ SKUs — how does the transition work?
A: We map your existing formats into the YCT-ZX's template system, configure the database link, and run trial prints to verify output. Most facilities find the switch simplifies label procurement significantly.
Tell us about your products, your database environment, and your current labeling challenges. Our engineering team will design a YCT-ZX configuration that fits your workflow and provide a detailed project proposal.
