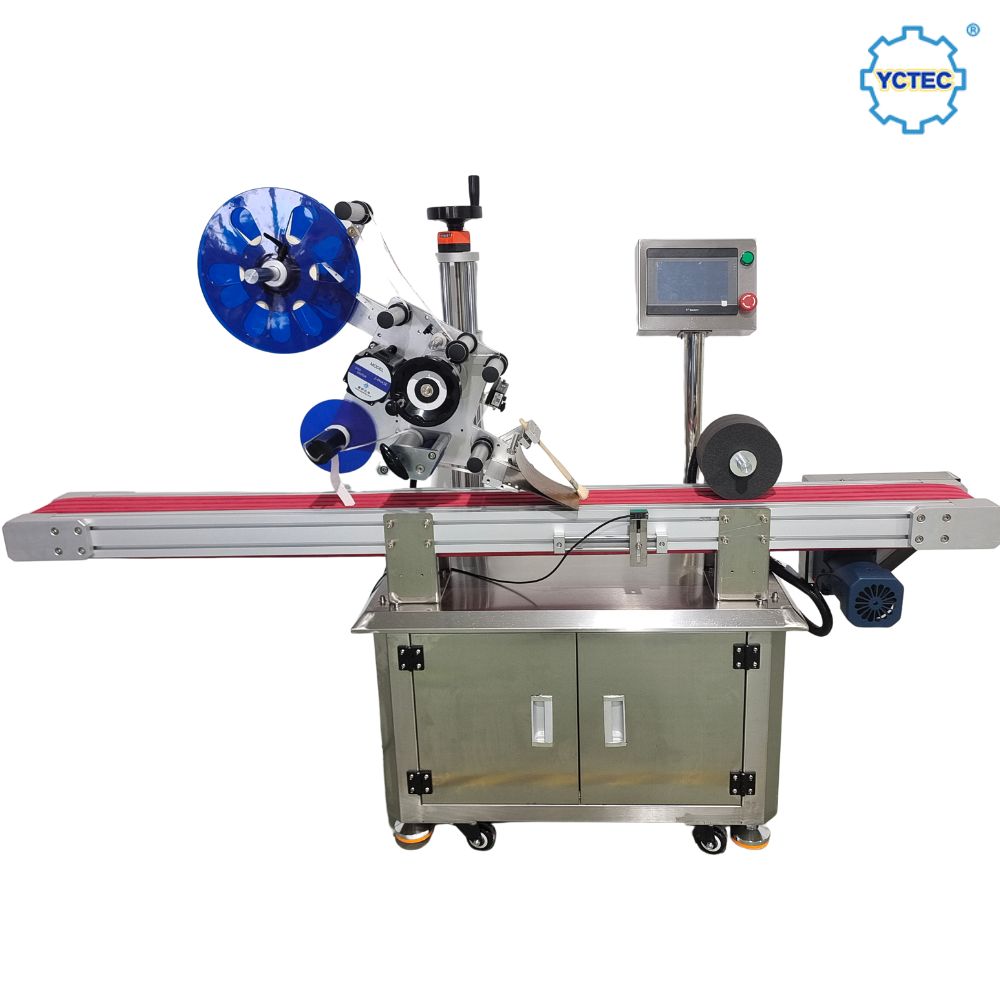

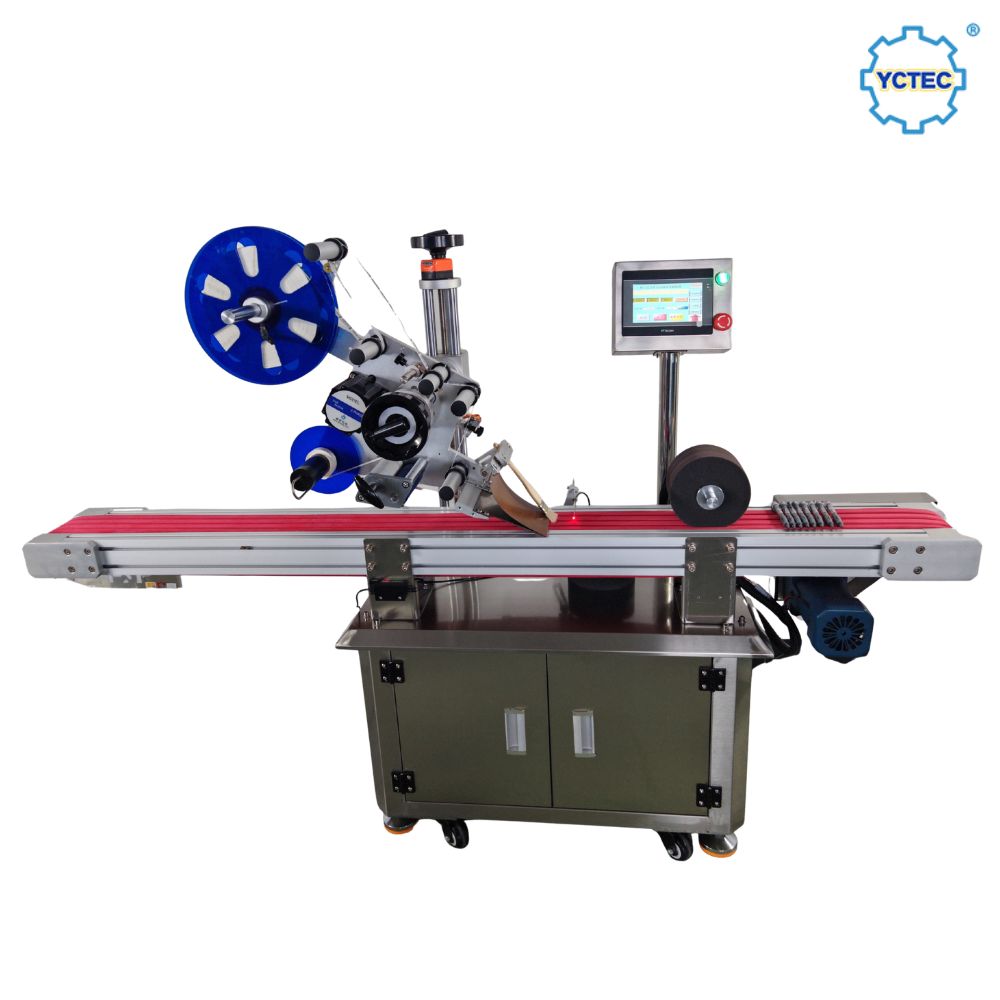

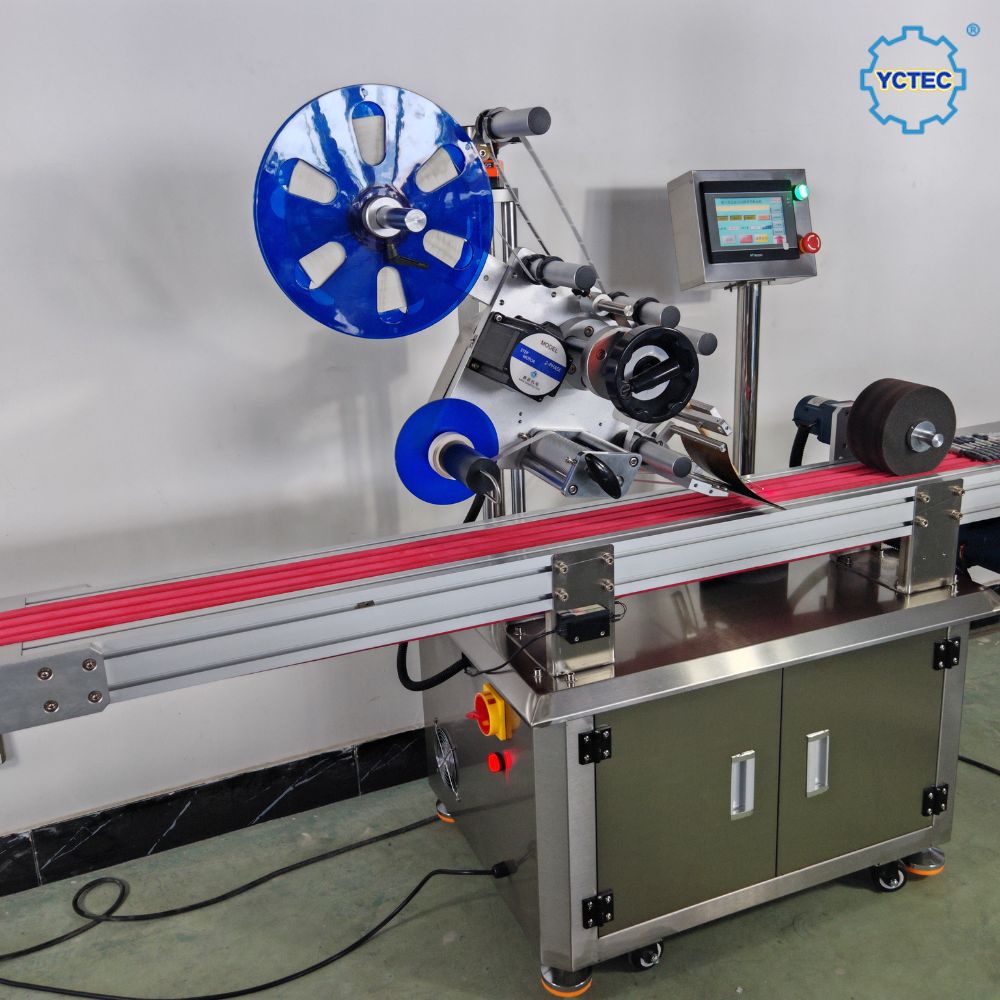

Pens, markers, cosmetic tubes, small round bottles, and vials share one packaging challenge: they roll, tip, and won't sit stable on a standard conveyor. The YCT-113 solves this with a horizontal wrap-around labeling system that positions each item on its side, rotates it precisely, and applies a full wrap-around label without stopping the line.
If you manufacture stationery, cosmetics, daily chemical, or small pharmaceutical packaging and your current labeling process still relies on manual application or a machine that jams on unstable round items, the YCT-113 is designed specifically for that gap.
Parameter | Value |
Model | YCT-113 |
Labeling Accuracy | ±1mm (excluding product/label tolerance) |
Labeling Speed | Up to ~150 pcs/min (varies by product and label size) |
Applicable Product Size | Length 40–400mm · Width/Diameter 40–200mm · Height 0.2–95mm |
Applicable Label Size | Length 8–250mm · Width (liner width) 10–120mm |
Machine Dimensions | Approx. 2000mm × 780mm × 1400mm (L×W×H) |
Power Supply | 220V / 50Hz |
Machine Weight | Approx. 180kg |
Wide Diameter Range in One Machine
Most horizontal wrap-around labelers on the market are built for a narrower diameter window. The YCT-113 covers 40mm to 200mm in diameter and up to 400mm in length, so one machine can handle several SKUs — from slim pens and markers up to small round bottles — without switching equipment.
Consistent Accuracy on Unstable Products
Round objects that can't stand vertically are the hardest to label consistently by hand. The YCT-113's horizontal transport and rotation mechanism holds each item stable through the labeling station, keeping placement accuracy within ±1mm run after run.
Compact Footprint, Straightforward Integration
At roughly 2000×780×1400mm and 180kg, the YCT-113 fits into most small-to-mid production layouts without a major line redesign, and runs on standard 220V/50Hz power.
Manufactured to Export Standards
Every YCT-113 unit is built under ISO 9001:2015 quality management and is CE certified for the EU market. SGS/TÜV third-party inspection reports are available on request, and food-contact components use FDA-compliant 304/316 stainless steel where applicable — giving procurement teams the documentation needed for import compliance and internal quality audits.

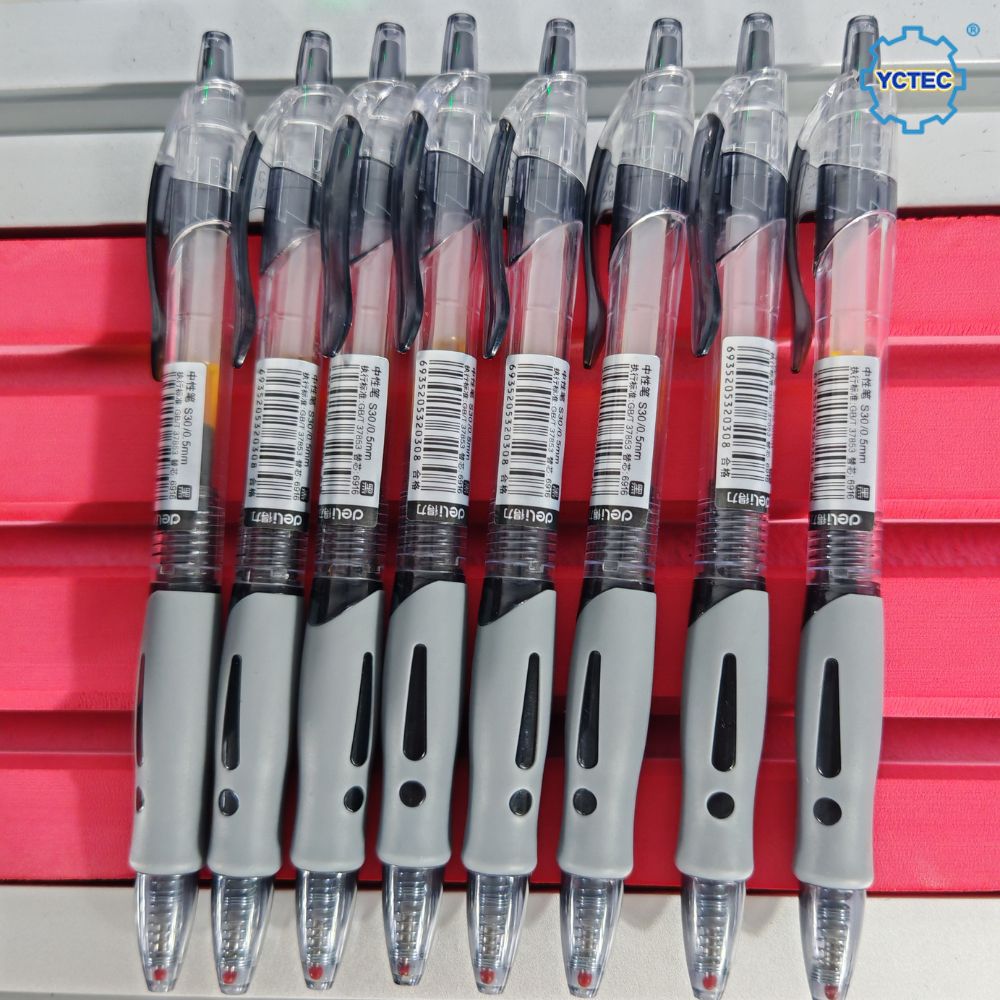

Stationery: pens, markers, highlighters
Cosmetics: lipstick tubes, mascara wands, small cosmetic tubes and bottles
Daily Chemicals: small round bottles, sample-size containers
Pharmaceutical & Lab Packaging: vials, small round containers (final suitability depends on your specific product and regulatory requirements — confirm with our engineering team)
Products are horizontally fed into the labeling station via the conveyor system.
Sensors detect each product's position before the label is dispensed.
The machine rotates the product while wrapping the label evenly around its circumference.
Labeled products exit the line ready for the next packaging step (capping, cartoning, or palletizing).
Every production line has different bottle shapes, label materials, and throughput targets. Send us your product dimensions and label specs, and our engineering team will confirm compatibility and return a formal quote — typically within 24 hours.
Request a Free Specs Review & Quote →
1. Can the YCT-113 handle products smaller than 40mm in diameter, like slim pens or narrow tubes?
The standard YCT-113 configuration covers 40mm–200mm in diameter. If your product falls outside this range, tell us your exact dimensions — our team can confirm whether a configuration adjustment or an alternative YCT model is a better fit before you order.
2. What label materials and types work with this machine?
The YCT-113 is built around the specified label size range (8–250mm length, 10–120mm liner width). Send us a sample of your label stock and container so our engineers can confirm compatibility and recommend the right setup for your specific material.
3. How accurate is the labeling, and does accuracy change at full speed?
Labeling accuracy is rated at ±1mm under standard operating conditions (excluding product and label manufacturing tolerance). Actual performance depends on your product's dimensional consistency and label quality — we recommend a sample test run before full production commitment.
4. Is the YCT-113 suitable for food-contact or pharmaceutical packaging?
The machine is manufactured under ISO 9001:2015 standards and is CE certified for the EU market. For food-contact or pharmaceutical applications, please share your specific compliance requirements (e.g., material certifications, cleanroom conditions) so we can confirm suitability or discuss customization.
5. Can this machine integrate with our existing filling or capping line?
Yes — the YCT-113 can be configured to integrate with upstream or downstream equipment such as fillers or cappers. Share your current line layout and equipment specs, and our team will advise on integration feasibility.
6. What's included in after-sales support?
YCT Machinery provides installation guidance, operator training support, and technical assistance via WhatsApp and email, with a 24-hour response commitment. SGS/TÜV third-party inspection reports are available on request for your quality documentation.
7. How do we get a formal quote?
Send us your product dimensions, label specifications, and target output speed via the quote form, WhatsApp, or email. Our engineering team reviews every request and responds with a configuration recommendation and quote within 24 hours.
8. Can we request a sample test before purchasing?
Yes, free sample testing is available — send your product and label samples so we can validate performance on your specific materials before you place an order.
