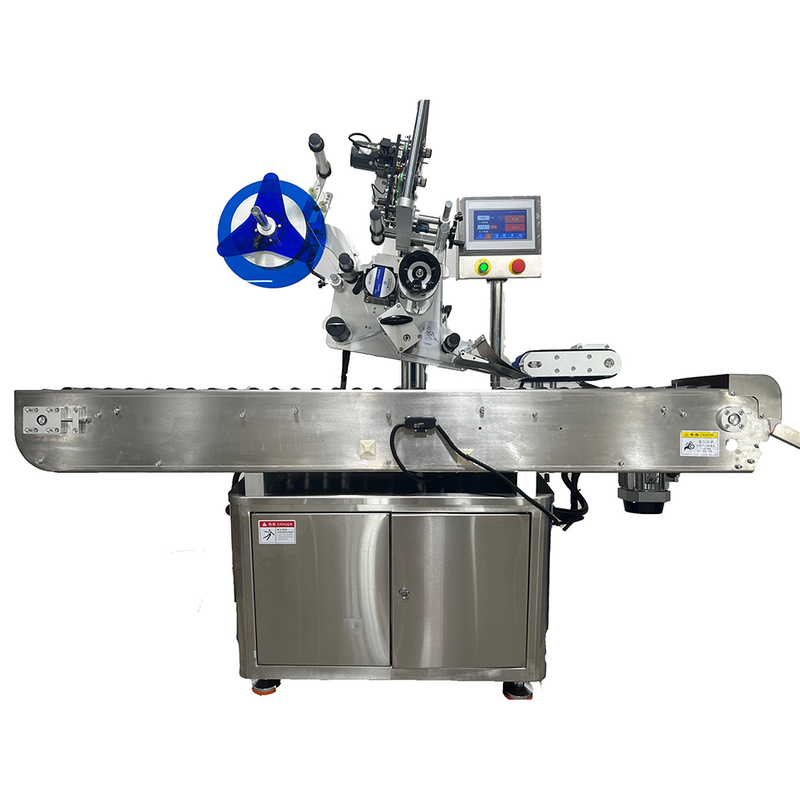

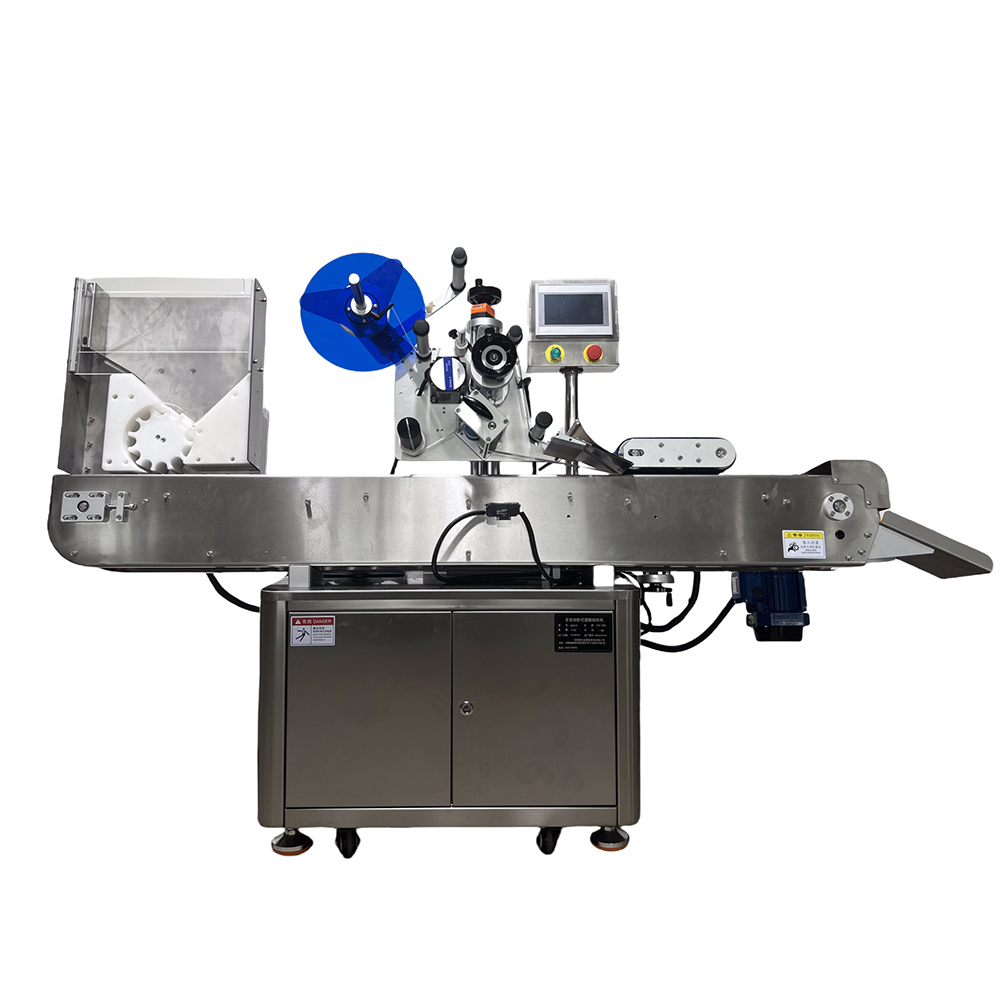

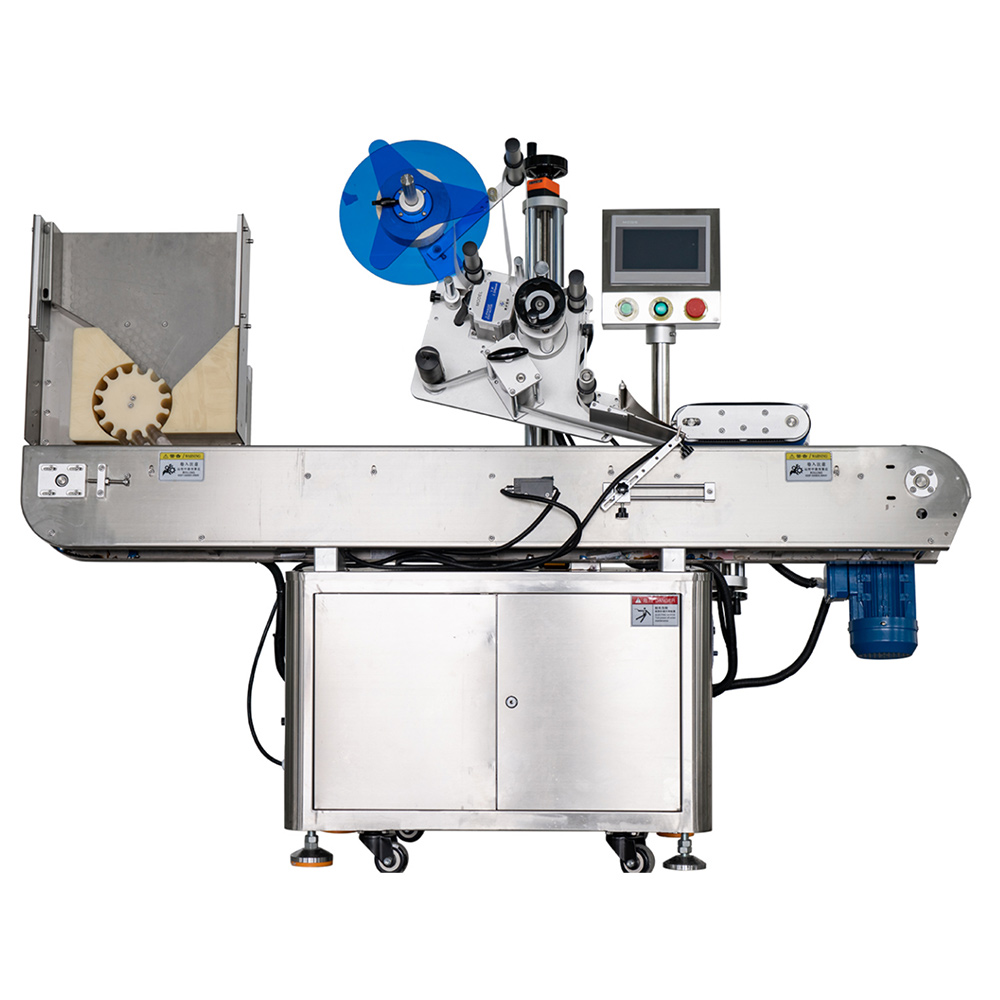

YCT-661 is a fully automatic horizontal round bottle labeling machine designed for small-sized cylindrical and conical products such as oral liquid bottles, cosmetic round bottles, glue bottles, lipstick tubes, pen holders, PET bottles, and other small round containers. It supports full-wrap labeling, half-wrap labeling, and front-and-back dual labeling, with high-speed output of 100-300 pcs/min, ±1 mm labeling tolerance, and flexible optional functions for coding, feeding, collection, and production line integration.
The YCT-661 automatic horizontal round bottle labeling machine is developed for manufacturers who need fast, stable, and accurate labeling on small cylindrical or conical products that are often difficult to handle on standard upright labeling systems.
For many small containers such as oral liquid bottles, 502 glue bottles, lipstick tubes, pen holders, cosmetic sample bottles, and small plastic or PET bottles, vertical bottle conveying may be unstable or inefficient. The YCT-661 solves this problem through a horizontal labeling structure, helping products move more smoothly during feeding, separation, conveying, and labeling.
This makes the YCT-661 a practical choice for buyers looking for a small bottle labeling machine, horizontal round bottle labeler, or oral liquid bottle labeling machine for high-output production environments.
A horizontal labeling machine is often the better choice for small-diameter, short-height, or lightweight cylindrical products that do not stand stably on ordinary conveyors.
Compared with standard upright round bottle labelers, a horizontal system offers several practical advantages:
Better conveying stability for small bottles
More consistent product spacing before labeling
Improved suitability for lightweight or short cylindrical items
Higher efficiency for small bottle mass production
Better consistency at high labeling speeds
For products such as oral liquid bottles, glue bottles, lipstick tubes, and other small round containers, horizontal labeling helps improve both accuracy and productivity.
The YCT-661 is suitable for many small cylindrical and conical products, including:
Cosmetic round bottles
Small medicine bottles
Oral liquid bottles
Plastic bottles
PET round bottles
502 glue bottles
Pen holders
Lipstick tubes
Small sample bottles
Small round chemical bottles
Small beverage bottles
Other small round or conical containers
This machine is widely used in:
Food industry
Cosmetics industry
Winemaking and beverage packaging
Pharmaceutical industry
Chemical industry
Daily use product packaging
The YCT-661 supports several common labeling formats for small round bottle applications.
Suitable for products that require the label to wrap around the full circumference of the bottle.
Suitable for products that require semicircle or partial wrap labeling.
The machine can also support front-and-back dual label application on the same product, with adjustable spacing between the two labels according to actual layout requirements.
The YCT-661 is especially suitable for small-diameter round bottles and similar products that are difficult to label efficiently on conventional upright labeling machines.
With a standard capacity of 100-300 pcs/min, this machine is suitable for customers who need fast and continuous labeling for high-volume products.
The technical parameter sheet lists a labeling tolerance of ±1 mm, which is suitable for consistent and professional label application in mass production.
The machine adopts a sponge labeling method, which helps apply labels smoothly and supports good labeling quality on small cylindrical products.
The machine supports:
Full-wrap labeling
Half-wrap labeling
Front-and-back dual labeling
Adjustable spacing between front and back labels
This gives buyers more flexibility for different packaging styles and branding requirements.
The adjustment method is simple, making it easier for operators to set the machine according to different product sizes and labeling formats.
The YCT-661 uses a Japan Panasonic control system, offering high stability and a low failure rate for long-term industrial use.
The touch screen interface is clear and easy to use, with Chinese and English available. Electrical parameters can be adjusted directly, and the counting function helps with production management.
The machine uses:
German LEUZE / Italian Datalogic label sensor
Japanese Panasonic product sensor
These components help ensure stable detection, accurate labeling performance, and reduced labor intensity.
If label spilling, label breakage, or other malfunctions occur, the machine can give an alarm to help operators respond quickly.
The machine and spare parts use stainless steel and anodized senior aluminum alloy, offering corrosion resistance and long service life.
A voltage transformer is equipped to adapt the machine to local voltage requirements in different export markets.
The YCT-661 can be configured with several optional functions according to different product and production requirements.
An optional rotary bottling device can be added to improve feeding efficiency.
The machine can be directly connected to the production line to realize automatic bottling and improve overall production efficiency.
An optional ribbon coding machine can be added to the label head to print:
Production batch number
Production date
Expiration date
during the labeling process, reducing extra procedures and improving line efficiency.
Automatic feeding can be configured according to actual product characteristics.
Automatic material collection can be added according to downstream handling requirements.
An extra labeling device can be added for more complex labeling applications.
The machine supports customization according to product diameter, label size, speed requirement, and production line layout.
The control principle is straightforward and suitable for high-speed production lines.
The PLC processes the product signal and label signal, then outputs a signal to the traction motor to start the labeling action automatically.
Products are placed into the feeding device
The products are separated one by one
The conveyor transmits the products forward
The product sensor detects the product
The PLC receives the product signal and starts labeling
The conveyor sends the labeled products to the collecting plate
This process helps keep product feeding continuous and labeling stable even at higher production speeds.
Item | Specification |
Model | YCT-661 |
Machine Type | Automatic Horizontal Round Bottle Labeling Machine |
Label Specification | Adhesive sticker, transparent or opaque |
Labeling Tolerance | ±1 mm |
Capacity | 100-300 pcs/min |
Suitable Product Size | Φ10-30 mm, can be customized |
Suitable Label Size | L: 20-290 mm, W(H): 20-130 mm |
Machine Size | 2100 × 720 × 1450 mm |
Pack Size | 2010 × 750 × 1400 mm |
Voltage | 220V / 50(60)Hz, can be customized |
Power | 940 W |
Net Weight | 185 kg |
Gross Weight | 356 kg |
Label Roll | ID: Ø76 mm; OD: ≤300 mm |
Note: Some parameters should be confirmed according to your actual product and final machine configuration.
No. | Structure | Function |
1 | Feeding Device | Separates and feeds products |

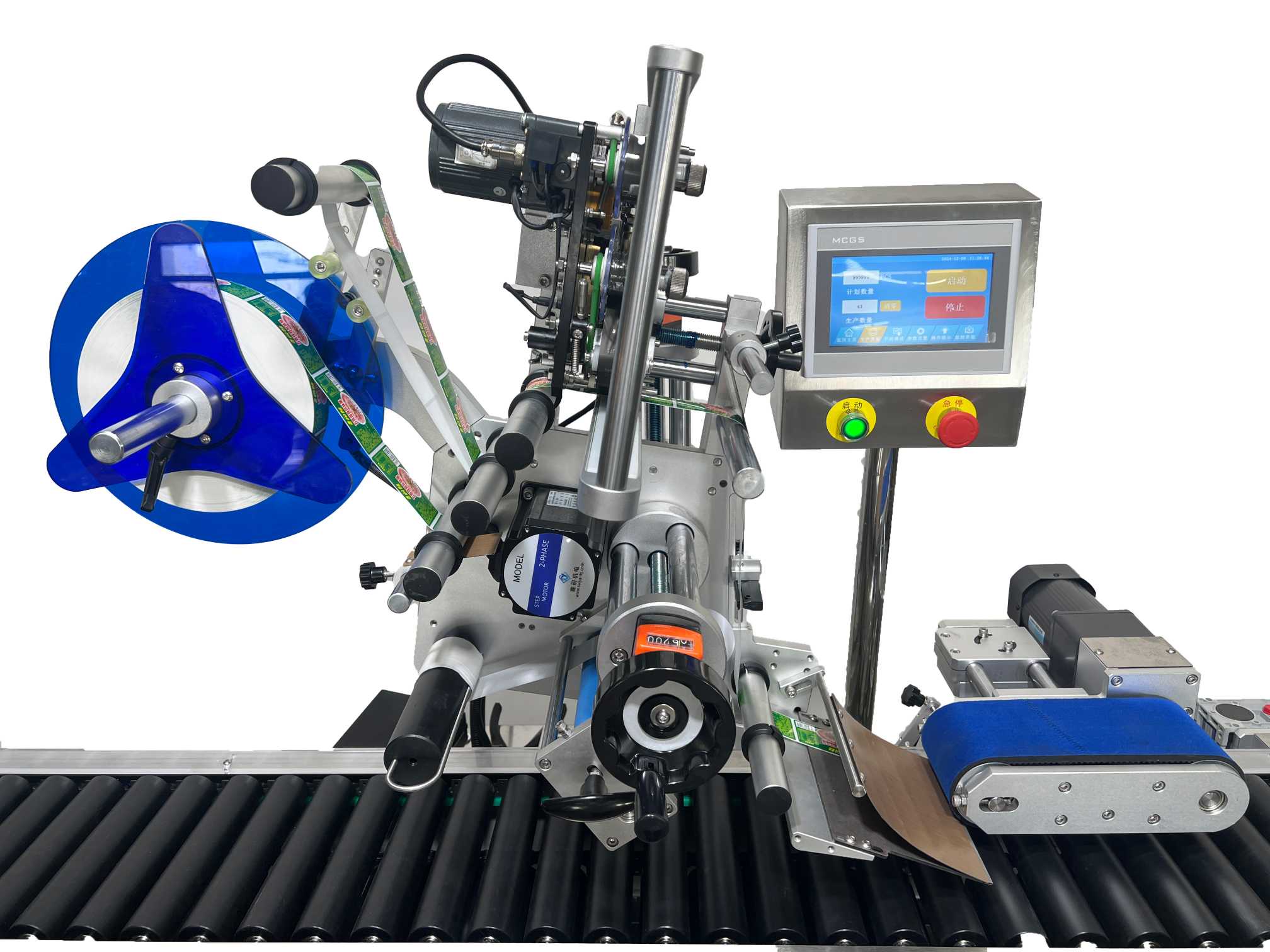

2 | Labeling Head | Core of the labeler, including label winding and driving structure |
3 | Touch Screen | Used for operation and parameter setting |
4 | Collection Plate | Collects labeled products |
5 | Conveyor | Transmits products |
6 | Electric Box | Houses electrical configurations |
7 | Emergency Stop | Stops the machine if abnormal operation occurs |
8 | Electric Box | Houses electrical configurations |

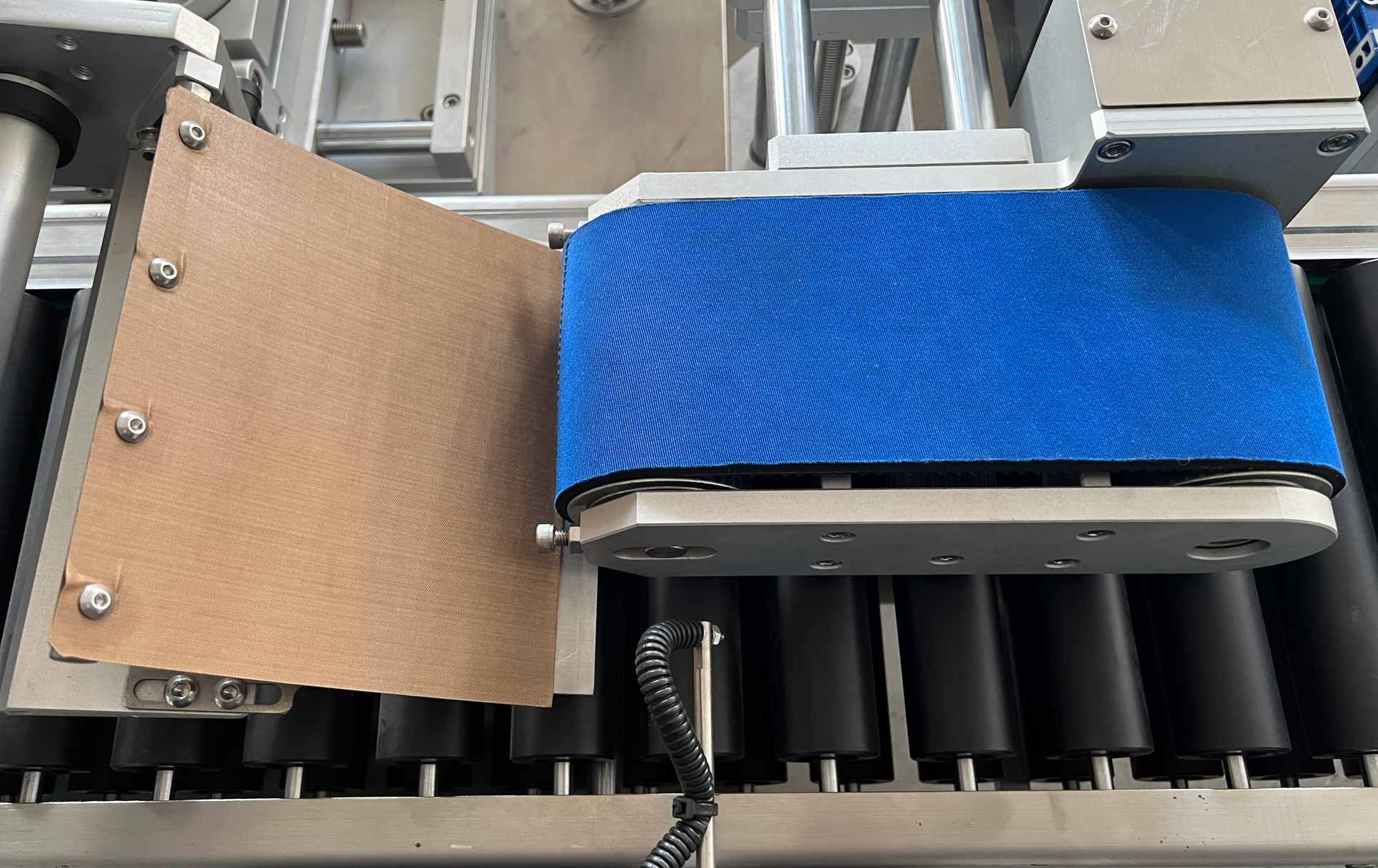

9 | Rotary Belt | Driven by a motor to rotate products while labeling |
10 | Adjusters | Used to adjust labeling position |
11 | Main Switch | Turns the machine on |
To ensure stable labeling performance, the following label requirements are recommended:
The gap between one label and the next should be 2-3 mm
The distance between the label edge and the edge of the backing paper should be 2 mm
The backing paper should be made of glassine with good toughness to reduce the risk of breakage
The inner diameter of the core should be 76 mm
Labels should be arranged in a single row
Your current data shows a difference between:
Label production requirement: outer diameter less than 280 mm
Technical parameter sheet: outer diameter ≤300 mm
Before final website publishing, it is best to confirm the correct standard with your engineers.
YCTAUTO supports customization according to actual product and project requirements, including:
Product diameter range
Label size
Labeling position
Coding requirement
Feeding requirement
Collection requirement
Additional labeling device
Production line integration
Voltage for export markets
This makes the YCT-661 suitable for distributors, OEM projects, and factories with specialized small-bottle labeling requirements.
The YCT-661 is suitable for small cylindrical and conical products such as oral liquid bottles, small medicine bottles, cosmetic round bottles, plastic bottles, PET bottles, 502 glue bottles, pen holders, lipstick tubes, and other small round containers.
A horizontal labeling machine is more suitable for small, lightweight, or short cylindrical products that may not stand stably on ordinary conveyors. It helps improve feeding stability and labeling consistency.
The machine supports full-wrap labeling, half-wrap labeling, and front-and-back dual labeling with adjustable spacing.
The standard capacity is 100-300 pcs/min, depending on product size, label size, and actual production conditions.
According to the technical parameter sheet, the labeling tolerance is ±1 mm.
Yes. An optional ribbon coding machine can print production batch number, production date, and expiration date during labeling.
Yes. The machine can be directly connected to a production line to improve bottling and labeling efficiency.
Yes. The YCT-661 supports customization according to product diameter, label size, speed target, voltage, and line integration requirements.
Looking for a high-speed horizontal labeling machine for oral liquid bottles, glue bottles, lipstick tubes, or other small round containers?
Send us your:
Product photo
Product diameter
Label size
Output requirement
Coding requirement
Production line layout
YCTAUTO will recommend a suitable machine configuration according to your actual application.
Contact us today for a customized labeling solution and quotation.
