YCT-611 is a fully automatic positioning labeling machine designed for cylindrical and conical containers such as cosmetic bottles, wine bottles, medicine bottles, PET round bottles, plastic bottles, food cans, and beverage bottles. It supports full-wrap, half-wrap, and front-and-back dual labeling with high accuracy and stable performance.
Get a Quote Email Our Team WhatsApp Us
Quick Answer for Buyers: The YCT-611 automatic positioning round bottle labeling machine is ideal for round and conical bottles that require accurate label placement. It supports wrap-around labeling, half-wrap labeling, and front-and-back dual labeling with ±1 mm labeling tolerance and a standard output of 25-60 pcs/min.
Machine Type: Fully Automatic Positioning Labeling Machine
Suitable Bottles: Cylindrical and conical bottles
Labeling Modes: Full-wrap, half-wrap, front-and-back dual labeling
Accuracy: ±1 mm
Speed: 25-60 pcs/min
Industries: Cosmetics, wine, food, beverage, pharmaceutical, chemical

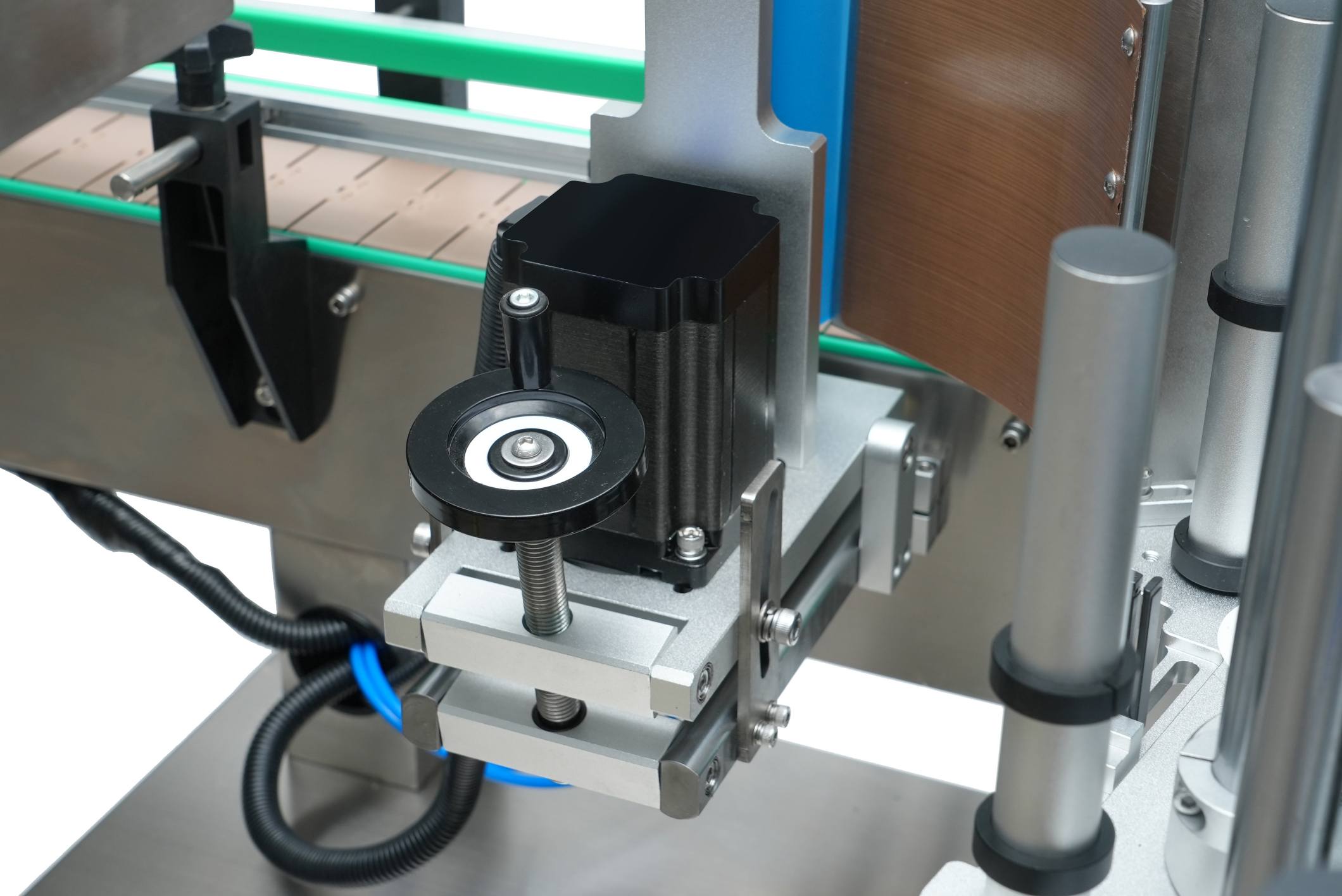

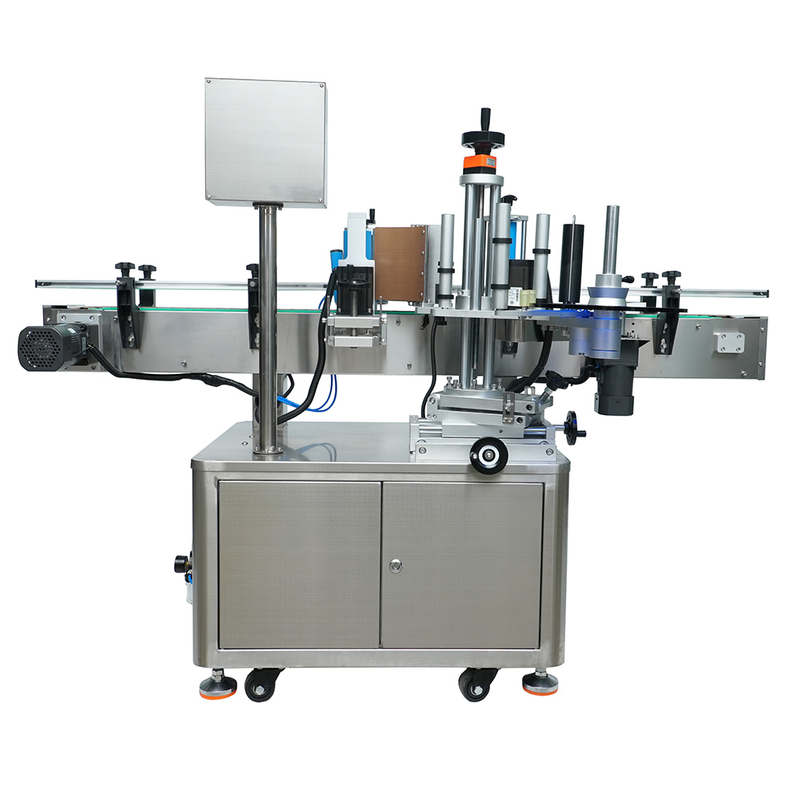

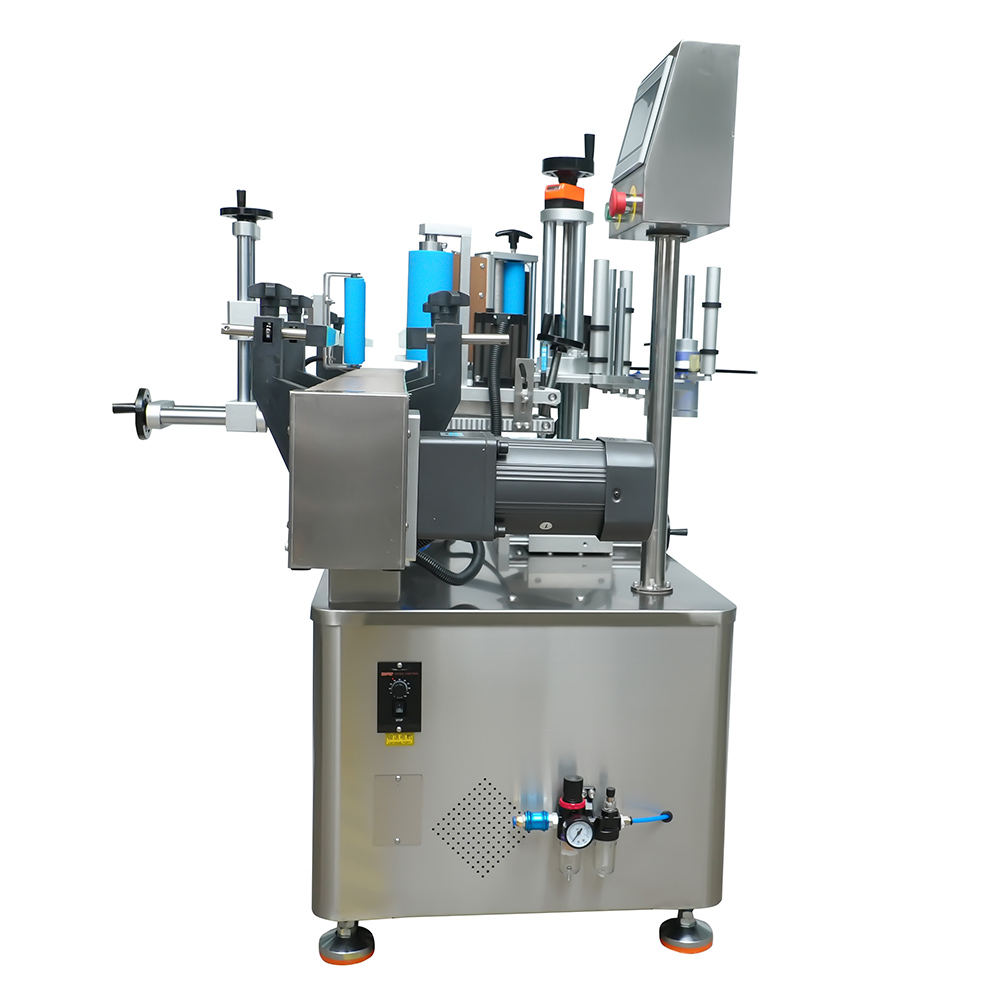

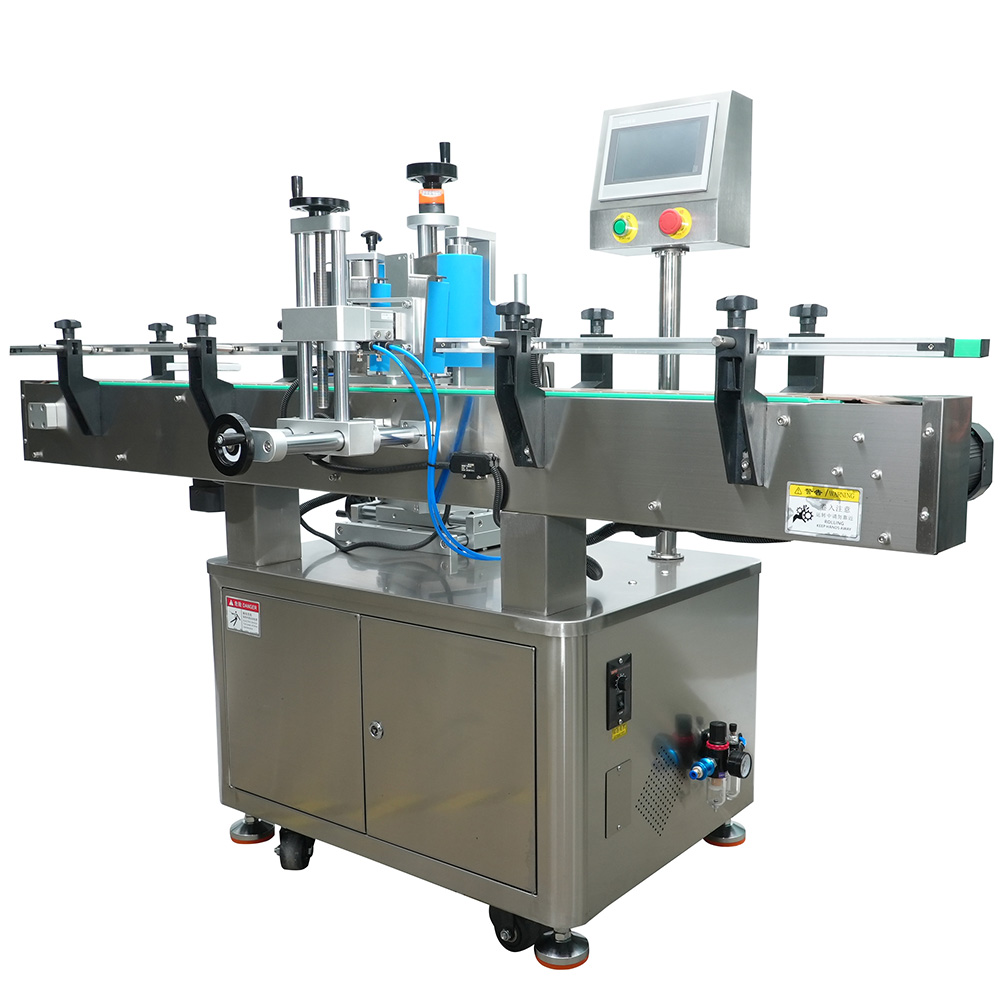

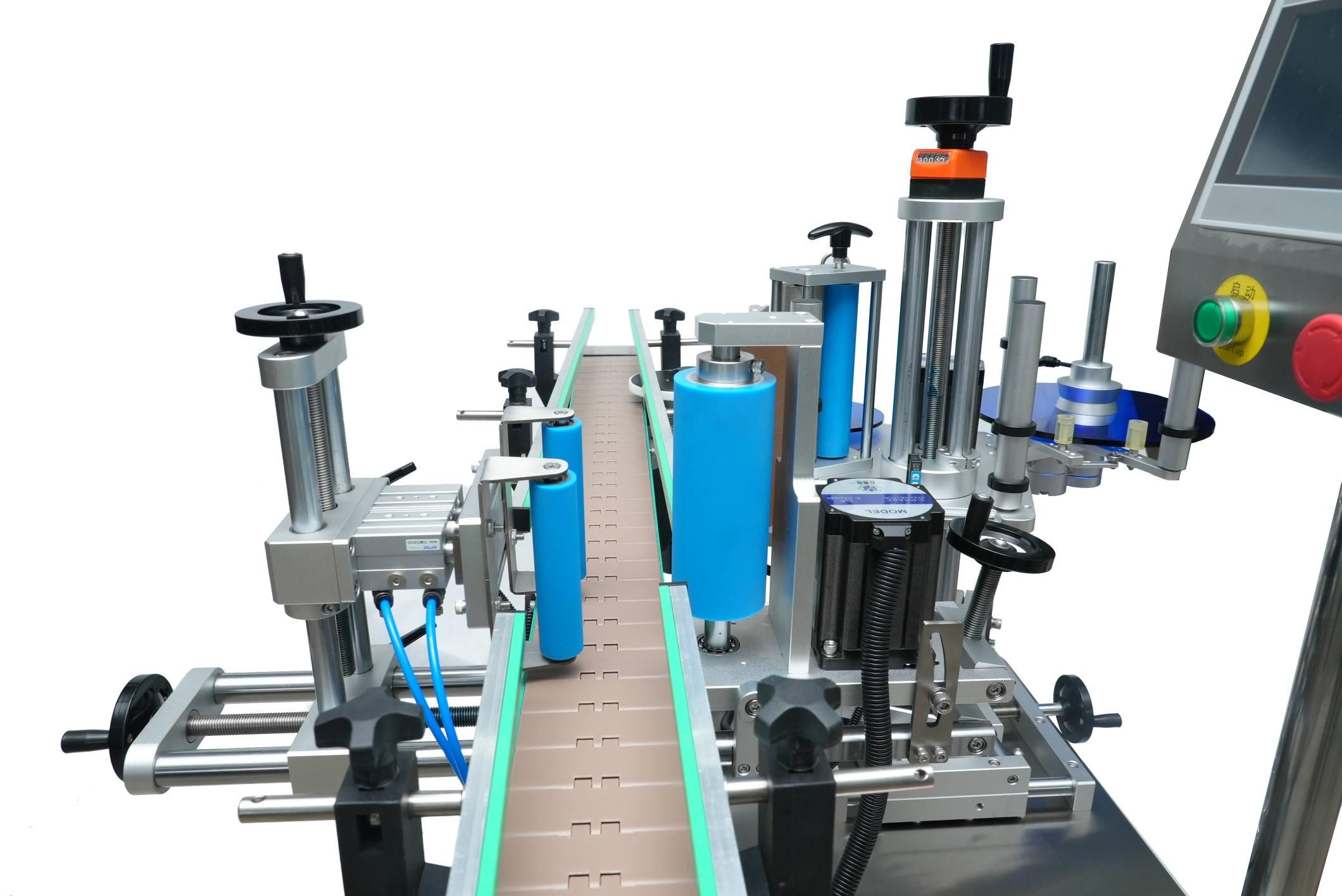

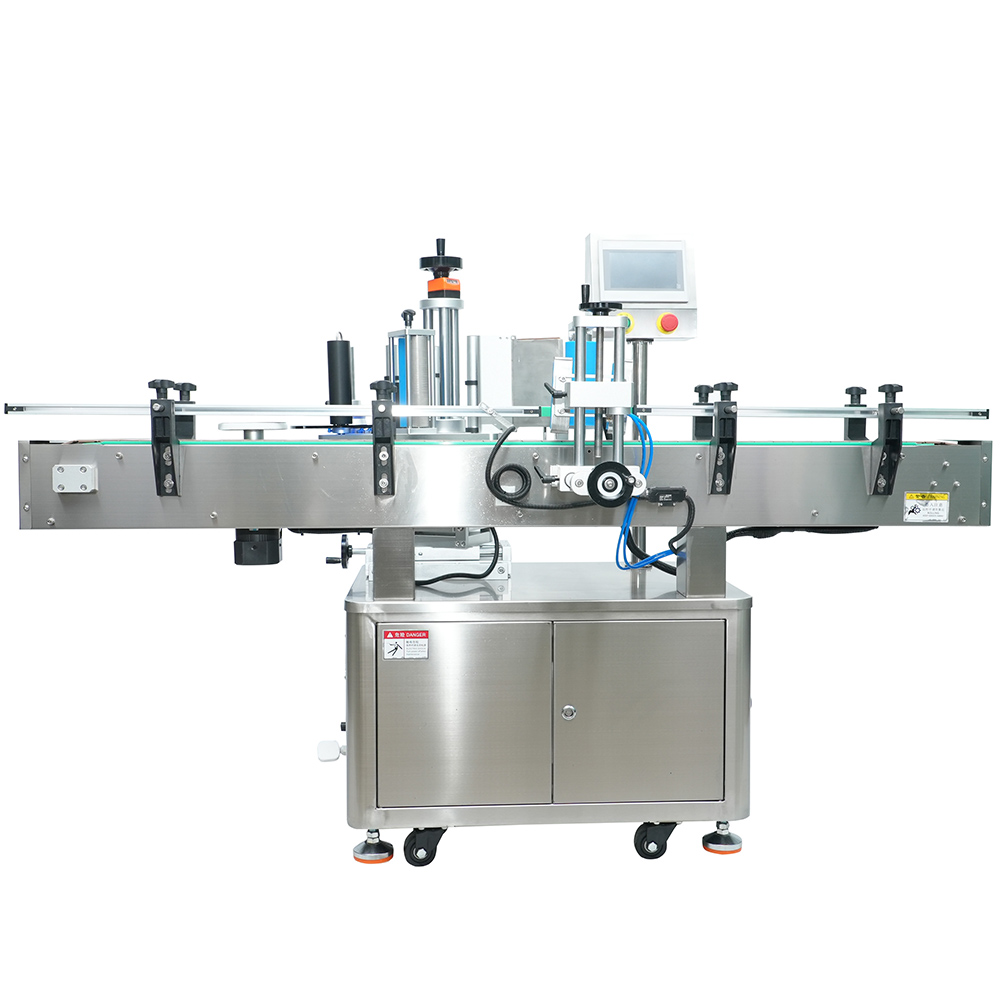

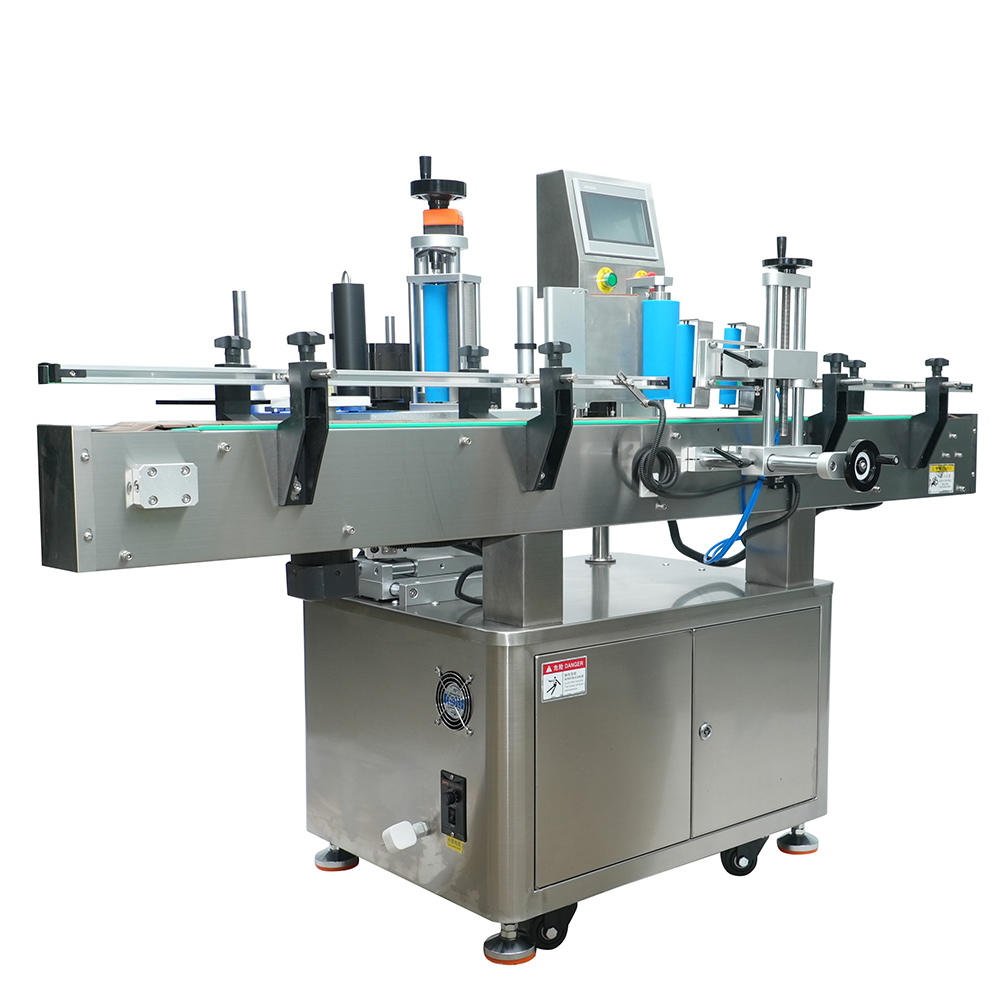

YCT-611 fully automatic positioning round bottle labeling machine
Model: YCT-611
Product Size: Ø25-100 mm, H 25-150 mm
Label Size: L 20-380 mm, W(H) 20-130 mm
Voltage: 220V / 50(60)Hz
Power: 865 W
Optional: Ribbon coding, bottle feeding, collection, line integration
The YCT-611 fully automatic positioning round bottle labeling machine is built for manufacturers that need more than basic wrap-around labeling. In many industries, especially cosmetics, wine, pharmaceutical, food, beverage, and chemical packaging, the label must be applied in a precise position to match brand presentation, product orientation, or regulatory layout requirements.
This automatic positioning labeling machine is suitable for cylindrical and conical containers of different sizes and supports multiple labeling modes, including full-wrap labeling, half-wrap labeling, and front-and-back dual labeling. It is designed for businesses that want stable performance, easy adjustment, and reliable OEM customization for local market needs.
Cosmetic round bottles
Red wine bottles
Medicine bottles
Conical bottles
Plastic bottles
PET round bottles
Food cans
Beverage bottles
Gel water bottles
Daily chemical round containers
Cosmetics and personal care
Food and beverage
Winemaking and spirits
Pharmaceutical and healthcare
Chemical industry
Household product packaging
Suitable for products that require a complete wrap-around label on cylindrical or slightly conical bottles. This labeling mode is commonly used for beverages, cosmetics, and food packaging.
Suitable for semicircle label applications where full circumference coverage is not necessary. This is common in promotional packaging and specific brand display formats.
The machine can apply two labels to the front and back of the same round product. The spacing between the front and back labels can be adjusted according to product and branding requirements.
For products that require label placement in an exact direction, the YCT-611 uses a positioning method to help achieve more accurate and repeatable results.
The YCT-611 offers ±1 mm labeling tolerance, making it a strong choice for manufacturers that need precise placement and professional packaging appearance.
This machine can handle both straight round bottles and tapered containers within the supported size range, giving buyers more flexibility than many basic round bottle labelers.
The machine uses a Japan Panasonic control system with high stability and a low failure rate, helping reduce downtime in continuous production environments.
The touch screen interface is easy to understand and convenient for parameter setting, monitoring, and production counting. Chinese and English are available for easier global operation.
The machine uses a German LEUZE / Italian Datalogic label sensor and a Japanese Panasonic product sensor to improve label detection and product positioning performance.
If problems such as label spilling, broken labels, or machine malfunction occur, the machine can give an alarm to help operators respond quickly.
The machine and key spare parts use stainless steel and anodized senior aluminum alloy for strong corrosion resistance and long-term durability.
A voltage transformer is included to better adapt the machine to local voltage requirements in overseas markets.
Input signals from the product sensor and label sensor are processed by the PLC. The PLC then outputs signals to control the traction motor and solenoid valve, which start the positioning labeling action.
Bottles are transmitted from the filling line
A bottle-separating device spaces the bottles one by one
The product sensor detects the bottle
The PLC receives the signal
The air cylinder moves forward and labeling starts
The label is applied and pressed onto the bottle
The air cylinder moves back
The conveyor sends the labeled bottles to the collection or downstream line
No. | Structure | Function |
|---|---|---|
1 | Double Side Guardrails | Keep bottles moving straight and can be adjusted according to bottle diameter. |

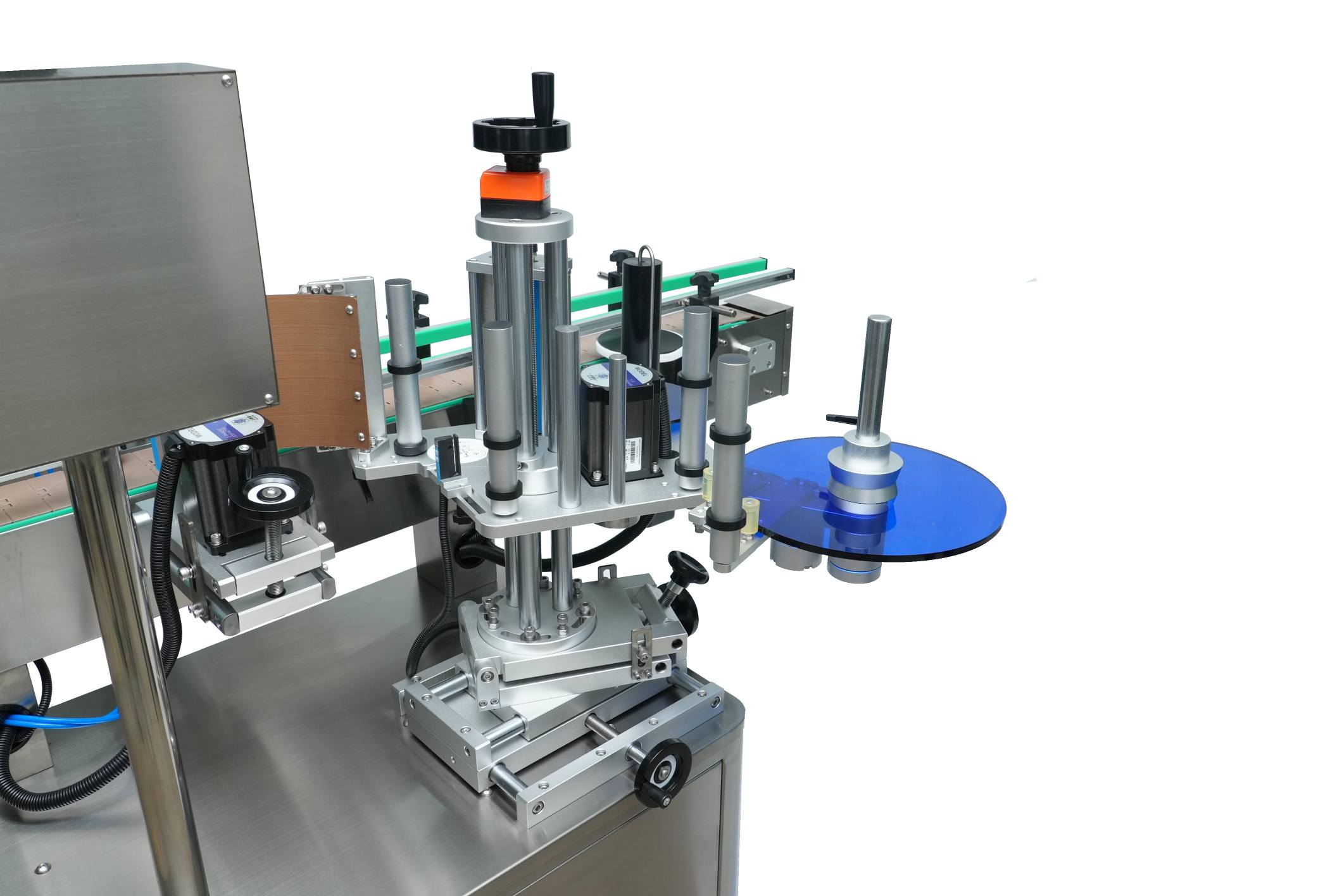

2 | Labeling Head | Core structure including label winding and driving system. |
3 | Touch Screen | Used for operation and parameter setting. |
4 | Collection Plate | Collects labeled products. |
5 | Strengthening Sponge Roller | Presses labels firmly onto the product surface. |

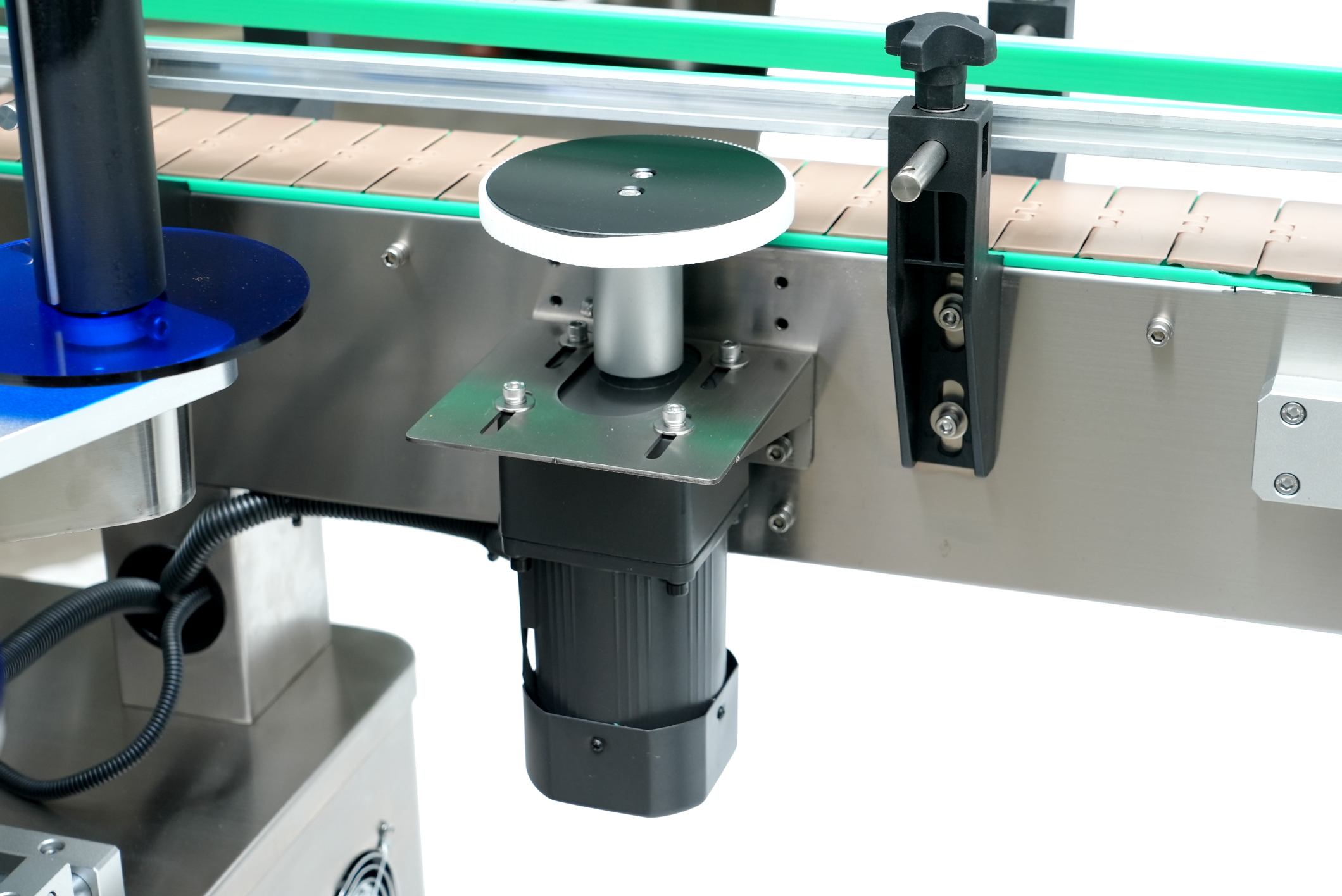

6 | Spacing Wheel | Keeps distance between products for stable labeling timing. |
7 | Emergency Stop | Stops the machine in case of abnormal operation. |
8 | Electric Box | Houses electrical configurations. |
9 | Rotary Belt | Rotates the product during labeling. |
10 | Bottle-Fixing Cylinder | Fixes the product in position during labeling. |
11 | Filter | Filters water and impurities. |
12 | Adjusters | Used to adjust labeling position. |
13 | Rotary Roller | Assists product rotation during labeling. |
Item | Specification |
|---|---|
Model | YCT-611 |
Machine Type | Fully Automatic Positioning Labeling Machine |
Label Type | Adhesive sticker, transparent or opaque |
Labeling Tolerance | ±1 mm |
Capacity | 25-60 pcs/min |
Suitable Product Size | Ø25-100 mm, H 25-150 mm, can be customized |
Suitable Label Size | L 20-380 mm, W(H) 20-130 mm |
Machine Size | 1950 × 1200 × 1450 mm |
Packing Size | 2000 × 1250 × 1500 mm |
Voltage | 220V / 50(60)Hz, can be customized |
Power | 865 W |
Net Weight | 185 kg |
Gross Weight | 220 kg |
Label Roll | ID: Ø76 mm; OD: ≤260 mm |
Note: Product size, label size, voltage, and some configuration details can be customized according to actual project requirements.
The gap between one label and the next should be 2-3 mm.
The distance between the label edge and the liner edge should be 2 mm.
The label liner is recommended to be glassine paper with good toughness to reduce the risk of breakage.
The inner diameter of the core should be 76 mm.
The outer diameter should be within the supported machine range and arranged in a single row.
Final label specifications should be confirmed with YCTAUTO engineers based on your actual bottle and labeling application.
Optional automatic rotary bottle feeding unit
Direct connection with existing production lines
Optional ribbon coding for production date, expiration date, and batch number
Automatic feeding function based on product consideration
Automatic collection function based on product consideration
Additional labeling device for expanded labeling applications
These options help buyers build a more complete labeling solution for OEM projects, multi-SKU packaging, and factory automation upgrades.
YCTAUTO supports OEM and project-based customization for customers who need the machine to match their actual bottle, label, and production line requirements. This includes bottle size range, label size compatibility, voltage adjustment, coding options, bottle feeding systems, product collection modules, and complete production line integration.
If you are a distributor, contract packer, factory owner, or brand manufacturer, you can send your bottle sample, label drawing, and production target to our team for evaluation.
Professional manufacturer of labeling, filling, and packaging equipment
More than 15 years of industry experience
Trusted by customers in 50+ countries
Practical machine recommendations based on real application needs
Machine testing before shipment
OEM and customization support
Remote commissioning and after-sales assistance
Please send the following information for a faster and more accurate quotation:
Bottle photo and bottle material
Bottle diameter and height
Label length and width
Required labeling mode: full-wrap, half-wrap, or front-and-back dual labeling
Required labeling position or orientation details
Target production speed
Label roll specification
Production line layout if line integration is required
Voltage standard in your country
The YCT-611 is suitable for cylindrical and conical bottles, including cosmetic bottles, wine bottles, medicine bottles, PET round bottles, plastic bottles, food cans, and beverage bottles.
Yes. The YCT-611 is designed for both cylindrical and conical products within the supported size range.
The machine supports full-wrap labeling, half-wrap labeling, front-and-back dual labeling, and positioning labeling for round bottle applications.
The labeling tolerance is ±1 mm, making it suitable for products that require precise label positioning and professional appearance.
The standard capacity is 25 to 60 pieces per minute, depending on bottle size, label size, and actual line conditions.
Yes. An optional ribbon coding machine can print production date, expiration date, and batch number online.
Yes. The machine can be directly connected to a production line to realize automatic bottle feeding and improve overall production efficiency.
The machine is suitable for adhesive sticker labels, either transparent or opaque. Label roll specifications and label material should be confirmed according to the bottle and application.
The standard label roll specification is an inner diameter of 76 mm and an outer diameter up to 260 mm.
Yes. YCTAUTO supports OEM customization for bottle size, label size, voltage, coding options, bottle feeding, collection modules, and production line integration.
