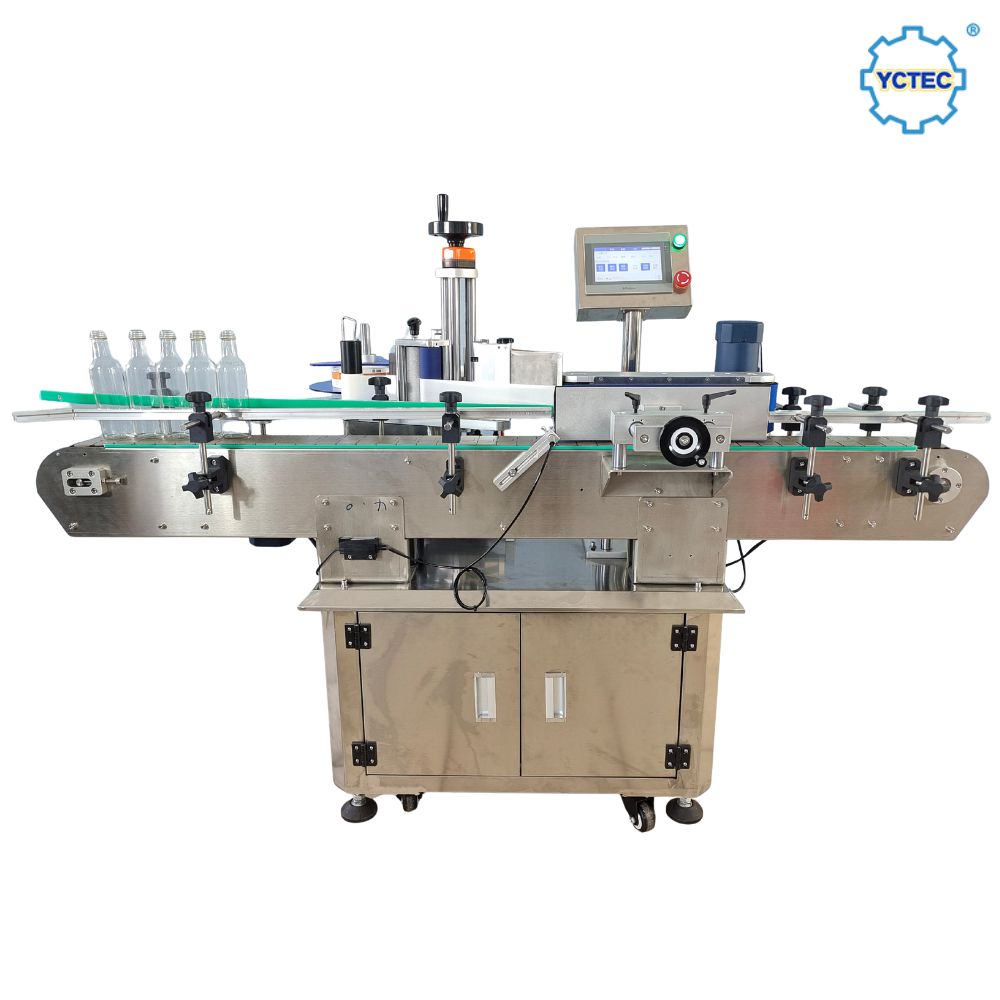

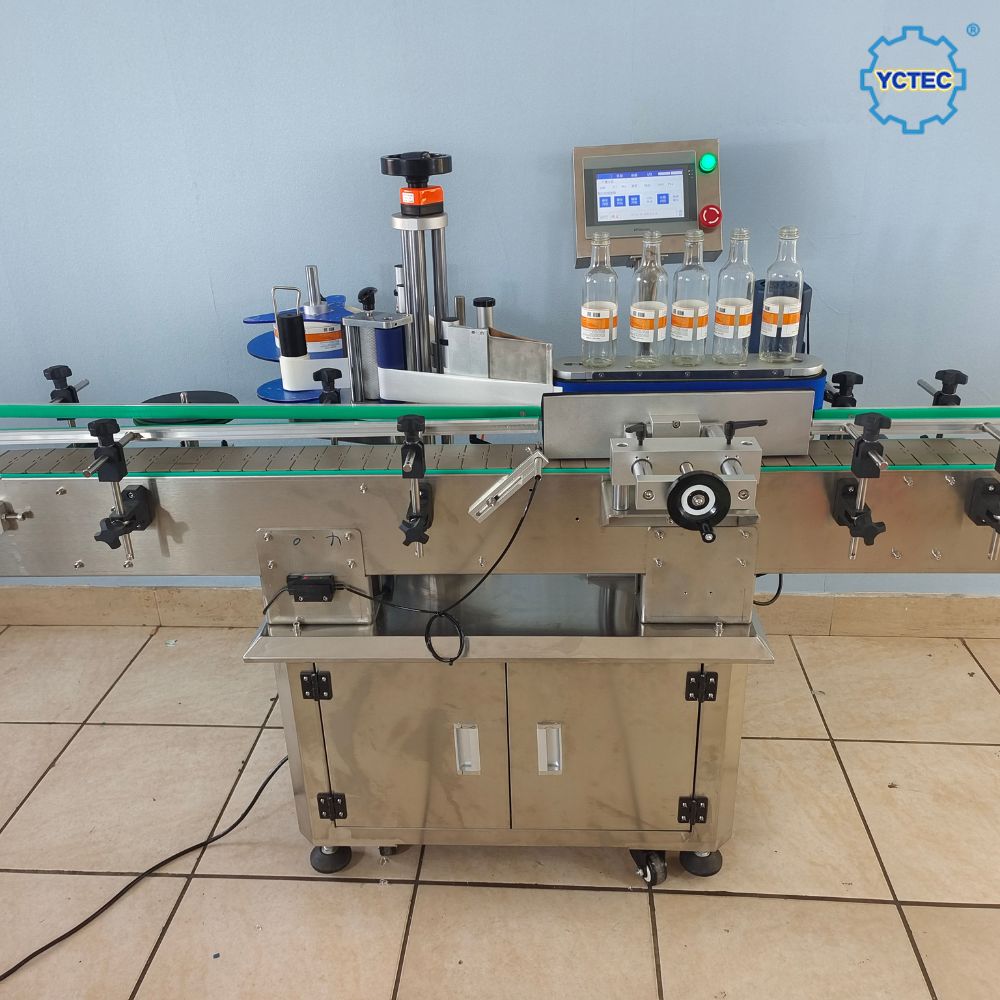

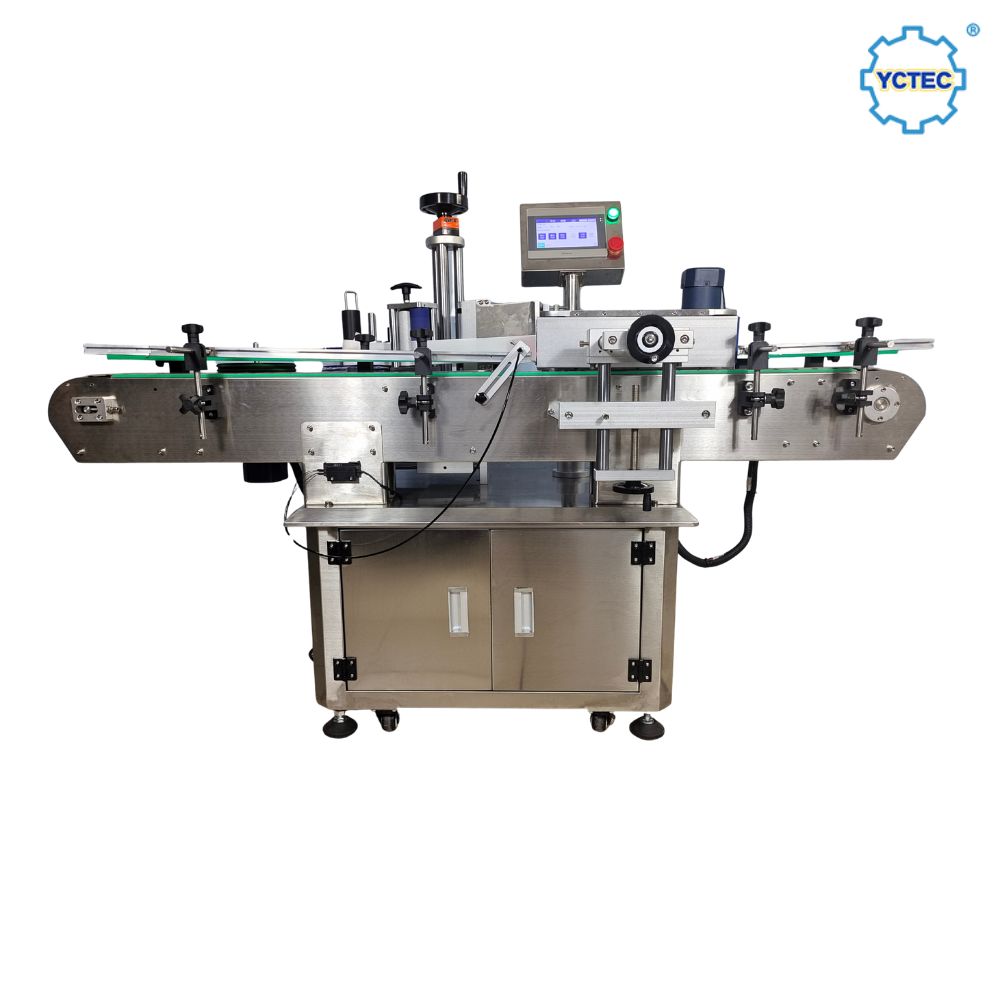

Apply precise, wrinkle-free labels to round bottles from Ø30mm to Ø100mm at up to 80 pieces per minute. The YCT-211 rotary labeling machine handles full or half-circle wrap-around labeling for beverage, pharmaceutical, food, and chemical bottles — with optional automatic bottle feeding and inline date/batch coding to streamline your packaging line.
Round bottles are the most common — and most demanding — labeling challenge in liquid, pharmaceutical, food, and chemical packaging. A label that sits even slightly off-center, wrinkles at the seam, or can't keep pace with your filling line creates rework, slows your production, and can even trigger compliance rejections in export shipments. The YCT-211 Automatic Rotary Round Bottle Labeling Machine is built to solve exactly this: consistent, accurate wrap-around and half-circle labeling on round containers, running reliably shift after shift.
Designed and manufactured by Dongguan Yucheng Machinery Technology Co., Ltd. (YCT Machinery), the YCT-211 is engineered for manufacturers who need dependable, repeatable labeling across a wide range of round bottle sizes — without constant manual adjustment or line stoppages.
Parameter | Specification |
Labeling Accuracy | ±1mm (variance from product/label tolerance not included) |
Labeling Speed | About 80 pcs/min (varies with product and label size) |
Applicable Bottle Diameter | Ø30mm – Ø100mm |
Applicable Bottle Height | 25mm – 230mm |
Suitable Label Length | 20mm – 270mm |
Suitable Label Width | 15mm – 120mm |
Label Roll Inner Diameter | Ø76mm |
Label Roll Outer Diameter | Ø300mm |
Power Supply | 220V / 50Hz |
Power | 650W |
Machine Dimensions (L×W×H) | 2030mm × 1120mm × 1350mm |
Weight | About 185kg |
Bottle diameter and height range can be adjusted based on your product sample — contact our team with your bottle specs for a tailored configuration.
Broad bottle compatibility without machine changeover. Covering diameters from 30mm to 100mm and heights from 25mm to 230mm, the YCT-211 adapts to a wide span of round bottle formats — from compact vials to taller beverage and chemical containers — reducing the need for multiple dedicated machines on your line.
Full or half-circle labeling in one machine. The YCT-211 applies both complete wrap-around labels and half-circle (semi-circumferential) labels, giving you flexibility to match different label designs and branding requirements without additional equipment.
Consistent ±1mm labeling accuracy. Servo-driven positioning keeps labels straight and aligned batch after batch, minimizing the wrinkles, skew, and rework that slow down manual or lower-precision labeling processes.
Scalable automation, at your pace. Start with standalone operation, then add the optional automatic rotary bottle feeding unit when you're ready to remove manual bottle loading from the process — or connect the YCT-211 directly into your existing production line for fully automated infeed.
Labeling and coding in a single pass. With the optional ribbon coding unit, the YCT-211 prints manufacture date, expiry date, and batch number directly during the labeling cycle — cutting out a separate coding step and reducing bottle handling.
Built for cross-industry export standards. The YCT-211 is suitable for beverage, pharmaceutical, food, and chemical industry bottle labeling, making it a practical fit for manufacturers serving multiple product lines or export markets with varying packaging requirements.
Beverage bottles (juice, water, functional drinks, sauces)
Pharmaceutical bottles and containers requiring precise, compliant labeling
Food packaging bottles and jars
Chemical and daily-use product bottles
Round containers requiring full wrap-around or half-circle label placement
Bottles are loaded manually or fed automatically via the optional rotary bottle feeder, or supplied directly from your upstream production line.
The rotary labeling head positions and dispenses the label as the bottle rotates, applying full wrap-around or half-circle coverage per your label design.
If configured, the ribbon coder prints the date and batch code on the label or bottle during the same pass.
Labeled bottles exit the machine ready for the next packaging step, at speeds of approximately 80 pieces per minute.
YCT Machinery manufactures under ISO 9001:2015 quality management standards, and our labeling equipment is CE certified for international export. Third-party inspection reports (SGS/TÜV) are available on request for buyers who need pre-shipment verification. Every YCT-211 unit is backed by our 24-hour response guarantee for technical support and spare parts inquiries — because downtime on your labeling line shouldn't mean downtime on your production schedule.
Have a specific bottle shape, size, or throughput target in mind? Send us your bottle and label dimensions, and our engineering team will confirm whether the YCT-211 fits your line as-is or recommend the right configuration.
1. What bottle sizes can the YCT-211 handle?
The standard configuration covers bottle diameters from Ø30mm to Ø100mm and heights from 25mm to 230mm. If your bottles fall outside this range, send us your sample dimensions — we can adjust the machine configuration to match your specific bottle size.
2. Does the YCT-211 apply full wrap-around labels or just half-circle labels?
The YCT-211 is capable of both full circumferential wrap-around labeling and half-circle (semi-circumferential) labeling, depending on your label design and product requirements.
3. Can this machine automatically feed bottles, or do I need to load them manually?
Manual loading is standard, but an optional automatic rotary bottle feeding unit is available. The YCT-211 can also be connected directly to an existing production line for fully automated bottle infeed, which further improves throughput.
4. Can the machine print the production date and batch number on the label?
Yes. With the optional ribbon coding unit, the YCT-211 can print the date of manufacture, expiry date, and production batch number inline during the labeling process, eliminating a separate coding step.
5. What label roll sizes are compatible with the YCT-211?
The machine is designed for label rolls with a 76mm inner diameter and up to a 300mm outer diameter, with suitable label dimensions of 20-270mm in length and 15-120mm in width.
6. What industries is the YCT-211 suitable for?
This machine is used across beverage, pharmaceutical, food, and chemical industry bottle labeling applications, making it suitable for manufacturers with diverse product lines or multiple bottle types.
7. Is the YCT-211 suitable for export shipments requiring certification documentation?
The YCT-211 is manufactured under ISO 9001:2015 standards and is CE certified. We can also arrange third-party inspection (SGS/TÜV) prior to shipment upon request — let us know your destination market's requirements when requesting a quote.
8. What kind of after-sales support comes with the machine?
YCT Machinery provides a 24-hour response guarantee for technical questions, troubleshooting, and spare parts requests. Our team can also assist remotely with setup and changeover guidance for new bottle or label formats.
9. How fast can the YCT-211 label bottles?
Under standard conditions, the YCT-211 runs at approximately 80 pieces per minute. Actual speed will vary depending on your specific bottle size and label dimensions.
10. Can I request a demo or video test with my own bottles before ordering?
Yes — contact our team with your bottle and label specifications, and we can discuss arranging a specification review or test run reference to confirm fit before you commit to an order.
