YCT-601 is a fully automatic round bottle labeling machine designed for cylindrical and conical products such as cosmetic bottles, wine bottles, medicine bottles, PET round bottles, plastic bottles, and food cans. It supports full-wrap, half-wrap, and front-and-back dual labeling with stable performance, simple adjustment, and OEM customization support.
Get a Quote Email Our Team WhatsApp Us
Quick Answer for Buyers: The YCT-601 is an automatic round bottle labeling machine for cylindrical and conical bottles. It uses a sponge belt rolling labeling method and supports full-wrap labeling, half-wrap labeling, and front-and-back dual labeling with ±1 mm labeling tolerance and a standard output of 30-80 pcs/min.
Machine Type: Fully Automatic Rolling Labeling Machine
Suitable Bottles: Cylindrical and conical bottles
Labeling Modes: Full-wrap, half-wrap, front-and-back dual labeling
Accuracy: ±1 mm
Speed: 30-80 pcs/min
Industries: Food, cosmetics, wine, medicine, beverage, chemical

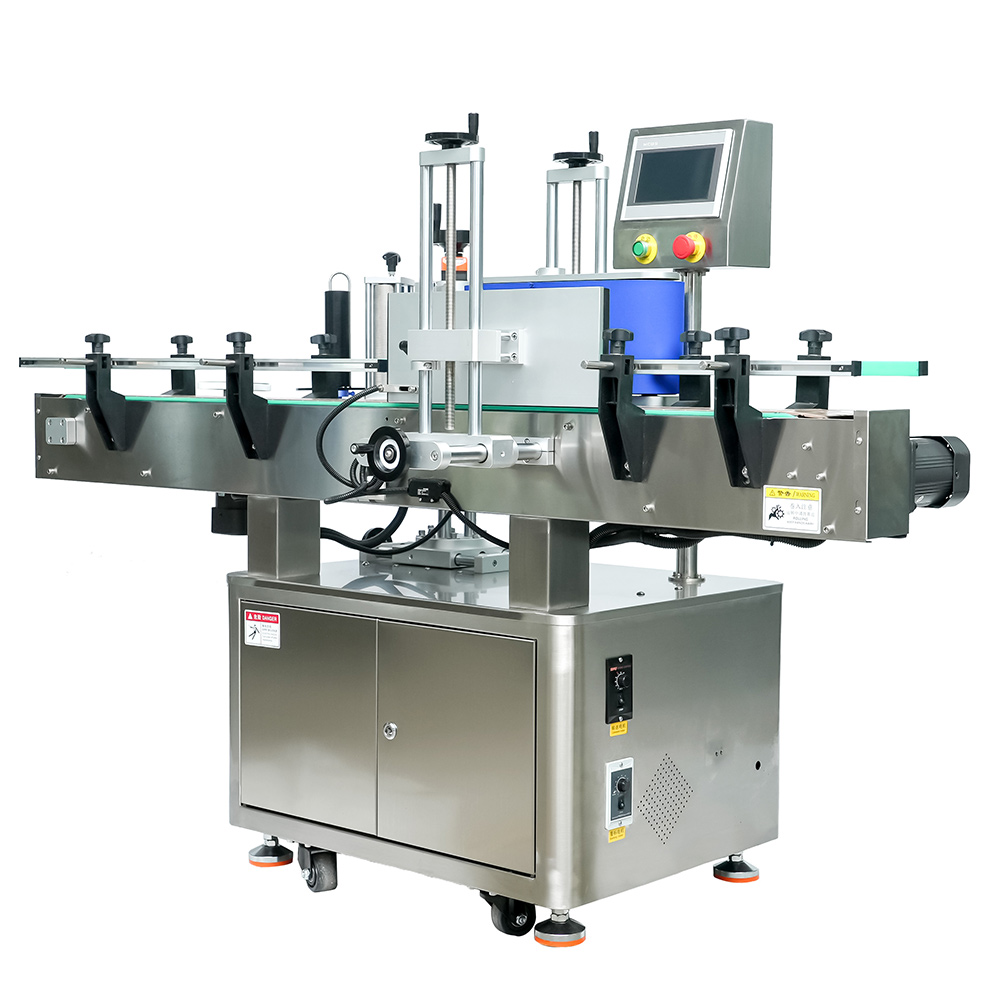

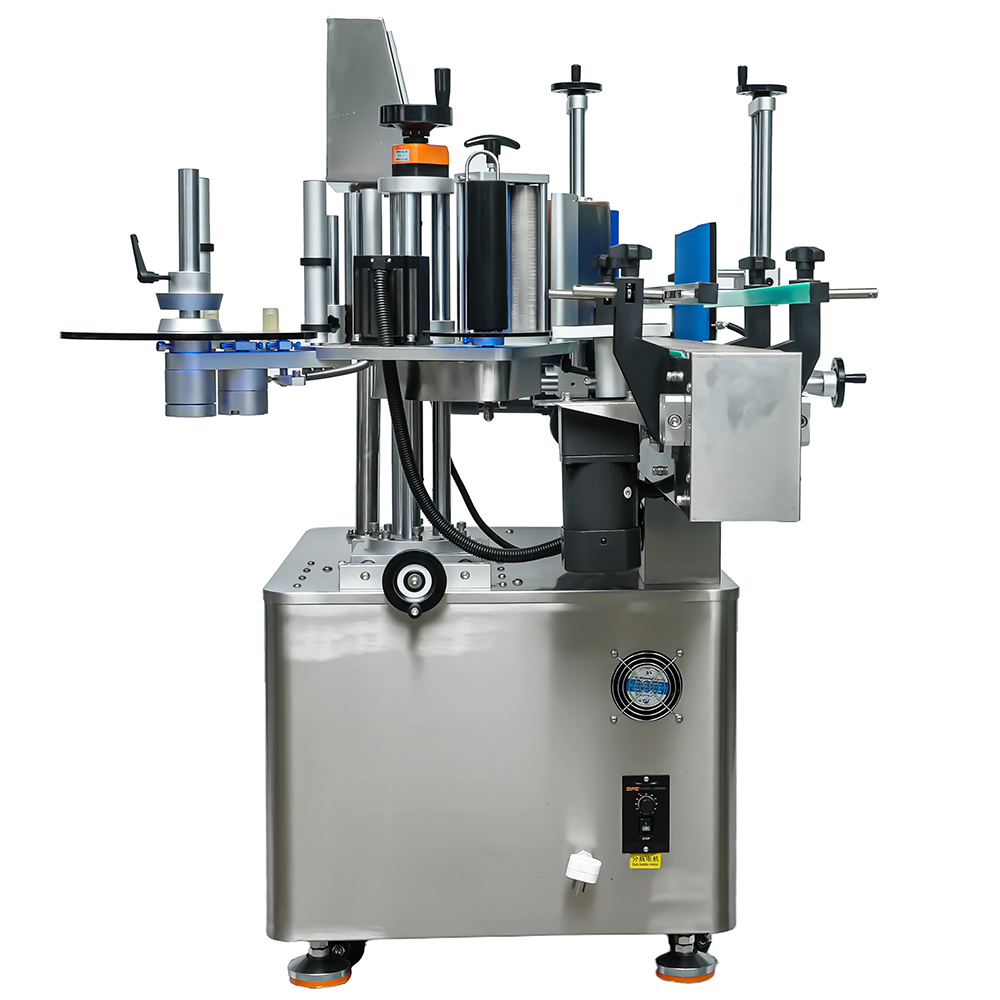

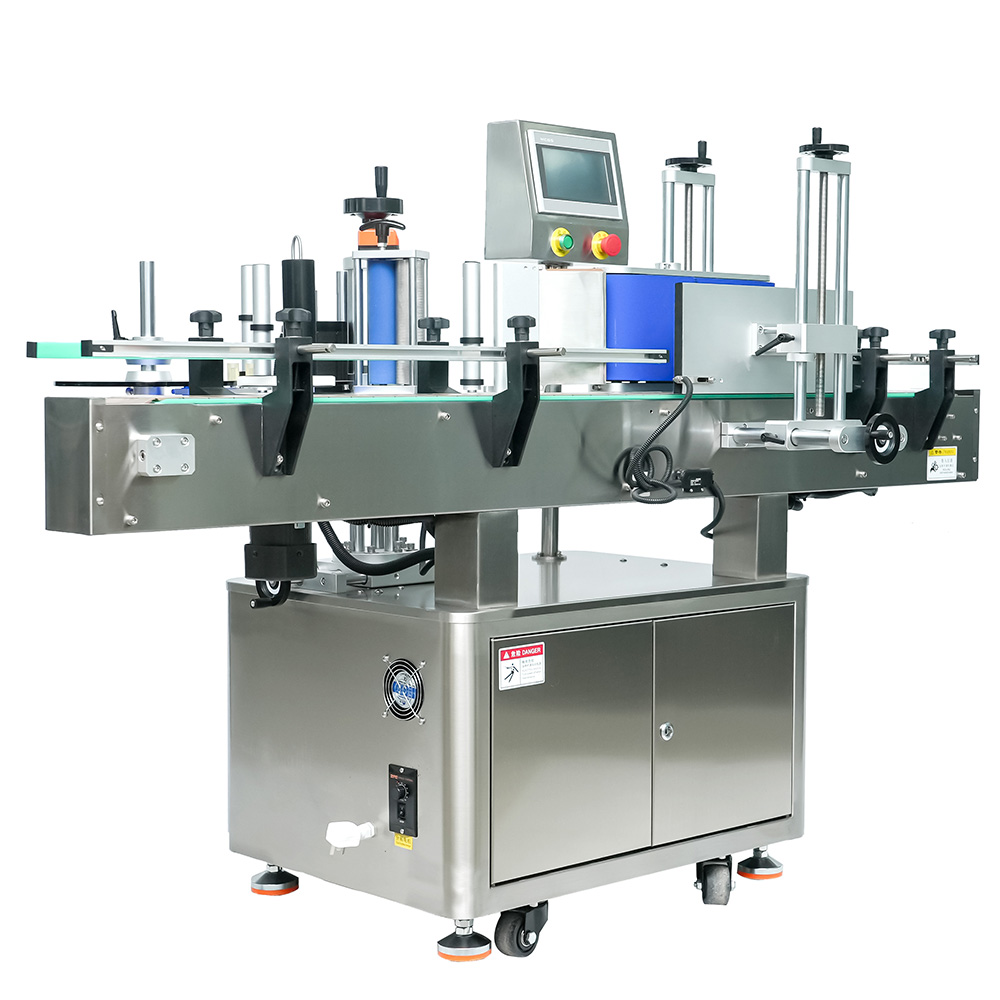

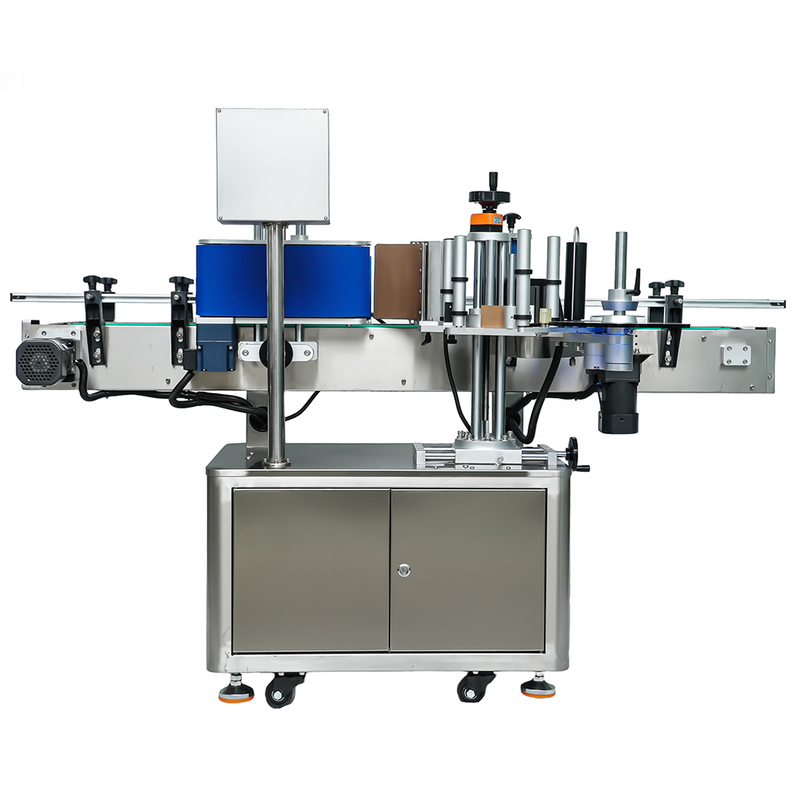

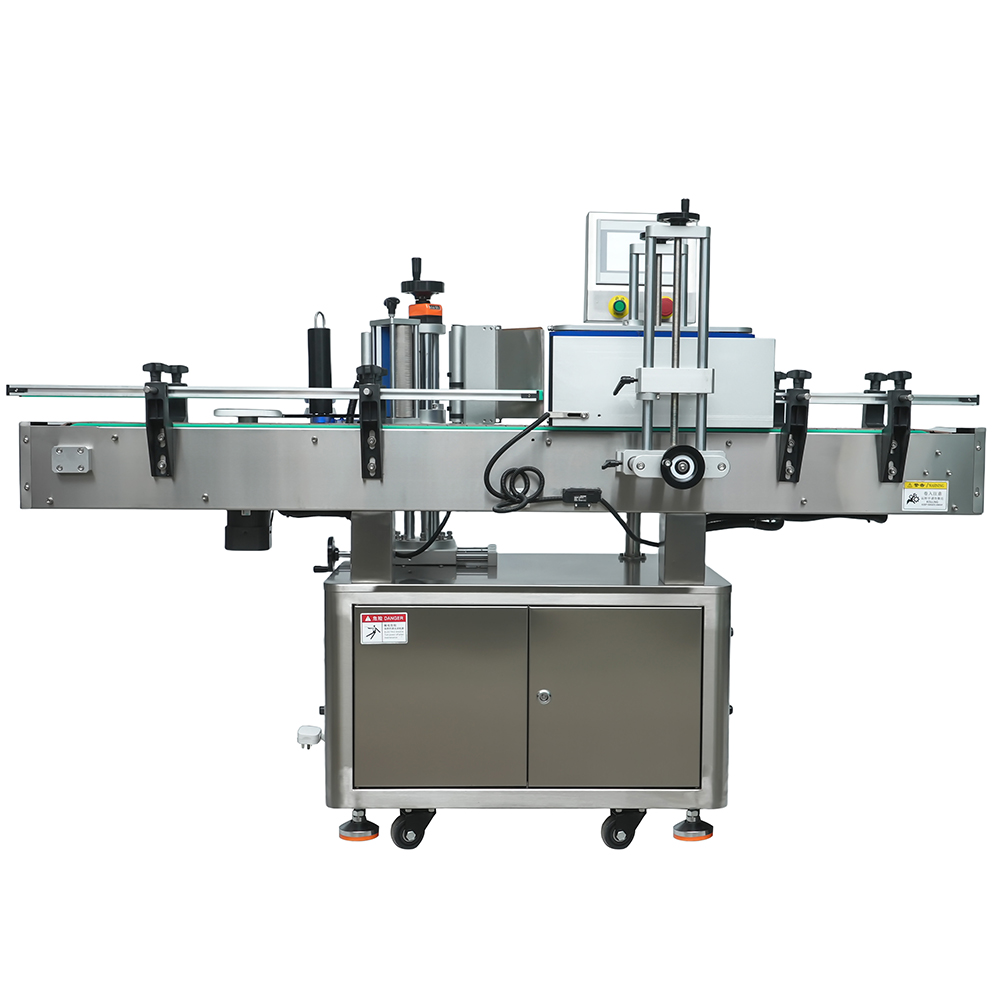

YCT-601 fully automatic rolling round bottle labeling machine
Model: YCT-601
Product Size: Ø25-100 mm, H 25-150 mm
Label Size: L 20-380 mm, W(H) 15-100 mm
Voltage: 220V / 50(60)Hz
Power: 655 W
Optional: Ribbon coding, bottle feeding, collection, line integration
The YCT-601 fully automatic rolling labeling machine is built for manufacturers that need a reliable and efficient solution for labeling round bottles and conical containers. It is suitable for many common packaging applications where consistent label placement, stable production speed, and easy changeover are important.
This automatic round bottle labeling machine is widely used for cosmetic round bottles, wine bottles, medicine bottles, PET bottles, plastic bottles, and food cans. With its sponge belt rolling labeling method, the machine helps apply labels smoothly while maintaining stable product rotation and high labeling consistency.
Cosmetic round bottles
Red wine bottles
Medicine bottles
Conical bottles
Plastic bottles
PET round bottles
Food cans
Beverage bottles
Daily chemical bottles
Food and beverage
Cosmetics and personal care
Wine and spirits
Pharmaceutical and healthcare
Chemical industry
Household product packaging
Suitable for products that require full circumference labeling on cylindrical bottles. This labeling mode is commonly used for beverages, cosmetics, medicine bottles, and food containers.
Suitable for semicircle label applications where partial circumference coverage is required. This mode is commonly used for promotional packaging and selected brand display formats.
The YCT-601 can apply two labels to the front and back of the same round product. The spacing between the two labels can be adjusted easily according to label layout and branding requirements.
The machine adopts a sponge belt labeling method, which helps rotate the bottle smoothly during labeling and contributes to stable wrap-around label application.
The YCT-601 offers ±1 mm labeling tolerance, making it a practical choice for products that require high yield and a professional finished appearance.
The adjustment method is simple, making it easier for operators to adapt the machine to different bottle sizes and label formats while reducing changeover time.
The machine uses a Japan Panasonic control system with high stability and an extremely low failure rate, helping support reliable long-term operation.
The touch screen offers a direct visual interface for easy operation. Chinese and English are available, and operators can easily adjust electrical parameters and use the counting function for production management.
The machine uses a German LEUZE / Italian Datalogic label sensor and a Japanese Panasonic product sensor to improve label and product detection, helping ensure accurate and stable labeling.
If issues such as label spilling, broken labels, or other malfunctions occur, the machine can provide an alarm to help operators respond quickly.
The machine and spare parts use stainless steel and anodized senior aluminum alloy, offering corrosion resistance and long service life.
A voltage transformer is equipped to help adapt the machine to local voltage requirements in different export markets.
The label sensor and product sensor send signals to the PLC. After signal processing, the PLC sends instructions to different parts such as motors, and the labeling process starts automatically.
Feeding the bottles, which can be connected to an assembly line
Spacing the bottles for consistent labeling timing
Detecting the bottle and the label position
Applying the label during bottle rotation
Collecting the labeled products
Structure | Function |
Double Side Guardrails | Keep bottles moving straight and can be adjusted according to bottle diameter. |

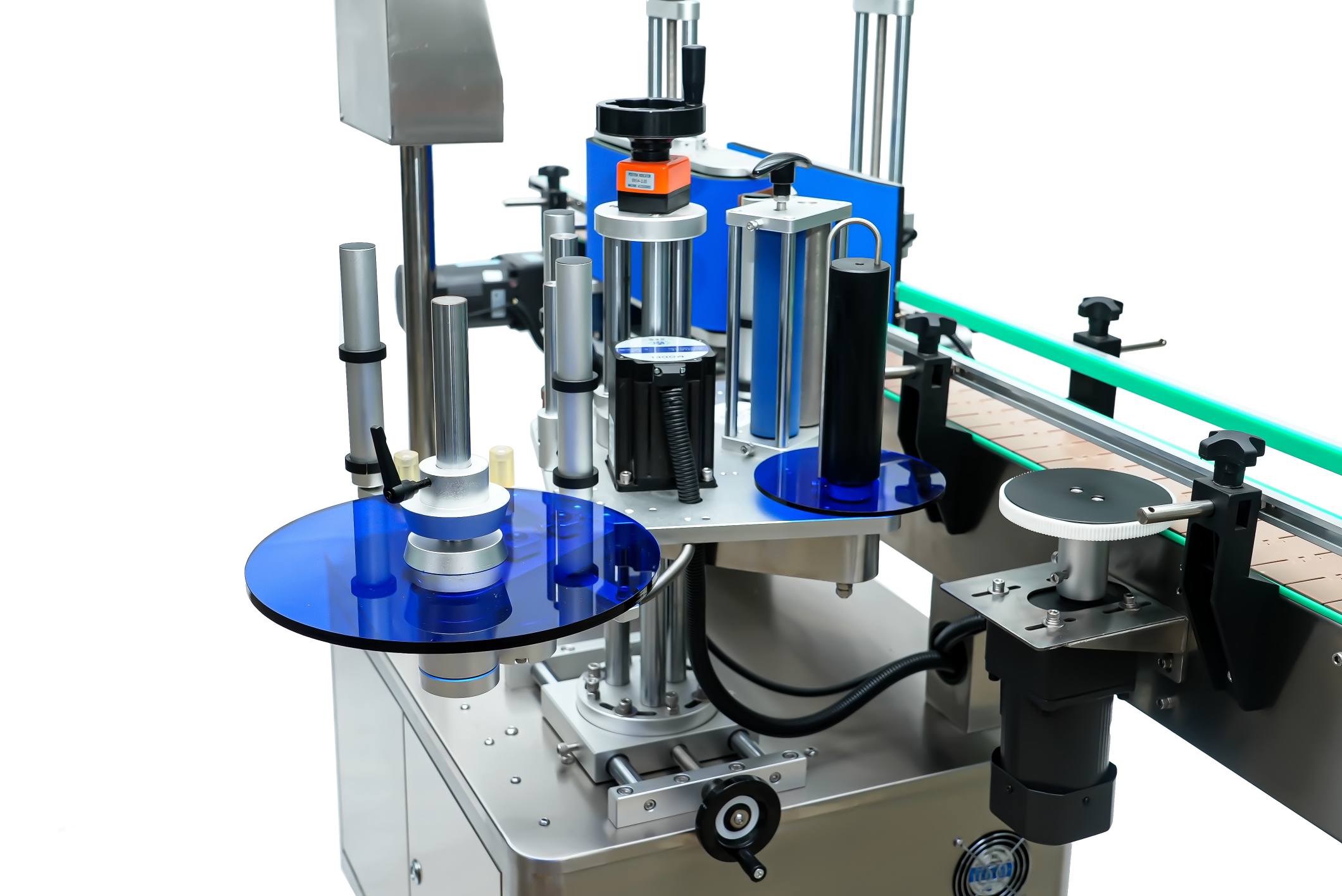

Labeling Head | Core structure including label winding and driving system. |

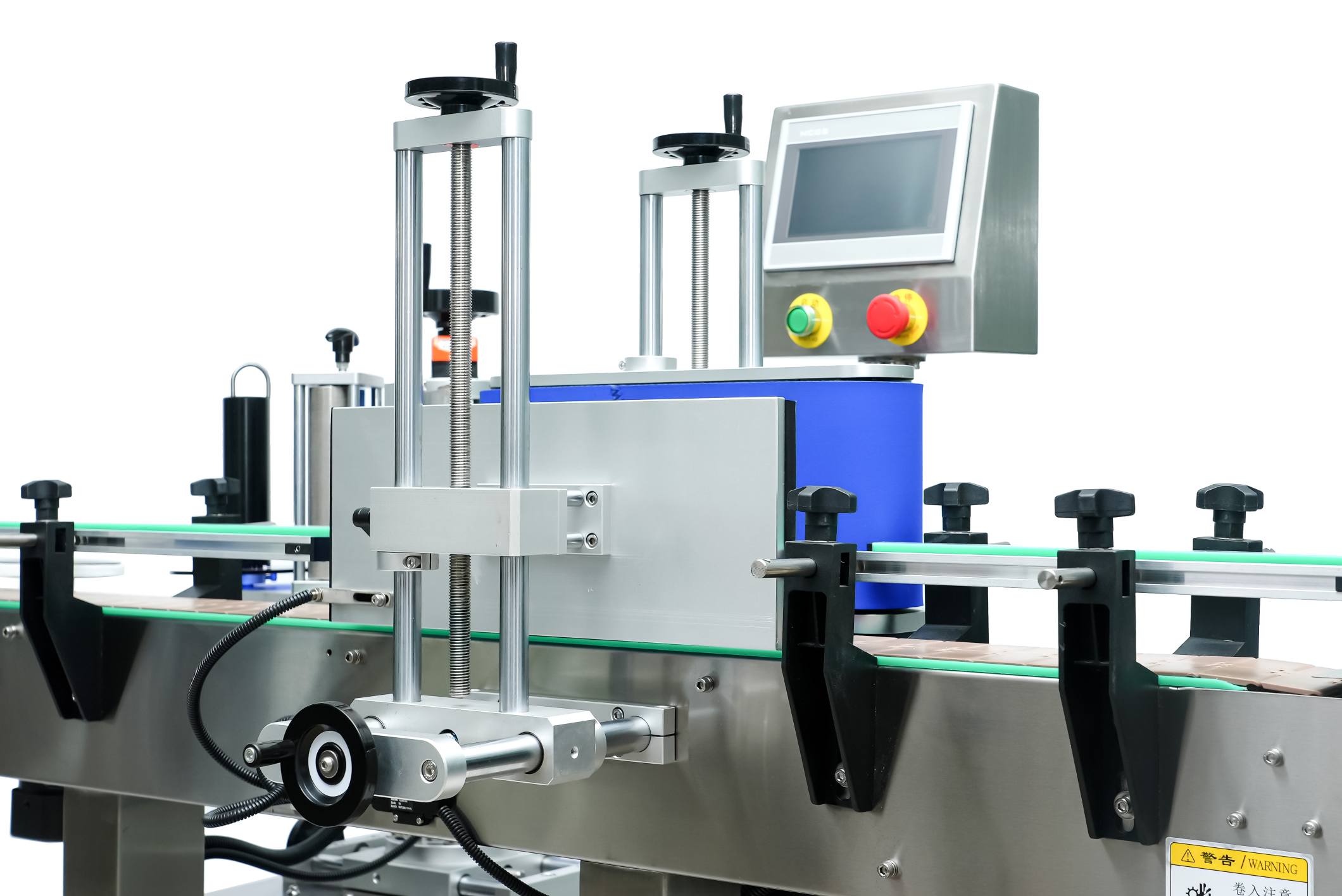

Touch Screen | Used for operation and parameter setting. |
Collection Plate | Collects labeled products. |
Strengthening Sponge Roller | Presses labels firmly onto the product surface. |
Spacing Wheel | Keeps distance between products for stable labeling timing. |
Emergency Stop | Stops the machine in case of abnormal operation. |

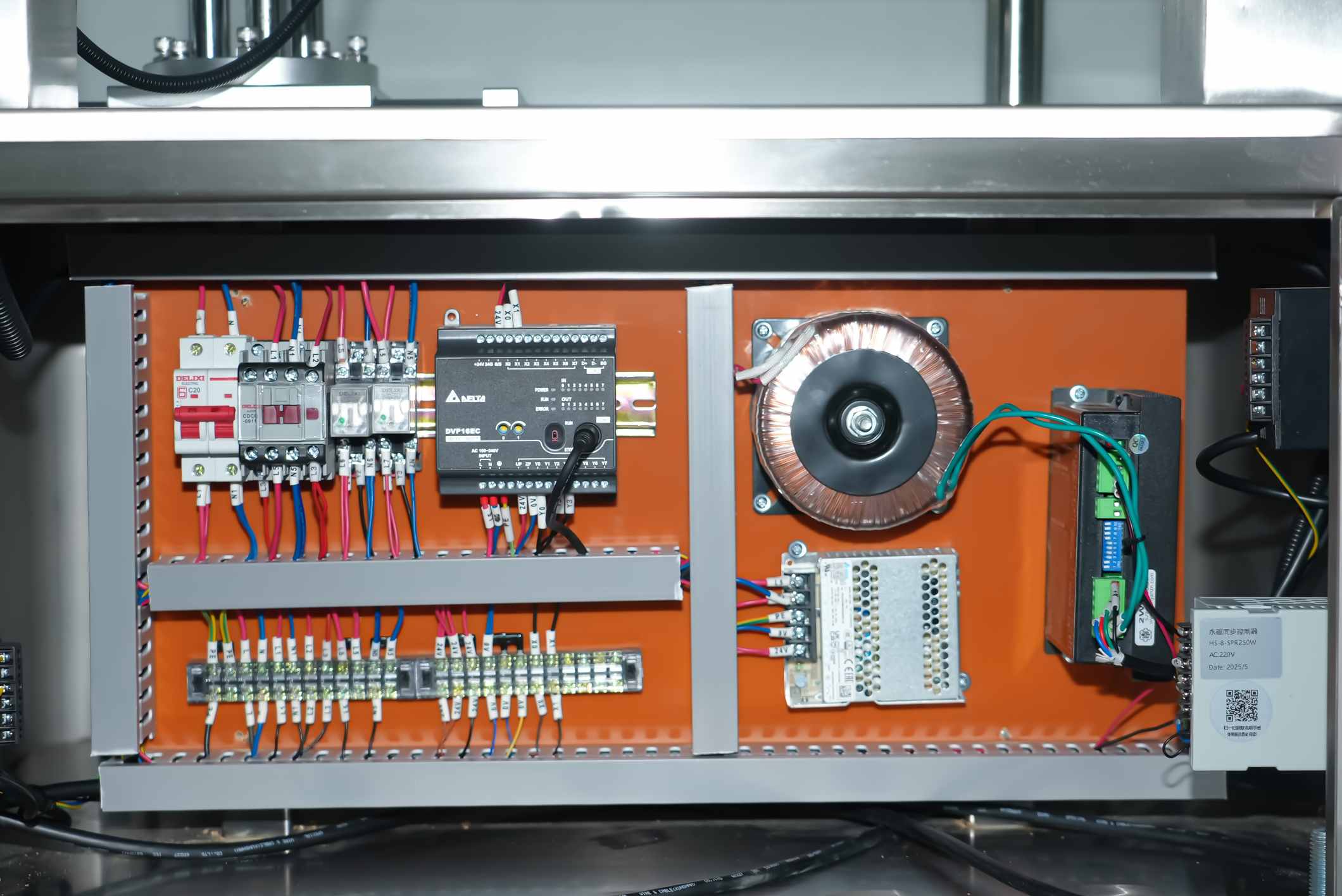

Electric Box | Houses electrical configurations. |

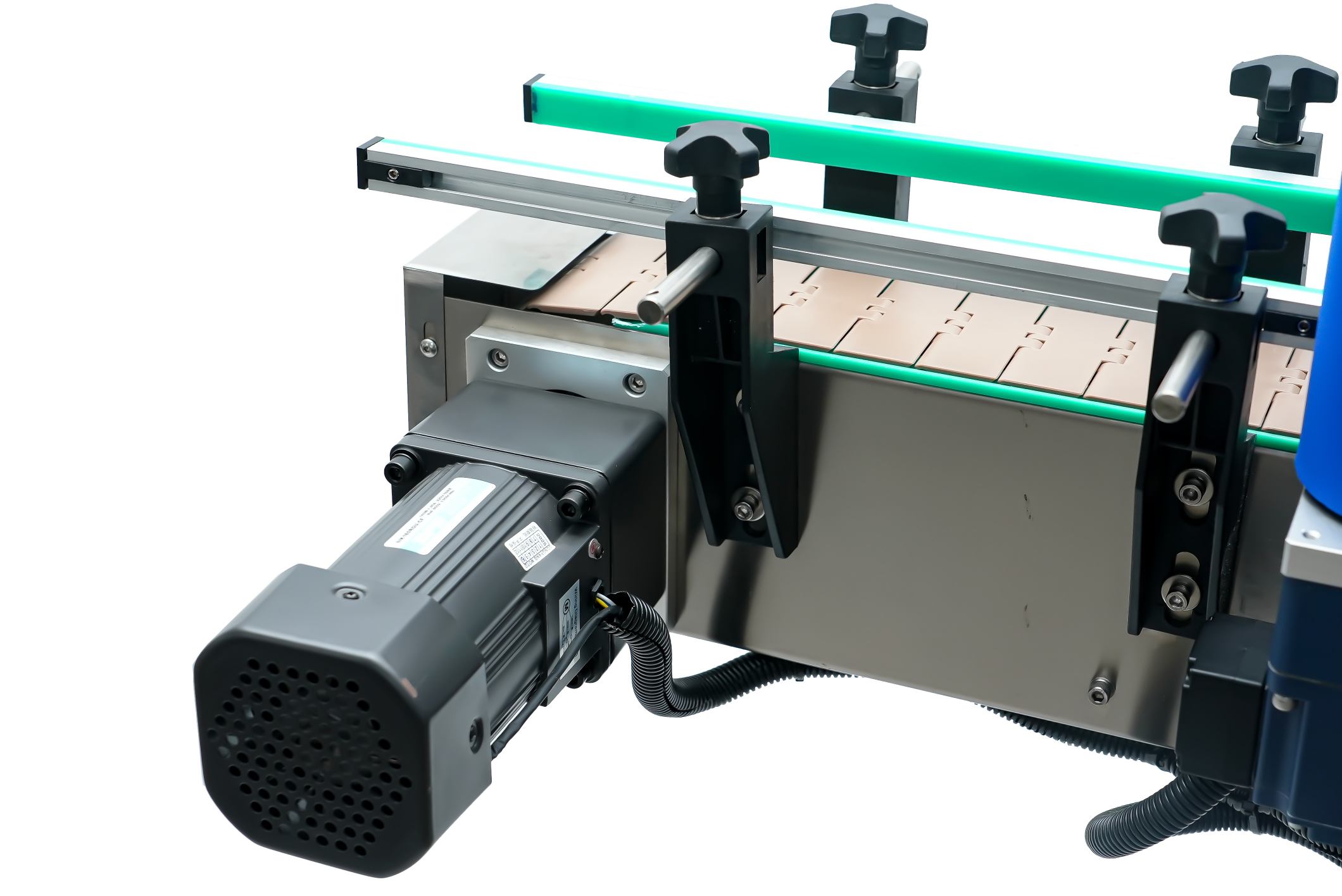

Rotary Belt | Driven by a motor to rotate products while labeling. |
Item | Specification |
Model | YCT-601 |
Machine Type | Fully Automatic Rolling Labeling Machine |
Label Type | Adhesive sticker, transparent or opaque |
Labeling Tolerance | ±1 mm |
Capacity | 30-80 pcs/min |
Suitable Product Size | Ø25-100 mm, H 25-150 mm, can be customized |
Suitable Label Size | L 20-380 mm, W(H) 15-100 mm |
Machine Size | 1900 × 1100 × 1400 mm |
Packing Size | 1950 × 1150 × 1450 mm |
Voltage | 220V / 50(60)Hz |
Power | 655 W |
Net Weight | 165 kg |
Gross Weight | 210 kg |
Label Roll | ID: Ø76 mm; OD: ≤260 mm |
Note: Product size, label size, and machine configuration can be customized according to actual product and production requirements.
The gap between one label and the next should be 2-3 mm.
The distance between the label edge and the liner edge should be 2 mm.
The label liner is recommended to be glassine paper with good toughness to reduce the risk of breakage.
The inner diameter of the label roll core should be 76 mm.
The label roll should be arranged in a single row.
The outer diameter should comply with the machine specification, with a standard recommendation of up to 260 mm.
Final label specifications should be confirmed with YCTAUTO engineers according to your actual bottle and label application.
Optional automatic rotary bottle feeding machine
Direct connection with an existing production line
Optional ribbon coding for production date, expiration date, and batch number
Automatic feeding function based on product consideration
Automatic collection function based on product consideration
Additional labeling device for expanded labeling applications
Custom labeling machine support according to your product
These options help importers, distributors, and manufacturers build a more suitable labeling solution for OEM projects, new product launches, and line automation upgrades.
Professional manufacturer of labeling, filling, and packaging equipment
15+ years of industry experience
Export service for customers in 50+ countries
Practical machine recommendations based on bottle and label data
OEM and custom machine support
Machine testing before shipment
Remote technical support and after-sales service
Please send the following information for a faster and more accurate quotation:
Bottle photo and bottle material
Bottle diameter and height
Label length and width
Required labeling mode: full-wrap, half-wrap, or front-and-back dual labeling
Required production speed
Label roll specification
Whether line integration is needed
Voltage standard in your country
The YCT-601 is suitable for cylindrical and conical products such as cosmetic round bottles, red wine bottles, medicine bottles, cone bottles, plastic bottles, PET round bottles, and food cans.
Yes. The YCT-601 is suitable for both cylindrical and conical bottles within the supported size range.
The machine supports full-wrap labeling, half-wrap labeling, and front-and-back dual labeling on round bottle products.
The labeling tolerance is ±1 mm, which makes the machine suitable for products that require stable and accurate label application.
The standard capacity is 30 to 80 pieces per minute, depending on bottle size, label size, and actual production conditions.
Yes. An optional ribbon coding machine can print production date, expiration date, and production batch online.
Yes. The machine can be directly connected to a production line to realize automatic bottle conveying and improve production efficiency.
The machine is suitable for adhesive sticker labels, either transparent or opaque. Label material, size, and roll specification should be confirmed according to the bottle and application.
The standard label roll specification is an inner diameter of 76 mm and an outer diameter up to 260 mm.
Yes. YCTAUTO supports customized labeling machine solutions based on bottle size, label size, speed target, voltage, and production line integration requirements.
