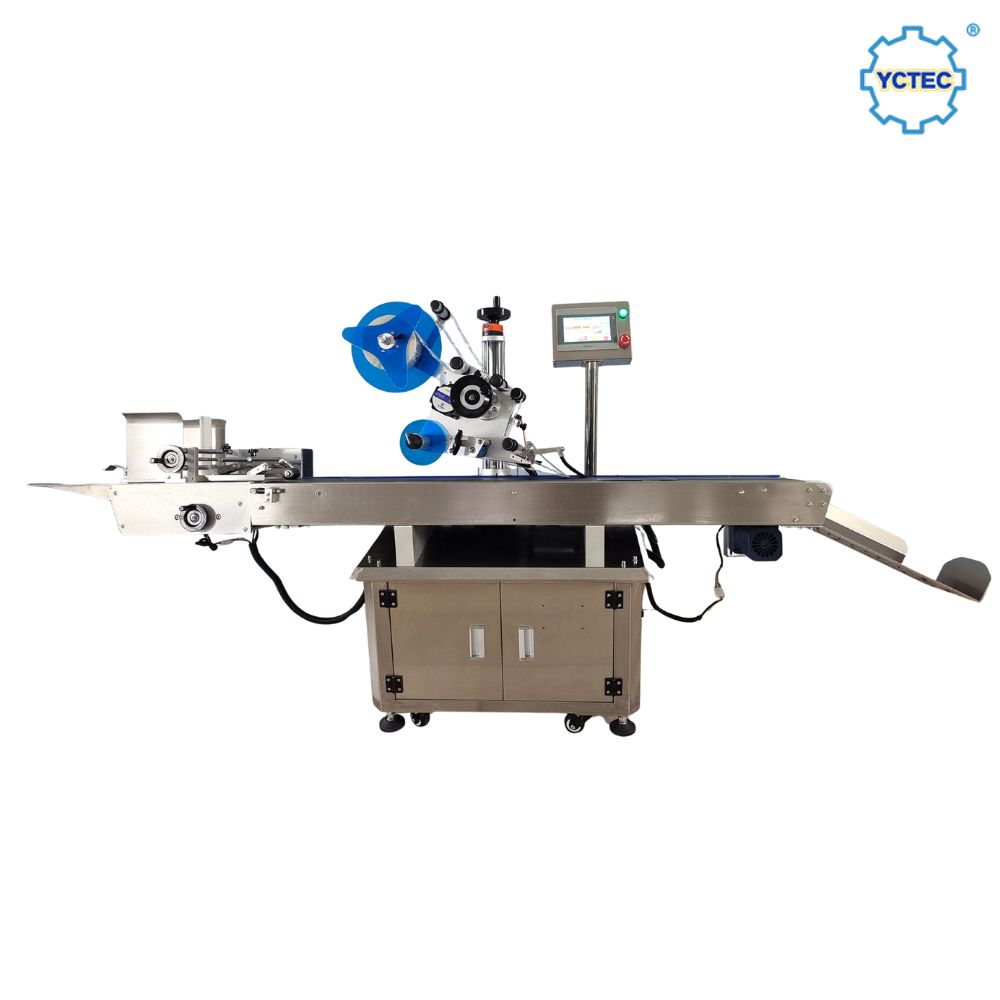

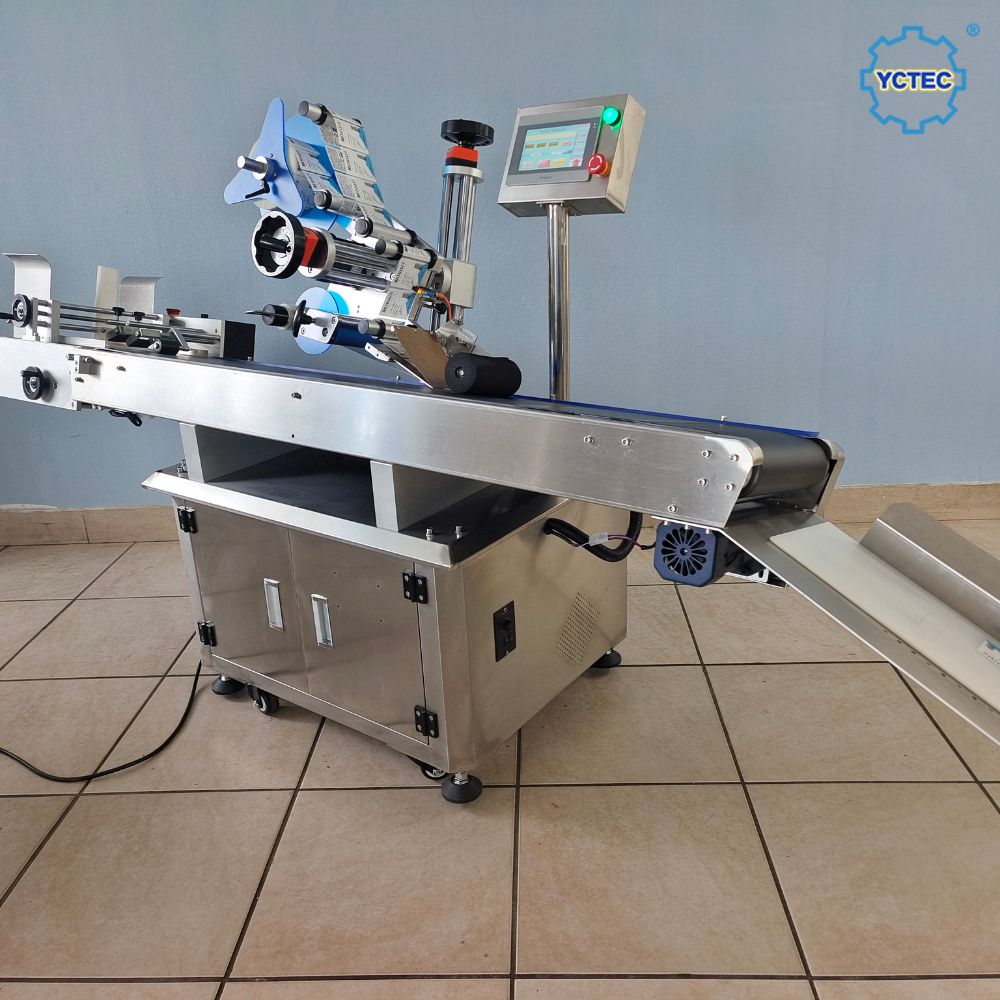

Instruction manuals, blister cards, membership cards, and other thin card-format products present a labeling challenge that standard box or bottle labelers aren't built for: at just 0.2mm to 2mm thick, these products need a machine engineered specifically for thin, flat feeding and precise top-surface label placement. The YCT-115 is designed for exactly this — consistent, accurate labeling on thin card products at production speed.
If your line currently applies labels to cards, manuals, or blister packs by hand — or your existing equipment struggles with thin product feeding — the YCT-115 is built to close that gap with automated, repeatable accuracy.
Parameter | Value |
Model | YCT-115 |
Labeling Accuracy | ±1mm (excluding product/label tolerance) |
Labeling Speed | Up to ~150 pcs/min (varies by product and label size) |
Applicable Product Size | Length 60–280mm · Width 40–210mm · Height 0.2–2mm |
Applicable Label Size | Length 6–250mm · Width (liner width) 20–130mm |
Machine Dimensions | Approx. 2200mm × 700mm × 1400mm (L×W×H) |
Power Supply | 220V / 50Hz |
Machine Weight | Approx. 180kg |
Purpose-Built for Thin Card-Format Products
With a product height range of just 0.2mm to 2mm, the YCT-115 is specifically engineered for thin, flat items — instruction manuals, blister cards, membership cards, and similar card-format packaging — where standard flat-surface labelers designed for taller boxes and cartons often struggle with consistent feeding.
High-Speed, High-Accuracy Labeling
Running at up to 150 pieces per minute with ±1mm labeling accuracy, the YCT-115 is built to keep pace with production-line volume while maintaining consistent label placement — reducing the rework and waste that comes with manual application on thin cards.
Wide Product Size Range in One Machine
Covering lengths from 60mm to 280mm and widths from 40mm to 210mm, the YCT-115 can handle a range of card sizes and formats without requiring a separate machine for each SKU.
Manufactured to Export Standards
Every YCT-115 unit is built under ISO 9001:2015 quality management and is CE certified for the EU market. SGS/TÜV third-party inspection reports are available on request, giving procurement teams the documentation needed for import compliance and internal quality audits.
Printing & Packaging: instruction manuals, product cards, blister cards
Electronics & Telecom: SIM card carriers, membership/loyalty cards (confirm exact product dimensions and material with our team for compatibility)
Daily Chemicals & Cosmetics: thin card-format inserts and packaging components
Any production line requiring precise top-surface labeling on thin, flat card products

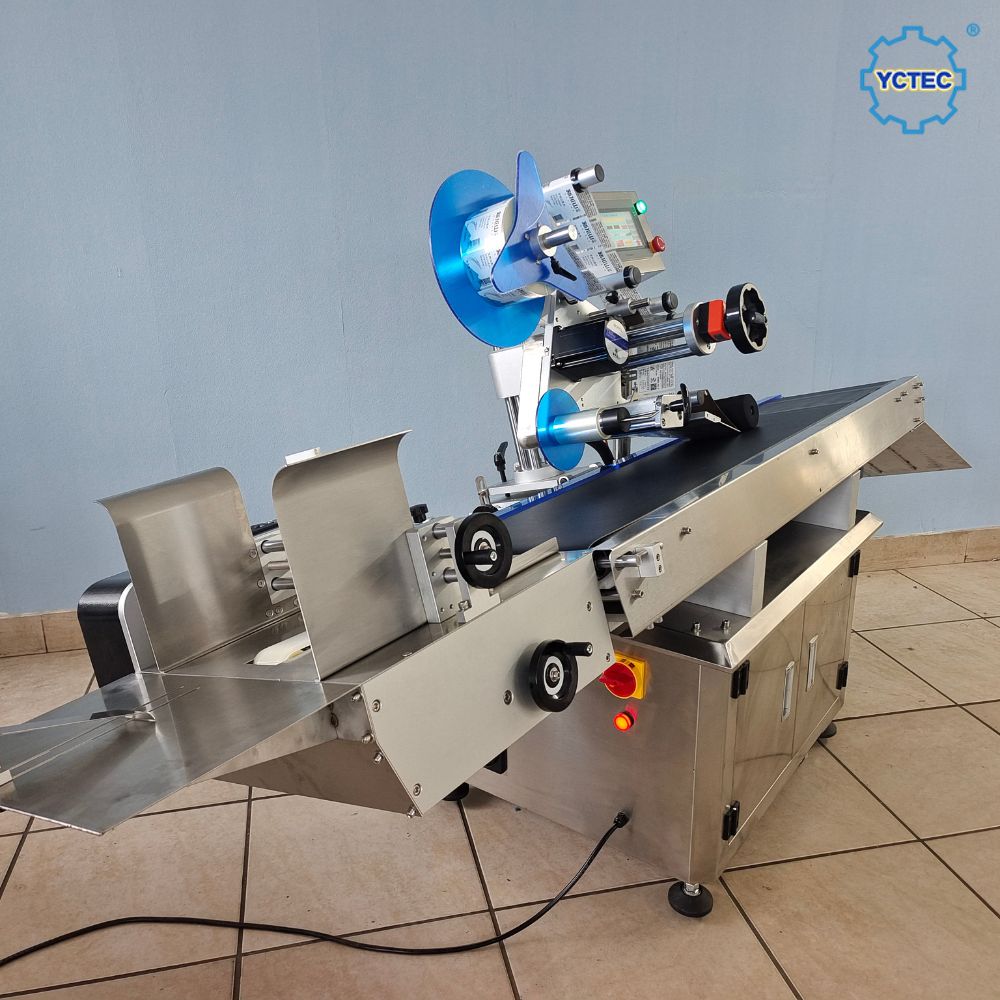

Thin card products are fed into the machine's conveying system.

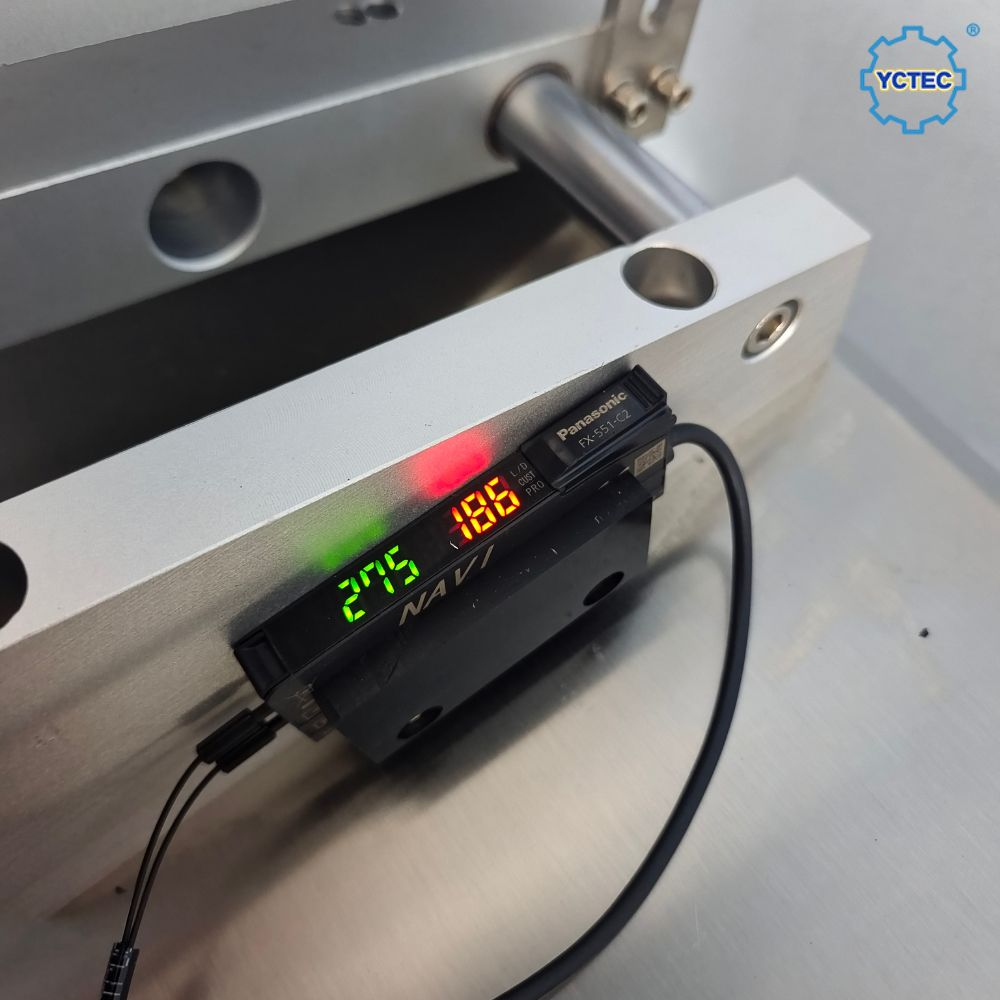

Sensors detect each card's position before the label is dispensed.

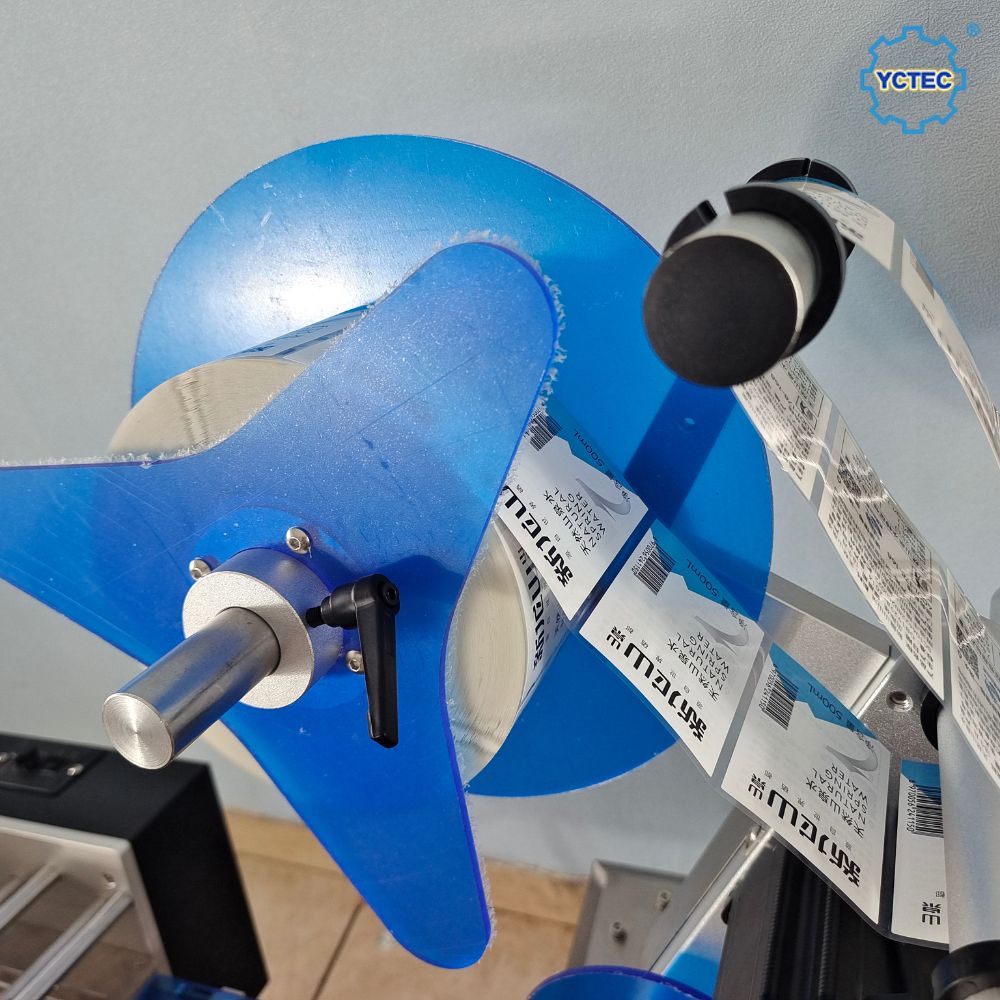

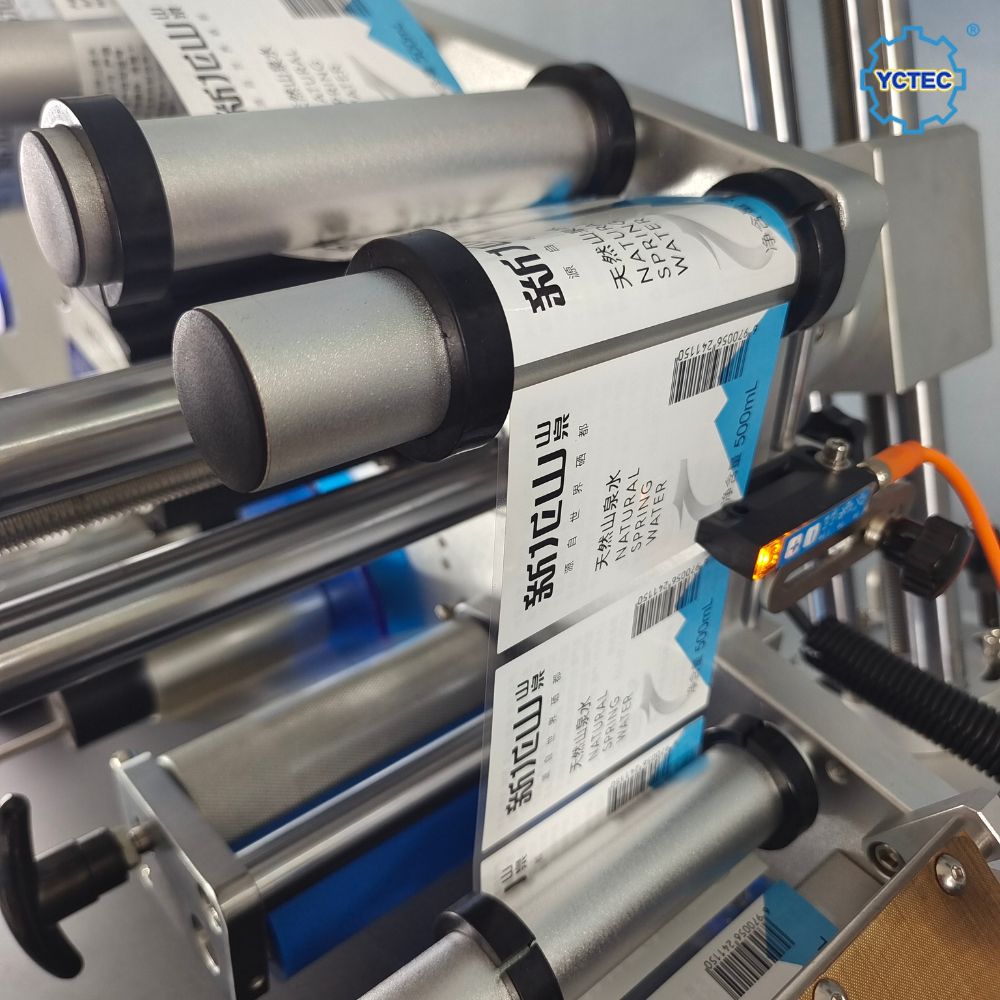

The labeling head applies the label to the top surface with ±1mm precision.
Labeled cards exit the line ready for the next packaging or assembly step.
Every production line has different card dimensions, thicknesses, and label requirements. Send us your product specs and label details, and our engineering team will confirm compatibility and return a formal quote — typically within 24 hours.
Request a Free Specs Review & Quote →
1. What's the thinnest card product the YCT-115 can label?
The standard configuration is designed for products from 0.2mm to 2mm in height. Send us your exact product thickness and material so our team can confirm compatibility before you order.
2. Can the YCT-115 handle larger card formats outside the standard size range?
The standard configuration covers lengths of 60–280mm and widths of 40–210mm. If your product falls outside this range, share your exact dimensions — our engineers can advise on configuration options or alternative YCT models.
3. How accurate is the labeling, and does it stay consistent at 150 pcs/min?
Labeling accuracy is rated at ±1mm under standard operating conditions (excluding product and label manufacturing tolerance). Actual performance depends on your product's dimensional consistency and label quality — we recommend a sample test run before committing to full production volume.
4. What label materials and sizes are compatible?
The YCT-115 is built around the specified label size range (6–250mm length, 20–130mm liner width). Send us a sample of your label stock and card product so our engineers can confirm compatibility and recommend the right setup.
5. Is the YCT-115 suitable for our specific card format — blister cards, manuals, or membership cards?
The machine is designed for thin, flat card-format products generally. Because card materials, rigidity, and edge profiles vary, we recommend sending your exact product specs or a physical sample so our team can confirm compatibility before quoting.
6. Can this machine integrate with our existing packaging or printing line?
Yes — the YCT-115 can be configured to work as a standalone unit or integrate with upstream and downstream equipment. Share your current line layout so our team can advise on integration feasibility.
7. What's included in after-sales support?
YCT Machinery provides installation guidance, operator training support, and technical assistance via WhatsApp and email, with a 24-hour response commitment. SGS/TÜV third-party inspection reports are available on request for your quality documentation.
8. How do we get a formal quote?
Send us your card product dimensions, thickness, label specifications, and target output speed via the quote form, WhatsApp, or email. Our engineering team reviews every request and responds with a configuration recommendation and quote within 24 hours.
