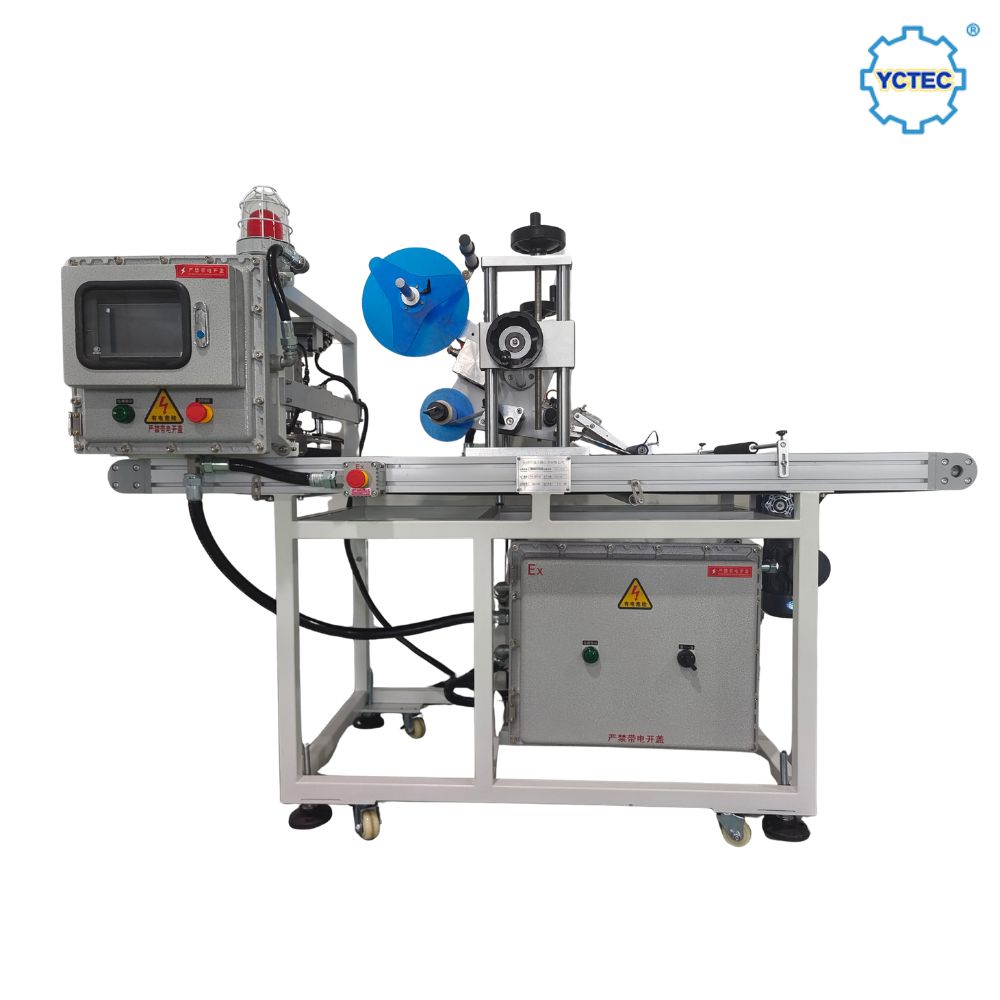

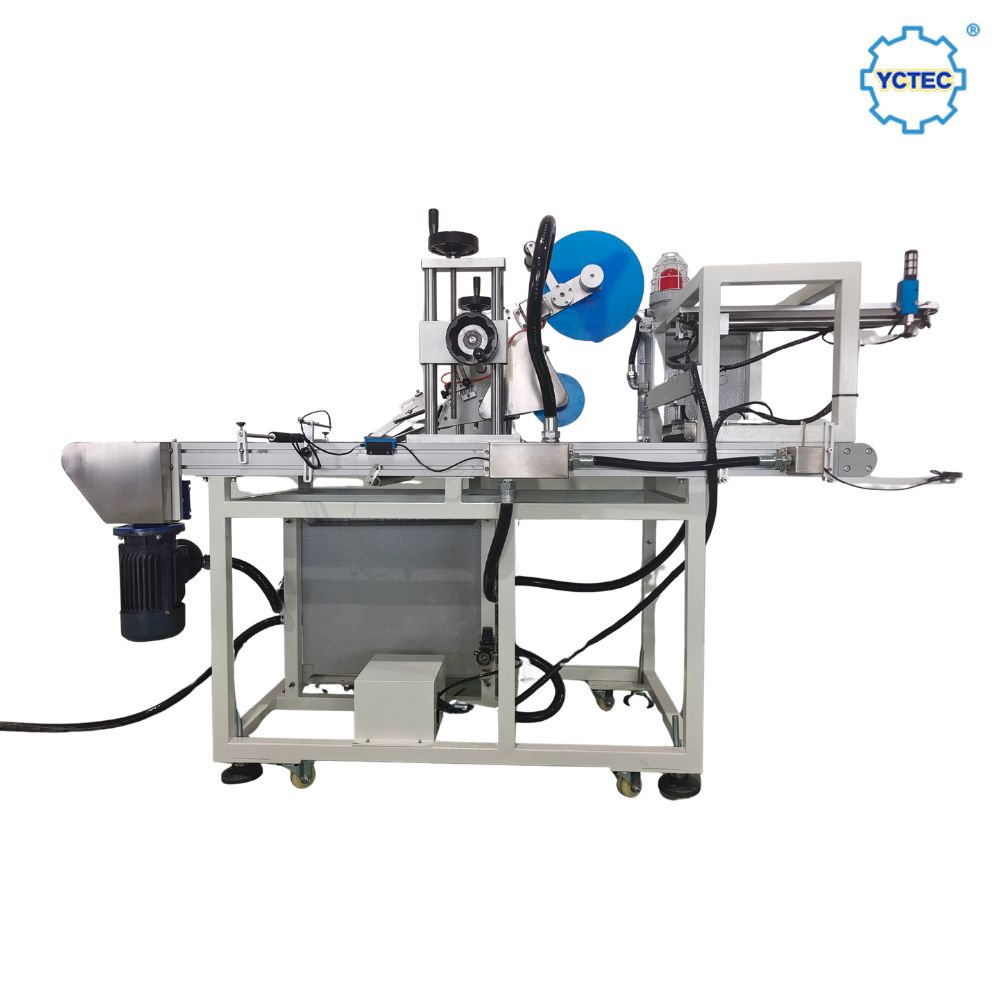

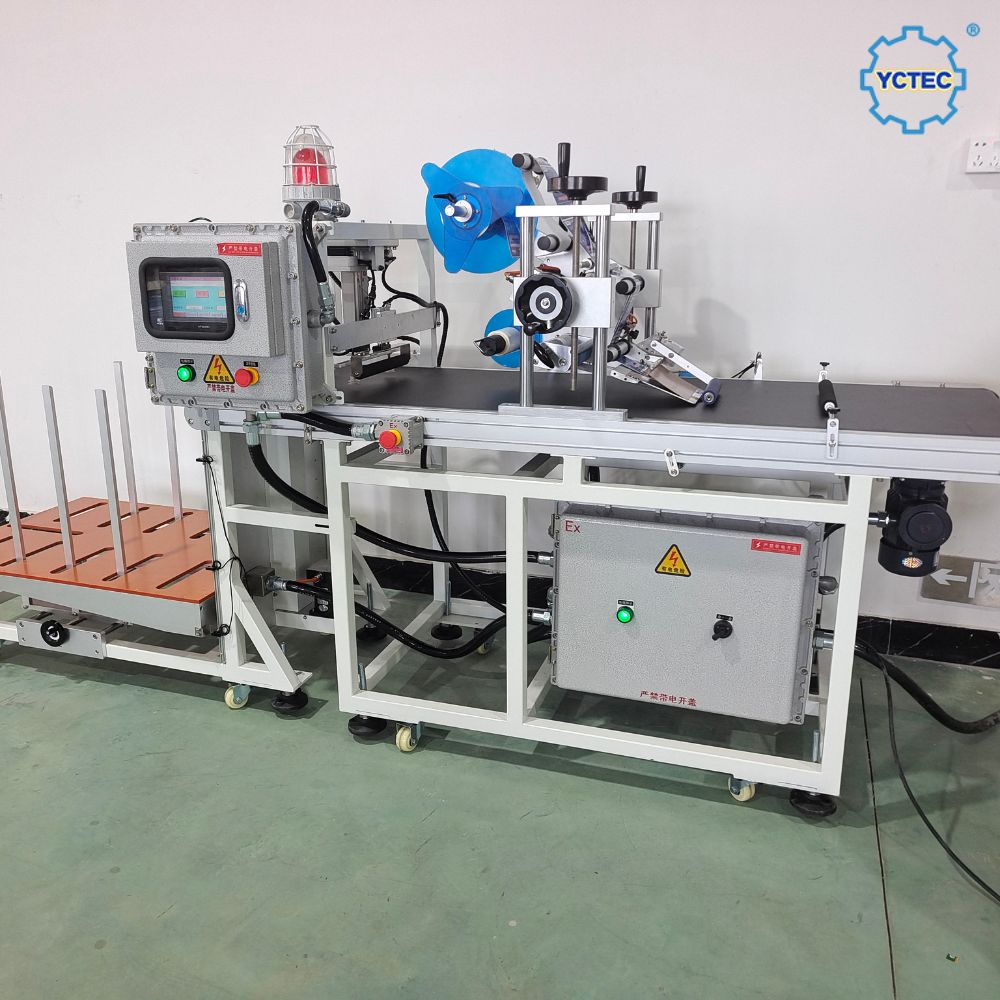

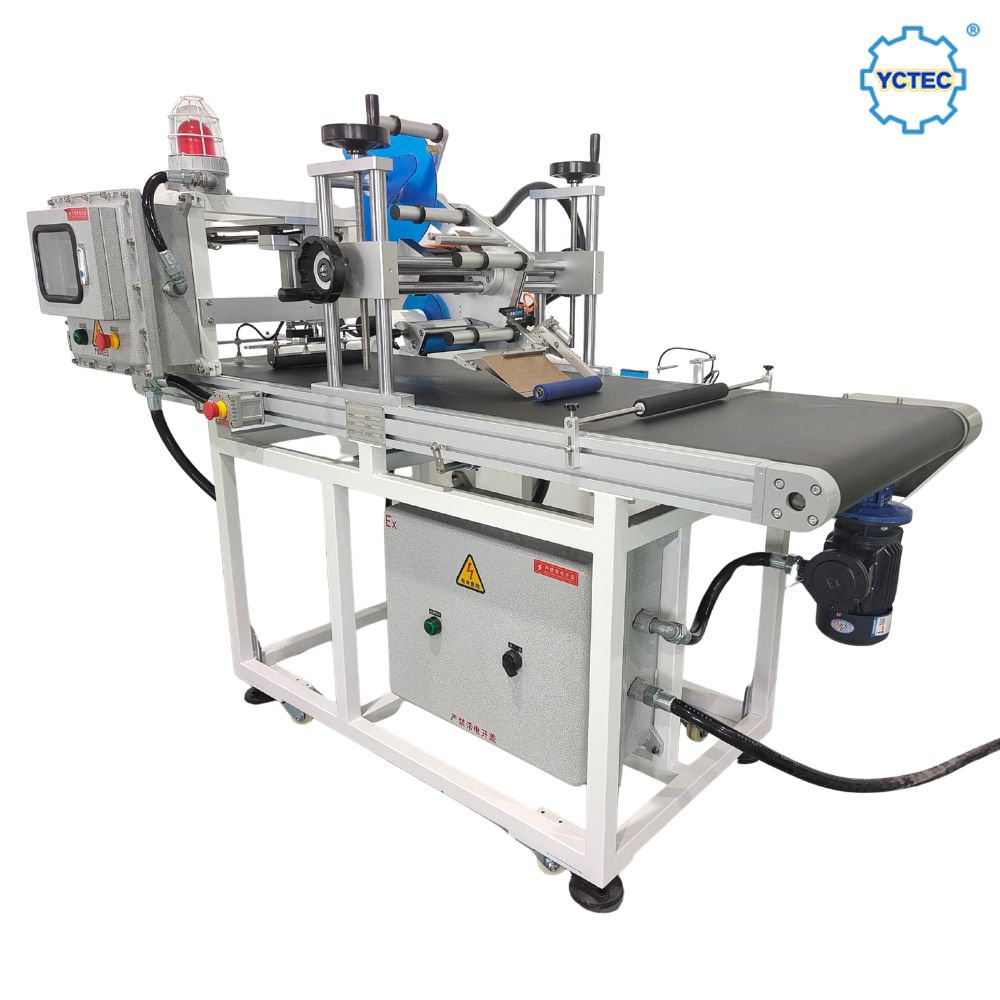

Paint tins, pesticide bottles, chemical reagent boxes, and other flat-sided containers used in fine chemical, coatings, pharmaceutical, and petroleum production often need to be labeled in areas where flammable vapors or combustible materials are present. Standard labeling equipment isn't designed for these environments. The YCT-117 is built with an explosion-proof structural design specifically for flat-surface labeling in these higher-risk production settings, combined with a lifting mechanism to handle a wide range of container heights.
If your production line labels flammable or hazardous flat-container products and your current equipment isn't rated for this environment, the YCT-117 is designed to address that gap.
Parameter | Value |
Model | YCT-117 |
Structural Design | Explosion-proof, with lifting mechanism |
Labeling Accuracy | ±1mm (excluding product/label tolerance) |
Labeling Speed | Up to ~100 pcs/min (varies by product and label size) |
Applicable Product Size | Length 40–400mm · Width 40–200mm · Height 0.2–120mm (custom sizing available based on your sample) |
Applicable Label Size | Length 6–250mm · Width 15–120mm |
Label Roll Inner Diameter | φ76mm |
Label Roll Outer Diameter | φ300mm |
Power Supply | 220V / 50Hz, 700W |
Machine Dimensions | Approx. 3400mm × 1000mm × 1450mm (L×W×H) |
Machine Weight | Approx. 260kg |

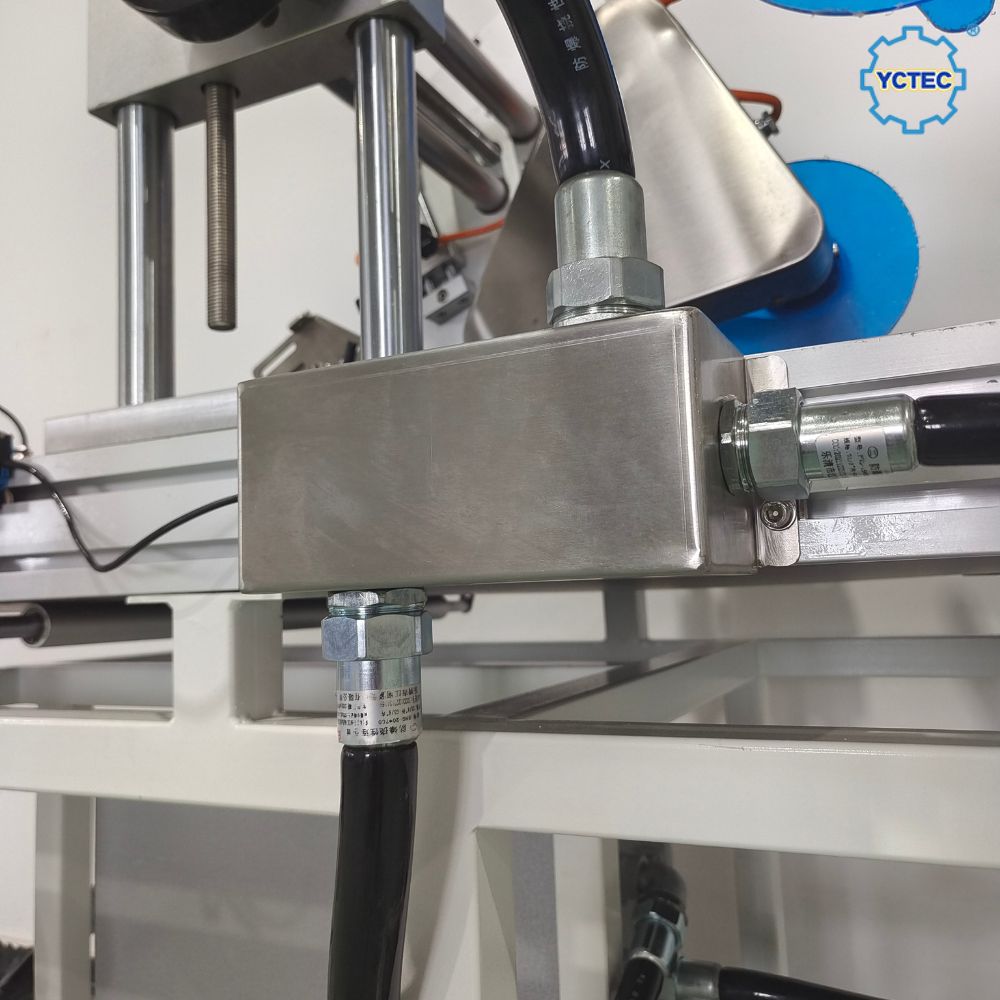

Explosion-Proof Structural Design for Hazardous Production Areas
The YCT-117 is structurally engineered for flat-surface labeling operations in environments where flammable vapors, solvents, or combustible materials are present — a requirement for many fine chemical, coatings, pesticide, and petroleum production lines. (For your specific hazardous area classification and required certification standard, please contact our engineering team — see the compliance note below.)

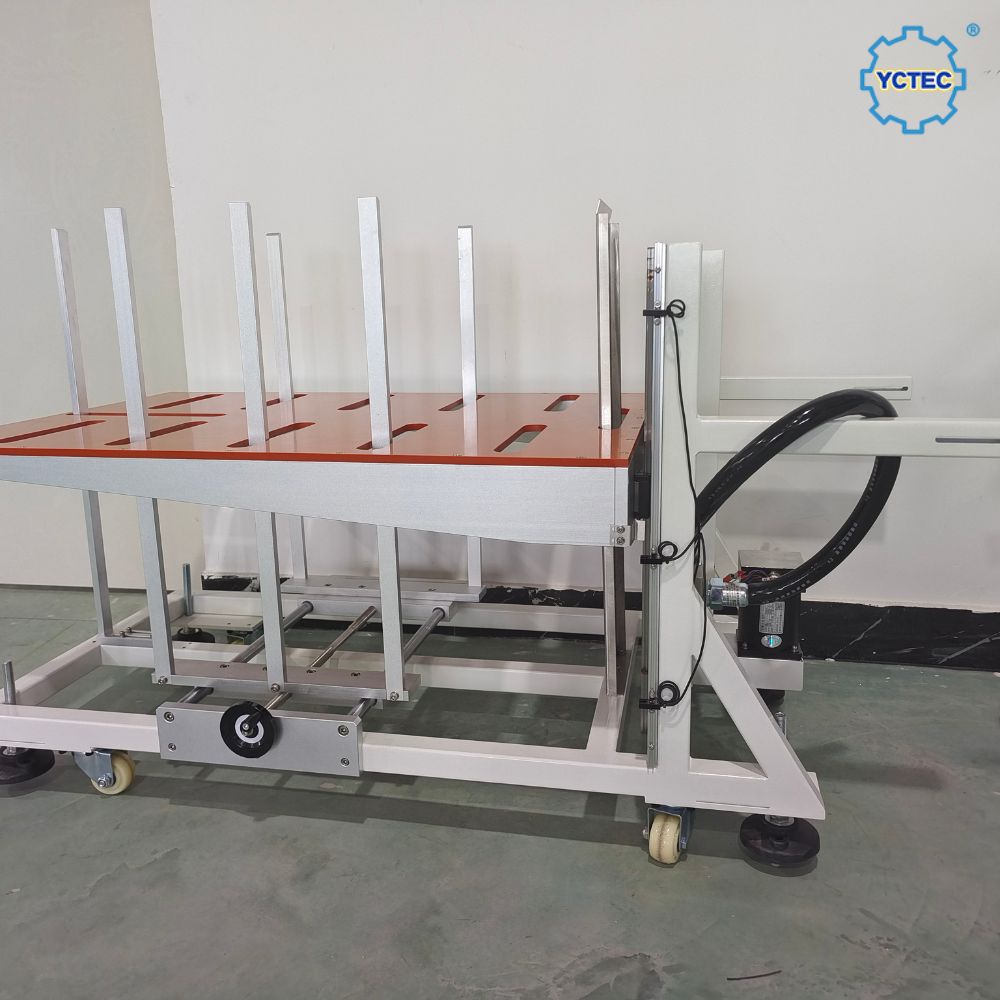

Lifting Mechanism for Varied Container Heights
The built-in lifting function allows the machine to adjust to different flat-container heights within its applicable range, reducing manual changeover time when your product mix includes multiple package sizes.
Wide Container Size Range
Covering lengths from 40mm to 400mm, widths from 40mm to 200mm, and heights from 0.2mm to 120mm, the YCT-117 handles a broad range of flat-container formats — from paint tins and square medicine boxes to flat chemical reagent bottles and disinfection boxes — within a single machine.
Manufactured to Export Standards
Every YCT-117 unit is built under ISO 9001:2015 quality management and is CE certified for the EU market. SGS/TÜV third-party inspection reports are available on request, giving procurement and EHS teams the documentation needed for import compliance and internal safety audits.
Fine Chemical, Pesticide & Coatings Industry: paint tins, ink boxes, cleaning agent containers, flat chemical reagent bottles
Pharmaceutical Industry: square medicine boxes, disinfection boxes
Daily Chemical & Flavor Industry: cream square boxes, aluminum square spice cans
Petroleum Industry: oil turnover boxes, flat wine bottles, and related flat-container packaging
Flat containers are positioned on the conveyor within the machine's explosion-proof operating zone.
The lifting mechanism adjusts to the container height for consistent labeling contact.
Sensors detect each container's position before the label is dispensed.

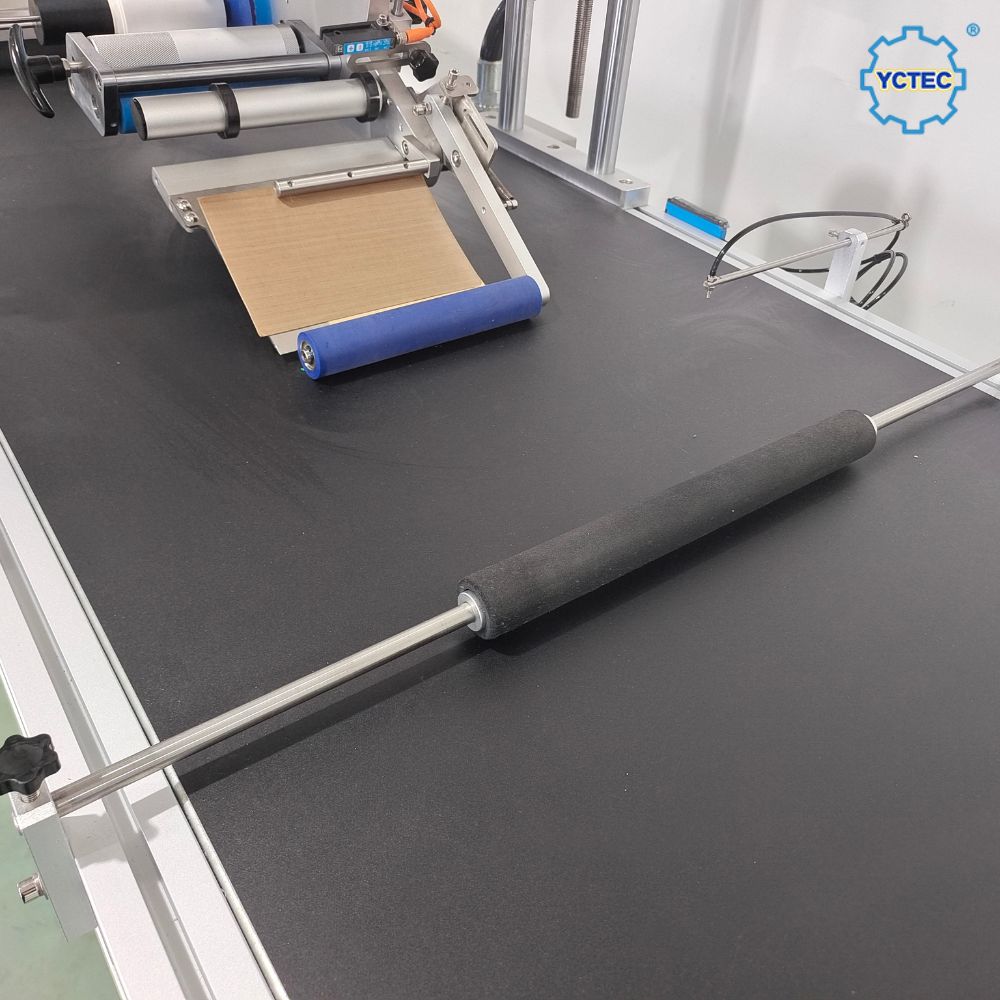

The labeling head applies the label to the flat top surface with ±1mm precision.
Explosion-proof equipment for hazardous production areas is subject to region-specific certification standards (such as ATEX in the EU or IECEx internationally), which specify hazardous zone ratings, gas/dust groups, and temperature classes. Before finalizing your purchase, please share your facility's hazardous area classification and required certification standard with our engineering team so we can confirm the exact configuration and documentation that applies to your project.
Every production line has different container sizes, hazardous area classifications, and label requirements. Send us your product dimensions, label specs, and safety compliance requirements, and our engineering team will confirm compatibility and return a formal quote — typically within 24 hours.
Request a Free Specs Review & Quote →
1. What explosion-proof certification does the YCT-117 hold — is it ATEX or IECEx certified?
Explosion-proof requirements vary by region and hazardous area classification (e.g., ATEX in the EU, IECEx internationally). Please contact our engineering team with your facility's hazardous zone classification and required certification standard — we will confirm the specific documentation and certification status that applies to your configuration before you place an order.
2. What products and industries is the YCT-117 designed for?
It's designed for flat-container labeling in fine chemical, pesticide, coatings, pharmaceutical, daily chemical, flavor, and petroleum industry applications — including paint tins, chemical reagent boxes, square medicine boxes, and similar flat packaging. Share your specific product and industry so our team can confirm suitability.
3. How does the lifting mechanism work, and what height range does it cover?
The lifting mechanism adjusts the machine to accommodate different flat-container heights within the applicable range of 0.2mm to 120mm. If your product mix includes varying heights, let us know your full range so we can confirm changeover requirements.
4. How accurate is the labeling, and does accuracy hold at 100 pcs/min?
Labeling accuracy is rated at ±1mm under standard operating conditions (excluding product and label manufacturing tolerance). Actual performance depends on your product's dimensional consistency — we recommend a sample test run before committing to full production volume.
5. Can the YCT-117 handle containers larger than the standard size range?
The standard configuration covers 40–400mm in length, 40–200mm in width, and 0.2–120mm in height. If your containers fall outside this range, share your exact dimensions or a sample — the machine can be configured according to your specific product.
6. What label materials and sizes are compatible, especially for hazard/safety labeling?
The YCT-117 accepts label rolls with a 76mm inner diameter and up to 300mm outer diameter, with label sizes from 6–250mm in length and 15–120mm in width. Share your label material and any regulatory labeling requirements (e.g., hazard pictograms, GHS labels) so we can confirm compatibility.
7. What's included in after-sales support and documentation for safety audits?
YCT Machinery provides installation guidance, operator training support, and technical assistance via WhatsApp and email, with a 24-hour response commitment. SGS/TÜV third-party inspection reports are available on request for your quality and safety documentation.
8. How do we get a formal quote, including confirmation of explosion-proof requirements?
Send us your product dimensions, label specifications, target output speed, and your facility's hazardous area classification and required certification standard. Our engineering team reviews every request and responds with a configuration recommendation and quote within 24 hours.
