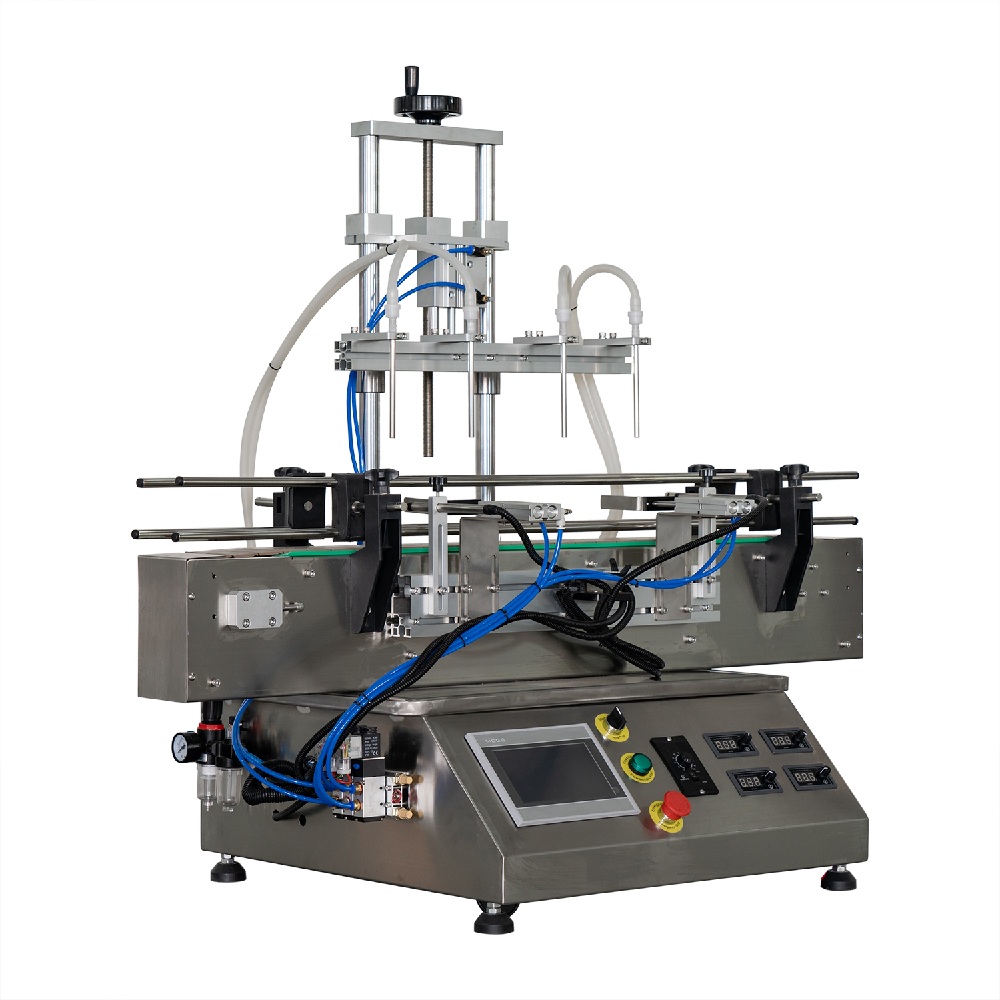

YCT-CL-04 is an automatic desktop four-head magnetic pump filling machine designed for quantitative filling of particle-free liquids, from low-viscosity to certain viscous liquids. It is suitable for round bottles, flat bottles, square bottles, and other common containers, and is widely used in food, beverage, daily chemical, pharmaceutical, chemical, and cosmetic industries. With magnetic drive technology, four independent filling heads, compact desktop structure, and easy cleaning, the machine offers stable, clean, and flexible filling performance for small to medium production needs.
The YCT-CL-04 desktop four-head magnetic pump filling machine is developed for manufacturers that need a compact and reliable solution for filling particle-free liquids. It is suitable for products ranging from low-viscosity liquids to certain viscous liquids, making it a practical choice for a wide range of bottle filling applications.
This machine uses a magnetic drive pump structure without a shaft seal, which helps reduce leakage risk and improves corrosion resistance in suitable applications. Because of this design, it is especially suitable for products such as oils, cleaning liquids, alcohol-based liquids, and weakly acidic or alkaline liquids.
The YCT-CL-04 is equipped with four independent filling heads, each of which can be started or stopped separately according to actual production needs. This gives users more flexibility in operation and helps reduce downtime during maintenance or adjustment.
With its desktop stainless steel cabinet structure, the machine occupies little space and is well suited for small and medium workshops, pilot production, laboratory use, or stand-alone filling operations. It can also be connected to a production line when needed.
The YCT-CL-04 is suitable for particle-free liquids, including:
Drinking water
Juice
Alcohol
Toner
Makeup remover
Edible oil
Machine oil
Weakly acidic liquids
Weakly alkaline liquids
Other particle-free liquids after confirmation
This machine is designed for particle-free liquids.
If your product contains solid particles, granules, or fibers, please confirm with us in advance to ensure model suitability.
If the filling liquid is highly corrosive, please also inform us in advance so that the appropriate contact material and machine configuration can be confirmed.

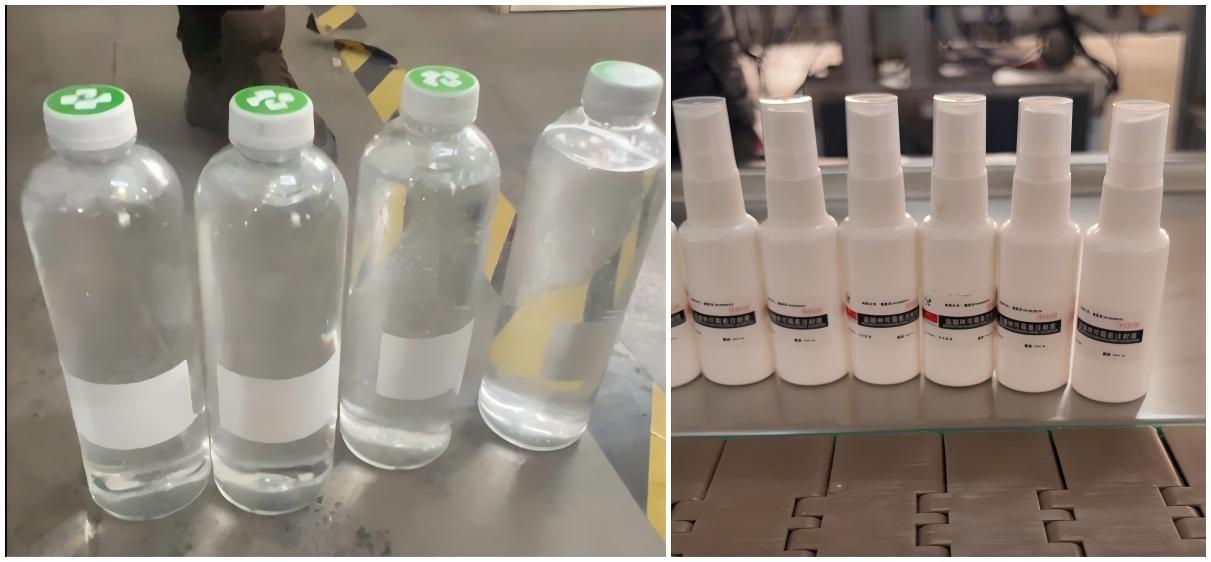

The machine is suitable for a wide range of bottle types, including:
Round bottles
Flat bottles
Square bottles
Other common containers after sample confirmation
It adopts linear bottle feeding, which provides good compatibility with different bottle shapes and makes packaging changeover easier.
The YCT-CL-04 is widely used in:
Food industry
Beverage industry
Daily chemical industry
Pharmaceutical industry
Chemical industry
Cosmetic industry
Drinking water filling
Juice filling
Alcohol liquid filling
Toner filling
Makeup remover filling
Edible oil filling
Machine oil filling
Cleaning liquid filling
The machine uses a magnetic drive pump structure without a shaft seal, which helps:
Reduce leakage risk
Improve corrosion resistance in suitable applications
Support cleaner filling operation
Lower the chance of seal-related wear problems
This machine is specially designed for particle-free liquids, from low-viscosity products to certain viscous liquids, offering broad application flexibility for liquid filling projects.
The machine is equipped with four independent filling heads. Each head can be started or stopped separately, allowing the machine to run with 1 to 4 heads according to actual production demand.
This design offers several advantages:
More flexible output adjustment
Easier maintenance
Better continuity of production
One head can be serviced without stopping the entire machine
The machine adopts linear bottle feeding, which provides:
Good compatibility with different bottle types
Easy bottle type switching
Stable bottle conveying
Convenient preset filling quantity control

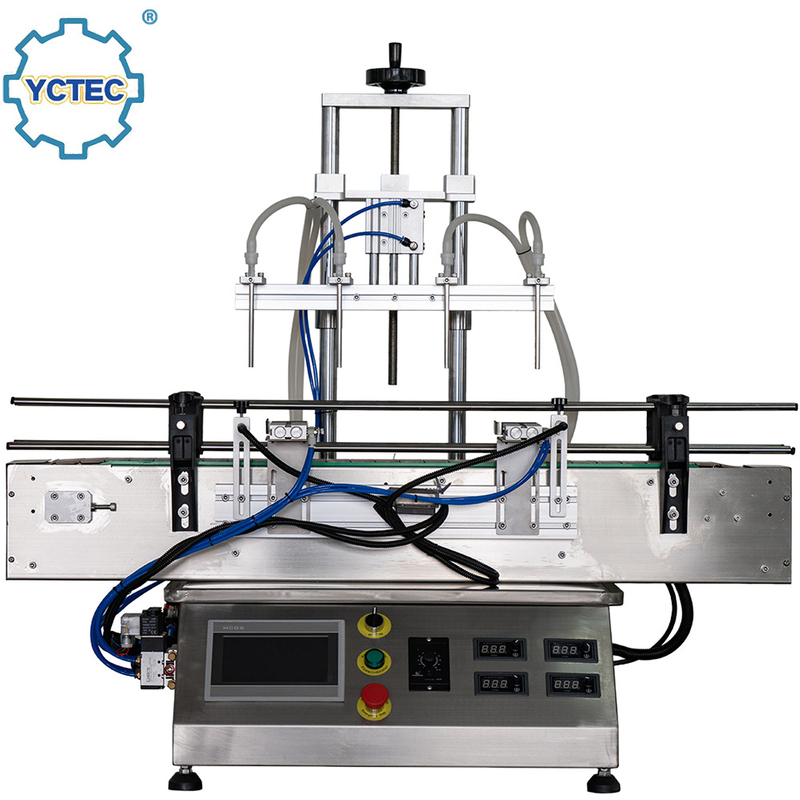

The YCT-CL-04 features a compact desktop structure with a stainless steel cabinet, making it suitable for:
Small and medium workshops
Limited floor space
Laboratory use
Small-batch production
Stand-alone operation
This machine can be used as an independent filling unit or connected with upstream and downstream equipment to form a more complete filling line.
The material path is designed with a simple structure, making it convenient for daily cleaning and disinfection. This is especially important for applications in food, beverage, cosmetic, and pharmaceutical production.
The parts in contact with materials are made of stainless steel, offering:
Good corrosion resistance
Easy cleaning
Better hygiene
Suitability for many liquid filling applications

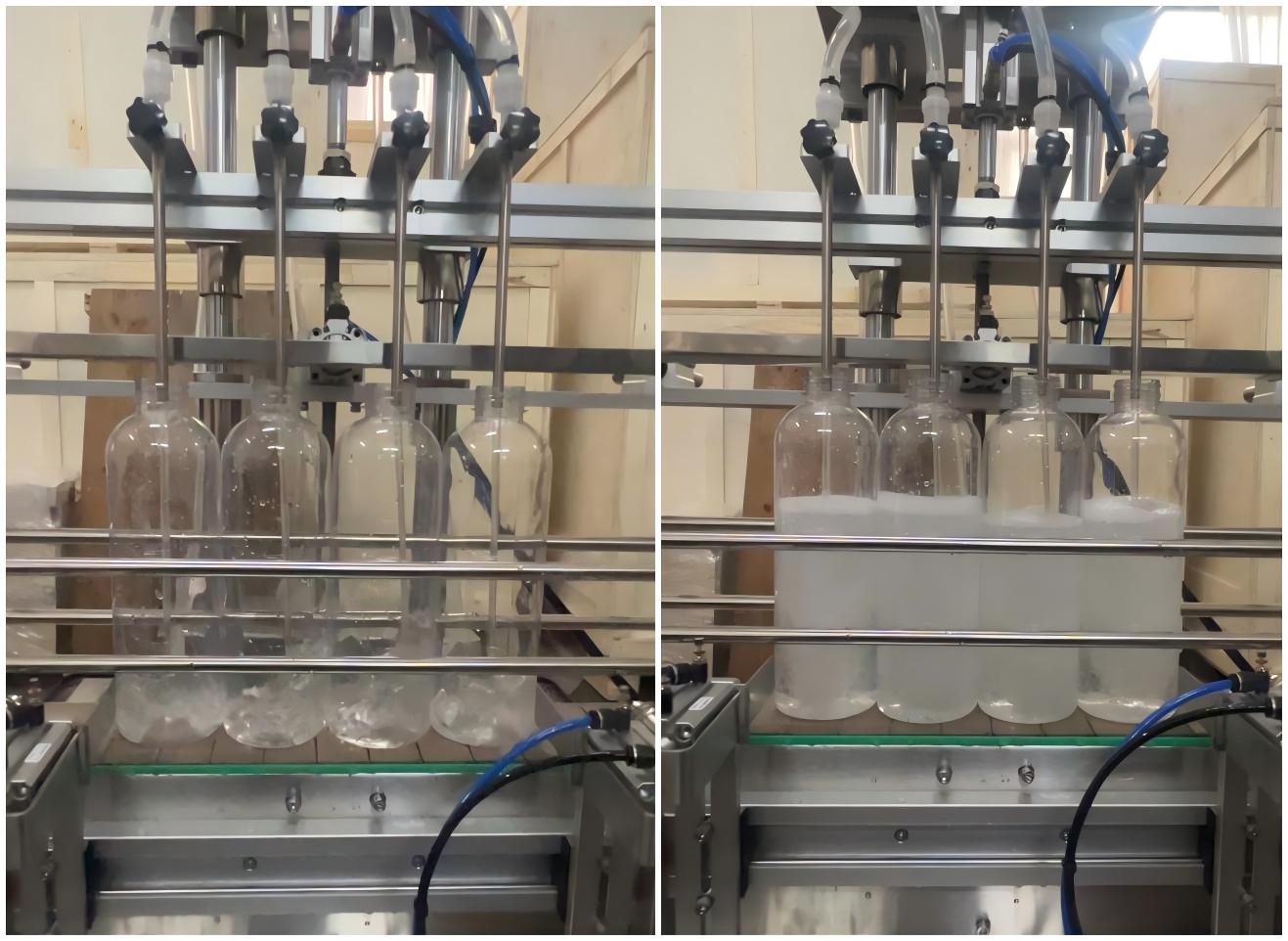

After the machine starts, the sensor detects the bottle and sends a signal to the control system. The conveying motor stops, the filling process starts, and once the preset filling volume is completed, the conveying motor starts again. The same cycle repeats automatically during production.
Start → Bottle loading → Filling → Repeat cycle
This automatic process helps maintain stable production rhythm and improve filling efficiency.
Item | Specification |
Model | YCT-CL-04 |
Machine Type | Automatic Desktop Four-Head Magnetic Pump Filling Machine |
Suitable Materials | Particle-free liquids, from low-viscosity to certain viscous liquids |
Typical Products | Drinking water, juice, alcohol, toner, makeup remover, edible oil, machine oil |
Applicable Bottle Types | Round bottle, flat bottle, square bottle, etc. |
Production Speed | Approx. 900-1200 pcs/h |
Filling Accuracy | ±1.5% |
Air Pressure | 0.6-0.8 MPa |
Voltage / Frequency | 220V / 50Hz |
Machine Size | Approx. 1200 × 700 × 1150 mm |
Weight | Approx. 100 kg |
Note: Production speed is calculated based on 500 ml and may vary depending on material properties, bottle type, filling volume, and actual production conditions.
Item | Configuration |
Filling Mechanism | 4 sets (aluminum alloy, stainless steel) |
Magnetic Pump | 4 pcs (domestic) |
Magnetic Pump Motor | 4 sets (domestic) |
Guiding / Conveying Mechanism | Stainless steel |
Product Positioning Mechanism | 1 set (aluminum alloy, stainless steel) |
Product Detection Sensor | Autonics × 2 sets |
PLC | Delta × 1 set |
Conveying Motor | Dongbang speed-regulating motor × 1 pc |
Cylinder | AirTac × 3 |
HMI | Kunlun Tongtai |
Switching Power Supply | Mean Well |
The YCT-CL-04 is a practical choice for customers who need:
Filling of particle-free liquids
Compact desktop equipment
Flexible output with independent filling heads
Leak-resistant magnetic pump filling
Easy cleaning and daily maintenance
Good bottle compatibility
Stand-alone use or line integration
Compared with larger floor-standing filling machines, the YCT-CL-04 is better suited for customers looking for a space-saving, easy-to-operate, and flexible filling solution for light liquid products and certain viscous particle-free materials.
The YCT-CL-04 is suitable for particle-free liquids, such as drinking water, juice, alcohol, toner, makeup remover, edible oil, machine oil, and weakly acidic or alkaline liquids.
No. This model is mainly designed for particle-free liquids. If your material contains particles or fibers, please confirm with us before ordering.
The machine is suitable for low-viscosity liquids and certain viscous particle-free liquids, depending on the actual product characteristics.
The machine is suitable for round bottles, flat bottles, square bottles, and other common bottle types after sample confirmation.
The standard production speed is approximately 900-1200 pcs/h, calculated at 500 ml. Actual speed depends on material properties and bottle specification.
The standard filling accuracy is approximately ±1.5%.
Yes. Each of the four filling heads can be started or stopped individually, and the machine can operate with 1 to 4 heads according to production needs.
Yes. The material path has a simple structure and is convenient for daily cleaning and disinfection.
Yes. The YCT-CL-04 can work as a stand-alone machine or be connected to a filling line.
Please inform us in advance if the liquid is highly corrosive, so the correct contact material and configuration can be confirmed.
Looking for a compact desktop filling machine for particle-free liquids?
Please send us your:
Product name or liquid type
Whether the liquid contains particles
Bottle type and size
Filling volume
Required output
Whether the liquid is corrosive
Whether stand-alone use or line integration is needed
YCT will recommend a suitable filling solution based on your actual production requirements.
Contact us today for detailed technical information, filling videos, and a customized quotation.
