Not every labeling application fits a standard machine. Oil drums are heavy, tall, and wide. They move on conveyors built for industrial loads, not lightweight bottles. The labels are large. The production line they connect to — filling machines, capping stations, downstream packaging — runs continuously and does not wait for a labeling bottleneck. When the container is outside the standard range, the machine has to be built to match it. This is the story of how we did that.
This project comes from the same Russian distributor featured in our face cream jar labeling case study — a packaging equipment company with around thirty employees, serving high-end industrial and consumer clients in Russia for over two decades.
The background of this relationship is worth summarizing briefly: we first met at a trade show in Russia in 2019. For the next few years, the customer was primarily sourcing from European suppliers and had little reason to look elsewhere. When European supply chains became significantly more complicated after 2022, he came to China to evaluate alternatives — visiting our factory in Dongguan twice before committing to work with us. The first order came in 2024. Since then, four to five orders per year: custom non-standard labeling machines and standard YCT-90 labeling heads.
His engineering team is experienced and capable. They commission machines independently and rarely need support. When they do, a video call resolves the issue quickly. It is a clean, professional working relationship built on a foundation of careful evaluation and consistent delivery.
The oil drum labeling machine is one of the custom non-standard projects from this ongoing collaboration — and it is a good example of what "non-standard" actually means in practice.
The end customer in this project produces oil — lubricating oil, industrial oil, or a related petroleum product — packaged in large round drums or cans. These are not small consumer bottles. They are heavy industrial containers, significantly larger in diameter and height than the bottles that standard labeling machines are designed to handle.
The production environment is a continuous industrial line. Upstream filling machines fill the drums. Downstream capping, palletizing, or packaging equipment receives them. The labeling station sits in the middle of this line and must keep pace with the rest of it — feeding from the upstream conveyor, labeling each drum accurately, and passing it downstream without interruption.
The requirement was for a labeling machine that could:
Handle the physical dimensions of the oil drum — diameter, height, and weight all significantly beyond standard machine parameters
Accept large-format labels — the label roll outer diameter needed to accommodate 300 mm label rolls, allowing longer production runs between roll changes
Connect to the existing production line — the conveyor system needed to match the height and width of the upstream and downstream equipment
Run continuously and reliably — this is an industrial production environment; the machine needed to be built for it
None of these requirements are unusual in isolation. Together, they defined a machine that had to be engineered from the ground up as a custom configuration — wider, taller, and more robustly built than a standard YCT-60.
When a customer describes a container that is outside the standard machine range, the first step is always to confirm the exact dimensions and understand the full production context. We did this with the customer before any design work began.
The specification confirmed:
Parameter | Standard YCT-60 | This Custom Configuration |
Applicable bottle diameter | Φ25–100 mm | Enlarged — oil drum diameter |
Applicable bottle height | 25–150 mm | Enlarged — oil drum height |
Conveyor type | Standard belt | Stainless steel chain plate |
Conveyor width | Standard | 160 mm |
Conveyor height | Standard | 1100 mm |
Machine length | 1900 mm | 1950 mm |
Label roll outer diameter | Standard | 300 mm (max) |
Label roll inner diameter | Φ76 mm | Φ76 mm |
Production line integration | Optional | Required — inline with filling machine |
Each of these customizations addresses a specific requirement of the application:

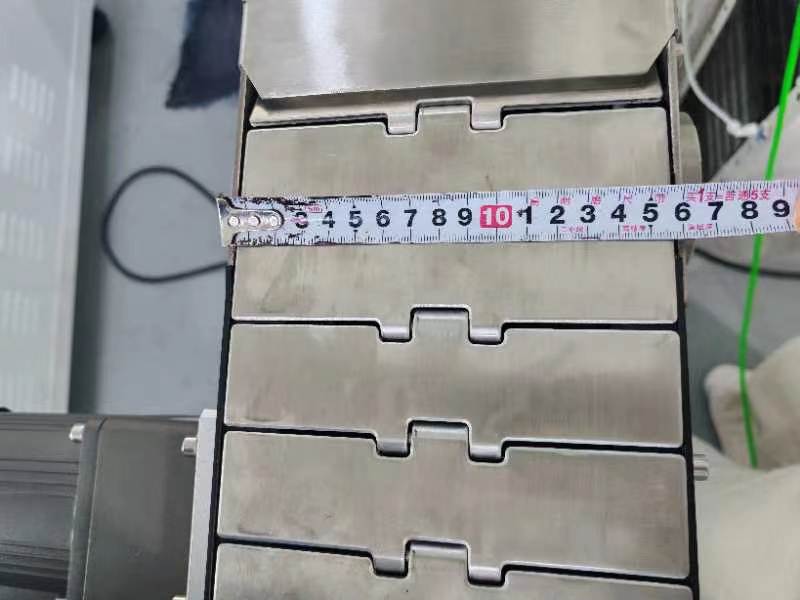

Standard labeling machines use belt conveyors designed for lightweight containers — bottles, jars, tubes. Oil drums are heavy. A belt conveyor that works perfectly for a 500g cosmetic bottle will not reliably transport a multi-kilogram oil drum at production speed. The stainless steel chain plate conveyor is built for industrial loads — it handles the weight of the drum without slipping, deforming, or wearing prematurely. Stainless steel also provides chemical resistance appropriate for an environment where oil contact with the conveyor surface is a realistic possibility.
The conveyor width is set to match the base diameter of the oil drum. A conveyor that is too narrow creates instability — the drum can tip or shift during transport, which causes labeling misalignment and creates a safety risk. 160 mm provides the stable base support the drum needs to travel through the labeling station consistently.
Conveyor height is one of the most practically important dimensions in a production line integration. If the labeling machine conveyor is at a different height than the upstream filling machine and downstream equipment, the transition between stations requires either a ramp (which adds complexity and can cause tipping) or a height mismatch that operators have to manage manually. At 1100 mm, the conveyor height is matched to the existing production line, allowing drums to transfer directly from filling to labeling to downstream processing without any height adjustment.

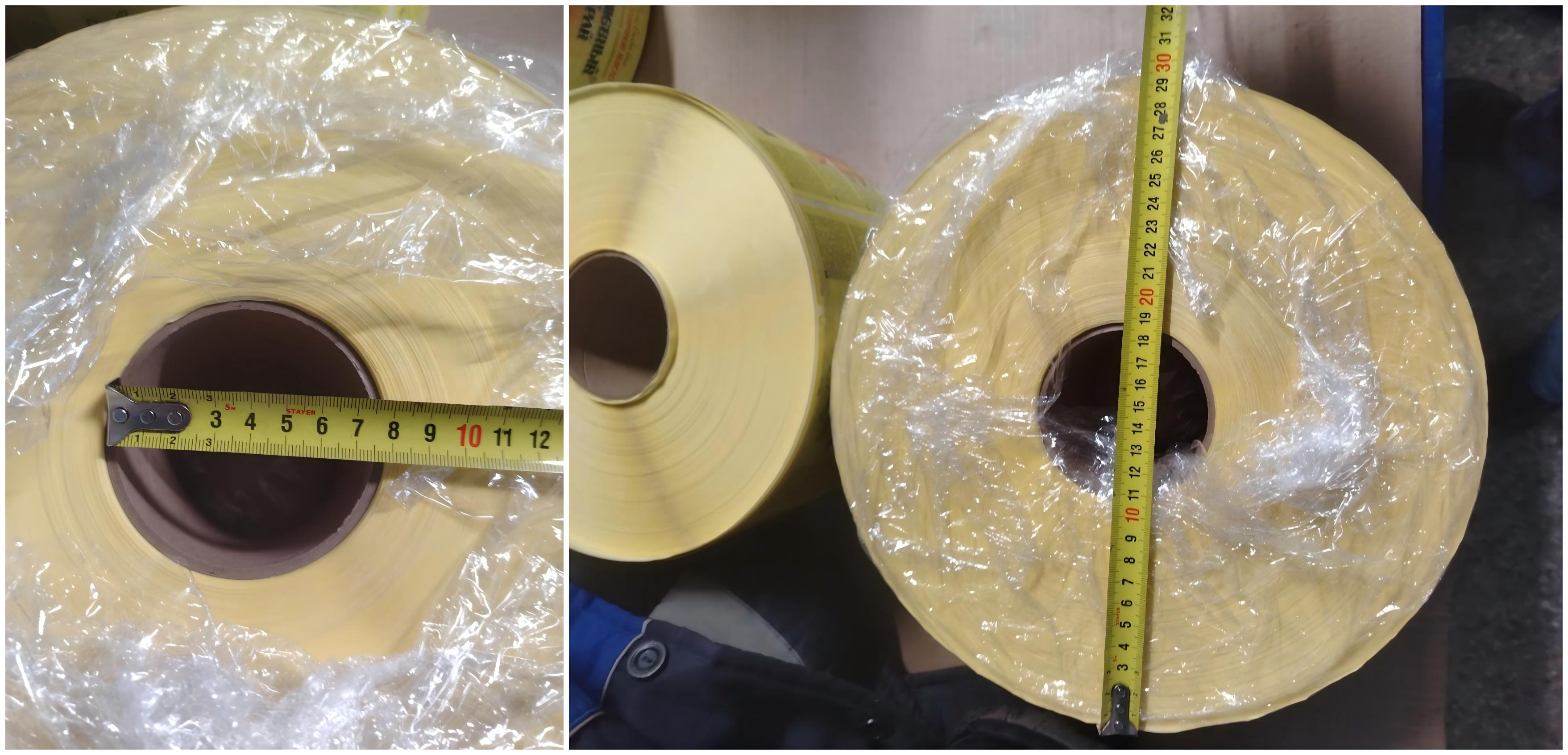

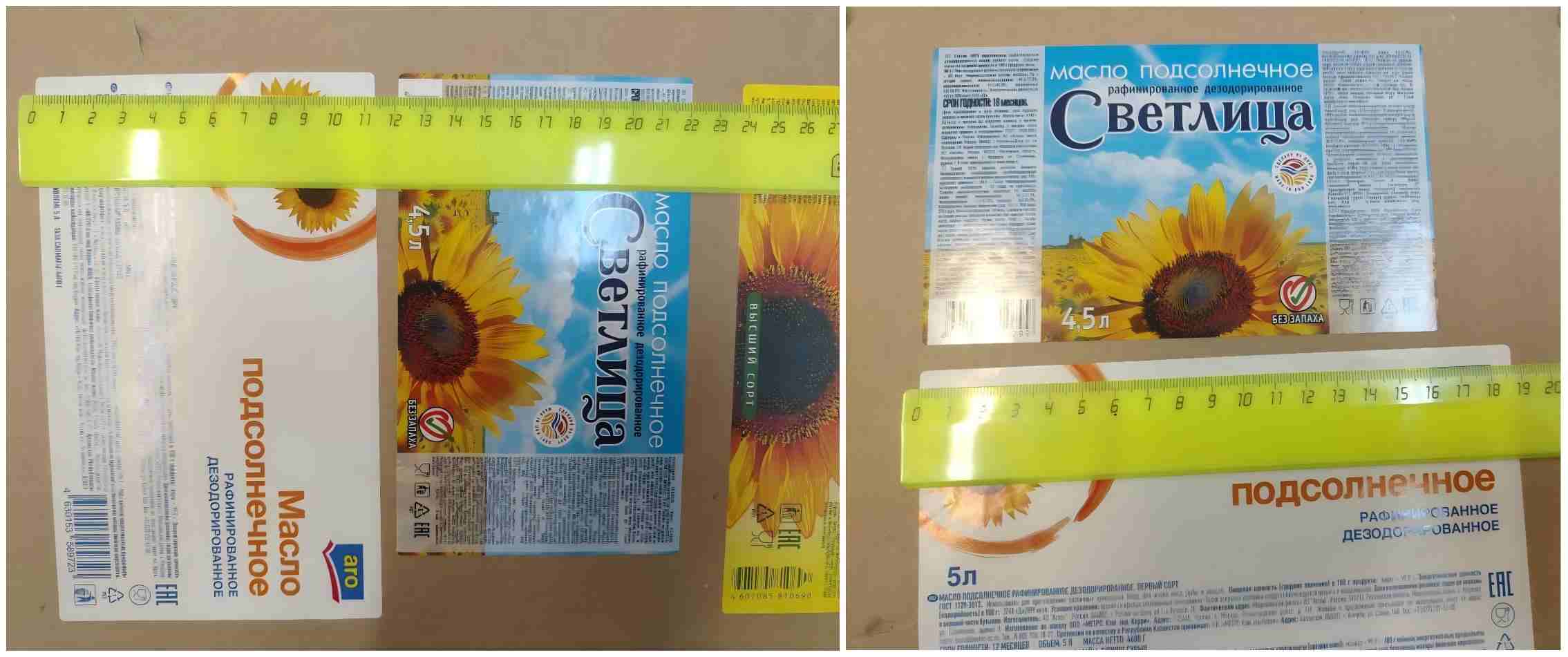

Larger containers require larger labels. Larger labels mean more label material per roll — and for a production line running continuously, how often the operator needs to change the label roll matters. A 300 mm outer diameter label roll holds significantly more label material than a standard roll, reducing the frequency of roll changes and the associated production interruptions. For an industrial line running at volume, this is a meaningful operational efficiency.

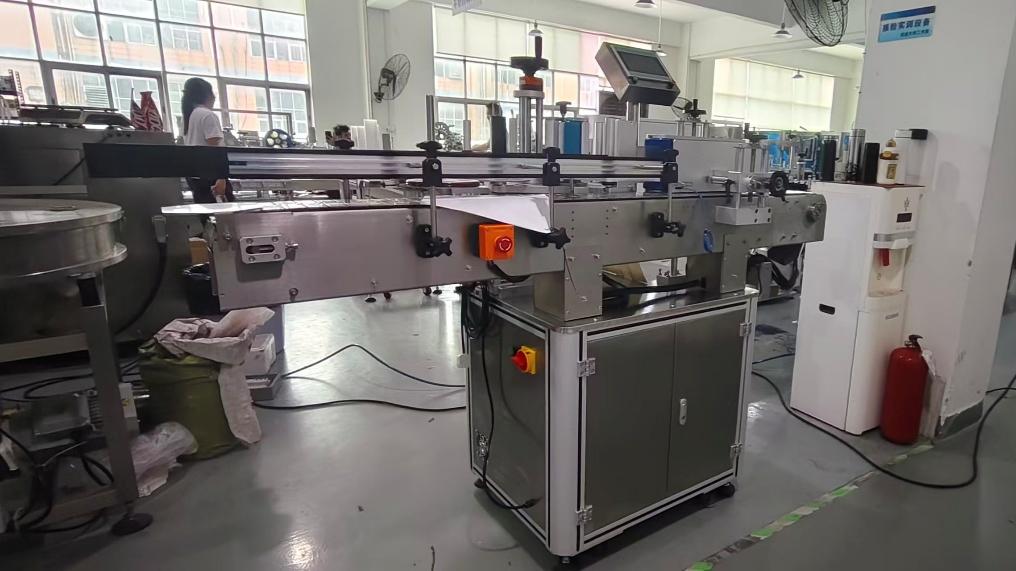

The extended machine length accommodates the larger container dimensions and the longer label application path required for a large-format wrap-around or side label on an oil drum. It also provides the physical space for the stainless steel chain plate conveyor to operate correctly at the required transport speed.

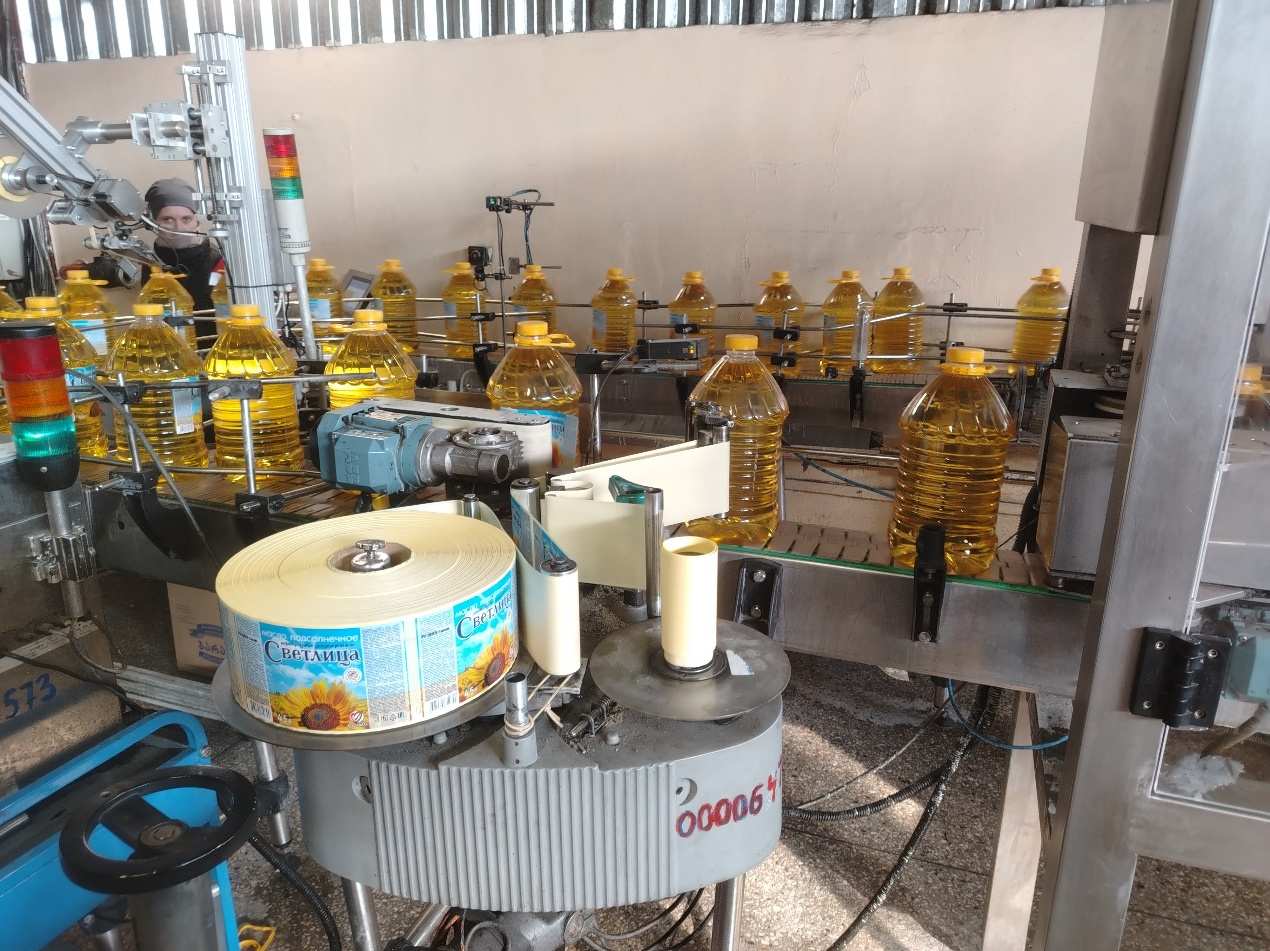

The custom YCT-60 oversized configuration connects directly to the upstream filling machine and downstream equipment, forming a continuous automated production sequence:
Upstream filling machine → fills each oil drum to the specified volume
Custom YCT-60 labeling machine → receives each filled drum on the stainless steel chain plate conveyor, transports it through the labeling station, applies the label accurately at the defined position, and passes the labeled drum downstream
Downstream equipment → receives labeled drums for capping, palletizing, or further packaging
The labeling station operates without manual intervention. No worker is needed to pick up each drum, hold it against a label applicator, and set it back down — which is what manual labeling of heavy industrial containers actually looks like, and why it is slow, physically demanding, and inconsistent. The machine handles the transport, the positioning, and the label application automatically, at the pace of the production line.
The customer received the machine and the response was clear: very satisfied.
The impact on the end customer's production process:
Full automation of the labeling step — the labeling station is no longer a manual operation or a bottleneck. It connects to the filling machine upstream and operates continuously as part of an integrated production line.
Elimination of manual labeling labor — applying labels to heavy oil drums by hand is physically demanding work. It is also slow and inconsistent at production volume. The machine removes this entirely.
Production capacity increase — with the labeling step automated and integrated into the line, the production rate is no longer limited by the pace of manual labeling. The line runs at the speed of the filling machine, not the speed of a worker with a label applicator.
Label consistency — every drum labeled at the same position, with the same tension, with the same result. For a product sold in industrial and commercial channels where label quality reflects on the brand, this consistency matters.
Reduced roll change frequency — the 300 mm label roll capacity means longer production runs between roll changes, reducing interruptions and keeping the line running.
The oil drum labeling machine is a straightforward project in one sense: the customer knew what they needed, we confirmed the specification, we built the machine to that specification, and it worked. But it illustrates something important about what custom labeling machine engineering actually involves.
Standard machines are designed around the most common container dimensions in the most common industries. They cover a wide range — but not every range. When a container is outside that range, the question is not whether a custom machine is possible. It is whether the supplier has the engineering capability to build one that actually works in the customer's production environment.
That capability requires understanding not just the container dimensions, but the full production context: what is upstream, what is downstream, what height does the conveyor need to be, what load does the conveyor need to carry, how often does the operator need to change the label roll, and what surface and material properties of the container affect how the label is applied.
We confirmed all of this before building. The machine arrived and worked. The customer was satisfied. That is the outcome that custom engineering is supposed to produce.
The custom oversized YCT-60 configuration described in this case study is relevant to any manufacturer working with large round containers that exceed standard labeling machine parameters. This includes:
Lubricating oil and motor oil drums — round metal or plastic drums requiring wrap-around or side labels
Industrial chemical drums — large-format round containers for solvents, cleaning agents, and process chemicals
Agricultural chemical containers — pesticide, herbicide, and fertilizer drums requiring durable adhesive labels
Paint and coating drums — round containers in the 1–20 litre range with full wrap-around product labels
Food-grade oil containers — large cooking oil, olive oil, or industrial food oil round containers
Beverage concentrate drums — large-format round containers for industrial food and beverage applications
Any round industrial container where the diameter, height, or weight exceeds standard labeling machine parameters
If your container is outside the standard range, the answer is not to find a workaround with a machine that almost fits. The answer is a machine built to the actual dimensions of your container and your production line.
View YCT-60 specifications and enquire about custom oversized configurations
Q: What makes a labeling machine "custom oversized," and when do I need one?
A: A standard labeling machine covers a defined range of container dimensions — typically up to around Φ100 mm diameter and 150 mm height for round bottle labelers. When your container exceeds these dimensions — in diameter, height, or weight — a standard machine cannot accommodate it reliably. A custom oversized configuration re-engineers the conveyor width, conveyor height, machine frame dimensions, and label dispensing system to match the actual container. You need one when your container is outside the standard range and a standard machine would require the container to be handled manually or awkwardly to fit.
Q: Why use a stainless steel chain plate conveyor instead of a standard belt conveyor for heavy drums?
A: Standard belt conveyors are designed for lightweight containers. Heavy industrial drums — oil cans, chemical drums, paint containers — exert loads that a belt conveyor is not built to handle reliably at production speed. A stainless steel chain plate conveyor distributes the load across rigid chain links rather than a flexible belt, providing stable transport for heavy containers without slipping, deforming, or wearing prematurely. Stainless steel also provides chemical resistance for environments where oil or chemical contact with the conveyor surface is possible.
Q: How important is conveyor height matching when integrating a labeling machine into an existing production line?
A: It is one of the most practically important dimensions in the integration. If the labeling machine conveyor is at a different height than the upstream and downstream equipment, drums cannot transfer directly between stations — they require a ramp, a lift, or manual handling at the transition point. Any of these adds complexity, slows the line, and creates a potential quality or safety issue. Matching the conveyor height to the existing line allows direct drum transfer and keeps the production sequence continuous.
Q: What label roll size does the machine support, and why does it matter for industrial production?
A: This custom configuration supports label rolls up to 300 mm outer diameter. For large-format labels on industrial containers, a larger roll holds more label material — meaning fewer roll changes per production shift. In a continuous industrial production environment, every roll change is a line stop. Reducing the frequency of roll changes keeps the line running longer between interruptions, which directly affects production efficiency.
Q: Can the machine handle both metal and plastic oil drums?
A: Yes, provided the container dimensions are within the custom configuration's specified range. The labeling mechanism applies self-adhesive labels to the container surface regardless of whether the surface is metal or plastic. The relevant factors are the container's outer diameter, surface smoothness, and any surface coating or treatment that might affect label adhesion. Share your container specifications and we will confirm compatibility.
Q: How does the machine connect to an upstream filling machine?
A: The labeling machine conveyor is designed to receive containers directly from the upstream filling machine conveyor at the same height and width. Containers transfer from the filling station to the labeling station without manual handling. The labeling machine's speed is set to match the output rate of the filling machine, ensuring the labeling step does not create a bottleneck in the line.
Q: We are a distributor. Can you build custom machines to specifications we provide on behalf of our end customers?
A: Yes, and this project is a direct example. The customer in this case study is a distributor — he confirmed the end customer's specifications with us, we built the machine to those specifications, and he delivered and commissioned it in Russia. We work with distributors on custom projects regularly. The process is: confirm the end customer's container dimensions and production line requirements, receive physical samples if available, finalize the specification, and proceed to production. We provide full technical documentation and video commissioning support for the distributor's engineering team.
Q: What is the lead time for a custom oversized labeling machine?
A: Custom non-standard machines typically require 35–50 days from confirmed specification and deposit received, depending on the complexity of the customization. We provide a confirmed lead time with the quotation. All custom machines are fully tested before shipment.
If your production line involves round containers that are outside the standard labeling machine range — in size, weight, or production line integration requirements — we would like to understand your specific situation.
Share your container dimensions, weight, label size and position, conveyor height of your existing line, target throughput, and any special requirements. We will review the application and come back with a clear engineering proposal.
