Views: 0 Author: Amy Wang Publish Time: 2026-05-27 Origin: YCT Machinery
Table of Contents
The daily chemical industry looks straightforward from the outside. Bottles of dish soap, floor cleaner, laundry detergent, hand wash, and disinfectant — products that have been manufactured at scale for decades.
But talk to any packaging engineer who has worked on a daily chemical line, and you'll hear a different story.
Corrosive formulations that attack machine components. Trigger and pump caps that require orientation before application. Irregular bottle shapes — oval, rectangular, hourglass — that standard labeling machines can't handle. Foam-prone liquids that overflow at the slightest filling error. And product ranges that span 50ml travel sizes to 5-litre bulk containers, all running on the same line.
Daily chemical packaging is one of the most demanding environments for automated equipment. This guide covers everything you need to know to design, specify, and commission a packaging line that handles it reliably.
"Daily chemicals" covers a wide range of product types, each with distinct packaging requirements. Before specifying any equipment, map your full product range across these categories:
Examples: Glass cleaner, disinfectant spray, surface sanitizer, toilet bowl cleaner, fabric softener (diluted)
Characteristics: Water-like viscosity (1–50 cP), often contain surfactants that cause foaming, may contain acids or alkalis that require corrosion-resistant wetted parts.
Filling method: Gravity filler or flow meter filler. Anti-foam nozzle design is critical — bottom-up filling (nozzle descends into the container and rises as it fills) minimizes turbulence and foam generation.
Examples: Dish soap, hand wash, shampoo, conditioner, shower gel, liquid laundry detergent
Characteristics: Viscosity typically 500–5,000 cP. Shear-thinning behavior — the product flows more easily under pressure but thickens at rest. Prone to stringing and dripping after fill.
Filling method: Piston filler with anti-drip nozzle. The nozzle design must include a positive shut-off mechanism (typically a ball valve or needle valve) that cuts cleanly after each fill cycle to prevent product stringing onto the container exterior.
Examples: Thick bleach gel, toilet bowl gel, heavy-duty degreaser paste, fabric softener concentrate
Characteristics: Viscosity 5,000–50,000+ cP. Requires significant mechanical force to move product through the filling system. Temperature sensitivity — some gels thin significantly when warm, requiring temperature-controlled hoppers.
Filling method: Piston filler with large-bore nozzles and heated hopper option. Gear pump fillers for very high viscosity or abrasive products.
Examples: Laundry powder, dishwasher tablets, scouring powder, bath salts
Characteristics: Fundamentally different from liquid filling. Requires auger fillers (powders) or multi-head weighers (granules and tablets). Dust management and static control are critical for operator safety and machine reliability.
Filling method: Auger filler for powders; multi-head weigher or linear weigher for granules and tablets.
This is the issue that catches buyers off guard most often. A machine that runs perfectly on water or shampoo for two years can fail within months when switched to an alkaline detergent or acidic descaler.

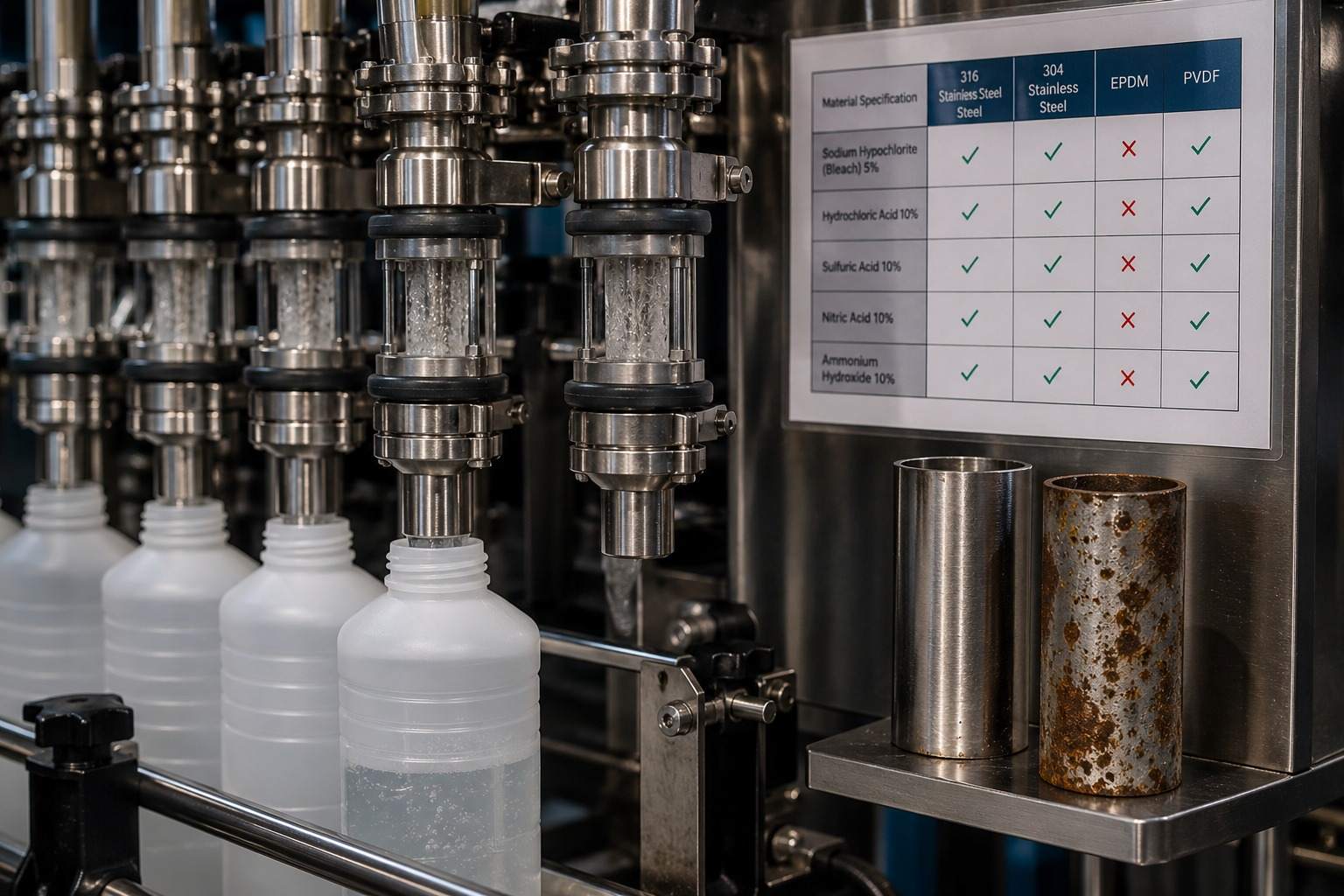

Most standard filling machines use 304 stainless steel for product-contact components — adequate for food, beverage, and most cosmetic applications. But daily chemical products frequently contain:
Strong alkalis (sodium hydroxide, potassium hydroxide) — found in oven cleaners, drain unblockers, heavy-duty degreasers
Strong acids (hydrochloric acid, phosphoric acid, citric acid) — found in descalers, toilet cleaners, rust removers
Oxidizing agents (sodium hypochlorite / bleach, hydrogen peroxide) — found in disinfectants, laundry bleach, mold removers
Surfactant concentrates — high-concentration surfactants can attack certain elastomers and seal materials
Product Type | Wetted Parts Material | Seals & O-Rings | Avoid |
Standard detergents / soaps | 304 SS | EPDM or Viton | Natural rubber |
Bleach / hypochlorite | 316 SS or PVDF | EPDM | 304 SS (long-term), Buna-N |
Strong acids (HCl, H₃PO₄) | PVDF or PP-lined | PTFE or Viton | All stainless steel |
Strong alkalis (NaOH) | 316 SS or HDPE-lined | EPDM | Aluminum components |
Hydrogen peroxide (>10%) | 316 SS or PVDF | PTFE | Copper, brass, carbon steel |
Solvents (IPA, acetone) | 316 SS | Viton | EPDM, Buna-N |
Always provide your product's full formulation and pH range to your machine supplier before ordering. A reputable supplier will specify wetted parts materials based on your actual product chemistry — not just sell you a standard machine and hope for the best.
YCT's daily chemical packaging solutions are specified with corrosion-resistant materials selected for your specific product chemistry. Send us your product SDS (Safety Data Sheet) and we'll confirm the correct material specification before quoting.
Foaming is the single most common filling problem in daily chemical production. A filling nozzle that dumps product into the container from above creates turbulence, generates foam, and results in:
Underfilled containers — foam takes up volume, so the machine reads "full" before the correct liquid volume is delivered
Contaminated exterior — foam overflows and coats the outside of the container, causing labeling failures and hygiene issues
Sensor false-triggers — foam confuses level sensors and flow meters, causing fill cycle errors
Solutions:
Bottom-up filling: The nozzle descends to the bottom of the container before filling begins, then rises as the liquid level increases. This eliminates the drop height that generates foam. Standard on YCT liquid filling machines for surfactant-containing products.
Reduced flow rate at start and end: The fill cycle begins and ends at a reduced flow rate, with full flow only during the middle of the cycle. This prevents the initial splash and the end-of-fill surge that generate the most foam.
Anti-foam nozzle geometry: Nozzles designed to direct flow along the container wall rather than into the center of the liquid surface significantly reduce turbulence.
Daily chemical products are typically sold at relatively low unit prices, which means fill accuracy directly impacts margin. A 2% overfill on a 1-litre bottle of dish soap at USD 1.50 per unit, running 60 BPM for 16 hours per day, represents:
$$\text{Daily Giveaway} = 0.02 \times 1.50 \times 60 \times 60 \times 16 = \text{USD } 1{,}728 \text{ per day}$$
At ±0.5% accuracy (achievable with a well-specified piston filler), that number drops to USD 432 per day — a saving of nearly USD 1,300 daily on a single line. Over a year, the accuracy difference between a ±2% and ±0.5% filler pays for a significant portion of the machine investment.
YCT's liquid filling machines achieve ±0.5% fill accuracy on medium-viscosity daily chemical products, validated on dish soap, hand wash, and laundry detergent applications.
Daily chemical products use a wider variety of closure types than almost any other industry — and each type requires a different capping approach.
The most common closure for bottles under 1 litre. Standard screw caps are handled by inline spindle cappers or chuck cappers. Child-resistant (CRC) caps require a specialized capping head that applies the push-down-and-turn engagement mechanism.
Key specification: Torque range. Over-torquing thin-wall HDPE bottles (common in daily chemical packaging) causes container deformation. Under-torquing causes leaks in distribution. Confirm your torque specification with your cap and container supplier before machine commissioning.
The defining closure challenge of the daily chemical industry. Trigger sprayers must be:
Oriented — the trigger must face a specific direction before application
Threaded — the cap body is screwed onto the bottle neck
Verified — the trigger must be confirmed as properly seated and not cross-threaded
Standard spindle cappers cannot orient trigger sprayers. This requires a dedicated trigger cap orientation and application system — typically a vibratory bowl feeder with an orientation track that aligns the trigger direction before feeding to the capping head.
Similar to trigger sprayers in that orientation is required. Pump caps must be aligned so the nozzle faces the correct direction. The pump dip tube length must also be matched to the container height to ensure full product evacuation.
Common on personal care products that cross over into the daily chemical category (hand wash, shower gel). These are press-on closures that require vertical force application — a press-on capper rather than a rotary screw capper.
Bulk containers of laundry detergent, floor cleaner, and industrial cleaners often use large-diameter screw caps (63mm–120mm) or handled jugs with specific closure requirements. Confirm your machine's cap diameter range covers your full container range.
Daily chemical containers present three specific labeling challenges that don't exist in most other industries:
Daily chemical bottles are designed for ergonomics and shelf presence — which means they're rarely simple cylinders. Oval cross-sections, hourglass waists, recessed grip panels, and tapered shoulders are standard in this category.
Impact on labeling:
Oval bottles require a labeling machine that can track the changing radius during label application — a standard round bottle labeler running at fixed speed will apply labels with wrinkles or lifting edges on oval containers
Recessed grip panels mean the label surface is not flat — the label must bridge the recess or be sized to avoid it
Tapered shoulders require the label to be applied at the correct height with precise vertical registration
Solution: YCT's round bottle labeling machines use servo-driven label dispensing with adjustable pressure rollers that conform to oval and irregular cross-sections. For containers with complex geometry, the vision positioning labeling machine uses camera-based detection to place labels relative to a container feature (such as a seam or embossed mark) rather than relying on container rotation alone.
Filling foamy or dripping products leaves residue on the container exterior. Even small amounts of product on the label application zone cause:
Adhesive failure — the label doesn't bond to a wet or contaminated surface
Label bubbling — trapped moisture under the label creates visible bubbles
Label lifting — edges peel within hours of application
Solution: An air-knife or wipe-down station between the filler and labeler removes surface moisture before label application. This is a standard integration option on YCT daily chemical lines. Confirm this is included in your line specification — it's often omitted from basic quotes.
Daily chemical products sold in international markets must comply with multiple labeling regulations simultaneously:
GHS (Globally Harmonized System): Hazard pictograms, signal words, and precautionary statements for products classified as hazardous
EU CLP Regulation: Specific label element requirements for products sold in EU markets
Child safety warnings: Required for products containing hazardous substances above threshold concentrations
Ingredient disclosure: Fragrance allergens, preservatives, and active ingredients must be listed in many markets
This regulatory complexity means daily chemical labels are often dense with small text and multiple languages — which in turn means label registration accuracy is critical. A 1mm vertical misalignment on a label with 6pt regulatory text can push content outside the container's flat panel and onto a curved surface, making it unreadable.
For daily chemical manufacturers supplying EU, US, or Australian markets, YCT recommends specifying ±0.5mm labeling accuracy as a minimum requirement — not ±1mm. The difference in machine cost is modest; the difference in compliance risk is significant.

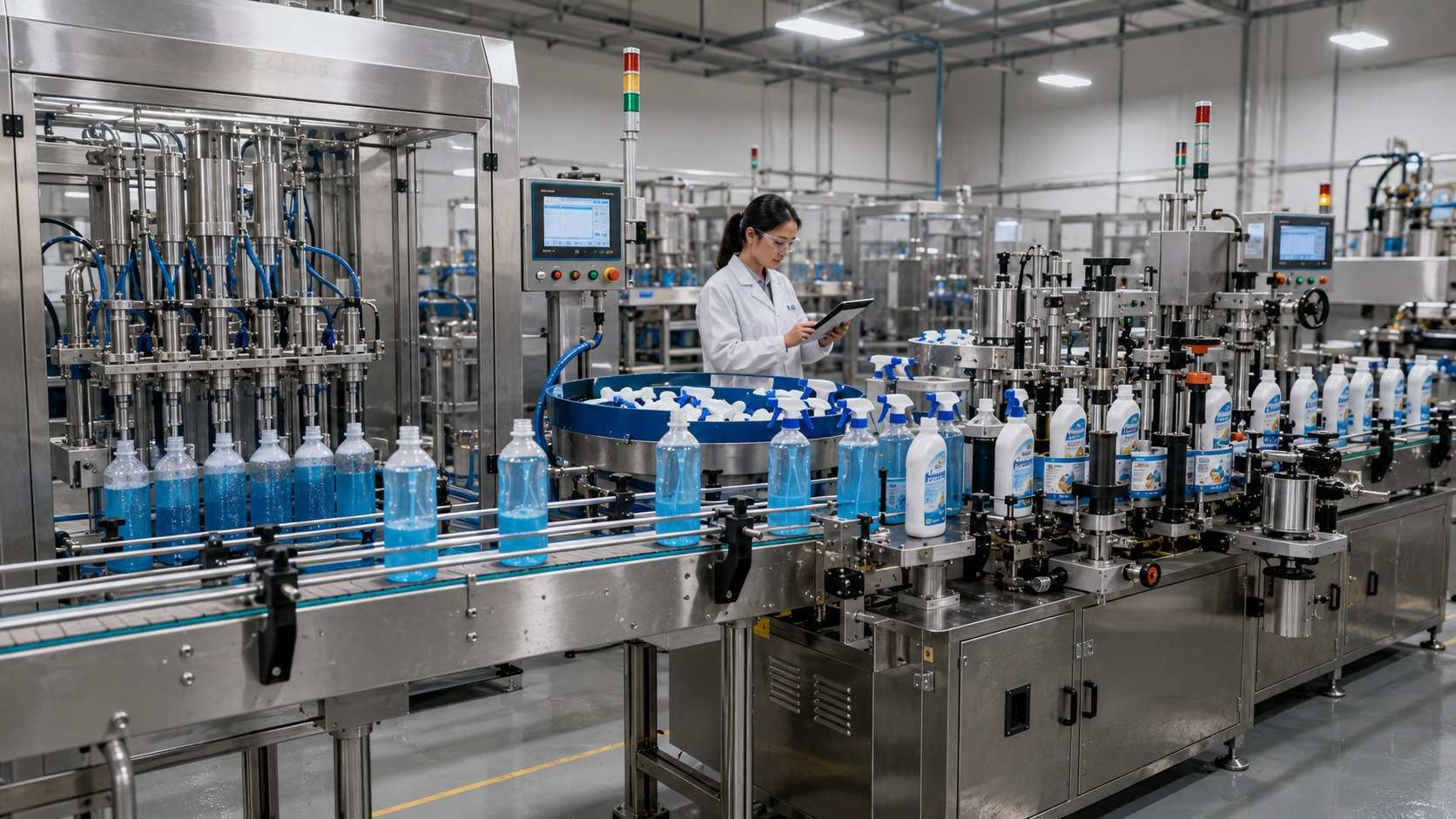

Here is the standard line architecture for a daily chemical packaging operation, with the key specification decision at each station:
① Bottle Unscrambler / Rotary Table
└─ Spec: Bottle material (HDPE/PET/PP), neck diameter, height range
② Filling Machine ←── [YCT Liquid / Paste Filler]
└─ Spec: Viscosity, fill volume range, foaming tendency, corrosion requirements
③ Drip / Foam Removal Station
└─ Spec: Air knife or wipe-down; critical for foamy products
④ Capping Machine
└─ Spec: Cap type (screw / trigger / pump / flip-top), torque range, orientation required?
⑤ Cap Sorter & Elevator ←── [YCT Automatic Cap Sorter]
└─ Spec: Cap dimensions, feed rate required at target BPM
⑥ Induction Sealer (if required)
└─ Spec: Foil liner type, container neck diameter, line speed
⑦ Labeling Machine ←── [YCT Round Bottle / Side / Plane Labeler]
└─ Spec: Container shape, label positions (front/back/wrap), accuracy requirement
⑧ Coding / Date Marking
└─ Spec: Inkjet (for porous surfaces) or laser (for smooth plastic/glass)
⑨ Checkweigher (recommended for regulated markets)
└─ Spec: Weight range, reject mechanism (air blast / pusher / diverter)
⑩ Case Packer / Shrink Wrapper
└─ Spec: Pack configuration, case dimensions, throughput
A practical example: a manufacturer producing 5 daily chemical SKUs, targeting 14,400 bottles per 8-hour shift:
$$\text{Required BPM} = \frac{14{,}400}{8 \times 60 \times 0.82} \approx 37 \text{ BPM}$$
(Using 82% line efficiency — realistic for a multi-SKU daily chemical line with 2–3 changeovers per shift)
Specifying equipment at 45–50 BPM provides the necessary buffer for changeover time, minor stoppages, and future volume growth without requiring a line upgrade. [3]
Most daily chemical manufacturers don't run a single product. They run 10, 20, or 50 SKUs — different products, different viscosities, different bottle sizes, different cap types, different label formats.
This makes changeover efficiency as important as peak production speed.
Station | Poor Changeover (>60 min total) | Good Changeover (<20 min total) |
Filler | Disassemble nozzles, manual cleaning, reassemble | CIP cycle, quick-release nozzles, saved recipes on HMI |
Capper | Replace chuck set with tools, manual torque calibration | Tool-free chuck swap, saved torque parameters per SKU |
Labeler | Manual guide adjustment, test-and-waste label runs | Handwheel adjustments, saved label programs, quick-load label roll |
Conveyor | Manual width adjustment with tools | Handwheel width adjustment, marked positions per bottle size |
The hidden cost of slow changeover:
A line running 40 BPM that takes 90 minutes to change over between SKUs loses 3,600 bottles of production capacity per changeover. At 3 changeovers per day, that's 10,800 bottles — nearly an entire shift's output — lost to changeover time annually.
Investing in quick-changeover features (saved HMI recipes, tool-free adjustments, pre-marked positions) typically adds 5–10% to machine cost but recovers that investment within the first year of multi-SKU operation.
Beyond the standard supplier questions (MTBF, component brands, after-sales support), daily chemical buyers should ask:
"What wetted parts materials do you use, and can you confirm compatibility with my specific formulations?"
Request a material compatibility confirmation in writing, based on your product SDS documents.
"How does your filling nozzle handle foaming products? Can you show me a video running a surfactant-containing product?"
Anti-foam performance is not visible in a spec sheet. Demand a demonstration.
"How does your capping system handle trigger sprayer orientation?"
If you use trigger caps, this is non-negotiable. Many standard cappers simply cannot do it.
"What is the CIP (Clean-In-Place) procedure for your filling machine, and how long does it take?"
For daily chemical lines switching between different product chemistries (e.g., bleach to fabric softener), thorough cleaning between runs is essential. A machine that requires 2 hours to clean between product changes is a serious operational constraint.
"Can your labeling machine handle our oval bottle cross-section at our target speed?"
Request a test with your actual container, or at minimum a video of a similar oval container being labeled at your target BPM.
"What is your experience with daily chemical customers specifically?"
Ask for references in the daily chemical or household product category. The challenges of this industry are specific enough that general packaging experience is not sufficient.
Q: Can the same filling machine handle both thin cleaners (water-like) and thick gels (toothpaste consistency)?
A: Not typically with the same nozzle and pump configuration. A piston filler can handle a range from medium to high viscosity with nozzle adjustments, but switching between a very thin liquid (1–50 cP) and a thick gel (20,000+ cP) usually requires different machine configurations. If your product range spans this full viscosity spectrum, discuss a dual-configuration setup or two dedicated machines with your supplier.
Q: How do I prevent label lifting on bottles that come out of the filler slightly wet?
A: The most reliable solution is an air-knife drying station between the filler and labeler. A high-velocity air curtain removes surface moisture from the label application zone in under one second without slowing the line. This is a standard integration option — specify it explicitly in your line requirements. Additionally, ensure your label adhesive is specified for your container material and any residual moisture exposure.
Q: Our product contains 5% sodium hypochlorite (bleach). What machine materials do we need?
A: For sodium hypochlorite at 5% concentration, specify 316 stainless steel for all wetted metal components, EPDM seals and O-rings (Viton is also acceptable), and PVDF or PP for any components where metal contact is unavoidable. Avoid 304 stainless steel for long-term bleach contact — it will corrode. Provide your product SDS to your supplier and request a written material compatibility confirmation.
Q: We run 15 different SKUs on one line. How do we minimize changeover time?
A: The three highest-impact investments for multi-SKU changeover efficiency are: (1) HMI recipe storage — save all machine parameters per SKU so operators recall settings with one button rather than manually adjusting; (2) tool-free mechanical adjustments with handwheels and marked positions; (3) quick-release filling nozzles and capping chucks that swap without tools. Combined, these features can reduce changeover time from 90+ minutes to under 20 minutes.
Q: Do you supply complete turnkey daily chemical lines, or individual machines only?
A: YCT supplies both individual machines and complete integrated lines. For daily chemical applications, we recommend a complete line approach — the integration between filler, capper, and labeler is complex enough that sourcing from a single supplier significantly reduces commissioning risk and simplifies after-sales support. Contact our engineering team with your product list and production targets for a complete line proposal.
Q: What certifications are required for daily chemical packaging equipment?
A: CE certification is required for equipment used in EU markets. For products classified as hazardous under GHS/CLP, the packaging line itself doesn't require additional certification, but the product labeling must comply with GHS pictogram and text requirements. For products exported to the US, EPA registration requirements for certain product categories (disinfectants, pesticides) may impose specific labeling requirements that affect your label design and machine accuracy specifications.
Before requesting a quote for any equipment on your daily chemical line:
Product Information
Full product list with viscosity range for each product (cP)
pH range and active chemical ingredients (for material compatibility)
Foaming tendency (low / medium / high)
Fill volume range per SKU (minimum and maximum ml)
Temperature sensitivity (requires heated hopper?)
Container & Closure Information
Container material (HDPE / PET / PP / glass)
Container shape (round / oval / rectangular / irregular)
Container height and diameter range
Cap type per SKU (screw / trigger / pump / flip-top / press-on)
Cap diameter range
Child-resistant (CRC) caps required?
Production Requirements
Target production speed (BPM or bottles per shift)
Number of SKUs and changeover frequency per shift
Operating hours per day / days per year
Available floor space (L × W × H)
Power supply (voltage, phase, frequency)
Regulatory & Market Requirements
Target export markets (EU / US / Australia / other)
GHS/CLP labeling required?
Child safety warnings required?
Serialization or batch coding required?
Daily chemical packaging requires equipment that is corrosion-resistant, flexible across closure types, accurate on irregular containers, and fast to change over between SKUs. Getting any one of these wrong costs you in downtime, product waste, or compliance failures.
At Dongguan Yucheng Machinery Technology Co., Ltd. (YCT Machinery), we've designed and commissioned daily chemical packaging lines for manufacturers across Southeast Asia, Europe, and the Americas. We understand the specific challenges of this industry — and we build equipment that handles them.
Send us your product list, container samples, and production targets. We'll design the right line configuration and respond within 24 hours.
