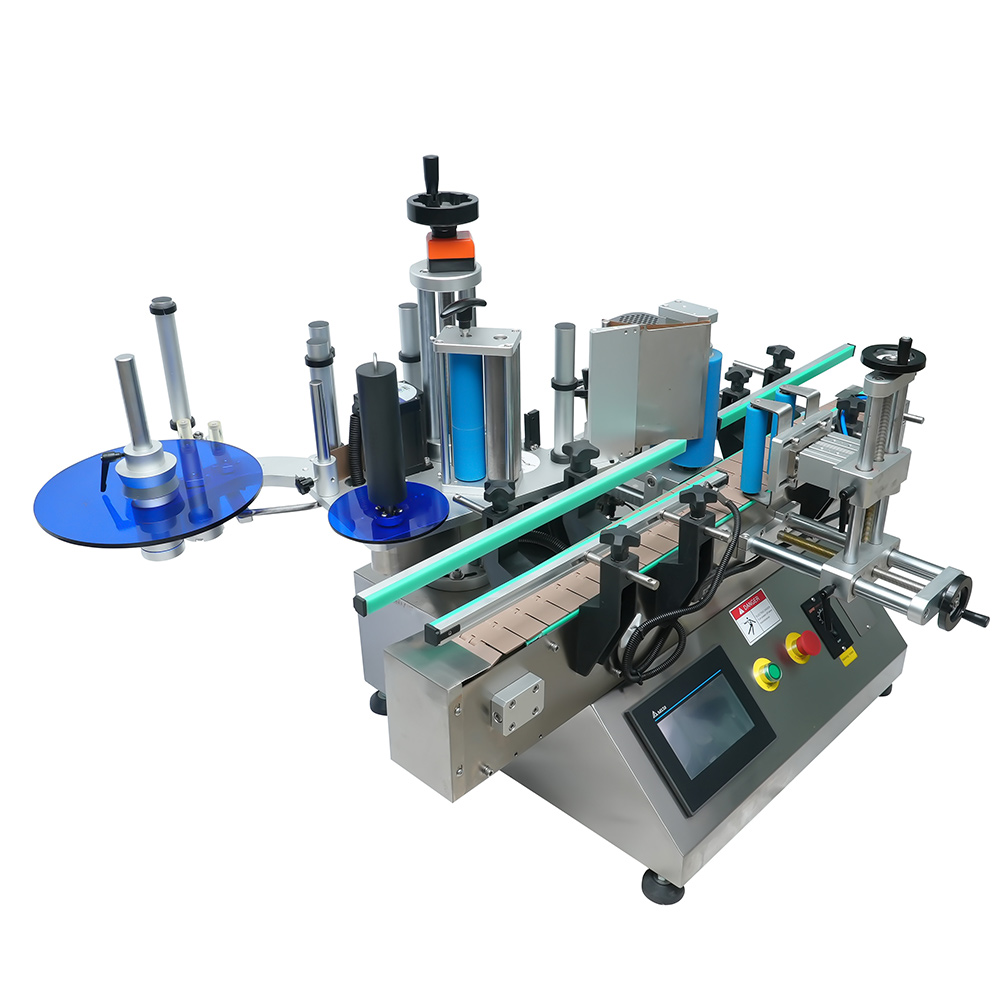

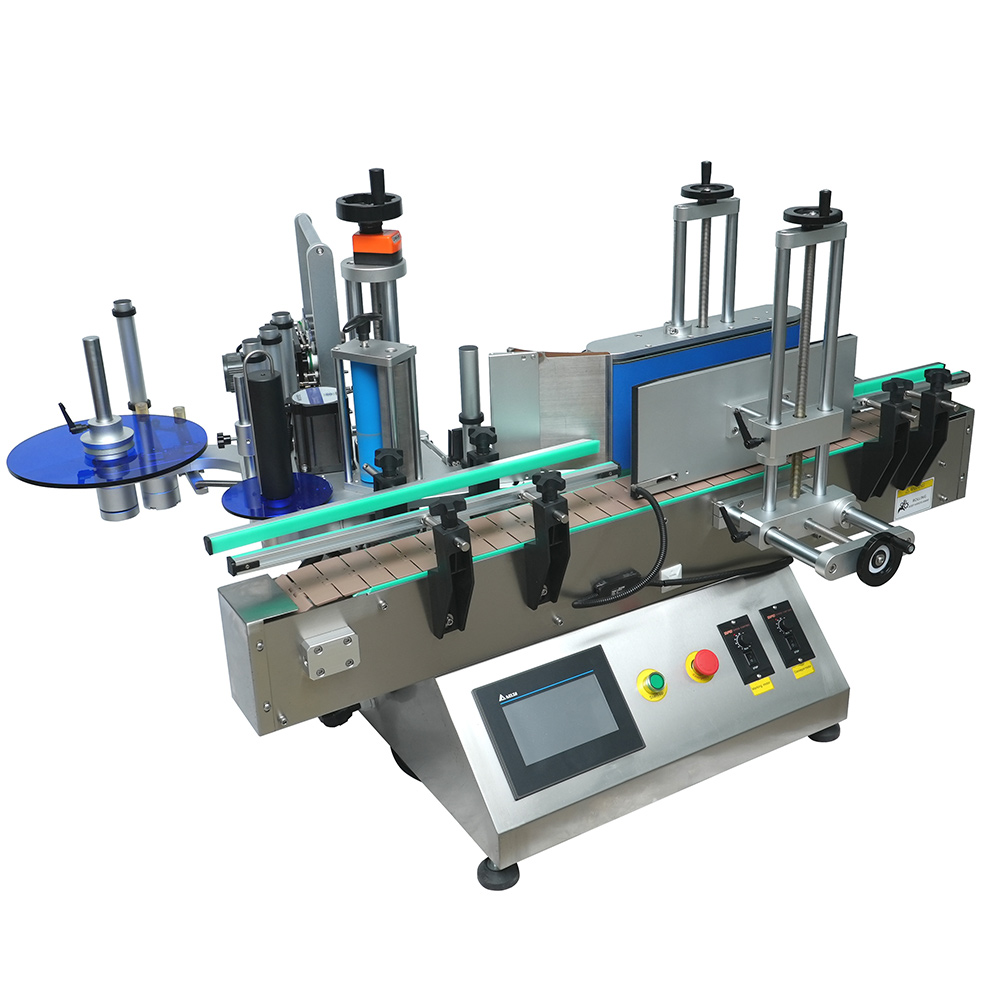

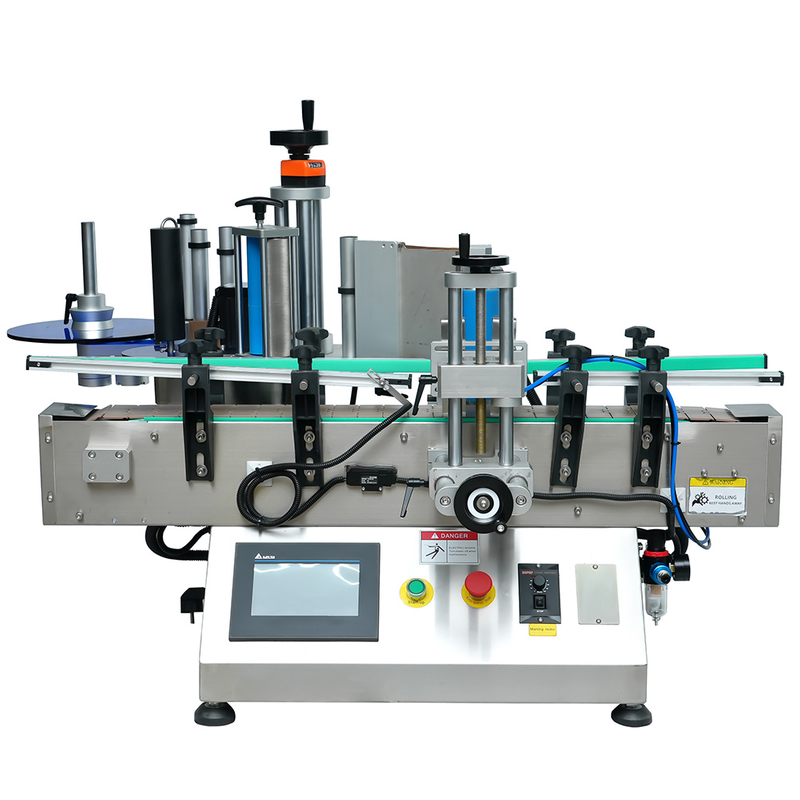

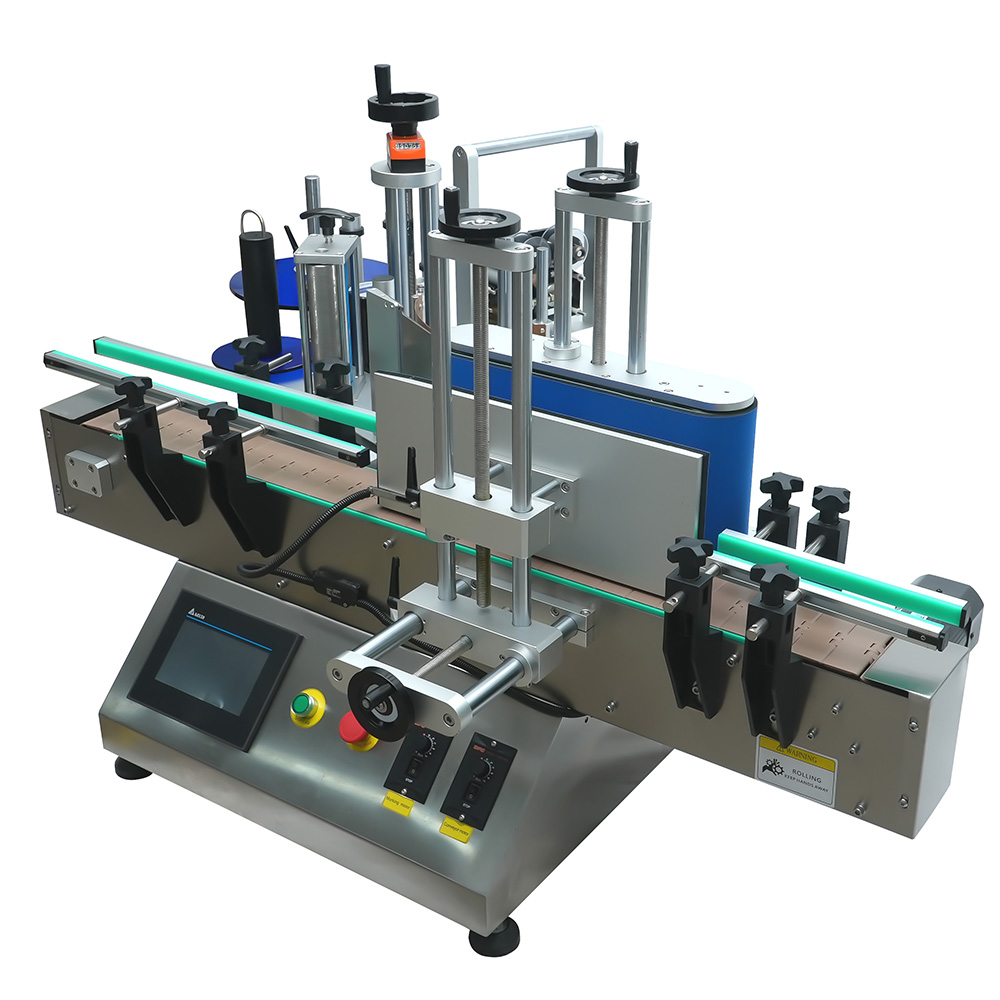

YCT-091 is a tabletop automatic positioning round bottle labeling machine designed for round bottles, cans, and cylindrical containers. It is suitable for circumferential labeling, single-label application, and optional designated-position labeling on the bottle surface. With a compact structure, ±1 mm labeling tolerance, and output of 15-40 pcs/min, it is a practical solution for customers looking for an economical and space-saving round bottle labeling machine.
The YCT-091 tabletop automatic positioning round bottle labeling machine is designed for round containers that require stable and accurate label application in a compact machine format. It is suitable for products such as gel bottles, food cans, red wine bottles, medicine bottles, disinfectant bottles, and other round packaging containers.
Compared with larger floor-standing labeling systems, the YCT-091 offers a more compact and economical solution for businesses that need reliable performance without taking up too much space. This makes it a strong choice for small and medium production environments, pilot production, specialty packaging lines, and companies with limited workshop space.
An important advantage of this machine is the optional circumferential positioning detection device, which allows labels to be applied at a designated position on the round bottle surface. This is especially useful for products that require consistent logo alignment or accurate label placement relative to bottle features.
For many manufacturers, not every labeling project requires a large high-speed system. In many cases, buyers need a machine that is:
Compact
Economical
Easy to adjust
Accurate enough for retail packaging
Suitable for round bottles and cans
Capable of designated-position labeling
The YCT-091 is developed for exactly these needs. It combines automatic conveying, PLC control, round bottle labeling capability, and optional circumferential positioning in a tabletop-style structure that is practical for daily use.
The YCT-091 is suitable for round products such as:
Round cosmetic bottles
Gel water bottles
Food round cans
Medicine bottles
Disinfectant bottles
Red wine bottles
Daily chemical bottles
Small cylindrical containers
Other round bottles requiring wrap-around or positioning labeling
The machine is widely used in:
Medicine
Food
Toys
Daily chemical
Cosmetics
Beverage
Small-scale packaging operations
The YCT-091 is suitable for several common round bottle labeling requirements.
Suitable for labels applied around the circumference of round bottles or cans.
Suitable for products that require one main label on the bottle body.
With the optional circumferential positioning detection device, the machine can apply the label at a designated position on the bottle surface.
According to the product and label layout, the machine can also be discussed for certain double-label round bottle applications.
The YCT-091 adopts a compact tabletop-style structure, making it suitable for factories or workshops where space is limited.
This model is a practical choice for customers who need an economical automatic round bottle labeling machine without the size and cost of larger industrial systems.

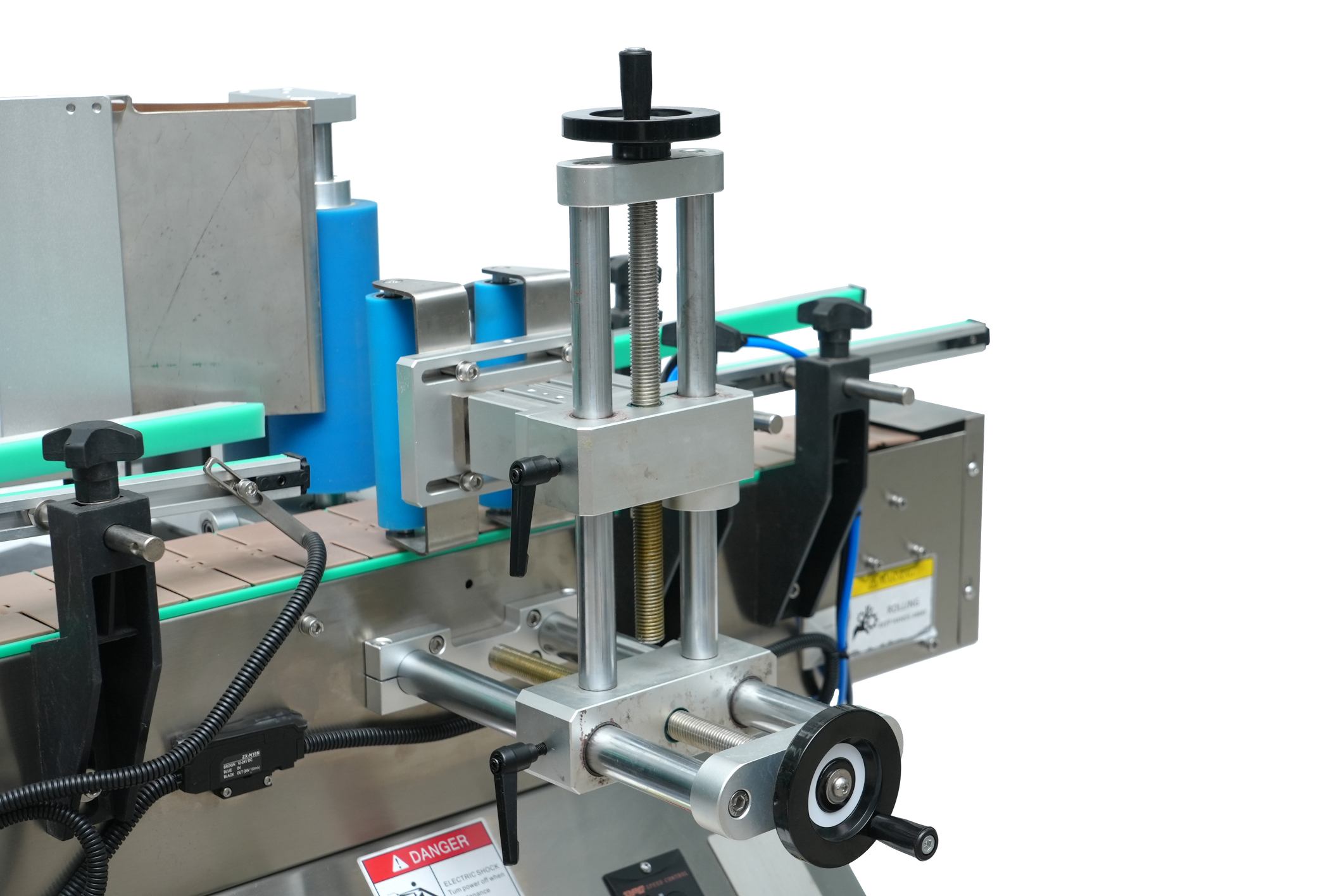

An optional positioning detection device can be added to achieve designated-position labeling on the bottle circumference. This is helpful for products that need consistent label orientation for better shelf appearance.
The machine provides ±1 mm labeling tolerance, suitable for clean and professional product presentation.

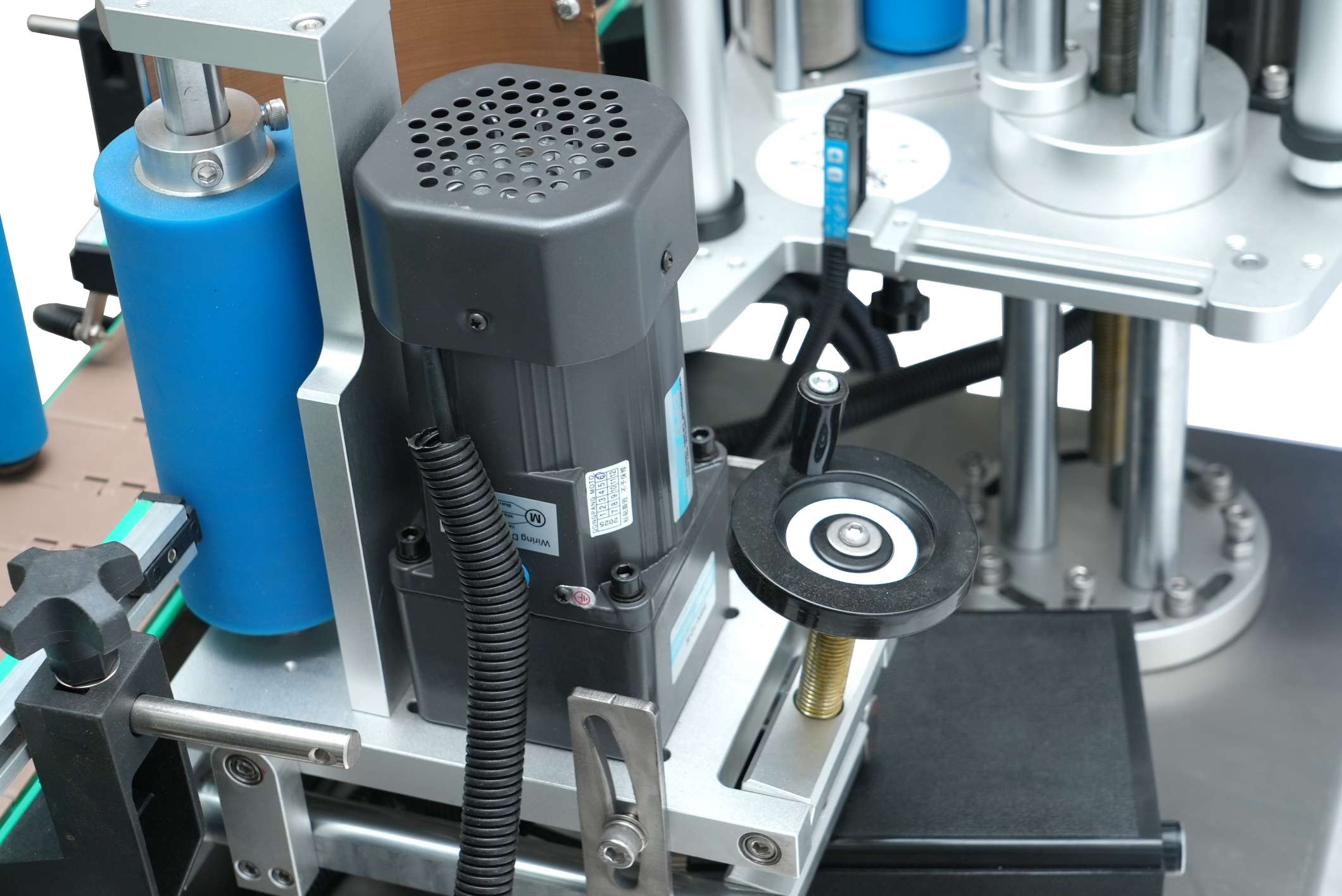

The PLC processes the product signal and label signal, then sends the signal to the traction motor to complete automatic labeling.

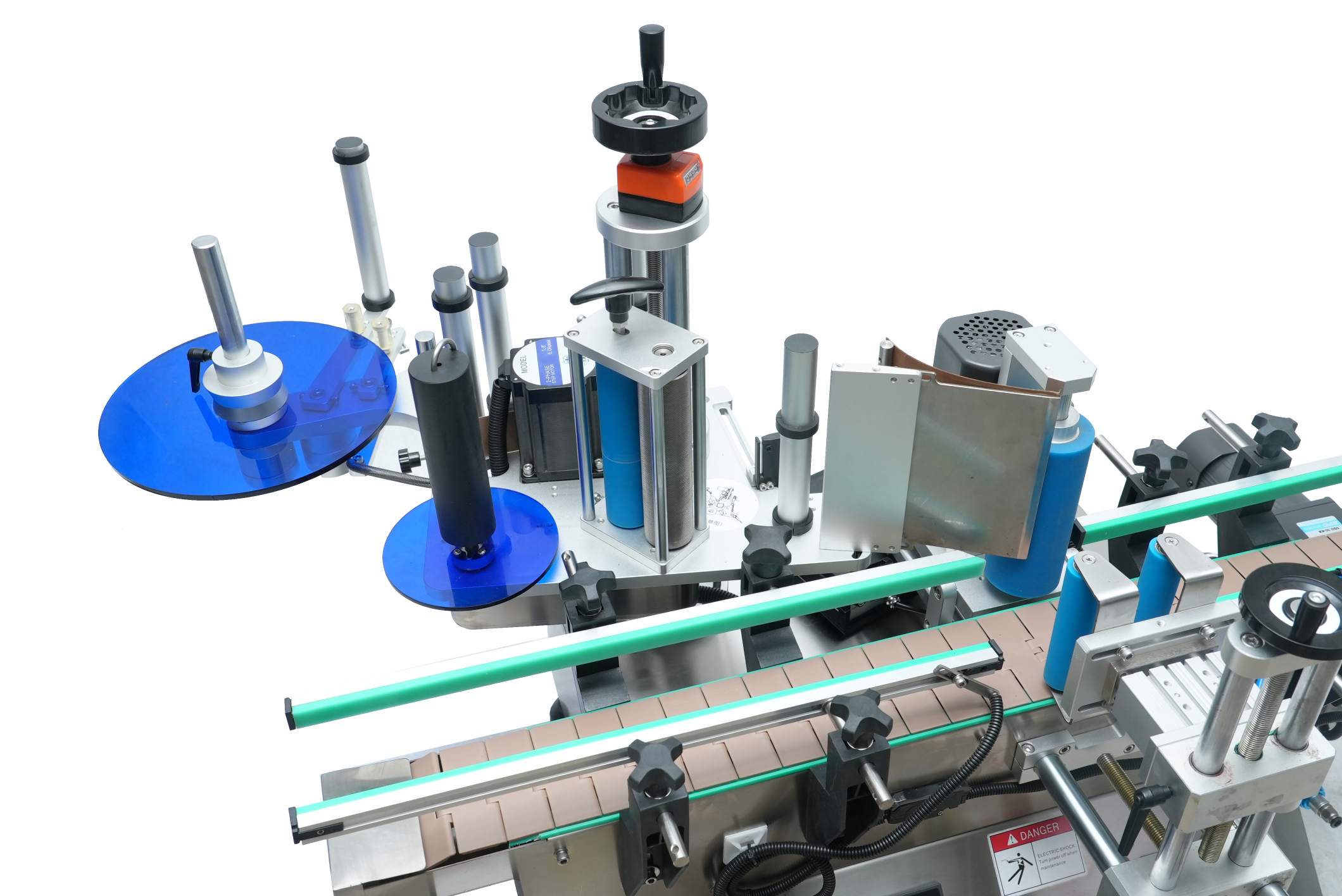

The machine uses a sponge labeling method, which helps achieve smooth label attachment and good labeling quality on round surfaces.
The machine is designed for simple adjustment, making it easier for operators to adapt it to different bottle sizes and label formats.
An optional ribbon coding machine can be added to print:
Production batch number
Production date
Expiration date
during the labeling process, reducing extra packaging steps.
According to project requirements, the machine can also be configured with:
Automatic rotary bottling machine
Production line connection
Automatic feeding function
Automatic material collection function
Additional labeling device

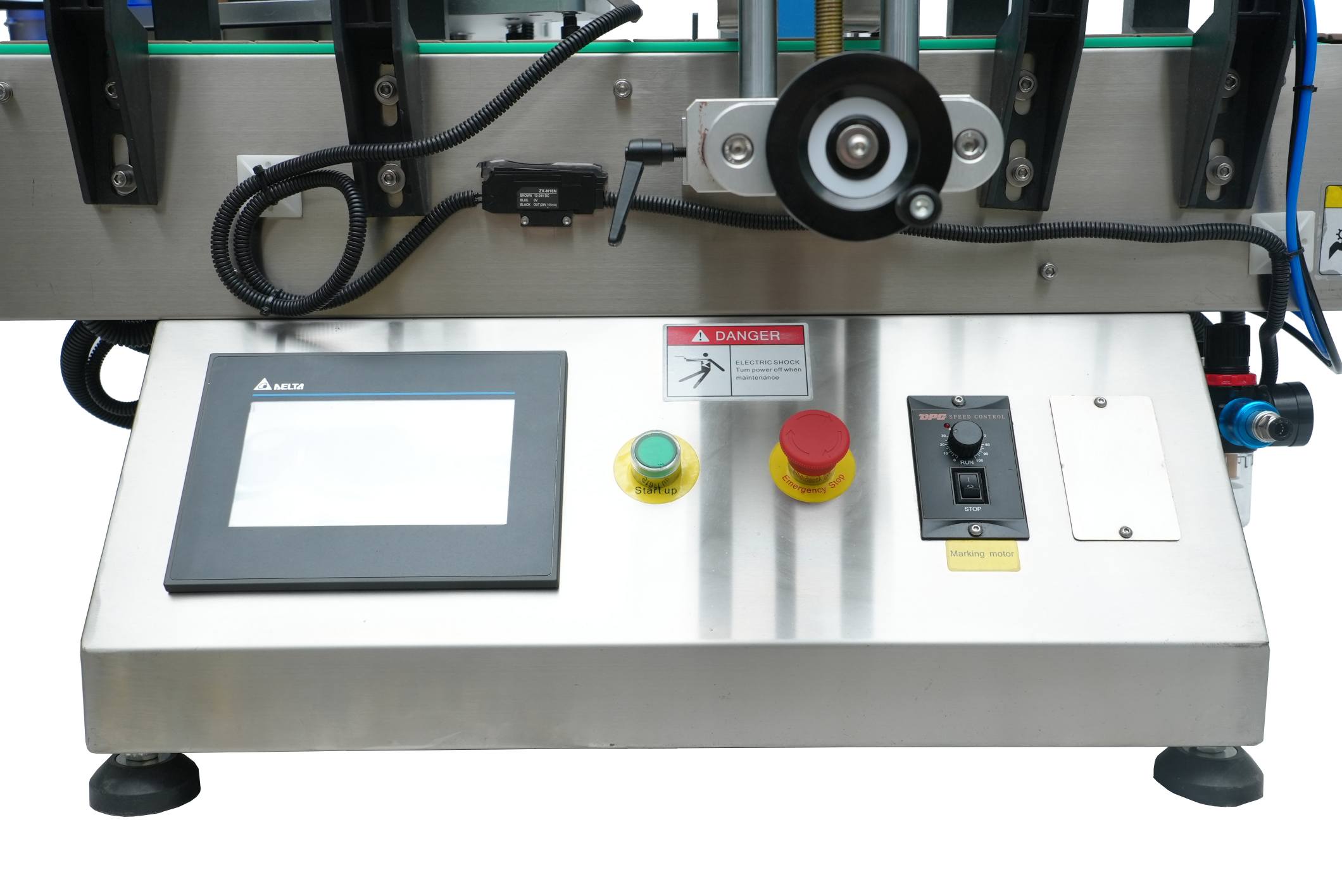

The machine uses PLC-based control for automatic labeling.
The PLC processes the product signal and label signal, then outputs a signal to the traction motor to start the labeling action.
Put bottles on the conveyor

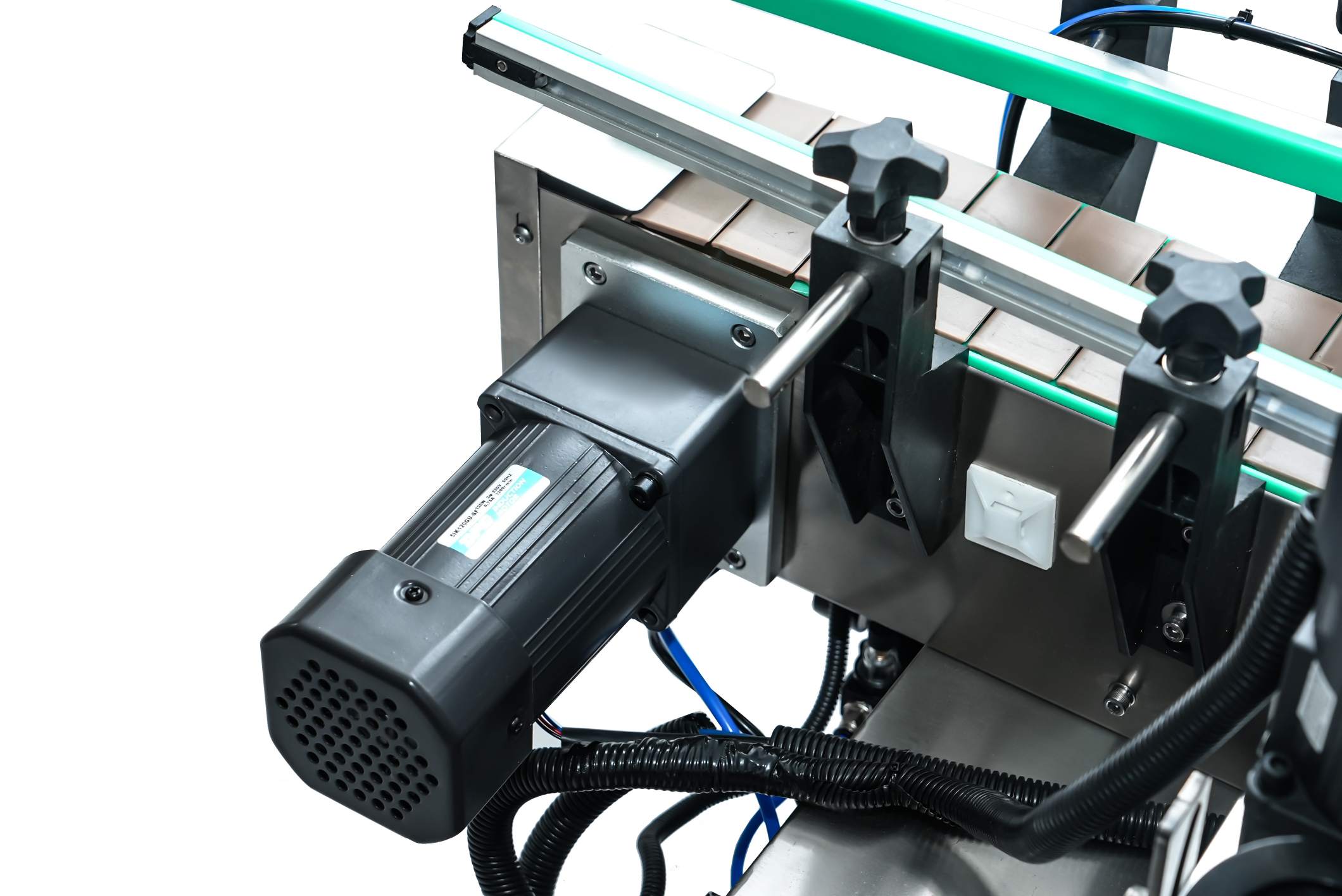

The conveyor transmits the products forward
The product sensor detects the product
The PLC receives the product signal and starts labeling
The conveyor sends the labeled products to the collecting plate
This process helps achieve continuous and stable labeling for round containers.
The YCT-091 is suitable for:
Self-adhesive labels
Self-adhesive films
Electronic supervision code labels
Barcode labels
Adhesive sticker labels, transparent or opaque
Item | Specification |
Model | YCT-091 |
Machine Type | Tabletop Automatic Positioning Round Bottle Labeling Machine |
Label Specification | Adhesive sticker, transparent or opaque |
Labeling Tolerance | ±1 mm |
Capacity | 15-40 pcs/min |
Suitable Product Size | Φ20-90 mm; Height: 30-280 mm |
Suitable Label Size | L: 15-150 mm; W(H): 10-80 mm |
Machine Size | 1000 × 650 × 550 mm |
Packing Size | 1100 × 700 × 600 mm |
Voltage | 220V / 50(60)Hz |
Power | 940 W |
Net Weight | 70 kg |
Gross Weight | 100 kg |
Label Roll | ID: Ø76 mm; OD: ≤200 mm |
To ensure stable labeling performance, the following label requirements are recommended:
The gap between labels should be 2-3 mm
The distance between the label and the edge of the backing paper should be 2 mm
The backing paper should be made of glassine with good toughness to prevent breakage
The inner diameter of the core should be 76 mm
The outer diameter should be less than or equal to 200 mm
Labels should be arranged in a single row
Final label requirements should be confirmed according to your actual product and after communication with YCTAUTO engineers.
The YCT-091 can be configured with optional functions such as:
Automatic rotary bottling machine
Direct production line connection
Ribbon coding machine
Automatic feeding function
Automatic material collection function
Additional labeling device
YCTAUTO also supports customization according to:
Bottle diameter
Bottle height
Label size
Labeling position
Coding requirement
Production capacity
Voltage standard
Your source text includes two different diameter ranges:
Application section: 25-90 mm
Technical parameters: 20-90 mm
For this draft, I used 20-90 mm based on the technical parameter table. If your engineers confirm 25-90 mm, I can revise the full page accordingly.
The YCT-091 is suitable for round bottles, cans, and cylindrical containers such as gel bottles, medicine bottles, food cans, red wine bottles, and disinfectant bottles.
Yes. It is suitable for circumferential labeling on round bottles and cans.
Yes. With the optional circumferential positioning detection device, the machine can apply labels at a designated position on the bottle surface.
The standard capacity is 15-40 pcs/min, depending on product size, label size, and actual operating conditions.
The labeling tolerance is ±1 mm.
Yes. An optional ribbon coding machine can be added to print production batch number, production date, and expiration date during labeling.
Yes. According to your production setup, it can be directly connected to the line to improve efficiency.
Yes. The machine can be customized according to bottle size, label size, labeling requirement, optional coding, and production line needs.
