For garment accessory suppliers, labeling small paper hang tags by hand is often slower and more difficult than it first appears. Thin tag stock can shift during handling, small labels are easy to place off-center, and manual pressure can cause wrinkles or uneven adhesion. Once order volume increases, the process quickly becomes a bottleneck.
This case study shows how YCT Machinery helped a Vietnam distributor of garment accessory automation equipment improve clothing hang tag labeling with the YCT-31H Automatic High-Speed Card Labeling Machine. By replacing manual work with automatic paging, automatic labeling, and automatic collection, the customer achieved a faster, cleaner, and more stable production process.

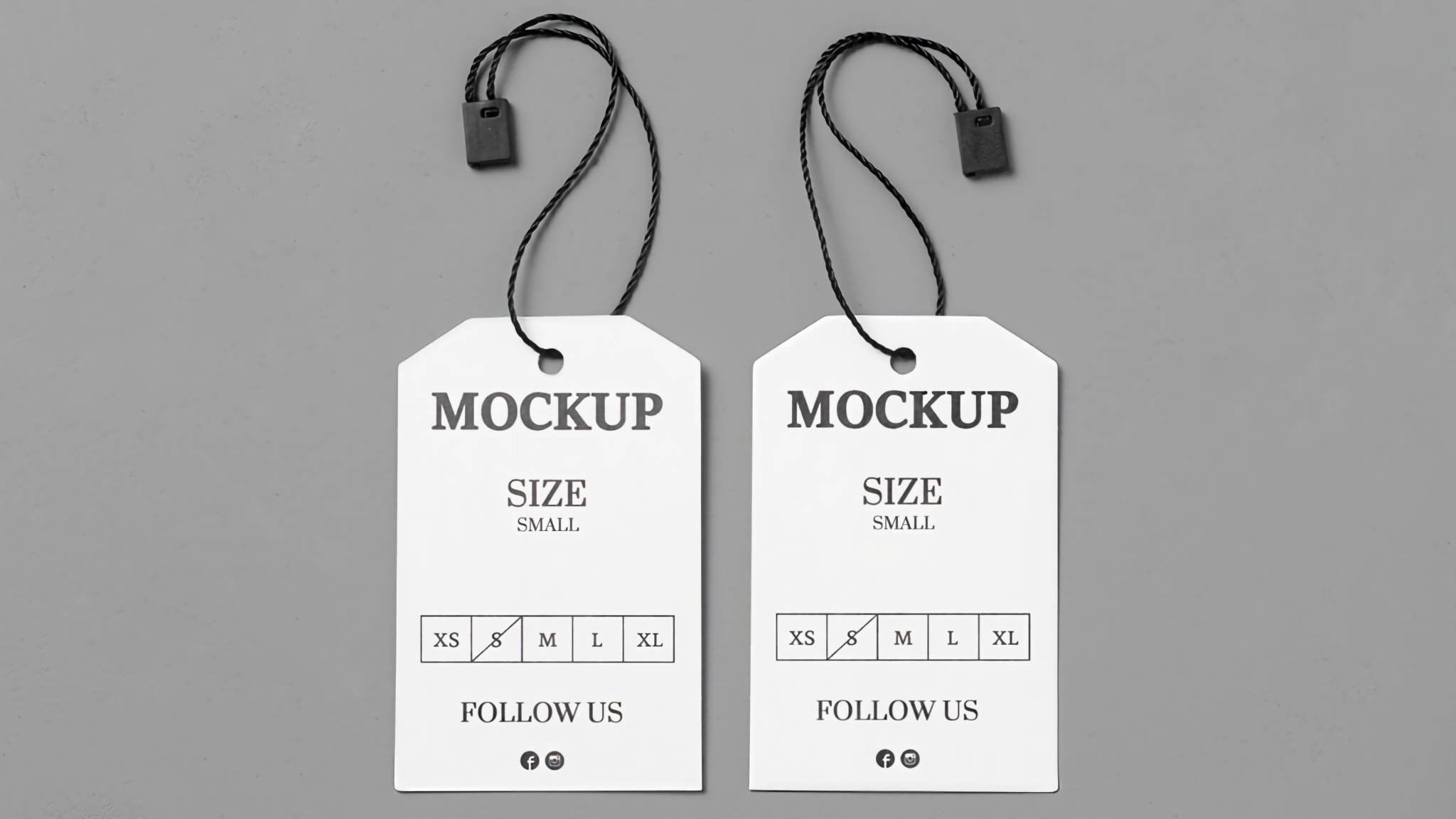

YCT supplied the YCT-31H automatic high-speed card labeling machine for a Vietnam distributor serving local garment factories. The application involved small, thin clothing hang tags measuring about 50 mm × 80 mm. With its automatic friction paging system and servo-driven labeling performance, the machine delivered 50–400 pcs/min with labeling accuracy up to ±0.5 mm, while improving appearance consistency and reducing wrinkles and skewed labels.
Item | Details |
Customer type | Vietnam distributor |
Served industries | Garment factories and clothing manufacturers |
Machine model | YCT-31H Automatic High-Speed Card Labeling Machine |
Application | Garment hang tag labeling |
Tag size | Approx. 50 mm × 80 mm |
Tag material feature | Small, thin paper tags |
Main process | Automatic paging + automatic labeling + automatic collection |
Speed | 50–400 pcs/min |
Accuracy | Up to ±0.5 mm |
Lead source |
The customer is a distributor in Vietnam focused on garment accessory automation equipment, including:
wash care label machines,
hang tag machines,
labeling machines,
and packaging machines.
Their end users are mainly local apparel factories and garment manufacturers. Because of this, the distributor needed a labeling machine that could handle real factory conditions: steady throughput, neat finished appearance, and enough flexibility to support repeat sales across similar apparel applications.
This was not just a simple equipment purchase. For a distributor, the machine also needed to serve as a reliable solution they could confidently recommend to customers in the Vietnamese garment market.
The customer first contacted YCT through LinkedIn. During roughly one month of communication, they shared:
a video of their existing manual labeling process, and
samples of the hang tags and labels.
The application looked simple, but the details made it difficult. Each garment hang tag was relatively small, and the paper stock was thin. During manual labeling, operators often faced the following problems:
labels were easy to apply crooked,
thin tags could wrinkle during application,
position consistency was hard to maintain,
and overall output was too low for larger batch work.
For apparel tags, visual consistency matters. A misaligned label or wrinkled finish reduces the professional appearance of the tag and can create quality concerns for garment brands or exporters.

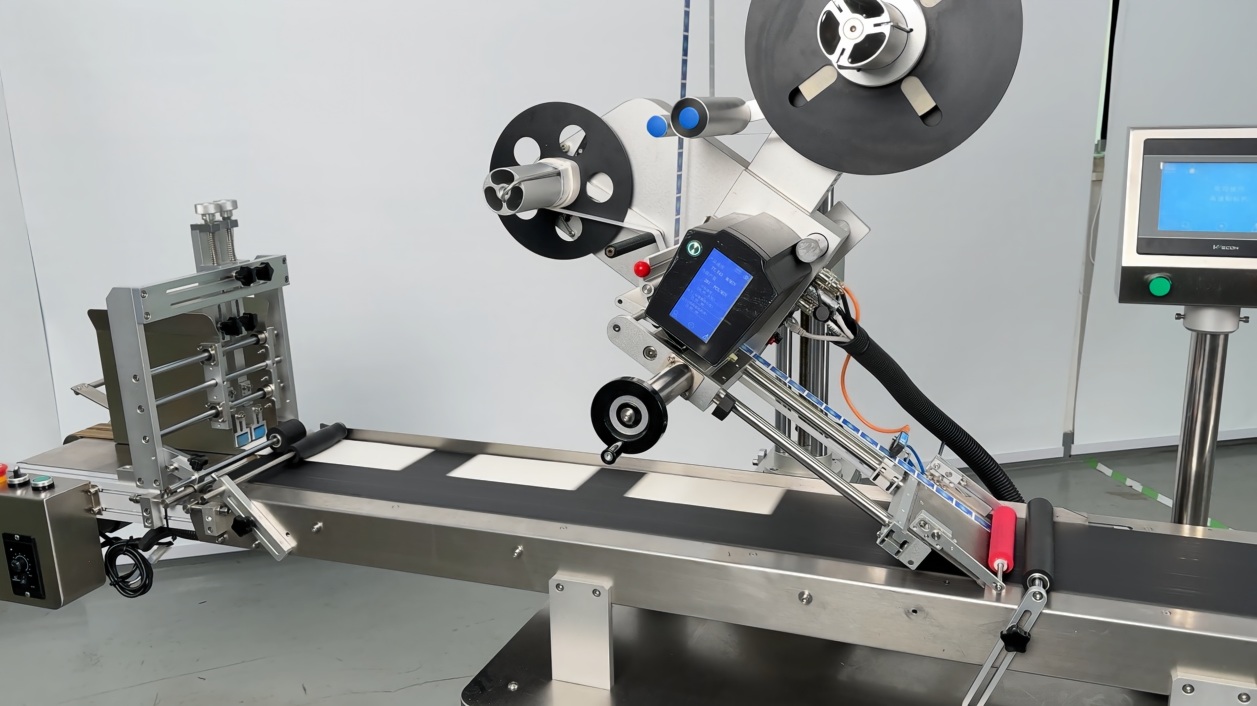

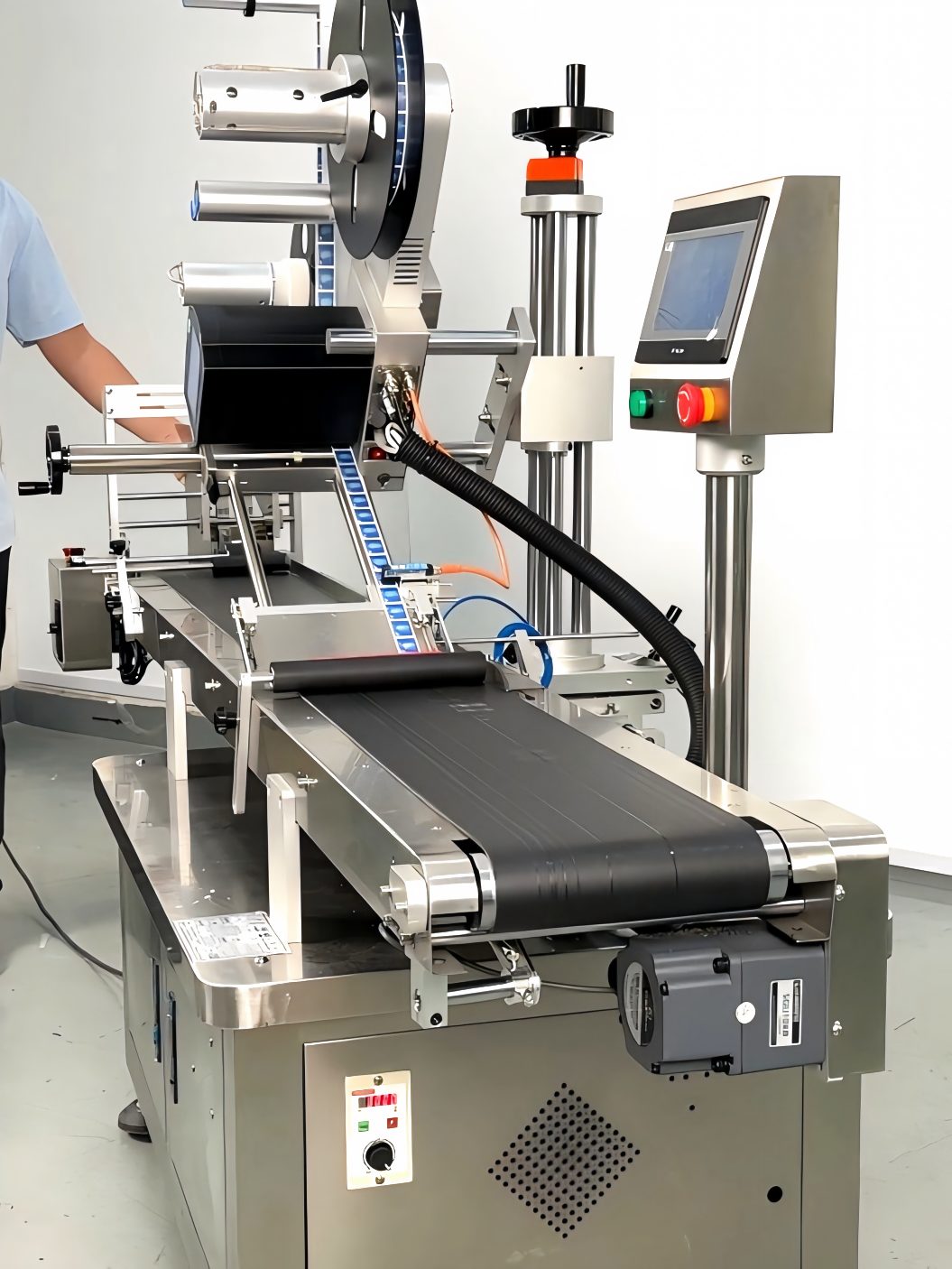

After reviewing the project, YCT recommended the YCT-31H Automatic High-Speed Card Labeling Machine, a model designed specifically for flat products that require stable high-speed feeding and accurate label placement.
According to the product configuration, the YCT-31H is suitable for:
cards,
flat cartons,
paper pieces,
pouches,
bags,
and other thin flat products.
For this garment hang tag case, the model was a strong fit for several reasons.
The customer’s hang tags were approximately 50 mm × 80 mm, which falls well within the YCT-31H’s applicable product dimension range:
Length: 40 mm ~ 280 mm
Width: 30 mm ~ 190 mm
Thickness: 0.2 mm ~ 2 mm
This made the machine suitable for small-format apparel tags without requiring an oversized platform.
One of the core strengths of the YCT-31H is its automatic paging/feeding system. For thin paper products, stable separation is critical. The machine uses an adjustable friction feeder/pager to automatically separate stacked pieces and feed them onto the conveyor in sequence.
For garment hang tags, this is a major improvement over manual handling because it helps:
reduce double-feeding,
improve feeding stability,
and support continuous production from a stacked batch.
The YCT-31H uses a servo-driven labeling system designed for high-speed precision work. In this case, that helped the customer achieve accurate label positioning on small tags where even slight deviations are easy to notice.
For thin card-style products, clean application matters as much as speed. This machine is built for precision flat surface labeling, helping ensure labels are applied:
flat,
neat,
aligned,
and without obvious wrinkling or skewing.
To verify the application before order placement, we prepared a test based on the customer’s tag size and labeling requirements. In addition to the information and samples provided by the customer, we also sourced matching-size tags for in-house testing so the customer could review a realistic result quickly.
After the test, we recorded a video demonstration and sent it to the customer.
This step gave the customer a clear view of:
tag separation performance,
labeling stability,
final label appearance,
and the overall suitability of the machine for thin apparel hang tags.
Once the customer confirmed the result and discussed several remaining technical details, they arranged the order.
For overseas distributors, this sample-based validation is especially helpful because it reduces project risk and makes it easier to present the solution to downstream customers.
In this garment hang tag application, the YCT-31H automatic card labeling machine delivered the following process:
automatic paging
automatic labeling
automatic collection
The operator could load hundreds of tags at one time, and the system processed them continuously with smooth material flow and no obvious jamming.
Labeling speed: 50–400 pcs/min
Labeling accuracy: up to ±0.5 mm
Feeding mode: automatic friction paging
Application result: flat, neat, and accurately positioned
Finished appearance: no obvious wrinkles, no skewed placement, improved uniformity across batches
For a distributor serving apparel factories, these results matter because they directly affect how practical and saleable the machine is in the local market.
Process Item | Before: Manual Labeling | After: YCT-31H Automatic Card Labeling |
Material handling | Tags handled one by one | Hundreds of tags loaded in stacks |
Feeding | Manual placement | Automatic friction paging |
Label positioning | Easy to shift | Stable servo-controlled placement |
Appearance | Crooked labels and wrinkles could occur | Flat, neat, wrinkle-free finish |
Production speed | Limited by labor | 50–400 pcs/min |
Batch consistency | Uneven from piece to piece | Uniform results across batches |
Production scalability | Hard to increase output | Better suited to higher-volume work |
The most obvious improvement was throughput. Compared with manual work, the machine dramatically increased processing speed and made the hang tag labeling process suitable for batch production.
Because the labels were small and positioning tolerance was tight, ±0.5 mm accuracy made a visible difference. The final results were much more consistent than hand application.
Manual labeling had caused wrinkling and skewed placement. With the YCT-31H, labels were applied smoothly and evenly, improving the overall visual quality of the finished garment tags.
Instead of relying on manual alignment for each individual tag, the customer could now use a more repeatable automatic process with lower labor intensity and better consistency.
Because the distributor serves garment manufacturers in Vietnam, this successful installation also gave them a stronger application case for promoting automatic hang tag labeling solutions in the apparel sector.
Although this project focused on clothing hang tags, the YCT-31H is relevant to many other flat-product labeling tasks where speed and accuracy matter.
Typical applications include:
garment hang tags,
apparel swing tags,
paper cards,
flat pouches,
printed inserts,
barcode cards,
and other lightweight flat packaging items.
If your production line still relies on manual labeling for these products, the most common problems are usually the same:
low output,
inconsistent label position,
wrinkling,
crooked labels,
and poor repeatability from batch to batch.
A machine like the YCT-31H automatic high-speed card labeling machine is especially valuable when the product is thin, stacked, and sensitive to manual handling errors.
This project reflects several practical strengths that helped move the order forward:
application-based machine recommendation
experience with flat product and card labeling
sample testing before purchase
high-speed automatic paging for thin products
servo-driven precision labeling
stable performance for small-format applications
good fit for distributors and export markets
For many B2B buyers, especially distributors, the decision is not based only on catalog specifications. What matters more is whether the machine can run real products smoothly and produce a clean result that end users will accept.
For this Vietnam distributor, the YCT-31H Automatic High-Speed Card Labeling Machine provided a highly suitable solution for small garment hang tag labeling.
By replacing manual work with automatic paging, automatic labeling, and automatic collection, the customer solved the key problems of:
slow labeling,
skewed placement,
wrinkled labels,
and inconsistent finished appearance.
The result was a faster, more accurate, and more professional labeling process that better fits the needs of modern garment factories and apparel accessory suppliers.
If you need to label garment hang tags, paper cards, flat pouches, or other thin flat products, YCT Machinery can evaluate your samples and recommend a suitable machine configuration based on your product size, thickness, label format, and output target.
The machine used was the YCT-31H Automatic High-Speed Card Labeling Machine, designed for flat-surface products such as cards, paper tags, pouches, and similar items.
Yes. In this project, it labeled hang tags measuring about 50 mm × 80 mm, which fits well within the model’s applicable size range.
Yes. The YCT-31H is equipped with an automatic friction paging system suitable for thin flat materials, with applicable product thickness from 0.2 mm to 2 mm.
The machine’s working speed is 50–400 pcs/min, depending on product size, label size, and application conditions.
For this case, the machine achieved labeling accuracy of up to ±0.5 mm, helping maintain uniform label placement across batches.
No. It can also be used for cards, pouches, paper pieces, flat cartons, bags, and other flat products that require automatic labeling.
