For health product brands, label position is not only about appearance. It also affects barcode scanning, batch consistency, packaging efficiency, and delivery speed.
This case study shows how YCT Machinery helped a dietary supplement and nutraceutical brand automate dual-label round bottle labeling for white cylindrical bottles using the YCT-61H Automatic Positioning Round Bottle Labeling Machine. The customer needed to apply two labels on each bottle: one wrap-around product label and one barcode label. Their existing manual process was too slow, label positions were inconsistent, wrap labels could wrinkle at the joint, and barcode misplacement created downstream scanning problems.
After sample testing and parameter adjustment, YCT Machinery provided a solution that enabled automatic bottle feeding, automatic labeling, and automatic discharge, with the option to add an unscrambler for fully automatic feeding. The result was more stable production, cleaner label placement, and much better packaging efficiency for batch orders.
A supplement brand selling through e-commerce, chain pharmacies, and overseas channels needed to replace manual labeling for round bottles that required one wrap-around label plus one barcode label. After discovering YCT Machinery through Instagram videos and contacting the team via WhatsApp, the customer sent a manual labeling video along with bottle and label samples. Based on those samples, YCT Machinery adjusted the conveyor and bottle pressing mechanism on the YCT-61H Automatic Positioning Round Bottle Labeling Machine, tested the setup, and shared a confirmation video. The customer then paid a deposit, and settled the balance after arrival and acceptance. The final solution allowed single-label or dual-label application, with two labels applied in one pass, labeling speeds of 70–160 pcs/min depending on bottle and label size, and label placement accuracy of around ±0.5–1 mm in this application.
Item | Details |
Customer type | Health product / dietary supplement brand |
Main products | Solid beverage products, compressed candy products, and other ingestible wellness products |
Sales channels | E-commerce, chain pharmacies, overseas markets |
Lead source | Instagram video discovery + WhatsApp inquiry |
Communication period before order | About 3 weeks |
Machine model | YCT-61H Automatic Positioning Round Bottle Labeling Machine |
Container type | White cylindrical bottle |
Labeling requirement | One wrap-around body label + one barcode label |
Application mode | Single label or dual label in one pass |
Actual project speed | 70–160 pcs/min depending on bottle and label size |
Labeling accuracy in this project | Approx. ±0.5–1 mm |
Main results | Faster output, more accurate barcode label placement, smoother batch delivery |
The customer is a health product / dietary supplement brand supplying products to:
e-commerce channels,
chain pharmacies,
and overseas markets.
Their main products include solid beverage products, compressed candy products, and other oral wellness items. For this kind of brand, packaging quality matters on several levels:
the bottle must look clean and professional,
the body label must be neat,
the barcode label must scan reliably,
and label positions need to stay consistent across large production batches.
Because the customer handles repeated orders and multiple product projects, manual labeling had gradually become a bottleneck.
This project started through Instagram.
The customer first saw product videos from YCT Machinery on Instagram, then contacted the team through WhatsApp. That is an important detail, because it reflects how many modern machinery projects now begin: not through exhibitions alone, but through visual proof on social platforms and then direct business communication through messaging apps.
From the first contact to order confirmation, the communication took about three weeks.
During that period, the customer sent:
a video of their current manual labeling process,
bottle samples,
and label samples.
This gave YCT Machinery a clear basis for evaluating the real packaging pain points and recommending a workable machine setup.

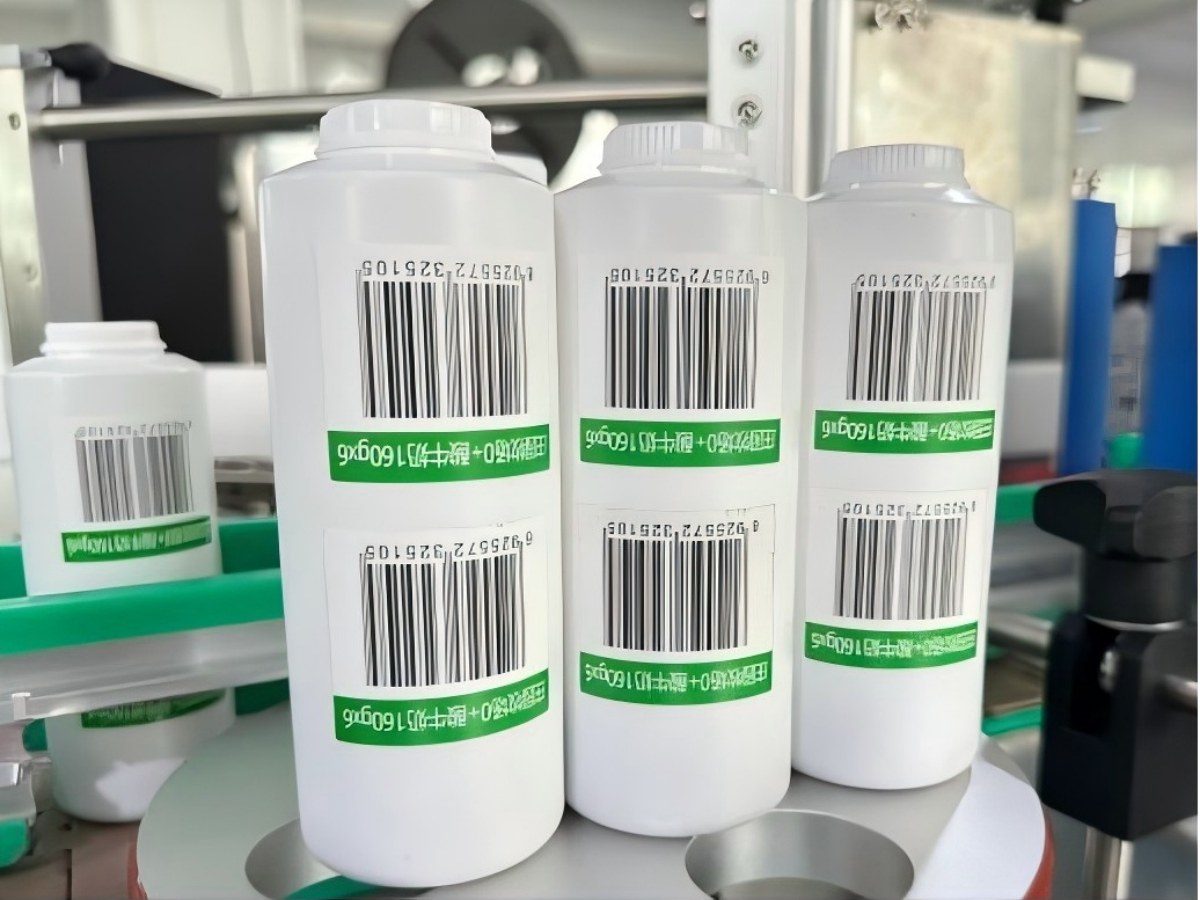

The customer’s bottle was a white cylindrical round bottle, and each bottle needed two labels:
one wrap-around product label on the bottle body
one separate barcode label
In manual production, workers had to position and apply labels bottle by bottle. That caused several problems.
Manual alignment and application limited output, especially when order volume increased.
It was difficult to keep both labels at a consistent height and angle across batch production.
The body label could wrinkle or shift where the ends met, making the final package look less professional.
If the barcode label was not positioned accurately, downstream scanning could be affected, which created avoidable issues in packaging and logistics.
When batch quantities increased, the manual process often struggled to meet delivery schedules.
For supplement packaging, these are not minor issues. They directly affect:
shelf presentation,
packing efficiency,
barcode readability,
and shipment reliability.

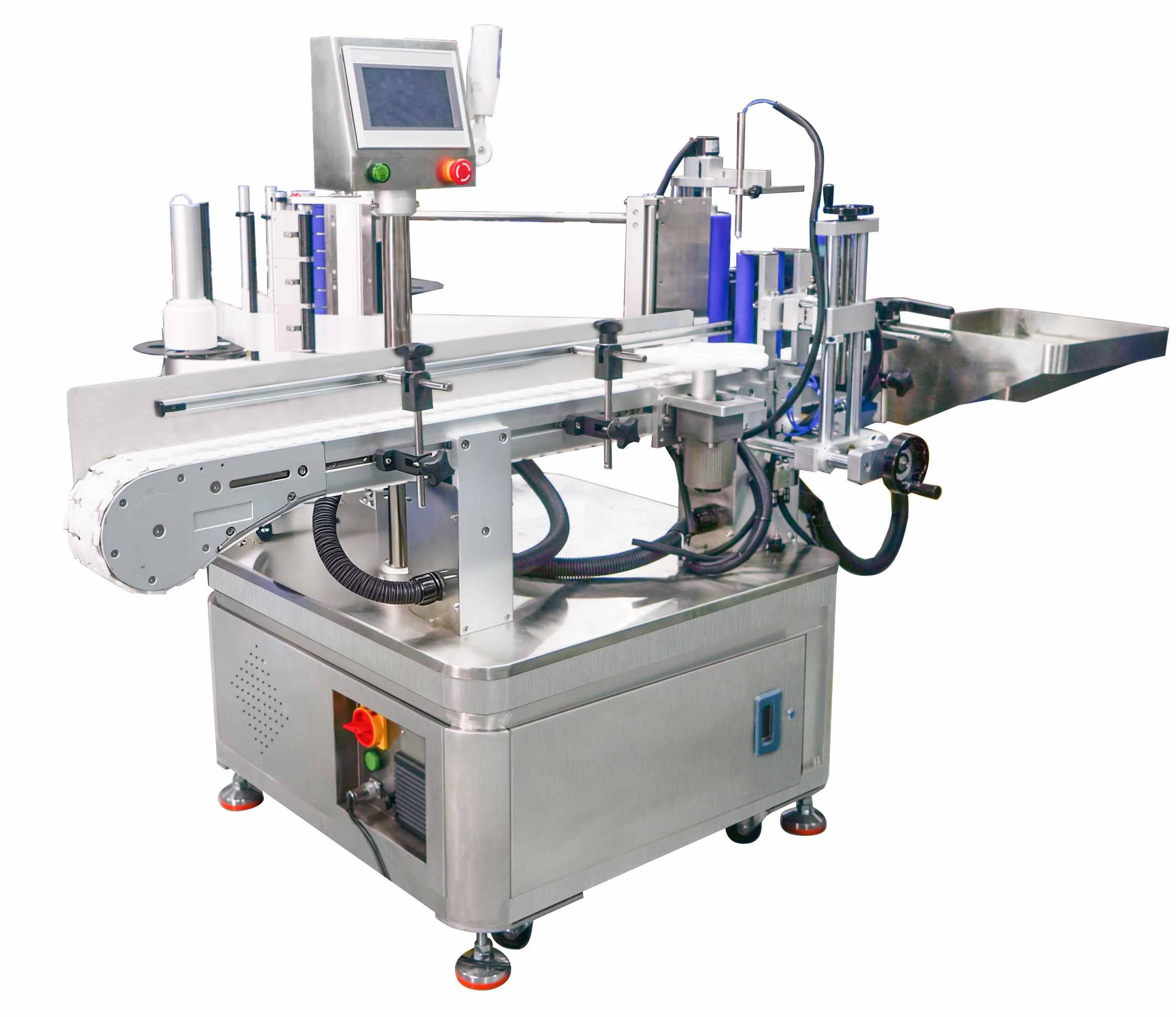

The YCT-61H Automatic Positioning Round Bottle Labeling Machine from YCT Machinery is designed for high-speed round bottle labeling, with support for:
single-label and double-label applications
full wrap-around or partial wrap-around labeling
orientation-based positioning capability
30–180 pcs/min depending on bottle and label conditions
high labeling accuracy, with application-dependent performance up to ±0.5 mm
bottle diameters from φ25 mm to φ100 mm, with customization available
For this customer, the biggest value of the YCT-61H platform was that it could handle:
one label or two labels
round bottles / round jars
stable high-speed operation
and more precise, repeatable label placement than manual work
That made it a strong fit for health product packaging where appearance and barcode consistency both matter.
After receiving the customer’s samples, YCT Machinery adjusted the machine based on the actual bottle and label conditions.

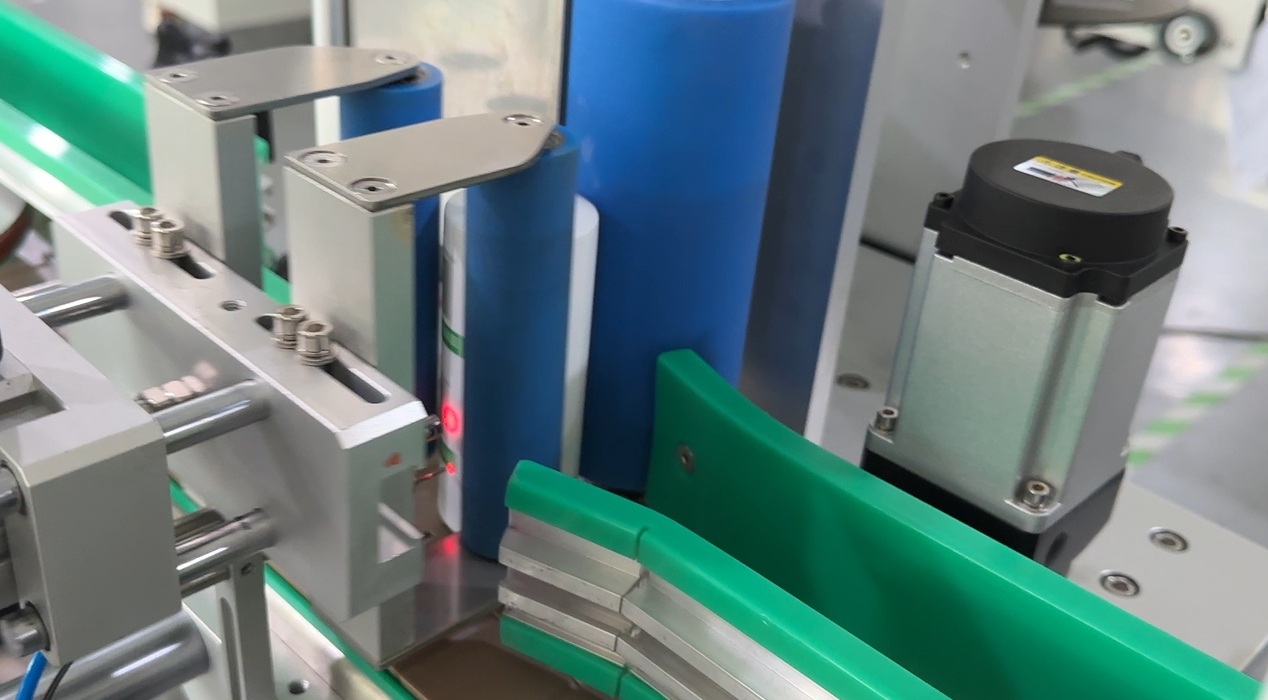

The conveyor was adjusted according to the bottle diameter and running condition so bottles could move smoothly and consistently through the labeling process.
The pressing structure was tuned to hold the bottle more stably during labeling, helping maintain accurate placement and clean adhesion.
Instead of discussing the application only in theory, YCT Machinery used the actual customer samples for testing and then sent a test video back to the customer for confirmation.
This was an important step, because it allowed the customer to see the actual labeling effect before finalizing the order.
After viewing the test result, the customer paid a deposit first, and then completed the balance payment after machine arrival and acceptance.
That payment structure also reflected a gradual build-up of trust: social media discovery, sample testing, confirmed effect, deposit, delivery, acceptance, and final payment.

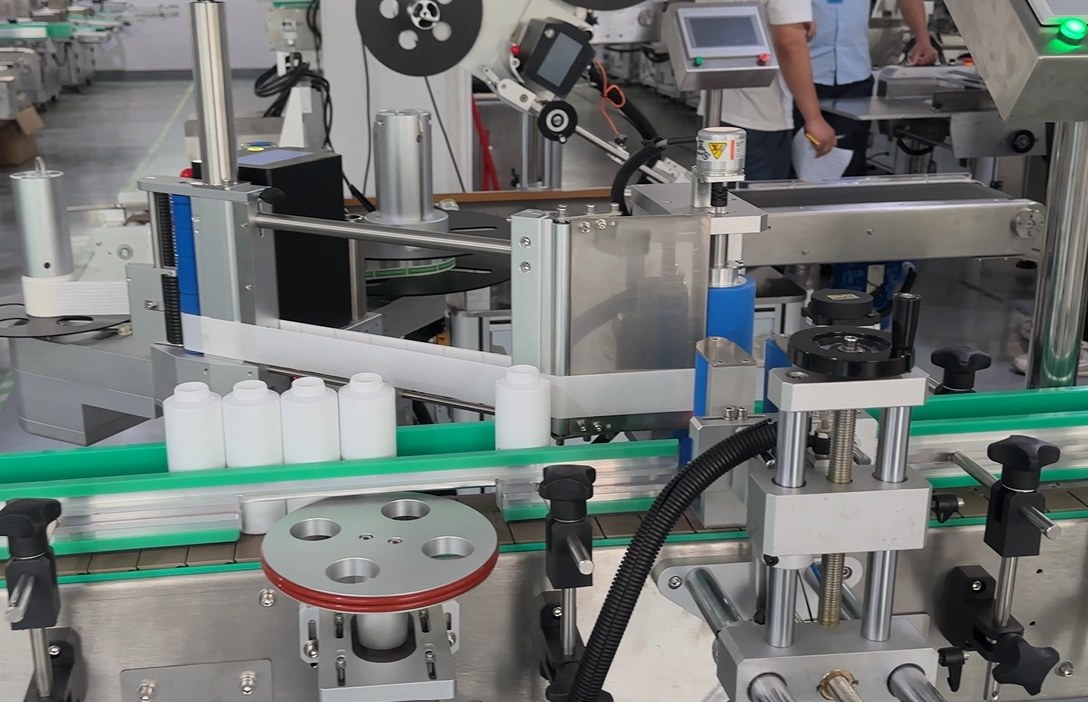

For this round bottle application, the machine delivered a more complete automatic workflow:
automatic bottle feeding
automatic labeling
automatic bottle discharge
It can also be paired with an automatic bottle unscrambler to achieve more complete automatic feeding upstream.
The machine can apply:
one label
or two labels in one pass
For this customer, the two-label setup allowed the wrap-around body label and barcode label to be applied in one completed operation, improving efficiency and reducing repeated handling.
According to the project feedback, the labeling process was smooth and stable, without bottle jamming during production.
Manual adjustment allows the machine to adapt to different bottle types relatively quickly, which is useful for customers launching:
new bottle sizes,
new supplement SKUs,
or new packaging projects.
Need to apply one label or two labels on round bottles with stable barcode positioning?
Send your bottle diameter, label size, label layout, and speed requirement to YCT Machinery. We can evaluate whether the YCT-61H is the right fit for your project.
In this project, the configured system achieved:
70–160 pcs/min depending on bottle type and label size
approx. ±0.5–1 mm labeling accuracy
smooth label application
flat and clean label adhesion
no obvious wrinkling
no obvious edge lifting
precise label position
consistent label height in batch production
These results directly solved the customer’s earlier problems with:
manual speed limitations
misaligned labels
wrinkles at the wrap seam
and unreliable barcode label placement
For this customer, the second label was not only decorative. It was a barcode label, which means placement consistency had real downstream value.
If the barcode label position drifts too much, it can affect:
scanning efficiency,
packing workflow,
warehouse handling,
and retail or export compliance processes.
After switching to the automatic system, the customer reported that the barcode scans easily, which is one of the clearest practical indicators that the label position became more stable and production-ready.
For supplement and health product brands, that kind of improvement is important because packaging is connected not only to brand image, but also to fulfillment accuracy.
This project brought several practical improvements.
Automatic labeling significantly improved production output compared with manual bottle-by-bottle application.
Batch production label positions became much more uniform, improving both product appearance and process reliability.
The wrap label joint no longer suffered from the same level of wrinkling or crooked application seen in manual operation.
The barcode label position became more stable, helping downstream scanning perform smoothly.
The customer reported that overall packaging efficiency and shipping lead time improved significantly.
The customer also indicated that future new bottle sizes and new product projects would give priority to YCT Machinery.
That is one of the strongest signs of project success: not only satisfaction with the current machine, but willingness to continue cooperation.
This project is especially relevant for companies packaging:
dietary supplements,
nutraceuticals,
solid beverage products,
tablet candy products,
pharmaceutical-style wellness products,
and round bottle health products.
If your current labeling process still depends heavily on manual work, you may be dealing with the same issues:
slow output
inconsistent label position
wrinkles at the wrap joint
barcode labels that do not land precisely
difficulty meeting batch delivery deadlines
For these applications, a properly configured round bottle labeling machine from YCT Machinery can improve much more than label application alone. It can improve packaging consistency, barcode usability, and delivery performance across the whole production workflow.
For this health product brand, manual labeling was no longer enough. Each bottle required two labels — a wrap-around product label and a barcode label — and the old process was too slow, too inconsistent, and too dependent on operator alignment.
By working with YCT Machinery, the customer moved to the YCT-61H Automatic Positioning Round Bottle Labeling Machine, a platform designed for high-speed round bottle labeling with single-label and dual-label capability.
After sample-based testing and machine adjustment, the final solution delivered:
automatic bottle feeding
automatic labeling
automatic discharge
optional integration with an unscrambler
one-label or two-label application
consistent barcode label placement
clean wrap label adhesion
faster, more stable batch production
The customer reported stable machine performance, uniform label position in mass production, easier barcode scanning, and much better packaging efficiency and shipping lead-time performance.
For supplement, nutraceutical, and health product manufacturers looking to replace manual round bottle labeling with a more precise and scalable process, this case shows the practical value of moving to an automatic solution from YCT Machinery.
If your bottles need one wrap label plus one barcode label, or if your team is still labeling round bottles by hand, YCT Machinery can help you evaluate a more efficient solution.
To get a faster recommendation, send the following to YCT Machinery:
bottle diameter and height
label size and label layout
whether you need one label or two labels
target speed
barcode label position requirements
photos or videos of your current production line
bottle and label samples if available
You can also review the machine here:
YCT-61H Automatic Positioning Round Bottle Labeling Machine
Need accurate wrap label + barcode label placement on round bottles?
Talk to YCT Machinery about a dual-label setup matched to your bottle and label structure.
Still struggling with slow manual labeling and barcode misalignment?
Ask YCT Machinery how the YCT-61H can improve speed, consistency, and scan reliability.
Want to verify the result before ordering?
Send your bottle and label samples to YCT Machinery for real application testing and video confirmation.
The customer used the YCT-61H Automatic Positioning Round Bottle Labeling Machine from YCT Machinery.
Each bottle required two labels: one wrap-around product label and one separate barcode label.
The customer first discovered YCT Machinery through Instagram videos and then contacted the team through WhatsApp.
The main issues were slow speed, inconsistent label position, wrinkling or skew at the wrap label joint, inaccurate barcode label placement, and difficulty meeting shipment deadlines.
In this project, the machine operated at 70–160 pcs/min, depending on bottle type and label size.
The project achieved label placement accuracy of around ±0.5–1 mm, depending on the application condition.
Yes. The machine can apply a single label or two labels in one pass, depending on the customer’s product setup.
Yes. The system can be paired with an automatic bottle unscrambler for more complete automatic feeding upstream.
Yes. The customer reported stable operation, consistent label position in batch production, reliable barcode scanning, and improved packaging efficiency and delivery performance.
