Views: 0 Author: Amy Wang Publish Time: 2026-09-14 Origin: YCT Machinery
When oral care products are sold through e-commerce, chain pharmacies, and export markets, packaging quality matters as much as production speed. A crooked or wrinkled label on a retail carton does not just slow down packing—it can directly affect shelf appearance, brand image, and delivery performance.
This case study shows how an oral care brand upgraded from manual carton labeling to a fully automatic box labeling machine for its teeth whitening strip cartons, solving slow output, inconsistent label placement, and frequent wrinkling issues.
For this project, YCT Machinery supplied a fully automatic box labeling machine for 110 × 70 × 18 mm teeth whitening strip cartons, helping the customer move from manual labeling to automatic feeding, automatic labeling, and automatic collection. The final solution achieved 100–200 boxes per minute, ±0.5 mm labeling accuracy, and smooth, wrinkle-free label application in batch production.
Item | Details |
Customer industry | Oral care |
Main product | Teeth whitening strips |
Carton type | Color box / paper box / folding carton |
Carton size | Approx. 110 mm × 70 mm × 18 mm |
Label position | Front side of the carton |
Machine type | Fully automatic box labeling machine |
Line process | Automatic feeding + labeling + collection |
Labeling speed | 100–200 pcs/min |
Labeling accuracy | ±0.5 mm |
Lead source |
The customer is an oral care brand focused on products such as teeth whitening strips. Their products are supplied to:
E-commerce channels
Chain pharmacy networks
Overseas distributors and export markets
Because their cartons are customer-facing retail packaging, the label had to be placed neatly and consistently on every box. As order volumes increased, the existing manual process became harder and harder to manage.
Before contacting YCT Machinery, the customer was still labeling cartons by hand. During the first stage of communication, they shared a video of their current operation, along with actual carton and label samples.
The process was simple but inefficient: workers had to pick up each box one by one, place the label manually, and press it into position.
That led to several production problems:
Slow labeling speed
Inconsistent label position
Skewed labels on some cartons
Occasional wrinkles and poor adhesion
Unstable packaging appearance across batches
Difficulty meeting delivery deadlines during larger orders
For a fast-moving oral care product, this was a serious issue. Once batch quantities increased, manual labeling became the bottleneck of the packaging process.
Teeth whitening strips are typically sold in highly visual retail environments. Customers often first see the product:
on an online product page,
on a pharmacy shelf,
or in promotional displays.
That means the carton must look clean, aligned, and professional. Even small packaging defects—such as wrinkled labels, edge lifting, or off-center application—can affect how the product is perceived.
For this reason, the customer was not just looking for a faster machine. They needed a carton labeling solution that could deliver:
stable high-speed output,
repeatable label placement,
a smooth labeling finish,
and a better-looking final package.
After reviewing the samples, our engineering team configured the solution around the customer’s actual carton dimensions and label position.
For this project, we adjusted:
the conveyor width to match the carton size,
the labeling head position for accurate front-side application,
and the product transfer path to keep box feeding smooth and stable.
Because the customer had already sent real cartons and labels, we were able to run a practical in-house test instead of relying only on drawings or assumptions.
This is especially important for paper box labeling applications, where carton stiffness, label material, and placement tolerance all affect final performance.
Once the machine settings were adjusted, we used the customer’s actual samples to perform a test run and recorded a video for confirmation.
The customer could clearly see that the machine was able to:
feed cartons continuously,
apply the label in the correct position,
keep the label flat and smooth,
and run without box jams.
After watching the test video and confirming the labeling effect, the customer moved quickly. Within two weeks, they arranged full payment for the order.
This is one of the practical advantages YCT Machinery offers international buyers: we can test real samples before delivery, helping reduce uncertainty and speed up purchasing decisions.

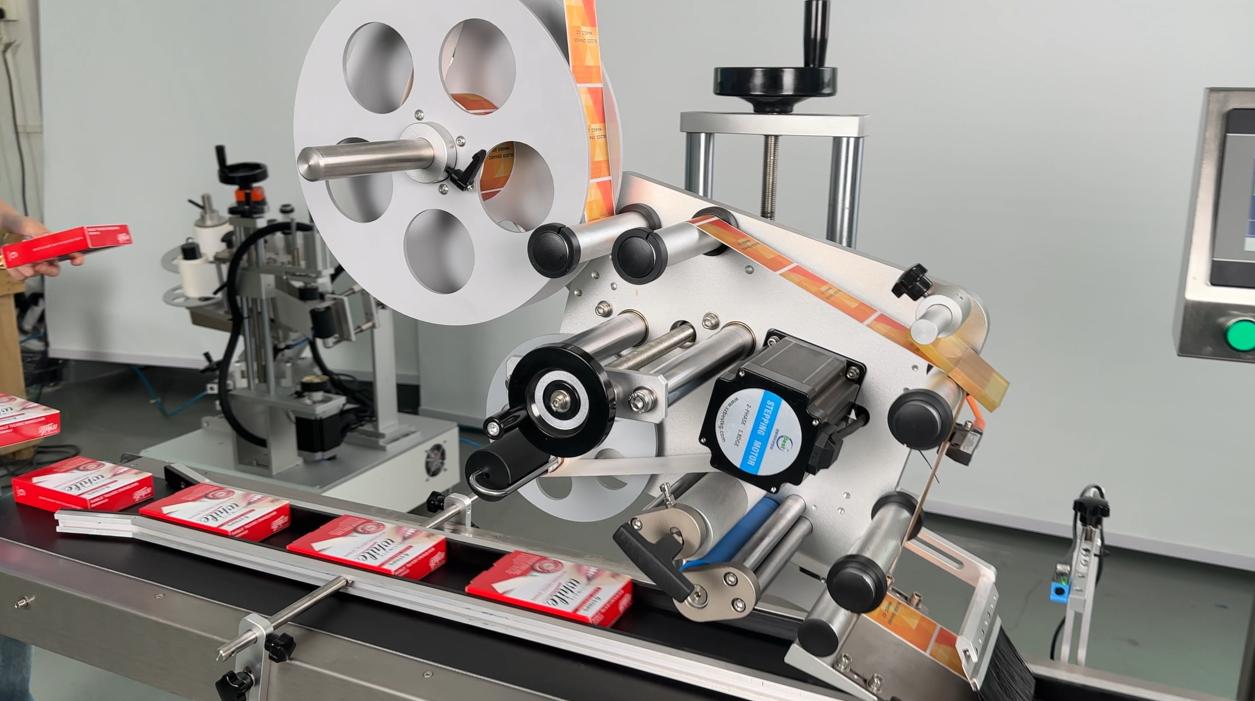

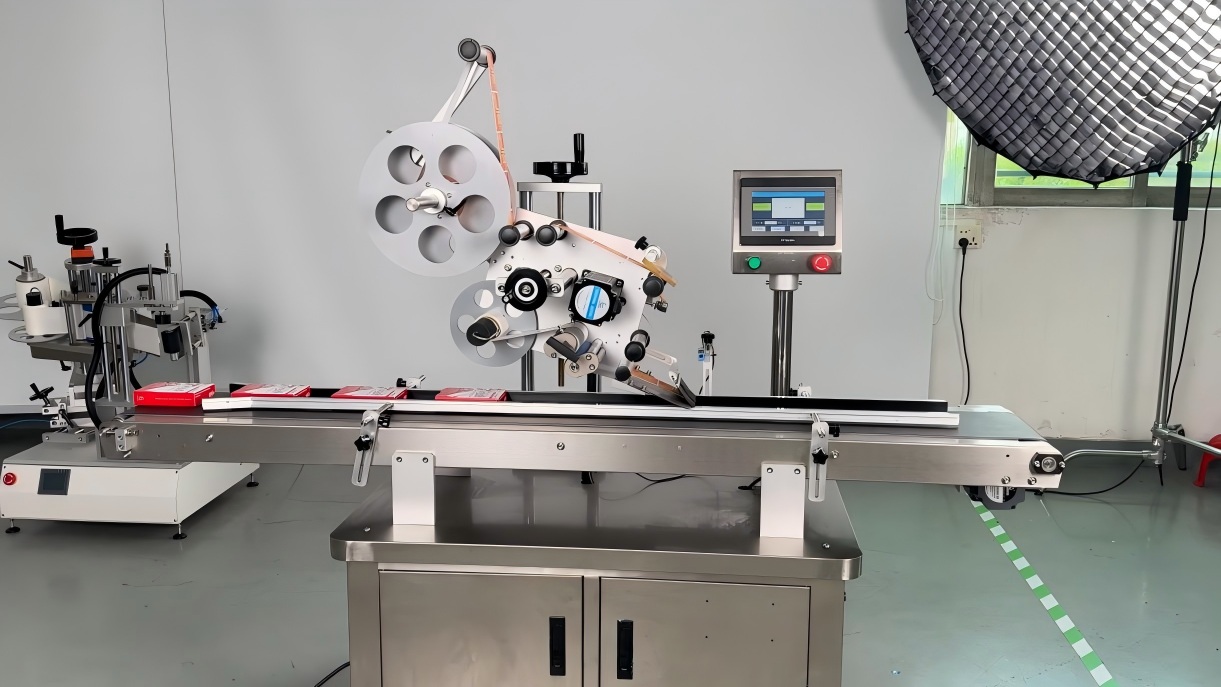

The supplied machine is a fully automatic box labeling machine suitable for color boxes, paper boxes, and cartons. In this application, it completed the full process from loading to finished output:
Automatic feeding
Automatic labeling
Automatic collection
The customer could place boxes continuously, and the machine labeled them smoothly without interruption.
Labeling speed: 100–200 pcs/min, depending on carton type and label size
Accuracy: ±0.5 mm
Label finish: smooth, flat, and well aligned
No wrinkling
No edge lifting
No obvious skewing
Highly consistent label position in batch production
Fast format changeover through manual adjustment for different box types
For manufacturers managing multiple SKUs, this flexibility is highly valuable. The customer later indicated that new flavors and new carton formats would also be considered for future cooperation with YCT.
Process Stage | Before: Manual Labeling | After: Automatic Box Labeling |
Feeding | Workers picked boxes one by one | Automatic feeding |
Label placement | Manual alignment, easy to vary | Stable automatic placement |
Appearance | Occasional wrinkles and crooked labels | Smooth, neat, consistent labeling |
Speed | Limited by operator pace | 100–200 pcs/min |
Batch consistency | Uneven from carton to carton | Uniform position across batches |
Scalability | Hard to handle larger orders | Better suited to mass production |
Delivery support | Schedule pressure during peak orders | Improved packaging throughput and shipment timing |
The most direct improvement was speed. Replacing hand labeling with a high-speed automatic box labeling machine increased carton throughput and reduced the labor intensity of the packaging process.
With ±0.5 mm accuracy, the machine produced much more consistent results than manual application, especially across larger runs.

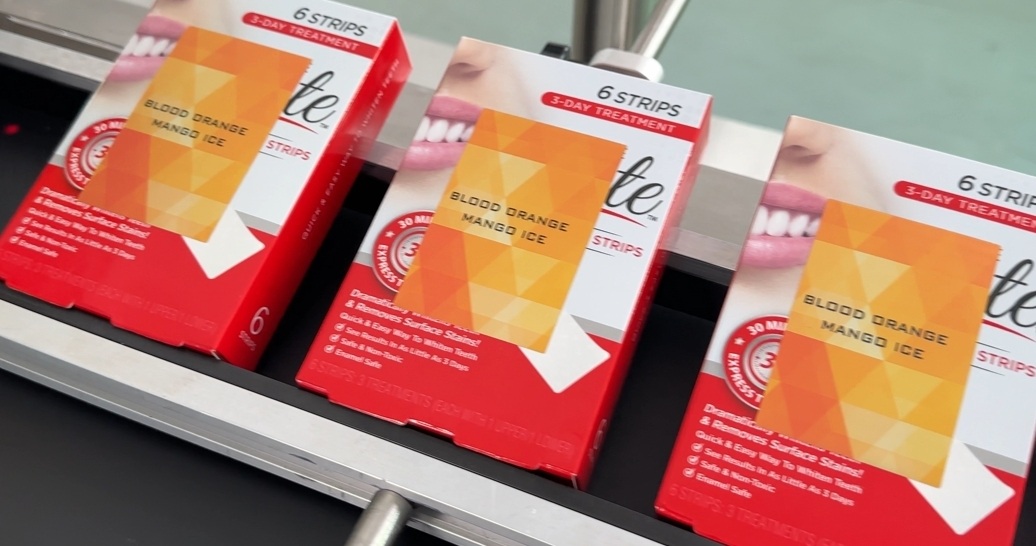

The labels were applied flat, without wrinkles or lifting, giving the whitening strip cartons a cleaner and more professional look.
Because the line could now process cartons faster and more consistently, the customer was in a stronger position to handle larger batch orders and meet shipment deadlines.
The machine allows manual adjustment for different box sizes, making it practical for product line extensions, new flavors, and future packaging updates.
After installation and production use, the customer reported that the machine was running stably, and that the label position remained uniform across batch production. The improvement in packaging efficiency and delivery lead time was significant.
They also mentioned that for future projects involving new flavors or new carton specifications, YCT Machinery would be one of their preferred suppliers.
Although this project involved teeth whitening strip cartons, the same labeling challenges are common in many industries that use folding cartons or paper boxes.
This type of fully automatic carton labeling machine is also suitable for:
oral care boxes
cosmetic cartons
personal care packaging
pharmaceutical boxes
healthcare retail cartons
consumer goods paper boxes
If your team is still labeling cartons manually, the same problems often appear:
slow output,
inconsistent appearance,
labor dependence,
and poor performance during large-volume orders.
That is why many manufacturers now move to automatic box labeling machines—not only to increase speed, but also to standardize packaging quality.
This project reflects several of YCT Machinery’s practical strengths in the packaging automation field:
Experience with labeling machines for boxes, bottles, and packaging lines
Sample-based testing before order confirmation
Machine adjustment based on actual product size and label position
Stable high-speed labeling performance
Accurate application up to ±0.5 mm
Flexible adaptation for different box formats
Support for export-oriented manufacturers and branded retail packaging
For overseas buyers, these factors are critical. A machine is not judged only by catalog specifications, but by whether it can run real products reliably in actual production.
For this oral care brand, switching from manual work to a fully automatic box labeling machine solved three major problems at once: speed, consistency, and packaging appearance.
By automating the labeling of teeth whitening strip cartons, the customer achieved:
faster packaging output,
more accurate label placement,
smoother label finish,
more consistent batch quality,
and improved delivery performance.
If you are currently labeling paper boxes, folding cartons, cosmetic boxes, pharmaceutical cartons, or oral care packaging by hand, this case shows how a properly configured carton labeling machine can improve both production efficiency and final package quality.
YCT Machinery can test your actual carton and label samples and recommend a suitable automatic labeling solution based on your product dimensions, label position, and speed target.
This machine is suitable for color boxes, paper boxes, and folding cartons, and can be adjusted for different box sizes within the applicable range.
For this project, the machine reached 100–200 pcs/min, depending on the carton format and label size.
Yes. In this case, the machine delivered ±0.5 mm accuracy and highly consistent label position across production batches.
Yes. One of the key improvements in this project was the elimination of common manual defects such as wrinkling, skewed application, and uneven label placement.
No. It is also suitable for cosmetics, pharmaceuticals, personal care products, and other retail carton labeling applications.
