Views: 0 Author: Amy Wang Publish Time: 2026-10-12 Origin: YCT Machinery
In condiment packaging, label appearance matters almost as much as production speed. For products sold through supermarkets, chain restaurants, and e-commerce channels, a wrap-around label that is crooked, wrinkled, or poorly aligned at the seam can weaken shelf presentation and slow down packing efficiency at the same time.
This case study shows how YCT Machinery helped a condiment manufacturer automate full wrap-around labeling for 280g salad dressing round containers using the YCT-60H High-Speed Automatic Rotary Round Bottle Labeling Machine. By replacing slow manual labeling with a stable high-speed rotary solution, the customer achieved cleaner seam alignment, eliminated a separate coding step, improved shipping efficiency, and reduced labeling labor from 3 operators to 1.
A condiment manufacturer producing salad dressing, salad sauce, and other seasoning products needed to replace manual wrap-around labeling for 280g round containers. The manual process was slow, seam alignment was often inconsistent, labels could wrinkle or shift, and batch code plus shelf-life printing required a separate step. After about three weeks of communication, the customer sent a manual labeling video along with container and label samples. Based on those samples, YCT Machinery adjusted the machine configuration and tested the application on a YCT-60H High-Speed Automatic Rotary Round Bottle Labeling Machine. Once the customer confirmed the test effect, they placed the full-payment order within two weeks. The final solution delivered automatic bottle feeding, automatic labeling, in-line ribbon coding, and automatic bottle collection, with actual production reaching 180 containers per minute.
Item | Details |
Customer type | Condiment manufacturer |
Main products | Salad dressing, salad sauce, and multiple seasoning SKUs |
Sales channels | Supermarkets, chain restaurants, e-commerce |
Lead source | Referred by a friend |
Communication period before order | About 3 weeks |
Machine model | YCT-60H High-Speed Automatic Rotary Round Bottle Labeling Machine |
Container type | 280g round container |
Approx. container size | Diameter about 90 mm, height about 120 mm |
Labeling requirement | Full wrap-around labeling with neat seam alignment |
Extra function | Ribbon coding for batch number and shelf life |
Actual production speed | Up to 180 containers/min |
Main result | About 3x output increase, labor reduced from 3 people to 1 |
The customer is a seasoning and condiment manufacturer producing products such as salad dressing and salad sauce, with multiple flavors and packaging specifications. Their finished products are supplied to:
supermarkets,
chain foodservice customers,
and e-commerce channels.
Because the customer handles multiple SKUs and frequent shipments, packaging consistency is extremely important. Labels need to be visually clean, coding must be readable, and changeovers must be practical when switching between different product specifications.
That is exactly where manual labeling had become a bottleneck.
This project came through a friend’s referral, which created the initial trust. But the order was not placed immediately.
During the first stage, the customer and YCT Machinery communicated for around three weeks. To explain the real problem clearly, the customer sent:
a video of their current manual labeling process,
a sample of the 280g salad dressing round container,
and the actual label sample.
This gave the engineering team a practical basis for evaluating the application, rather than discussing only general parameters.
The customer’s main requirement was not just “apply a label on a round bottle.”
They specifically needed:
a full wrap-around label around the container body,
a clean and consistent seam where the label ends meet,
high-speed operation for volume production,
and batch code / shelf-life printing without adding another manual step.
After reviewing the samples, YCT Machinery adjusted the machine around the real container and label structure, ran a test, and sent the test video back to the customer for confirmation.
The result was convincing enough that the customer arranged full payment within two weeks after seeing the test effect.
Before automation, the customer was using a manual labeling process for the salad dressing round containers.
That created several obvious problems.
Workers had to pick up containers one by one, align them manually, and apply the wrap-around label by hand. This limited production speed and created pressure when order volume increased.
Because full wrap-around labeling depends heavily on positioning, the label seam often failed to line up neatly. That reduced packaging consistency, especially across large batches.
Manual application made it easier for labels to wrinkle, shift, or tilt during application, especially when operators became fatigued.
Batch number and shelf-life information had to be printed separately, which added another process and increased the chance of mistakes when production became busy.
As production volume rose, the manual process struggled to keep up with deadlines. This affected not only efficiency, but also overall shipment planning.
For companies shipping condiment products into retail channels, these are not small issues. They directly affect:
packaging appearance,
production cost,
coding consistency,
and on-time delivery performance.
Round containers can look simple, but full wrap-around labeling is one of the applications where small positioning errors are easy to see.
When customers want a full-body label around a cylindrical package, they often care about:
label tension,
seam alignment,
wrinkle control,
placement consistency,
and stable container rotation during application.
At higher speeds, these requirements become even more critical.

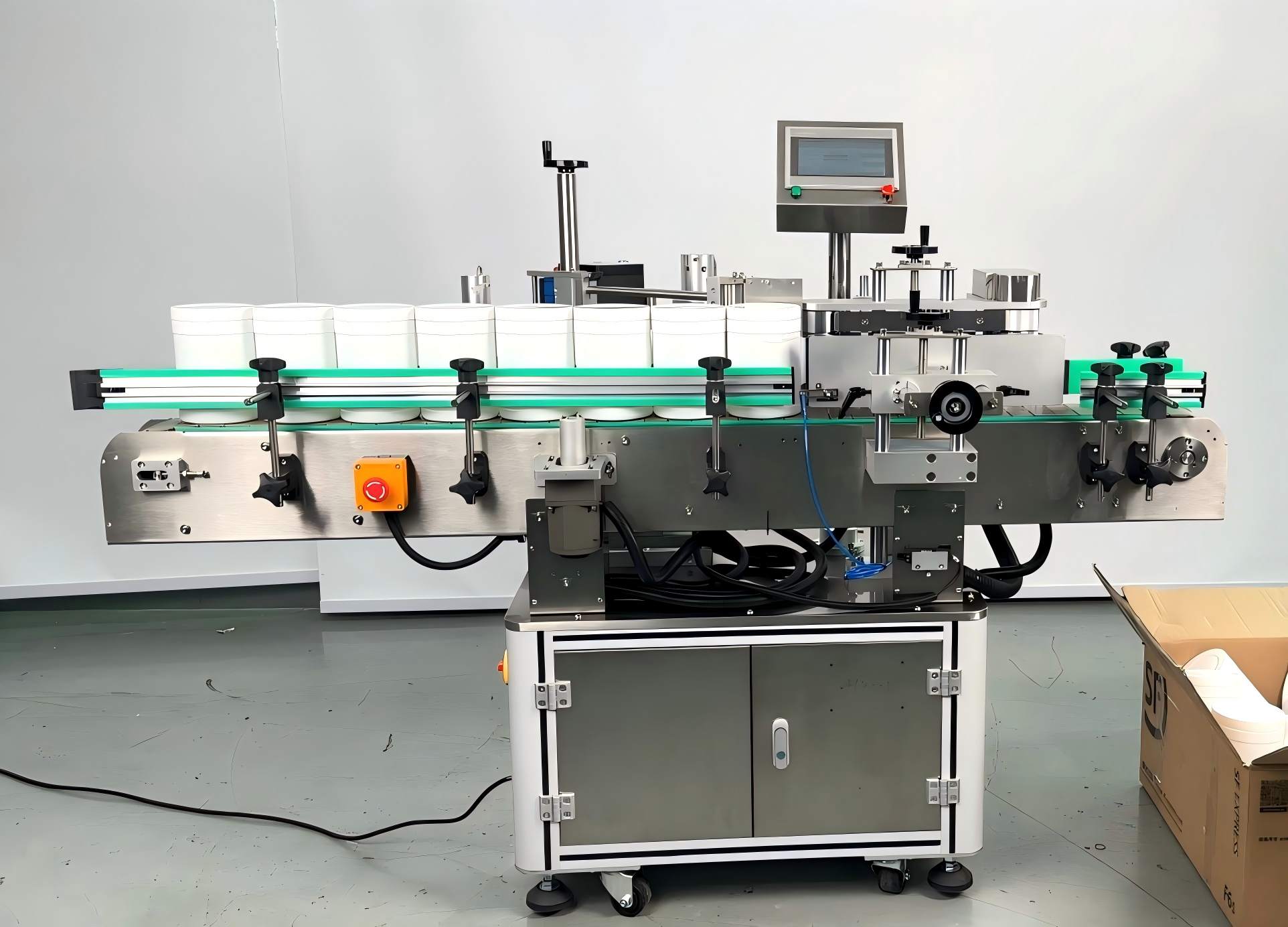

That is why YCT Machinery recommended using the YCT-60H High-Speed Automatic Rotary Round Bottle Labeling Machine, a platform designed specifically for stable rotary wrap-around labeling.
According to the product configuration, the YCT-60H is suitable for:
high-speed wrap-around and semi-circle labeling
70–200 pcs/min
application-dependent accuracy up to ±0.5 mm
round containers with diameters from φ25 mm to φ100 mm
with customization available for larger sizes
It is also suitable for industries such as:
beverages,
pharmaceuticals,
cosmetics,
food packaging,
and condiment products like sauces and dressings.
Based on the customer’s actual container and label samples, YCT Machinery adjusted the machine configuration to match the real application.
The conveyor width was tuned based on the container size so that the 280g round containers could move steadily through the machine without instability.

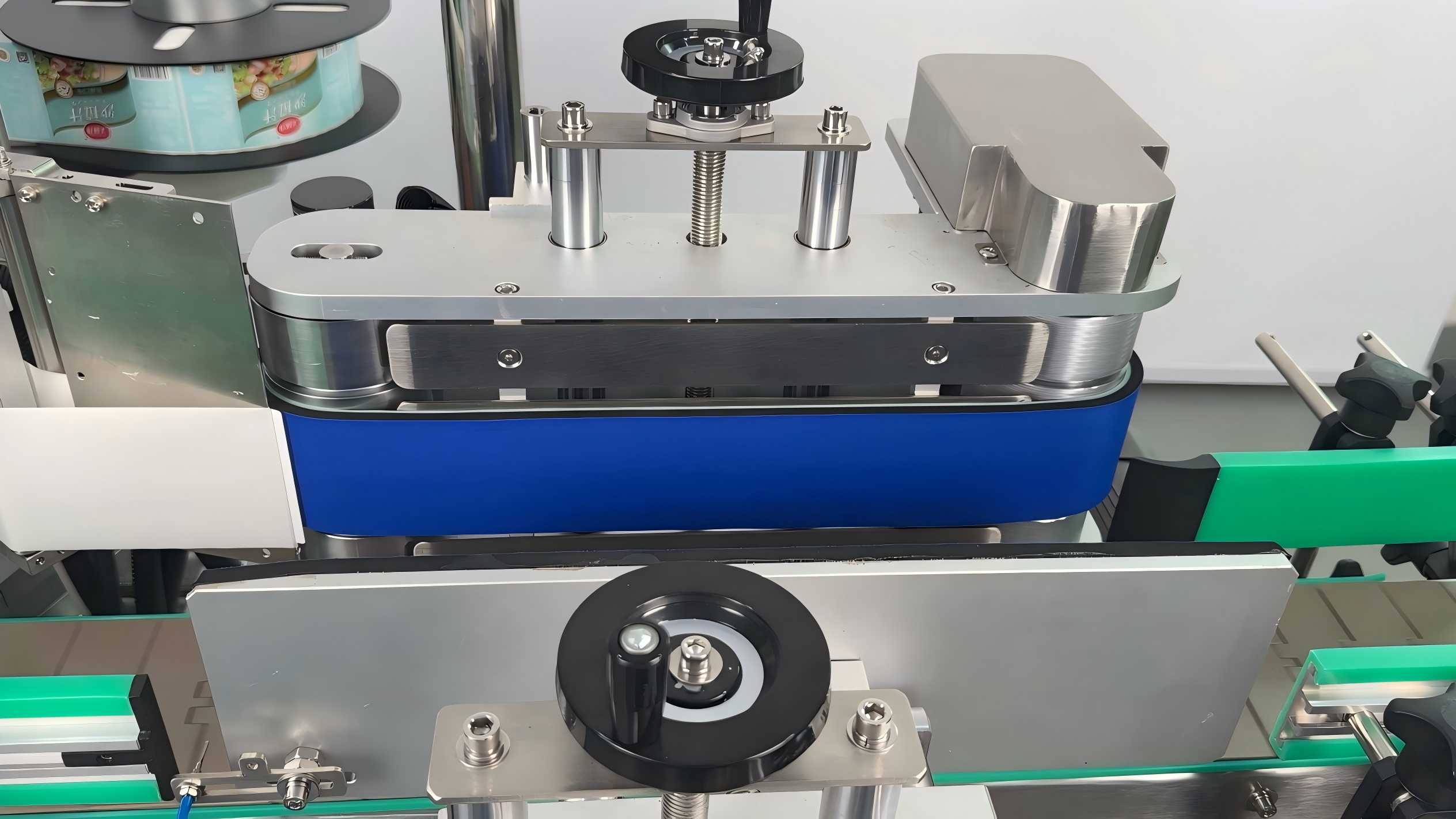

The labeling head angle was optimized according to the wrap-around label structure and application position, helping improve label contact and final seam consistency.
The pressing mechanism was tuned to improve adhesion during wrap-around labeling, helping the label lie flat on the container body without wrinkling or edge lifting.
Instead of relying only on theoretical matching, YCT Machinery tested the application with the actual round containers and labels provided by the customer. A test video was then sent back for confirmation before the order was finalized.
This process reduced risk for the customer and made the project much easier to approve internally.
Still unsure whether your round container can achieve a clean full-wrap seam?
Send your container diameter, height, label size, and coding requirements to YCT Machinery. We can evaluate your project based on real samples and the YCT-60H.

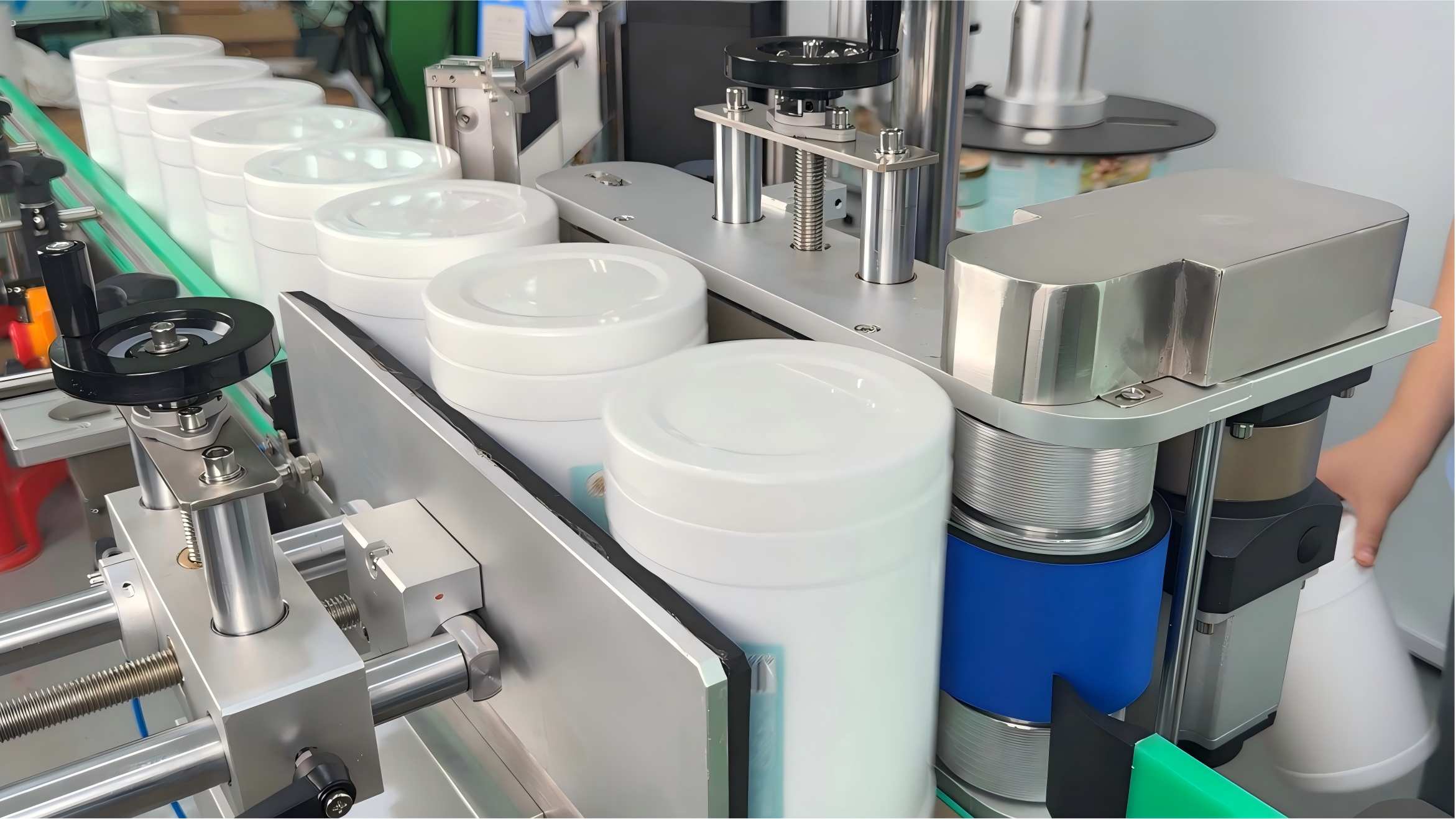

For this salad dressing application, the YCT-60H delivered a complete automated process including:
automatic bottle arranging / feeding
automatic labeling
automatic bottle collection
in-line ribbon coding
The machine could be loaded continuously for smooth ongoing production, and the labeling process ran without container jamming.
In this customer’s factory, the machine achieved:
labeling speed of 70–200 pcs/min
actual running speed up to 180 containers/min
labeling accuracy around ±1 mm in this application

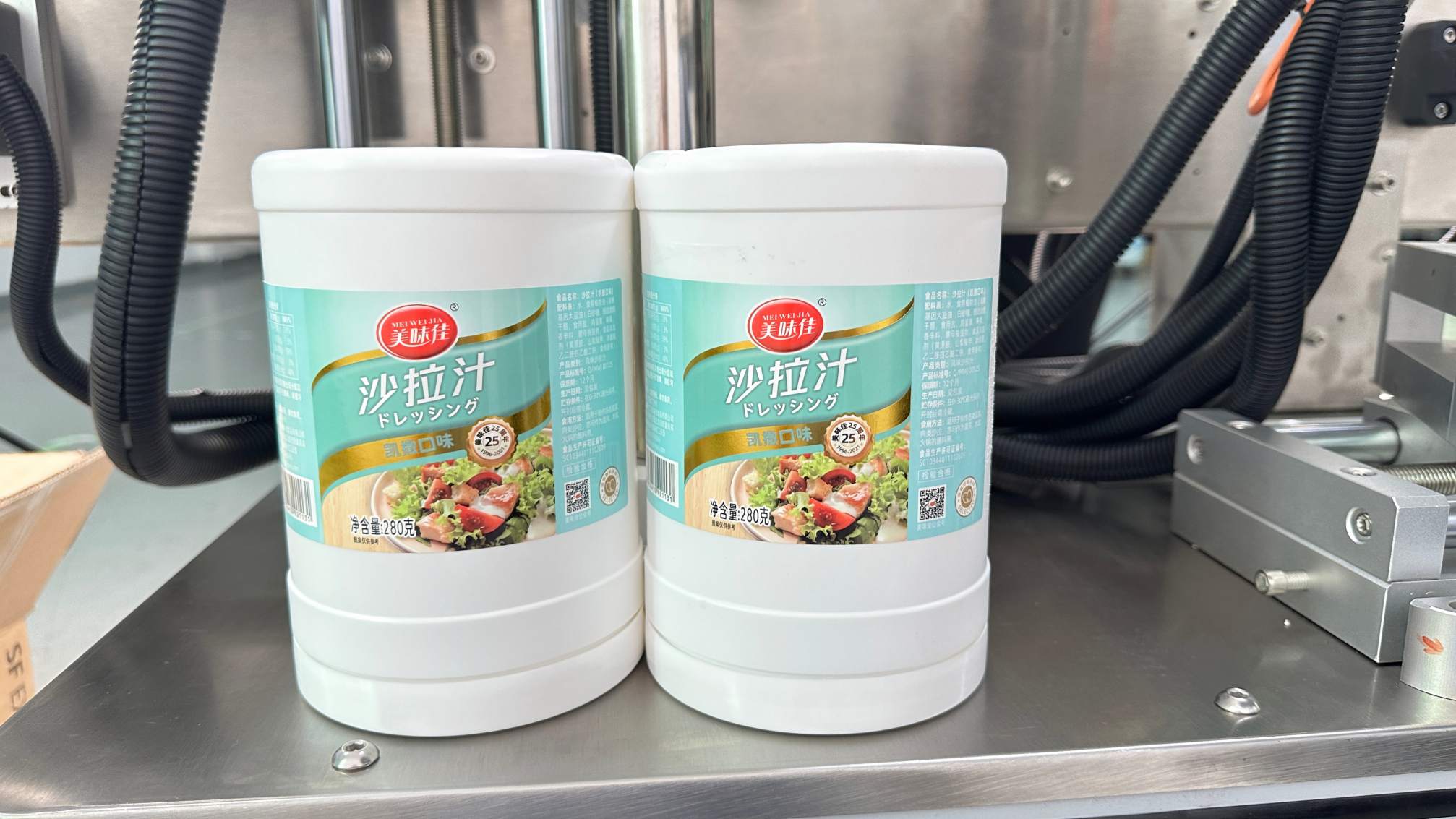

smooth, wrinkle-free label application
no obvious edge lifting
neat full wrap-around seam alignment
consistent label height across batch production
This was a major improvement over the previous manual process.
Another important part of the project was the addition of a ribbon coding machine.
Instead of labeling first and coding later, the machine could print the batch number and shelf-life information during the labeling process itself.
That brought several practical benefits:
one less standalone process,
fewer handling steps,
lower risk of coding mistakes,
and better overall line efficiency.
For food and condiment packaging, combining labeling and coding is often a strong value point because it simplifies traceability-related tasks while maintaining production speed.
Because the customer has multiple flavors and specifications, machine flexibility also mattered.
The configured system supports manual adjustment for different container diameters, allowing the customer to switch between packaging sizes without excessive downtime. This is especially useful for condiment producers that regularly introduce:
new flavors,
promotional packs,
or updated container formats.
For buyers comparing automation options, this kind of changeover practicality can be just as important as top speed.
This project delivered clear operational results.
The customer reported that labeling productivity increased by about three times compared with the previous manual method.
The labeling station was reduced from 3 operators to 1, cutting labor demand while improving consistency.
Full wrap-around seam positioning became much more uniform, which improved visual quality for retail presentation.
The customer reported that label positions stayed consistent across volume production, which is critical for professional packaging appearance.
With a much more efficient labeling and coding process, the customer significantly improved packaging efficiency and shipment lead-time performance.
After seeing stable machine performance, the customer indicated that new flavor and new container projects would also give priority to YCT Machinery.
That is often the strongest sign of project success: not just satisfaction with one machine, but confidence in future cooperation.
The YCT-60H High-Speed Automatic Rotary Round Bottle Labeling Machine is a strong fit for this kind of application because it is built around rotary positioning and stable round-container handling.
Compared with more basic linear solutions, the rotary structure helps reduce:
bottle wobbling,
label misalignment,
wrinkles,
and instability at higher speeds.
For wrap-around labeling on condiment containers, that matters a lot. The project showed that when the machine is properly adjusted to the actual container and label, it can deliver both:
high output
and clean retail-ready appearance
That combination is exactly what many food and condiment manufacturers need.
This case is especially relevant for companies packaging:
salad dressing,
sauces,
condiments,
honey,
seasonings,
and other round-container food products.
If you are still relying on manual wrap-around labeling, you may be facing the same issues this customer had:
slow labeling speed,
inconsistent seams,
wrinkles or crooked labels,
separate coding steps,
too many operators on one station,
difficulty keeping up with delivery schedules.
In those situations, a properly matched high-speed rotary round bottle labeling machine can solve much more than just “sticking labels on.” It can improve the entire end-of-line packaging process.
For this condiment manufacturer, manual labeling was no longer enough for volume production of 280g salad dressing round containers. The process was too slow, seams were often inconsistent, labels could wrinkle, and coding required an extra step.
By working with YCT Machinery, the customer moved to a solution built around the YCT-60H High-Speed Automatic Rotary Round Bottle Labeling Machine. After sample-based testing and machine adjustment, the final setup delivered:
automatic bottle feeding,
automatic wrap-around labeling,
in-line ribbon coding,
automatic bottle collection,
neat full-wrap seam alignment,
and actual output up to 180 containers per minute.
The result was about 3x higher capacity, a reduction from 3 labeling operators to 1, more stable batch production, and stronger confidence for future container projects.
For food and condiment manufacturers looking to improve speed, appearance, and coding efficiency at the same time, this is exactly the kind of upgrade that creates measurable value.
If you are still applying wrap-around labels by hand, or if your current machine cannot keep seams straight at higher speeds, YCT Machinery can help you evaluate a better solution.
To get a faster recommendation, send the following to YCT Machinery:
container diameter and height
label length and width
whether you need full wrap-around labeling
target speed
batch code / shelf-life printing requirements
photos or video of your current production line
samples of your container and label if available
You can also review the product here:
YCT-60H High-Speed Automatic Rotary Round Bottle Labeling Machine
Need clean seam alignment on round containers at high speed?
Talk to YCT Machinery about a rotary wrap-around labeling solution matched to your actual container and label.
Still losing time on manual labeling and separate coding?
Ask YCT Machinery how the YCT-60H can combine high-speed labeling with in-line batch and shelf-life printing.
Want proof before ordering?
Send your samples to YCT Machinery for application testing and video confirmation before production.
The customer used the YCT-60H High-Speed Automatic Rotary Round Bottle Labeling Machine from YCT Machinery.
The application was for 280g salad dressing round containers used in condiment packaging.
The customer wanted to replace slow manual full wrap-around labeling that caused seam misalignment, wrinkles, skewed labels, and a separate coding step.
Yes. The customer sent the actual container and label samples, and YCT Machinery tested the application and provided a video for confirmation.
The machine platform supports 70–200 pcs/min, and in this customer’s actual production, the line ran at up to 180 containers per minute.
Yes. In this project, the machine was equipped with a ribbon coding machine so the batch number and shelf life could be printed during labeling.
Yes. The machine can be manually adjusted for different container diameters, making it suitable for customers with multiple product specifications.
